out board carbs? 6 pack tuning

davek

FBBO Gold Member
FBBO Gold Member
Local time
5:02 PM
Joined
Oct 14, 2017
Messages
6,413
Reaction score
6,209
Location
columbia SC
How do you remove the lead plugs at the base of the outer carbs on the 6 pack setup? would 1/2 turn out be the base to start at? thanks.


David Stillie

Well-Known Member
Local time
5:02 PM
Joined
Jul 9, 2017
Messages
184
Reaction score
165
Location
Ailsa Craig Ontario
A quarter turn from stock is plenty.
Be careful when removing the plugs that you don't turn the screws. I'm no expert, but I have found that the screws are very sensitive. Much more than the center carb.


biomedtechguy

Accelerati Rapidus Maximus
FBBO Gold Member
Local time
4:02 PM
Joined
Mar 28, 2014
Messages
28,791
Reaction score
42,389
Location
South Louisiana
when removing the plugs that you don't turn the screws!!!... the screws are very sensitive. Much more than the center carb.
Yes, yes they are!

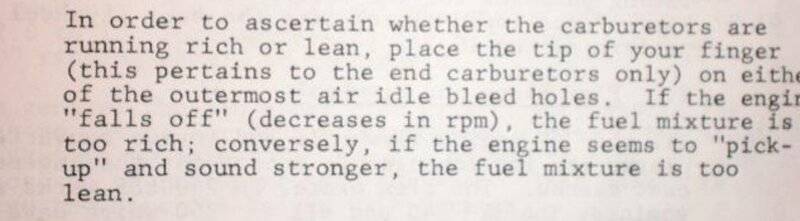

THIS is THE definitive explanation for adjusting the idle mixture screws on the outboard carbs:

Buy THIS and be done with the struggle of trying to tune the REAR carb on the car:


70sixpkrt

Well-Known Member
Local time
4:02 PM
Joined
Jul 18, 2008
Messages
312
Reaction score
152
Location
S. San francisco, Ca

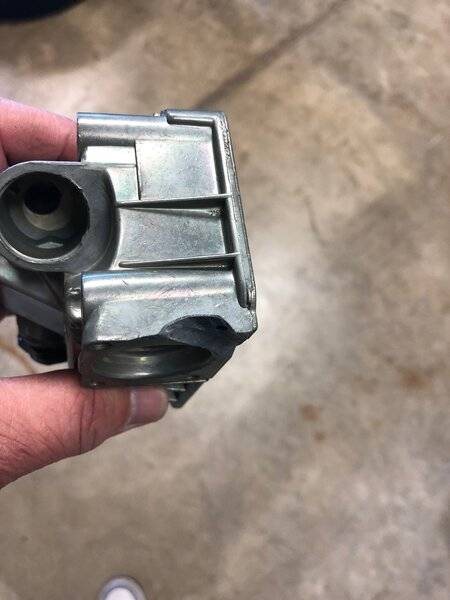

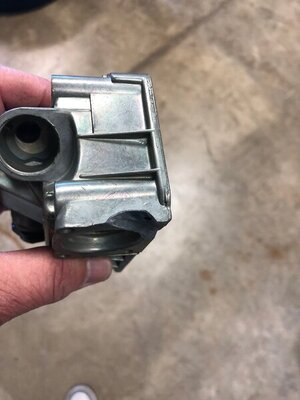

Even with the Promax base plate, you still need to grind the float bowl for the screw driver access.



biomedtechguy

Accelerati Rapidus Maximus
FBBO Gold Member
Local time
4:02 PM
Joined
Mar 28, 2014
Messages
28,791
Reaction score
42,389
Location
South Louisiana
Tune the outer carbs from the front position.
Do the rear first, swap them, then tune the front.
That is an option, but with the amount of tuning I have had to do initially, and with all of the future tuning I'm going to have to do what with the Weiand 6bbl intake, and stroker motor plans, I wish I would have had the angled idle mixture screws throttle plate as one of my first purchases years ago.


440+6

FBBO Gold Member
FBBO Gold Member
Local time
5:02 PM
Joined
Oct 2, 2012
Messages
3,602
Reaction score
3,503
Location
Michigan

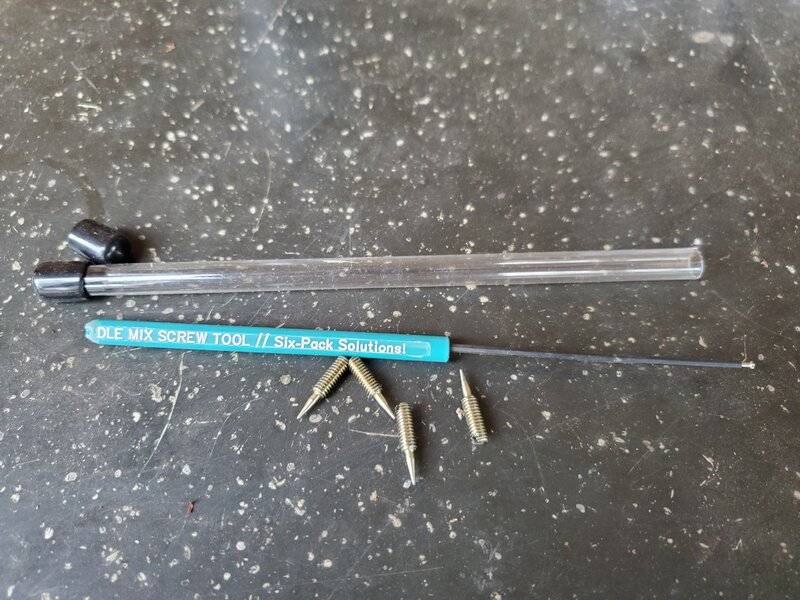

This works great, replace the idle screws with Allen head type and adjust no problem.
Bought the kit from a fbbo member many years ago, very inexpensive.
Don't need expensive base plates or carb swapping ( swapping front to back is close and has been done forever, but this is a bit more accurate imo).
I've posted this quite a few times when outboard tuning comes up, guess it's not catching on.


Last edited:

biomedtechguy

Accelerati Rapidus Maximus
FBBO Gold Member
Local time
4:02 PM
Joined
Mar 28, 2014
Messages
28,791
Reaction score
42,389
Location
South Louisiana
I had other business with Promax, and it was very comprehensive, parts and labor, so the angled idle mixture screws throttle plate made a lot of sense to me.
