Pinion angle help

olblue68

Member
Local time
5:16 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord
I just bought a 68 Coronet 440/727/8 3/4 that has set in the garage for 10 years due to some electrical problems.

I have got it back on the road but due to sitting way to high in rear I removed the helper springs and installed 1.5 lowering blocks and 1.5 degree shims and it has vibrations at 30 mph and up.

I never drove it before lowering it, I had driveshaft balanced with new ujoints. There is no play in output shaft and pinion bearing feels fine. The engine and Trans mounts are good torque convertor bolts are tight.

I ran car on jackstands with no wheels or brake drums and vibration still there.

The pinion angle is 3 down at Trans 3 up at rear and .5 center of driveshaft.

Help :)


Lefty71

FBBO Gold Member
FBBO Gold Member
Local time
5:16 AM
Joined
Mar 8, 2018
Messages
2,869
Reaction score
3,113
Location
Ohio
I have to grab the bag of popcorn on this one because I'm right about to the point where I need to check mine....
My understanding is that the front should be 2.5 degrees or less, but not zero.... the rear could be 2-5 degrees nose down depending on suspension and use. These numbers are in relation to the driveshaft, not to the level ground.
I do not understand what you mean by driveshaft at .5.
Hopefully someone that does this often will chime in.....
Also, bear in mind, vibration could potentially be unrelated to this setup of the rear suspension.
Oh, and welcome to the group. Pix are required lol. :drinks:


33 IMP

Well-Known Member
Local time
2:16 AM
Joined
Dec 21, 2017
Messages
8,859
Reaction score
12,754
Location
taxifornia,soon 2b Arizona.
Which way have you got the shims? If they aren't now, I would put them in to put the nose of the rear down.
Whichever way they are, changing them is a no-cost experiment.
And I'd try it without the lowering blocks too.
Mine, with SS springs.




Last edited:

olblue68

Member
Local time
5:16 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord
Actually did shims both ways and then took them out and nothing changed

I am truly in love with this car but it is killing me


Gus chiggins

Well-Known Member
Local time
5:16 AM
Joined
Jan 14, 2021
Messages
674
Reaction score
675
Location
Florida
Which way have you got the shims? If they aren't now, I would put them in to put the nose of the rear down.
Whichever way they are, changing them is a no-cost experiment.
And I'd try it without the lowering blocks too.
Mine, with SS springs.

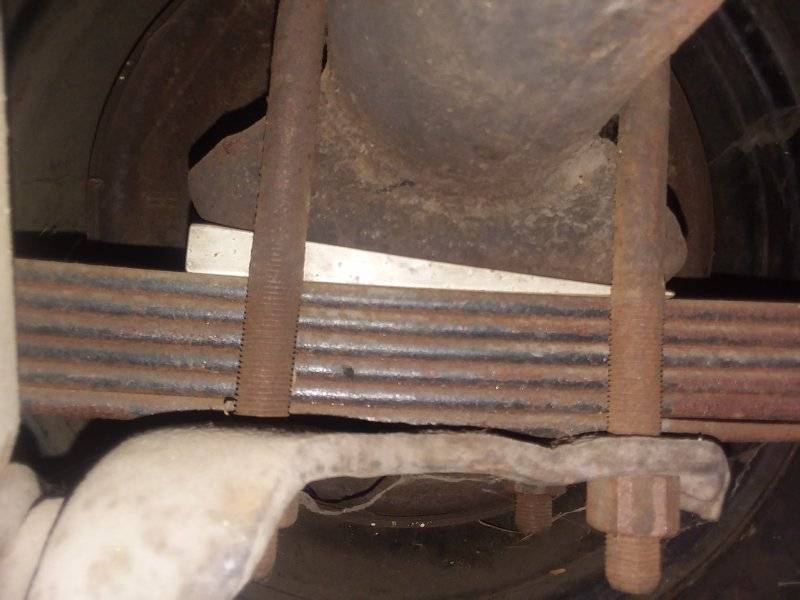

View attachment 1342384

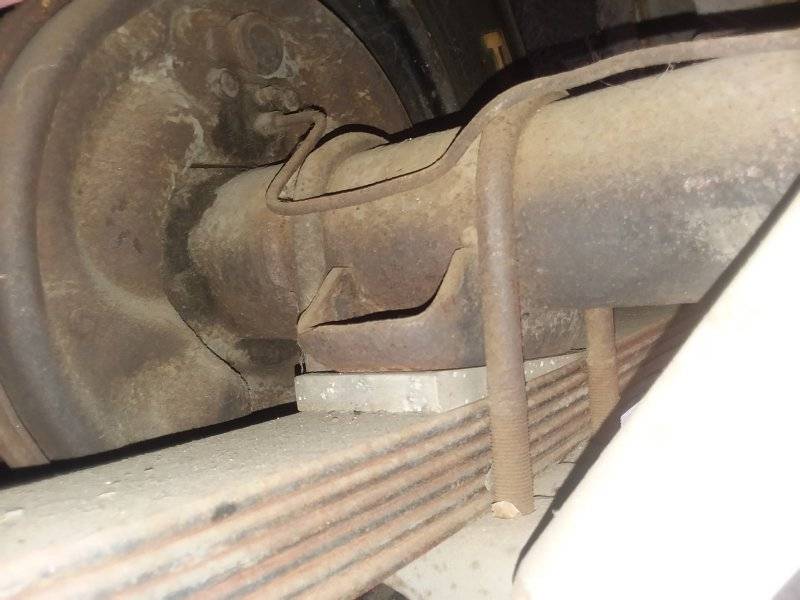

View attachment 1342385
Never like lowering blocks. Maybe it's just me, but it felt like driving a mack dump truck.


olblue68

Member
Local time
5:16 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord
Lefty the driveshaft was only .5 degrees down at the center which pretty sure that means it needs more angle

Here she is







69L48Z27

Well-Known Member
Local time
5:16 AM
Joined
Nov 19, 2015
Messages
3,699
Reaction score
3,962
Location
York, Pa
Tremec has an iPhone app to check driveline angles. Uses the built in level function of the phone, tells you where to place it then tap to record. Once you do all three places it will give you feedback of what’s good and what’s bad.

I would run the pinion nose down 4-5 degrees. The trans and pinion are all relative to height of each. Lowering blocks can change that relatively. Having 1.5-3* at each intersection is what you want. Straight and over 5* are where problems start.


Lefty71

FBBO Gold Member
FBBO Gold Member
Local time
5:16 AM
Joined
Mar 8, 2018
Messages
2,869
Reaction score
3,113
Location
Ohio
was only .5 degrees down at the center which pretty sure that means it needs more angle
To put it a different way.... how is the trans shaft angle in relation to the pinion angle?? Parallel, like on the same plane but at different heights now? Beautiful car BTW.


66/440

Well-Known Member
Local time
4:16 AM
Joined
Dec 20, 2010
Messages
257
Reaction score
208
Location
TEXAS
Did you remove the drive shaft when you did the work? Is the drive shaft phased correctly?


69 Sleeper Bee

Well-Known Member
Local time
5:16 AM
Joined
Feb 18, 2021
Messages
4,475
Reaction score
18,433
Location
Tallahassee Florida
Looking at your cars ride height now why would you need shims at all ?
Do lowering block kits say to add them ?


olblue68

Member
Local time
5:16 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord
Looking at your cars ride height now why would you need shims at all ?
Do lowering block kits say to add them ?
I originally ran without shims and had the vibration so did shims hoping that would fix it which it didn't


olblue68

Member
Local time
5:16 AM
Joined
Jun 24, 2022
Messages
15
Reaction score
13
Location
concord
To put it a different way.... how is the trans shaft angle in relation to the pinion angle?? Parallel, like on the same plane but at different heights now? Beautiful car BTW.
pretty sure mine is like the top one right now



hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
4:16 AM
Joined
Jul 15, 2009
Messages
9,494
Reaction score
9,578
Location
WI
Did you remove the drive shaft when you did the work? Is the drive shaft phased correctly?
What do you mean by "phased correctly"? Flip it 180 in the pinion yoke I am guessing? I have never heard anybody having to do that with a balanced driveshaft.


FrankenBee

Member
Local time
5:16 AM
Joined
Feb 23, 2021
Messages
12
Reaction score
5
Location
Sault Ste. Marie, Ontario, Canada
pretty sure mine is like the top one right now

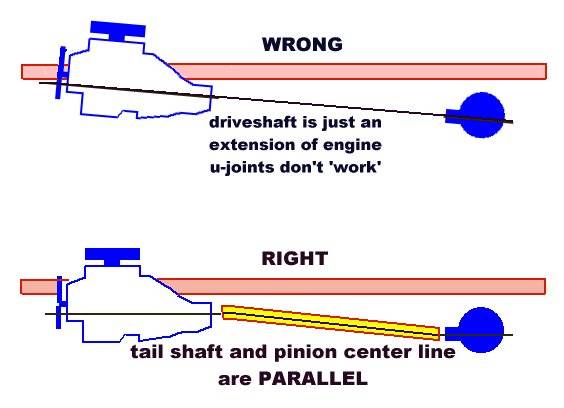

View attachment 1342493
The lower picture is definitely what you want to strive for. It is important that the center line of the Engine/Transmission centerline is relatively parallel to the centerline of rear differential. For drag racing, you would point the pinion down slightly to account for axle windup under full send, but not necessary on a street car. Axle windup, or a pinion angle that is pointed too far upwards will generally cause a shudder under moderate to hard acceleration from a stop. This being said, it is definitely best to have a little bit of working angle in the U-joints. For process of elimination, make sure the weight of the car is on the rear axle when checking the pinion angle, as with leaf springs the angles will change through the arc of travel. If you have done this and there is not enough working angle in the joints, you could shim the transmission up and rotate the pinion down accordingly. If the vibration still exists, it could be in the shaft, one of the rear axles, or wheels. Phasing of the u-joints refers to the "Clocking" of the saddles welded to the shaft, they should be oriented at 90 degrees to one another. I have seen where shafts have been cut and welded and the saddles are inline, or at a random orientation and this will definitely produce a vibration. Hope this helps.


INTMD8

Well-Known Member
Local time
4:16 AM
Joined
Apr 17, 2017
Messages
486
Reaction score
522
Location
Lake Villa IL
How about some photos of your angle checking?

Don't see how pinion can be 3deg down, trans 3deg up but also looks like the first photo which is opposite.

Top
