    Trying to take apart the power steering gear to rebuild while i wait for my 727 parts

    im hammering this thing with all my might but it didnt budge.

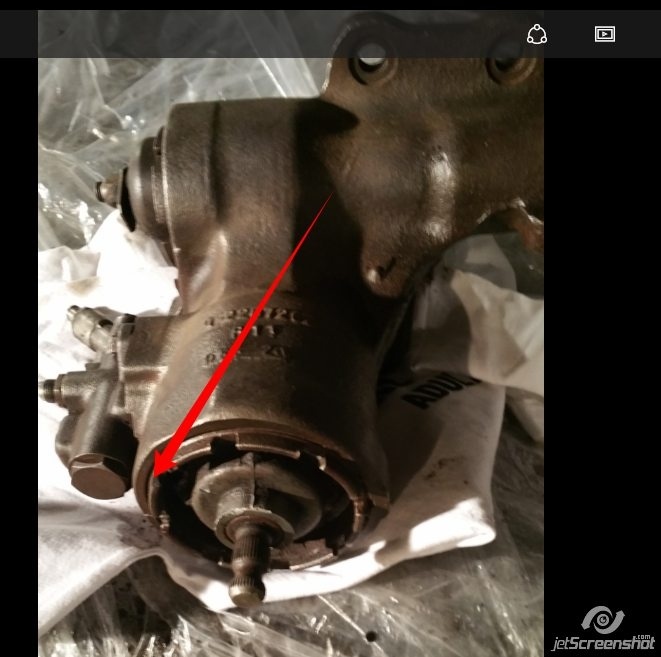

    so i thought id ask here if im doing it correctly. please see the picture. im trying to wack it there so the cover will unscrew off

    the other side i would do the same but havent tried that one yet.

    thx

    2016-09-12_13-09_jpg - Photos.jpg

    Last edited: Sep 12, 2016
  2. ws23jrt

    ws23jrt FBBO Gold Member FBBO Gold Member

    Messages:
    7,393
    Likes Received:
    9006
    Joined:
    Jul 21, 2013
    Location:
    Oregon
    Local Time:
    9:41 AM
    Trying to remove that nut as you say by "whacking " it in one of the slots is likely to just damage the slot. That is a thin wall large dia. nut and applying force to all or most of the slots at the same time is needed.
    You should try to find the right socket made for that. (perhaps rent it)
    BTW you called that a "power steering pump" It's the steering gear. Do you have a FSM? Rebuilding one of those for the first time without a FSM to guide you will be a challenge.

    • Agree Agree x 1
    • velrob

      velrob Well-Known Member

      Messages:
      488
      Likes Received:
      71
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      12:41 PM
      ya i realized after i called it a pump and it was the gear but didnt bother to change the posting

      i was able to get it off finally.

      but the slot did get damaged a bit as seems they are fairly soft, i used some angle angle to get into the slot as best as possible and it finally turned

      do you mean there is a special socket for that large circular part? i didnt know that i saw some guys unwind it by using a pipe or such and hitting it with a hammer with the pipe in one of the slots. i never seen a socket that large before, do you have a link for one? maybe i can find one for the other smaller side.

    • 69a100

      69a100 Well-Known Member

      Messages:
      6,637
      Likes Received:
      8850
      Joined:
      Aug 22, 2012
      Location:
      The Real World
      Local Time:
      9:41 AM
      You obviously didn't read this last sentence as well as not having a FSM at your disposal with that comment. Just sayin

    • velrob

      velrob Well-Known Member

      Messages:
      488
      Likes Received:
      71
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      12:41 PM
      Sorry im not a pro so i did search google for an FSM brough up a ton of other stuff unrelated, hence why I asked for a link, just sayin.

      I searched for "FSM tool" and "FSM power steering box" "FSM power steering gear"

      all ended up useless results. but i already took it off thank.
      just sayin.

      Last edited: Sep 12, 2016
    • ws23jrt

      ws23jrt FBBO Gold Member FBBO Gold Member

      Messages:
      7,393
      Likes Received:
      9006
      Joined:
      Jul 21, 2013
      Location:
      Oregon
      Local Time:
      9:41 AM

      On the other hand--a google search may just bring up the FSM you need.
      This is what you need. I did the google search thing for you.https://www.amazon.com/Repair-Manual-Reprint-Charger-Coronet/dp/B00435JX2O

      I just picked 69 as a year but for what you are working on it's got what you need to know for your task. The price might seem high just to get info for the steering gear but if you get one for the year and make of the car you have it is a good/cheap investment worth many times the price.

      Last edited: Sep 12, 2016
    • ws23jrt

      ws23jrt FBBO Gold Member FBBO Gold Member

      Messages:
      7,393
      Likes Received:
      9006
      Joined:
      Jul 21, 2013
      Location:
      Oregon
      Local Time:
      9:41 AM
      BTW getting the nut off does not mean you are home free. Taking it apart further without knowing what's up can cost you several times the cost of the FSM.--Just sayin--

    • velrob

      velrob Well-Known Member

      Messages:
      488
      Likes Received:
      71
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      12:41 PM
      i didnt know what FSM abbreviation stood for so i thought it was a tool

      but it seems you meant full serivce manual. i didnt think to look in there for a guide for the box

      thanks alot. i took a look just now and see some information there. i will read it over, thanks.

    • ws23jrt

      ws23jrt FBBO Gold Member FBBO Gold Member

      Messages:
      7,393
      Likes Received:
      9006
      Joined:
      Jul 21, 2013
      Location:
      Oregon
      Local Time:
      9:41 AM

      FSM = Field service manual---Sorry for not making that more clear.
      I'm one of those old guys that grew up with these cars and tend to forget that people new to them can use a leg up to bypass the falls we made.

      You will find details of great value for the whole car--thus the value of having one on hand that includes the car you have.
      You are welcome:thumbsup:

      Last edited: Sep 12, 2016
    • Beekeeper

      Beekeeper Well-Known Member

      Messages:
      1,801
      Likes Received:
      1021
      Joined:
      Jul 4, 2012
      Location:
      Rogersville,TN.
      Local Time:
      11:41 AM
      You can download the whole FSM for free at mymopar.com

    • velrob

      velrob Well-Known Member

      Messages:
      488
      Likes Received:
      71
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      12:41 PM
      mymopar only has the body manual :) i looked there way back when i just got the car. i had to buy it off ebay.

      but i guess i could of even looked at 2nd gen charger manual since the steering box i guess is the same.

      looks like i can use a spanner wrench to take off the other one so im looking for one good to have also

    • dvw

      dvw Well-Known Member

      Messages:
      4,311
      Likes Received:
      5780
      Joined:
      Feb 16, 2010
      Location:
      waterford mi
      Local Time:
      12:41 PM
      A power steering gearbox rebuild is not for the beginner. If you just want to reseal it that's one thing. A rebuild and make it perform like new,send it out. I was a front suspension dealer tech with 25 years of experience. There are internal parts you have no access to purchase to improve the feel. I build almost everything engines, trans, axle, body sheet metal, roll cages and personally wouldn't even bother to do my own.
      Doug

    • velrob

      velrob Well-Known Member

      Messages:
      488
      Likes Received:
      71
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      12:41 PM
      i just want to reseal it and clean it up. still to difficult ?

    • rakort

      rakort FBBO Gold Member FBBO Gold Member

      Messages:
      672
      Likes Received:
      287
      Joined:
      Oct 4, 2014
      Location:
      Wisconsin
      Local Time:
      11:41 AM
      please fix this "gear vs pump" problem. It will help other interested parties. I'm about to take on a similar task, but going to focus on resealing the unit vs taking it apart and gawd knows what happens then.

    • velrob

      velrob Well-Known Member

      Messages:
      488
      Likes Received:
      71
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      12:41 PM
      ive fixed the original message :)

      i was reading the service manual trying to understand it. looks like the 69 charger manual has much better pictures than mine so im using that. to reseal the unit it doesnt need to be taken fully apart? what about the rings or bearings ? can i access those without fully disassembling it?

    • hangn0ut

      hangn0ut Well-Known Member

      Messages:
      532
      Likes Received:
      277
      Joined:
      Nov 16, 2015
      Location:
      Alta Loma Ca.
      Local Time:
      9:41 AM
      Listen to this guy. That box is perhaps the most touchy unit in the entire car and the odds are great that you will end up needing another box.

    • rakort

      rakort FBBO Gold Member FBBO Gold Member

      Messages:
      672
      Likes Received:
      287
      Joined:
      Oct 4, 2014
      Location:
      Wisconsin
      Local Time:
      11:41 AM
      Agreed. I'm a mechanical engineer and won't even think about opening one up. It's a specialized skill set.....i remember a line from a movie.....how was it...hrrrmmm " I have a specialized set of skills"! With that said.....I'm all about trying to tear into the external set of seals on the input and output shafts...any details there I would love to consume and share if I could.

    • velrob

      velrob Well-Known Member

      Messages:
      488
      Likes Received:
      71
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      12:41 PM
      i already have the rebuild kit i ordered awhile ago. but it definitely does look like the toughest thing to work with.. if i fail i will send mine out to be rebuilt.

      i will tell farely quickly when my steering is jacked :)

      thx

    • velrob

      velrob Well-Known Member

      Messages:
      488
      Likes Received:
      71
      Joined:
      Jan 15, 2016
      Location:
      toronto
      Local Time:
      12:41 PM
      Haha I decided im gonna order a rebuild by Lares Corp. I guess itll be worse if the gear failed that i was resealing and my car decided to steer on its own :). Not worth the $150 bucks CDN in bodily injury or my life with all the work im putting into the car.

    • MarPar

      MarPar Swervin' Like Im George Jones FBBO Gold Member

      Messages:
      12,814
      Likes Received:
      20033
      Joined:
      Nov 21, 2008
      Location:
      In GTXtacy Illinois
      Local Time:
      11:41 AM
      Factory Service Manual :D

      • Like Like x 1
