pro street 1970 Hemi GTX

Status
Not open for further replies.

dougyb

New Member
Feedback: 0 / 0 / 0
Local time
1:10 PM
Joined
Mar 20, 2013
Messages
2
Reaction score
0
Location
or
1970 Plymouth GTX
Straight clean body, no rust no wrecks original citron yellow a/c 440 auto car, presentablevitamin “C” paint, not super show perfect but nice, above average finish, blackout hood treatment is good, paint shines well and looks good
Correct rear wing and under lid brackets, solid no rusttrunk and floor pans, all original panels
Clean glass, trim is all clean straight, polished andintact, doors, hood and trunk lid all open and close nicely all locks work withkeys, good weather stripping and seals throughout, doors, truck and hoodcorrectly aligned and fitted
Front and rear bumpers are straight and chrome is good
All exterior lighting functions correctly, all brake lightsand signals function correctly
Windows roll up and down smoothly, front power, rear manual,Hood has factory hood pins and lanyards, grille is complete unbroken and ingood condition
Hood has been tastefully modified to clear blower and carbs,entire opening has been smoothed, as well as underneath has been filled andsmoothed, painted correct body color, chrome hood hinges and springs
Engine: over the counter unstamped 1970 426 Hemi engine,long block, bored 030 ,blower pistons, solid cam, mostly stock internals except,cam valve train and pistons, bearing and rings, all top quality engine prep
Engine has electronic ignition hidden inside vertex magnetohousing with msd 6a box

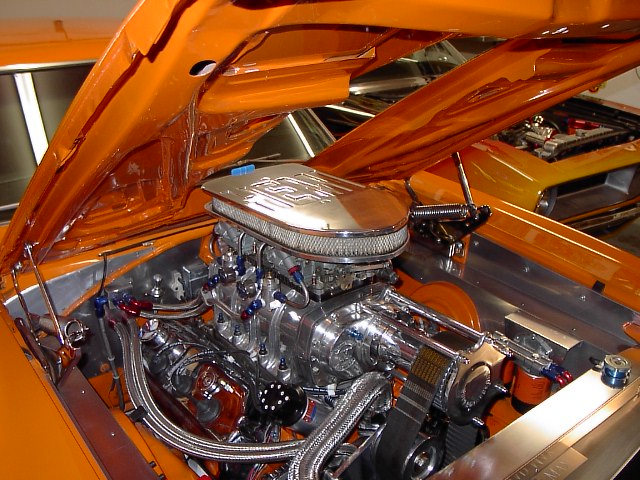

Engine compartment looks very good, not overdone, no burnedhanging wires or incorrectly mounted parts or pieces, fuel lines and oil linesare correctly routed and cleanly installed, very showy but tastefully done.
6-71 blower with correct blower intake, high quality endplates seals and bearings, custom handmade aluminum blower drive, with funnycar blower belt retainer, correct pressure relief valueing, blower driver 10%under solid motor mounts on factory correct hemi k frame
Fuel system: new fuel tank with custom made rear sump withAN fittings and braided steel line from tank to carbs, electric fuel pump,large capacity fuel filter, hand bent hard fuel lines from pressure gauges tocarbs, dual custom built for blower use 750 Holley carbs mounted sideways withcustom made linkage, handmade air cleaner (air cleaner made from a solid 40 lb.block of billet aluminum)
Oiling system custom dual oil filter mounted on custom madebracket external oil lines from pan to pump and filters all braided steel linesand an fittings, custom milidon oil pan,
Headers and full dual exhaust with factory tips and hangers
Full frame connectors and mini tubs, hemi rear leaf springs.092 hemi front torsion bars
29x18.00 rear tires mickeys, Front Street radials, cragersuper trick wheel widened for the rear
Dana 60 with 410 locker stock width, front disc brakes nonpower power steering with braided steel lines and an fittings, aluminumradiator with dual electric cooling fans,
Factory 3 speed wiper motor restored, correct wiringharness,

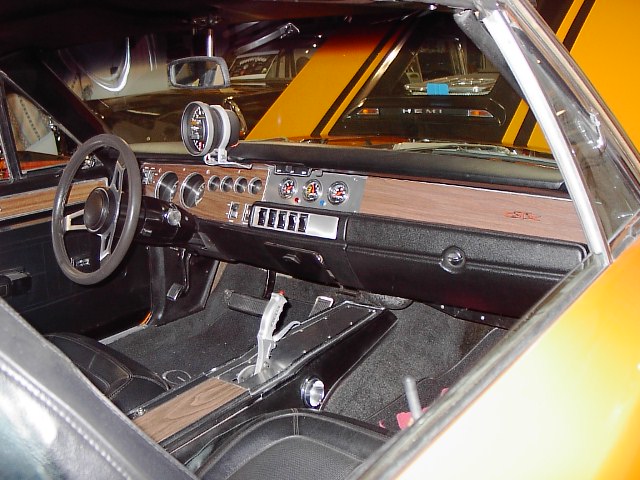

Factory Front black bucket seats, factory console with Hurst¼ stick and line lock installed full rear seat and full rally dash with woodgrain and all gauges function correctly
Auxiliary Gauges (oil pressure, water temp, and boost)mounted in area where factory radio was originally, gauges mounted on a custommade aluminum panel.
Rocker switches mounted in area where ac vent would be on accar switches operate starter fuel pump, auxiliary cooling fans and line lockpower (line lock activated by push bottom switch on Hurst ¼ stick shifter afterswitch on panel is thrown) custom aluminum panel looks almost factory
Insert factory key in steering column, turn key to runposition, push #1 momentary rocker switch, engine fires up.
1971 cuda tuff wheeland adaptor for b body, nice clean dash pad, auto meter tach on custom bracket,black interior door panels with power window switches, nice clean arm pads andchrome bases, rear door panels also nice as are arm pads and bases, allinterior upholstery is in very good condition, black carpet and headliner
Car was original and a/c car, a factory non ac firewall wasinstalled to remove ac equipment holes in firewall, a complete non a/c heaterassembly with correct controls and cable installed and functions correctly.
Car starts, runs, andstops well, car idles nicely a bit choppy but idles good in gear holds good oilpressure hot and cold, doesn’t overheat even in town traffic, automatictransmission is full forward manual, car has very good street manners goodbrakes and drives nicely with power starring and is relatively quiet within thepassenger compartment with full exhaust. Car will drive down the freeway at 70-75 with ease and runs on regular pump gas, car will drive around in towntraffic without any problem, when temp gauge comes up past 200 flip theauxiliary fan switch and it stays around 190,
The car is dependable, drives nice sounds very mean, andcan back up its looks when you want itto, with the car in gear and your foot and the brake just idling, take yourfoot off the brake and slowly lean into the throttle, the car will acceleratevery rapidly to the point of being almost scary, when the teach starts to swingup past 3500 the motor really comes alive and the car stays straight as anarrow, the car will also boil the rear tires with ease, set the line lock,stand into the throttle and you arecompletely engulfed in tire smoke. The car is a very good example of awell-built pro street car, super cool engine compartment, fit and finish isnice, hood work is excellent ,all the handmade aluminum parts are exceptional,car drives nice and is as fast as it looks, not a docile everyday driver butnot a strip only car either. Gets lots of attention were ever it goes
The engine in this car could be removed and the blower partstaken off it, the engine would be a perfect and correct motor for a R code 1970or 1971 Chrysler vehicle ( hemi car) for a correct restoration, if a correctdated and matching number motor was needed. This motor has lots of life left init, runs very well has never been exploded, broken, boomed, or hurt, however itis a perfect motor for an r code rest if one was needed. Although the motorworks just as it should in the GTX it is currently installed in, it couldeasily be sold to someone who needed a correct motor (long block) for a 70-71 rcode car and an aftermarket all aluminum hemi motor could be installed in theGTX, it would be direct replacement and the newer motors are of larger cubicinch displacement and all aluminum, nothing wrong with the 426 Hemi in the carnow just an idea. car is located in pacific northwest, car has been gone through front to rear updated and refined ready to go, registered and clean title, 50k or close couldnt built it for the price.
2012shop 001.jpg IM002068.JPG IM002066.JPG

Last edited:

daredevil

Well-Known Member
Feedback: 1 / 0 / 0
Local time
3:10 PM
Joined
Jul 17, 2008
Messages
3,108
Reaction score
544
Location
houston tx.
Price? Had a hard time approving this one. Wanted to keep it secret till I robbed a bank but sadly had to let yall see it.


dougyb

New Member
Feedback: 0 / 0 / 0
Local time
1:10 PM
Joined
Mar 20, 2013
Messages
2
Reaction score
0
Location
or
50k or close couldnt build it for that price


1969 Hemi RTs

Well-Known Member
Feedback: 10 / 0 / 0
Local time
3:10 PM
Joined
Aug 12, 2011
Messages
683
Reaction score
469
Location
Western WI.
this car is very nice, has been for sale for a while. looks like the one Gary Hedden built in MN. years ago. was blue then I think. I have some pics around here some place. $50K would'nt come close to building this car!!
