Question on my planned car electrics - please see diagram

Electrical & Ignition

  1. David Womby

    David Womby Active Member

    Messages:
    31
    Likes Received:
    32
    Joined:
    Feb 3, 2021
    Location:
    Florida
    Local Time:
    6:54 AM

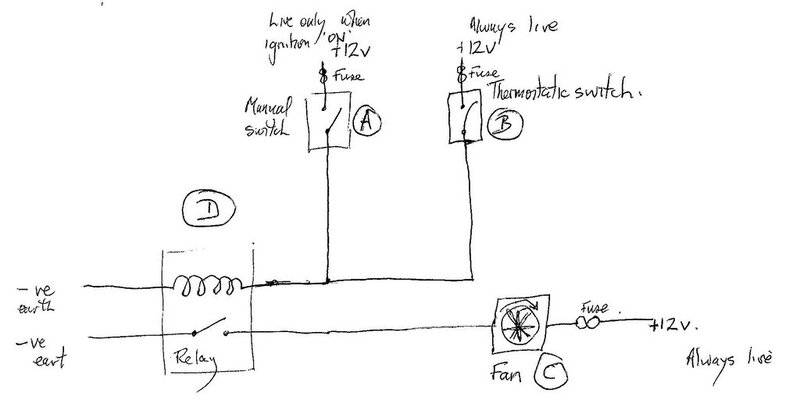

    This is for my 360-powered Bristol 408.

    The goal is for the electric cooling fan to run under two circumstances

    1 - whenever the thermostatic switch B triggers it because of high coolant temperature. This should trigger the relay at D regardless of the ignition being 'off' or 'on'.

    2 - whenever the manual switch A is turned on but only if the ignition is turned on.


    Sorry - I was born and raised in the UK and still write 'earth'. US translation = 'ground':usflag:

    My main question is: is there any danger if the ignition is 'on' and both the thermostatic switch B and the manual switch A are 'on' simultaneously. I think it should be OK. It means the relay at D will be getting +12v from both sources but I don't think that's a problem and I don't think I need diodes to protect the two switches, do I? Or do I? Any help will be appreciated.

    David

  2. Don Frelier

    Don Frelier FBBO Gold Member FBBO Gold Member

    Messages:
    4,252
    Likes Received:
    4929
    Joined:
    Oct 11, 2016
    Location:
    Ionia, NY
    Local Time:
    6:54 AM
    That will work.
    DC- or DC-Com would be more accurate but you have the right idea.
    A good sized fuse will be in order for the fan probably 25-30A and stranded copper wire 14gauge or larger.

  3. black64

    black64 FBBO Gold Member FBBO Gold Member

    Messages:
    792
    Likes Received:
    746
    Joined:
    Mar 31, 2009
    Location:
    michigan
    Local Time:
    5:54 AM
    If your manual switch is closed and your temp switch is closed and you turned ignition switch off you would back feed ignition switch circuits until the thermostat switch opened.

    • Agree Agree x 2
    • David Womby

      David Womby Active Member

      Messages:
      31
      Likes Received:
      32
      Joined:
      Feb 3, 2021
      Location:
      Florida
      Local Time:
      6:54 AM
      Thanks. yes, will be using appropriate sized fuses and wiring.

      Darn. I hadn't though of that. Thanks. Would a diode between switch A and the relay stop that?

      David

    • black64

      black64 FBBO Gold Member FBBO Gold Member

      Messages:
      792
      Likes Received:
      746
      Joined:
      Mar 31, 2009
      Location:
      michigan
      Local Time:
      5:54 AM
      A diode would work since relay coil doesn't draw much current. Also your fan will run after you shut ignition off until the thermostat switch opens.

      Last edited: Feb 22, 2021
      • Agree Agree x 2
      • Don Frelier

        Don Frelier FBBO Gold Member FBBO Gold Member

        Messages:
        4,252
        Likes Received:
        4929
        Joined:
        Oct 11, 2016
        Location:
        Ionia, NY
        Local Time:
        6:54 AM

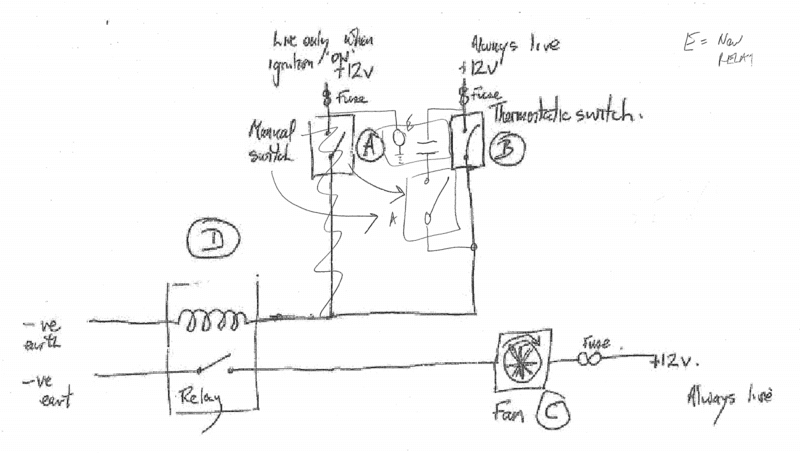

        Maybe just add another relay:

      • David Womby

        David Womby Active Member

        Messages:
        31
        Likes Received:
        32
        Joined:
        Feb 3, 2021
        Location:
        Florida
        Local Time:
        6:54 AM
        Good. That's what I want. Thanks.

        David

      • vance.dykes

        vance.dykes Well-Known Member

        Messages:
        825
        Likes Received:
        775
        Joined:
        Sep 22, 2017
        Location:
        florida
        Local Time:
        6:54 AM
        it takes less voltage to ground a circuit than to power it. most new cars fan control's are done that way for longer life of the fan and relays.

      • David Womby

        David Womby Active Member

        Messages:
        31
        Likes Received:
        32
        Joined:
        Feb 3, 2021
        Location:
        Florida
        Local Time:
        6:54 AM
        Thanks. I see but I'm not sure I can work out how to do it that way and have my initial objectives met - thermostatic switch to operate fan with ignition either off or on but manual switch to only operate fan when ignition is on. Any ideas how to wire that?

        David.

      • 747mopar

        747mopar FBBO Gold Member FBBO Gold Member

        Messages:
        13,096
        Likes Received:
        17179
        Joined:
        Oct 30, 2012
        Location:
        ohio
        Local Time:
        5:54 AM
        Just another thought, if the key is off why run the fan? I know it will cool what water is in the radiator but without the engine running to circulate the water it won't cool the engine unless of coarse you have an electric water pump?

        • Agree Agree x 2
        • David Womby

          David Womby Active Member

          Messages:
          31
          Likes Received:
          32
          Joined:
          Feb 3, 2021
          Location:
          Florida
          Local Time:
          6:54 AM
          Ah! I hadn't realized that. I assumed some degree of convection would continue a low circulation after engine shutdown. My last car was setup from the factory this way to run a fan after shutdown if it was above a certain radiator temperature. Maybe I am trying to be unnecessarily clever?

          David

        • Derwud

          Derwud Well-Known Member

          Messages:
          1,368
          Likes Received:
          1198
          Joined:
          Aug 18, 2014
          Location:
          Pasadena, CA
          Local Time:
          3:54 AM

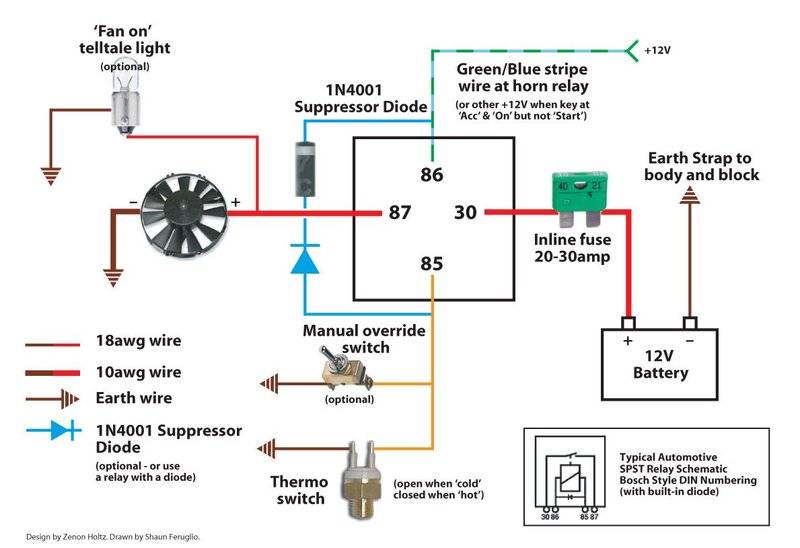

          here is how I do it.

          cooling fan.jpg

          • Like Like x 2
          • Agree Agree x 1
          • vance.dykes

            vance.dykes Well-Known Member

            Messages:
            825
            Likes Received:
            775
            Joined:
            Sep 22, 2017
            Location:
            florida
            Local Time:
            6:54 AM

            gm / chrysler made a ground temp switch use as trigger for on of the fan and the fan can be powered all the time look on you tube for wiring a relay with ground trigger on. using 2 relays can be used for the way you want or with the right relay you could use 1 relay.

            • Like Like x 1
            • David Womby

              David Womby Active Member

              Messages:
              31
              Likes Received:
              32
              Joined:
              Feb 3, 2021
              Location:
              Florida
              Local Time:
              6:54 AM
              Thanks for the replies and suggestions ( and circuit diagram ). I will think this through tonight and may be back again with more questions. I really appreciate all the help.

              David

            • 1968rt

              1968rt Well-Known Member

              Messages:
              448
              Likes Received:
              514
              Joined:
              Jul 28, 2010
              Location:
              New York
              Local Time:
              6:54 AM
              What you need is a relay with multiple contacts. The normally closed contact will will have 12vdc that has a switch in the circuit. It will send power only when you apply the switch. The normally open contact will have 12vdc from a separate circuit. When the coil is energized the contact closes and sends the 12v through. The coil power will come from the temperature switch. Make sure all power leads are fused. I can draw you a circuit but Im pressed for time right now

              • Agree Agree x 1
              • Nacho-RT74

                Nacho-RT74 FBBO Gold Member FBBO Gold Member

                Messages:
                4,693
                Likes Received:
                1601
                Joined:
                Oct 8, 2012
                Location:
                Valencia, España
                Local Time:
                12:54 PM
                I already have diagrams and a thread for these ( even being dual fan setup ) to make it work automatically and also manually ( override switch ) ... and with AC compressor sensing too. Will search and post. Even using a lighted override switch which will turn on when fan is working ( either automatically or activating light switch ) lol

                I made it being triggered by ground. No need for diodes.

                Last edited: Feb 23, 2021
              • 451Mopar

                451Mopar Well-Known Member

                Messages:
                2,580
                Likes Received:
                1886
                Joined:
                Oct 25, 2011
                Location:
                Aurora, CO
                Local Time:
                4:54 AM
                What Derwud posted above is what you want, switches trigger on low / ground side, and relay controls power to fan, not the fan ground side.

                • Thanks! Thanks! x 1
                • Nacho-RT74

                  Nacho-RT74 FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,693
                  Likes Received:
                  1601
                  Joined:
                  Oct 8, 2012
                  Location:
                  Valencia, España
                  Local Time:
                  12:54 PM

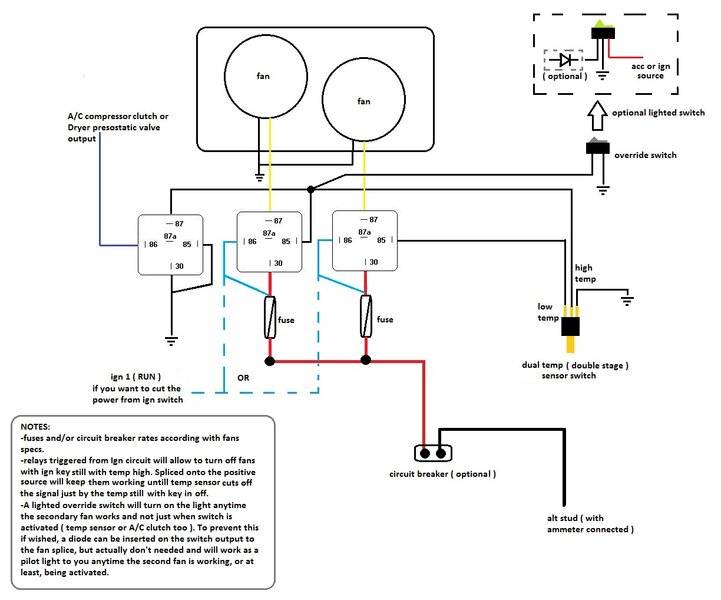

                  couldn't find the thread but here is a diagram. Is posted for dual fans but works the same with single fan just using what you requires.

                  If ammeter is being used, relays shouldn't be conected to batt but alt

                  dual fan option FULL.jpg

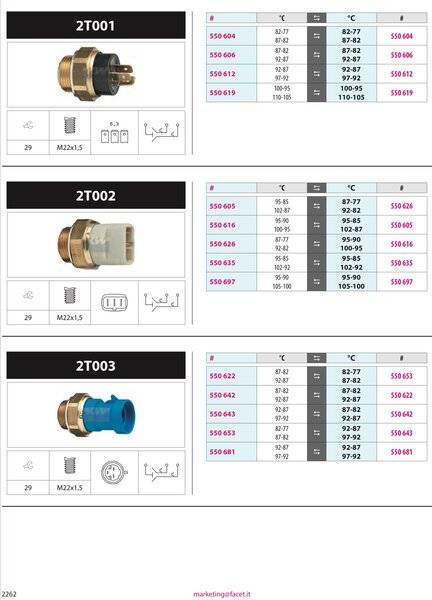

                  here is a set of temp sensors could be used in need of a dual temp setup. These are not Chassis grounded so need to be grounded at the input. It could be used for positive too, but since I made the diagram to be triggered by ground, well...


                • Nacho-RT74

                  Nacho-RT74 FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,693
                  Likes Received:
                  1601
                  Joined:
                  Oct 8, 2012
                  Location:
                  Valencia, España
                  Local Time:
                  12:54 PM
                • Don Frelier

                  Don Frelier FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,252
                  Likes Received:
                  4929
                  Joined:
                  Oct 11, 2016
                  Location:
                  Ionia, NY
                  Local Time:
                  6:54 AM
                  The relay for AC here will never be energized? There is no power shown to the coil
                  The lighted switch option is not shown very clearly?
