re: Bell housing alignment

1968 -1970 Mopars

  1. uwss

    uwss Well-Known Member

    Messages:
    628
    Likes Received:
    175
    Joined:
    Sep 5, 2012
    Location:
    Dallas, Texas
    Local Time:
    1:10 AM
    Is it necessary to align the bell housing to a 440 block with a 4 speed A833 transmission?

  2. Cranky

    Cranky Moderator Staff Member FBBO Gold Member

    Messages:
    18,639
    Likes Received:
    14086
    Joined:
    Dec 4, 2009
    Location:
    Pasa-getdown-dena Texas
    Local Time:
    1:10 AM
    It's always a good idea to at least check it. If it's not within .005", it needs to be fixed. I shoot for no more than .003" on the trans fit and try to make sure the face is as close as possible but it's pretty hard to fix the face unless you take it to a machine shop which is also a good idea. The closer the tolerances the better.

    • Like Like x 1
    • Photon440

      Photon440 Well-Known Member

      Messages:
      8,812
      Likes Received:
      7370
      Joined:
      Mar 14, 2012
      Location:
      Surrey, B.C. Canada
      Local Time:
      11:10 PM
      If you just took it off and are putting it back on with no changes I wouldn't worry about it. But if you've changed something, like say align bored the engine, then I'd want to be sure that the bell was centered with the crank.

      • Like Like x 1
      • Cornpatch MO

        Cornpatch MO Well-Known Member

        Messages:
        3,175
        Likes Received:
        2289
        Joined:
        Nov 28, 2011
        Location:
        Southwest Iowa
        Local Time:
        1:10 AM
        It is important for it to be within factory tolerance. Especially with a 4 speed. ...................................MO

        • Like Like x 1
        • Should be playing golf

          Should be playing golf Member

          Messages:
          6
          Likes Received:
          0
          Joined:
          Jun 10, 2017
          Location:
          Illinois
          Local Time:
          1:10 AM
          If not aligned right the linkage could pop out of gear during accelerating or de-accelerating.

        • Fran Blacker

          Fran Blacker FBBO Gold Member FBBO Gold Member

          Messages:
          6,423
          Likes Received:
          5884
          Joined:
          Sep 23, 2016
          Location:
          Connecticut
          Local Time:
          2:10 AM

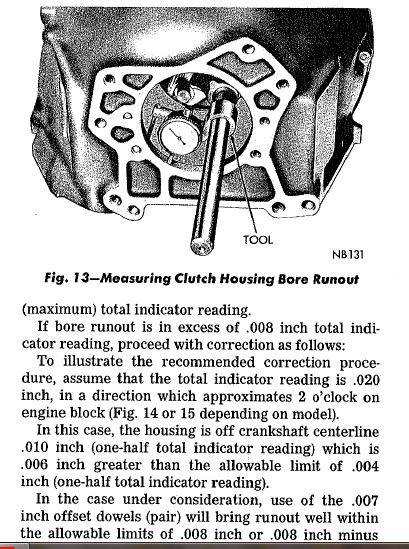

          ba.JPG ba1.JPG

          • Agree Agree x 2
          • eldubb440

            eldubb440 FBBO Gold Member FBBO Gold Member

            Messages:
            5,078
            Likes Received:
            9067
            Joined:
            Jul 17, 2008
            Location:
            South Jersey USA
            Local Time:
            2:10 AM
            cool avatar
