Re-Man OEM style Alternators PROBLEMATIC?

Electrical & Ignition

  1. WM23M9

    WM23M9 FBBO Gold Member FBBO Gold Member

    Messages:
    299
    Likes Received:
    176
    Joined:
    Feb 28, 2020
    Location:
    Kansas City, MO
    Local Time:
    2:06 PM

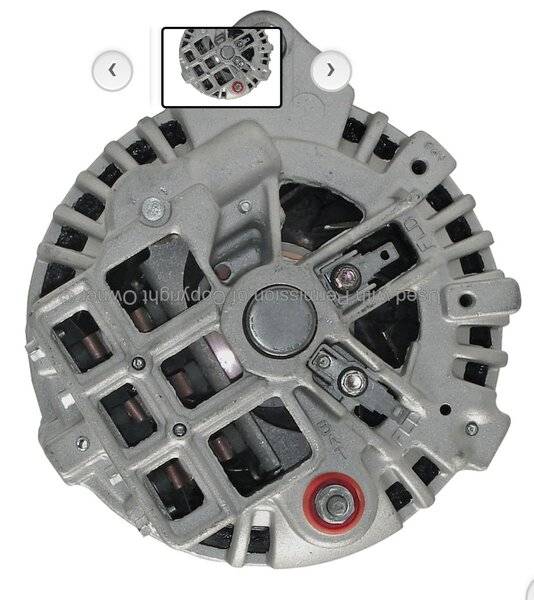

    During the course of a recent engine rebuild, repaint. Alternator from E Bay (Yes I know ), Alternator construction causing a "Short-to-Ground" with POS Field wire connection. Must one really spend $300?! Are Classic Industries Alternators OK?

  2. moparedtn

    moparedtn Ed on the Ridge FBBO Gold Member

    Messages:
    9,735
    Likes Received:
    15727
    Joined:
    May 14, 2011
    Location:
    On the Ridge, TN
    Local Time:
    3:06 PM
    I guess you're looking for something brand new and "concourse"?
    Heck, the standard ol' 55 (46??) amp rascals a lot of these cars came with can be had
    at any parts store remanned for like $35 with warranty and they're fine in my
    experience.

    • Agree Agree x 5
    • Like Like x 1
    • WM23M9

      WM23M9 FBBO Gold Member FBBO Gold Member

      Messages:
      299
      Likes Received:
      176
      Joined:
      Feb 28, 2020
      Location:
      Kansas City, MO
      Local Time:
      2:06 PM

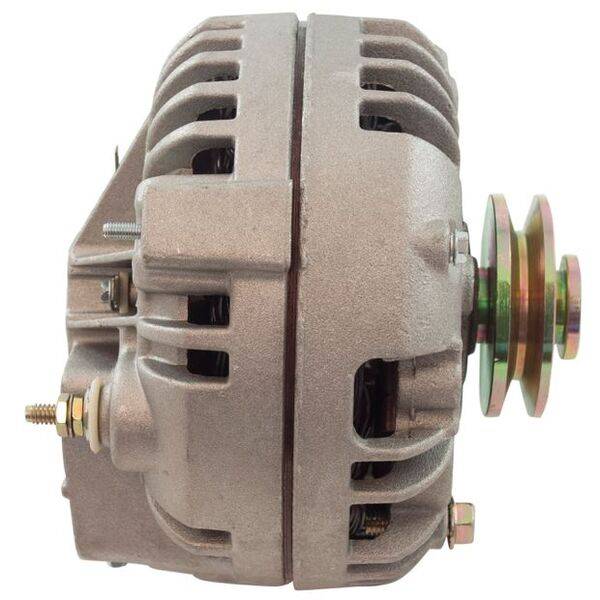

      Well, not really "Concourse", but as OEM as possible. I know from experience, you can buy a reman Alternator, install it, and only get 5 volts from it, on occasion. Thry don't put alot of work into making them "New" for $40.
      Im sure it's my luck, or might have an issue OTHER than the alternator. New Dash AND engine wiring, (M&H) from Year One. 440 Six Pack, new battery. 2 TOTALLY Different "Brush Designs" causing a SHORT with field wire.
      ( I do know, the one on car needed an Insulating Washer), but that didnt help. It still shorts-to-ground, shutting down motor. 20210224_041957.jpg 20210224_041919.jpg 20210221_103316.jpg 20210224_003317.jpg Screenshot_20210222-142049_Chrome.jpg

    • Nacho-RT74

      Nacho-RT74 FBBO Gold Member FBBO Gold Member

      Messages:
      4,491
      Likes Received:
      1520
      Joined:
      Oct 8, 2012
      Location:
      Valencia, España
      Local Time:
      9:06 PM

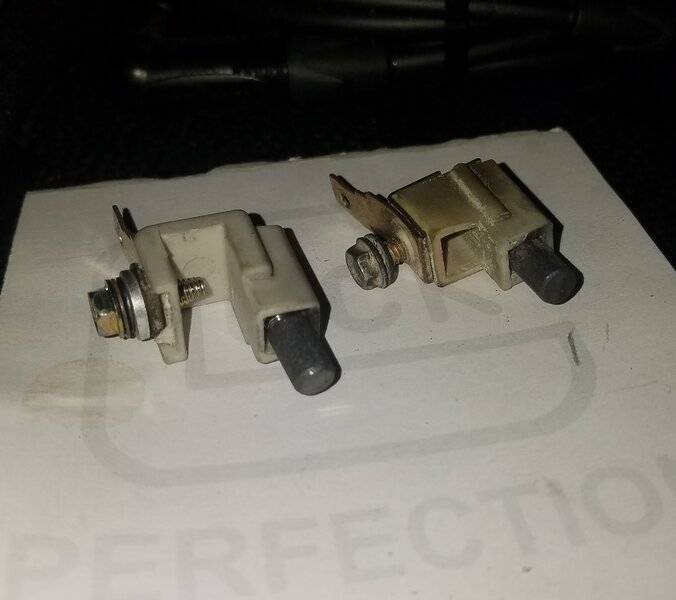

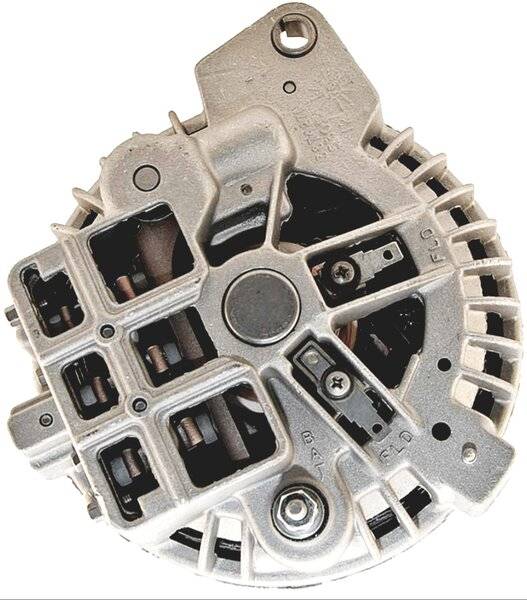

      that brush insulator change ( brush itsefl is the same yet ) was made on later squarebacks design... the ones C shaped one got with this side view


      Stator completelly hiddend down the case.

      they are also a bit wider and bigger diameter, by a couple of mm

      • Agree Agree x 1
      • Nacho-RT74

        Nacho-RT74 FBBO Gold Member FBBO Gold Member

        Messages:
        4,491
        Likes Received:
        1520
        Joined:
        Oct 8, 2012
        Location:
        Valencia, España
        Local Time:
        9:06 PM
        about problematic? actually never have had a problem about voltage fails, but durability.

        the short you got is because the insulator washer was repplaced by a metallic one to make it work as a single field alt. That's not factory setup, but modification by seller


        which is fine to make to make it work with older regulator system, but if you are not aware of that OR you upgraded your charging system to a dual field and bought an alternator per year setup ( 69 was single field ) the seller will send you the correct alt round back single field or a later alt dual field with a grounded brush. And without clip off or bent the brush prong to prevent the wrong connection you can make that mistake... still being a mech reg system!!!!!!

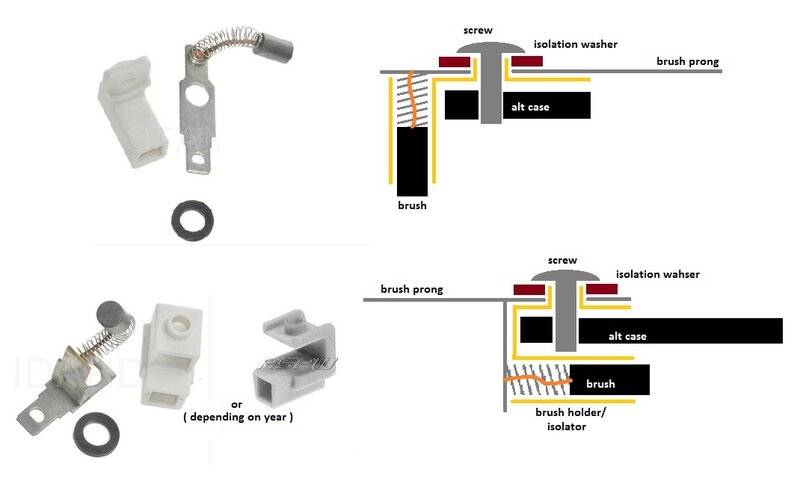

        This is the correct setup

        alt brushes.jpg

        Last edited: Feb 24, 2021
        • Agree Agree x 3
        • WM23M9

          WM23M9 FBBO Gold Member FBBO Gold Member

          Messages:
          299
          Likes Received:
          176
          Joined:
          Feb 28, 2020
          Location:
          Kansas City, MO
          Local Time:
          2:06 PM
          Yep, looks like thats the issue!

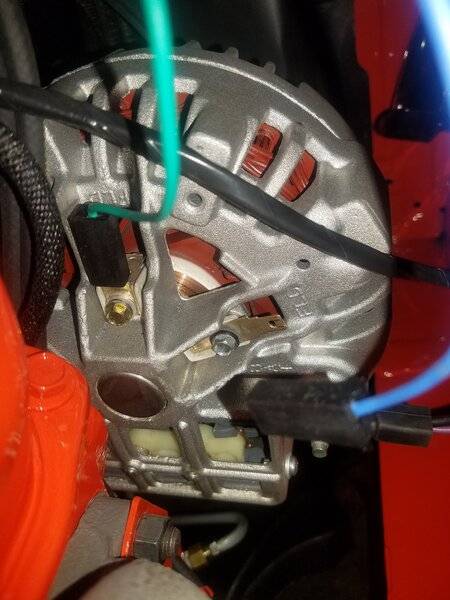

          Guess the GREEN wire or ground is just tied out of the way with the grounded alternator.. Pain in the arse..

        • WM23M9

          WM23M9 FBBO Gold Member FBBO Gold Member

          Messages:
          299
          Likes Received:
          176
          Joined:
          Feb 28, 2020
          Location:
          Kansas City, MO
          Local Time:
          2:06 PM
          Crazy part is, it's a 69 Model year with a 71 charging system..lol At least the Ammeter works..lol

          • Like Like x 1
          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            4,491
            Likes Received:
            1520
            Joined:
            Oct 8, 2012
            Location:
            Valencia, España
            Local Time:
            9:06 PM
            The deal with the green wire is on earlier single field alt it handles positive, while on dual field is negative... or the return to the regulator which grounds out that side if you want to be more specific. IN BOTH CASES, the green wire is the regulated source, but diff field. Sooo if you were hooked up the dual field wiring with green wire to the grounded brush and the blue wire to the isolated brush the only fail you was got is a full fielding alternator at max output. But backwards, well, the short you got

            IF you still had the single field wiring and which uses a green wire only ALSO ATTACHED to the intentionally grounded brush, you were got a short. So in both cases you needed to know the brush was intentionally grounded, and it should have clipped off or bent to prevent that

            • Agree Agree x 1
            • WM23M9

              WM23M9 FBBO Gold Member FBBO Gold Member

              Messages:
              299
              Likes Received:
              176
              Joined:
              Feb 28, 2020
              Location:
              Kansas City, MO
              Local Time:
              2:06 PM
              Basically, doing away with the steel washers on BOTH terminals is "The FIX"..I guess

            • Nacho-RT74

              Nacho-RT74 FBBO Gold Member FBBO Gold Member

              Messages:
              4,491
              Likes Received:
              1520
              Joined:
              Oct 8, 2012
              Location:
              Valencia, España
              Local Time:
              9:06 PM
              yeap to match your setup, that's the fix. And get the propper isolation washer. The washer is a need... But if both got steel washer that was COMPLETELLY WRONG!!! lol... THAT WAS A CAUSE A SHORT ON ANY SETUP ... LOL

              • Agree Agree x 1
              • WM23M9

                WM23M9 FBBO Gold Member FBBO Gold Member

                Messages:
                299
                Likes Received:
                176
                Joined:
                Feb 28, 2020
                Location:
                Kansas City, MO
                Local Time:
                2:06 PM
                Haha... As I figured! Buying alternators from so called "Pros" on E Bay strikes again!

              • R413

                R413 Well-Known Member

                Messages:
                1,519
                Likes Received:
                3165
                Joined:
                Feb 4, 2019
                Location:
                NW USA
                Local Time:
                12:06 PM
                Look for a local rebuild shop that does good work. Take all your alts and starters there. Tell your friends, Keep them in business. I know this just depends on where you are. Some shops are good some are not.

                • Agree Agree x 3
                • Like Like x 1
                • ckessel

                  ckessel Well-Known Member

                  Messages:
                  1,270
                  Likes Received:
                  1056
                  Joined:
                  Apr 23, 2015
                  Location:
                  Los Osos Ca.
                  Local Time:
                  12:06 PM
                  Best reman electrical items are from the mother ship. Mopar remans are done to factory spec with ALL QUESTIONABLE PARTS REPLACED. They don't just toss one brush in and call it done. The factory has to stand behind the warranty due to costs that could happen after its sold or installed at a dealer. Parts store remans are not a good idea. The "lifetime warranty" doesn't mean poo when you are forever replacing it.

                  • Like Like x 1
                  • Agree Agree x 1
                  • WM23M9

                    WM23M9 FBBO Gold Member FBBO Gold Member

                    Messages:
                    299
                    Likes Received:
                    176
                    Joined:
                    Feb 28, 2020
                    Location:
                    Kansas City, MO
                    Local Time:
                    2:06 PM
                    What would you turn to next, if 2 alternators shorted like this?
                    Good grief!

                  • dadsbee

                    dadsbee FBBO Gold Member FBBO Gold Member

                    Messages:
                    9,010
                    Likes Received:
                    21199
                    Joined:
                    Jan 29, 2018
                    Location:
                    Ontario, Canada
                    Local Time:
                    3:06 PM
                    We've been working this rabbit hole for a month now. I'm at a loss as to why you haven't simply removed the screw(s), thrown away the metal washers and isolated the spades from the case??.. so that both field spades are isolated from the case and you can use that two wire regulator. The first alternator only needed one done yet you chose to ignore that advise and went out and bought another alternator. Now you have one that was improperly assembled with both spades grounded out on it. At least the first one was done correctly, to make it work, for MOST '69 system with one lug grounded out. All you had to do was isolate that lug and you'd be driving her.

                    • Agree Agree x 1
                    • moparedtn

                      moparedtn Ed on the Ridge FBBO Gold Member

                      Messages:
                      9,735
                      Likes Received:
                      15727
                      Joined:
                      May 14, 2011
                      Location:
                      On the Ridge, TN
                      Local Time:
                      3:06 PM
                      Remind me not to ever fetch one from wherever you've been getting them then. :)
                      (Yes, I suspect other things may be happening there - these old alternators are quite simple and have a reputation for being quite resilient if not taxed beyond their design or otherwise handicapped).

                      Last edited: Feb 24, 2021
                      • Agree Agree x 2
                      • WM23M9

                        WM23M9 FBBO Gold Member FBBO Gold Member

                        Messages:
                        299
                        Likes Received:
                        176
                        Joined:
                        Feb 28, 2020
                        Location:
                        Kansas City, MO
                        Local Time:
                        2:06 PM
                        Yep. Kinda sucks...lol

                        • Agree Agree x 1
                        • WM23M9

                          WM23M9 FBBO Gold Member FBBO Gold Member

                          Messages:
                          299
                          Likes Received:
                          176
                          Joined:
                          Feb 28, 2020
                          Location:
                          Kansas City, MO
                          Local Time:
                          2:06 PM

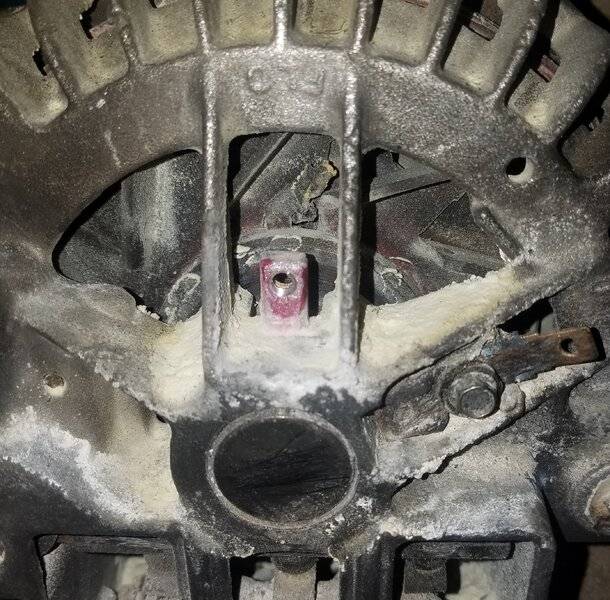

                          Yeah, I tried hooking up the one that was working ok before a small fire. It shorted. I'll need to just order the stronger spacers etc, screws could be overtightened as well I suppose? I'll give that a try.
                          Dunno why they have 2 differently designed cases for same part. Manufacturers I guess.

                        • WM23M9

                          WM23M9 FBBO Gold Member FBBO Gold Member

                          Messages:
                          299
                          Likes Received:
                          176
                          Joined:
                          Feb 28, 2020
                          Location:
                          Kansas City, MO
                          Local Time:
                          2:06 PM
                          Where to find a TRUE MOPAR Alternator though?!

                        • PRND21

                          PRND21 FBBO Gold Member FBBO Gold Member

                          Messages:
                          3,267
                          Likes Received:
                          5220
                          Joined:
                          Aug 16, 2016
                          Location:
                          Central Indiana
                          Local Time:
                          3:06 PM
                          Kansas City doesn’t have any private rebuilders that can go through your original alternator?
