Re-Rebuilding the 440-493 in a 1970 Charger

Mopar Hunter

Well-Known Member
Local time
2:13 PM
Joined
Oct 31, 2017
Messages
2,154
Reaction score
5,076
Location
Mountain Home
Kern,
[1] I am absolutely amazed I am the only one pointing out this problem, failing to get it correct could result in near instant...& expensive....engine failure.
Go back to the pics in post #400. You can clearly see the machined chamfer {or bevel } [ it is not cast or forged that way ] in the rod & cap on the right side of the pic; [ the rod on the left side has been turned over & you cannot see the chamfer ]; the chamfer is adjacent to where the brg shell sits. Stock rods also have the chamfer. Have a Look!! [ If anybody with better skills than me could re-post the pic with a red arrow pointing to the chamfer, that would be great ].
That chamfered side has to go up against the crank cheek; it ensures no interference/contact with the fillet on the crank journal.
[2] You do NOT need narrower brgs with your crank, nor do you need to modify them other than checking the tangs as I mentioned earlier. You would lose precious brg area with narrow brgs & gain nothing.
There was an episode on Engine Masters that talked about this, good infor.


Geoff 2

Well-Known Member
Local time
3:13 PM
Joined
Jul 21, 2014
Messages
856
Reaction score
502
Location
Australia
I built a 440 last year using H beam rods, forget the brand now. The indents for the brg tangs were not wide enough or deep enough & prevented the brg shells from fully seating.
It is not something you would expect, such a small detail, but you just have to check everything.


4406bbl

Well-Known Member
Local time
3:13 PM
Joined
Feb 8, 2015
Messages
808
Reaction score
851
Location
nebraska
Also remember the bearing tang and groove only locate the bearing for assembly, many engines do not have bearing tangs, you can make them wider and deeper with no worries.


dvw

FBBO Gold Member
FBBO Gold Member
Local time
4:13 PM
Joined
Feb 16, 2010
Messages
6,678
Reaction score
10,337
Location
waterford mi
Did you maybe make a mistake here?
The intake valve notches in the pistons look to me like the following:
Cylinders 1 and 5 face the rear, 3 and 7 face the front. #s 2 and 6 face rearward, 4 and 8 face forward.
Are we saying the same thing but using different words?

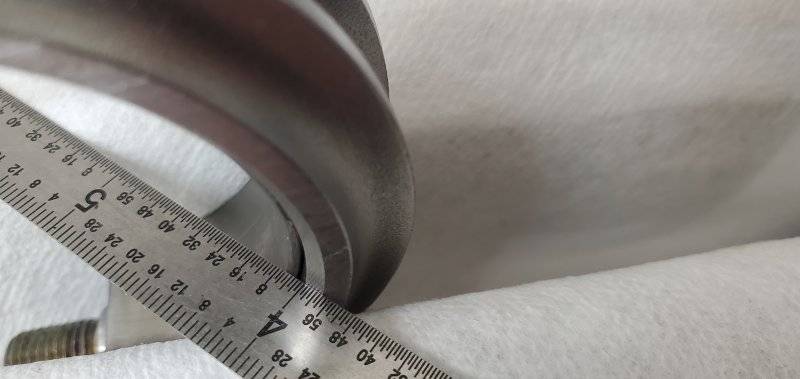

Yes brain dead. The post has been edited. You won't know if you need narrowed bearings unless the bearing shell is placed in the cap. The picture shown illustrates how a HD (narrowed) bearing follows the chamfer. Hold the cap/bearing against the crank chamfer snug. Does the shell clear the crank radius? If it does, your good. If not, it needs to be addressed. Your previous bearings were the narrowed type.
Doug


Last edited:

Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
1:13 PM
Joined
Apr 13, 2012
Messages
27,982
Reaction score
86,795
Location
Granite Bay CA

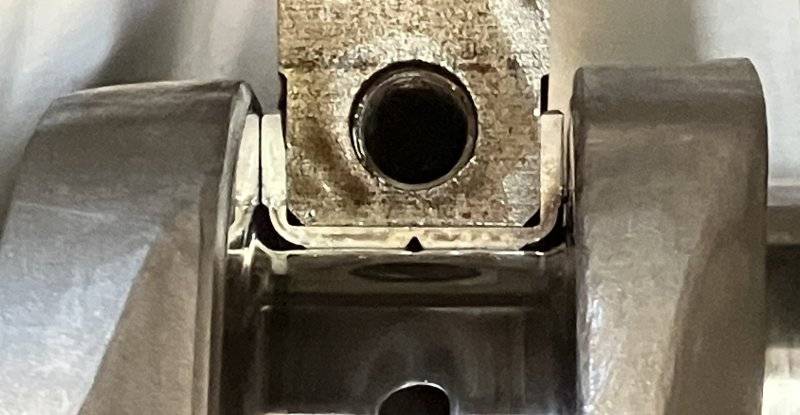

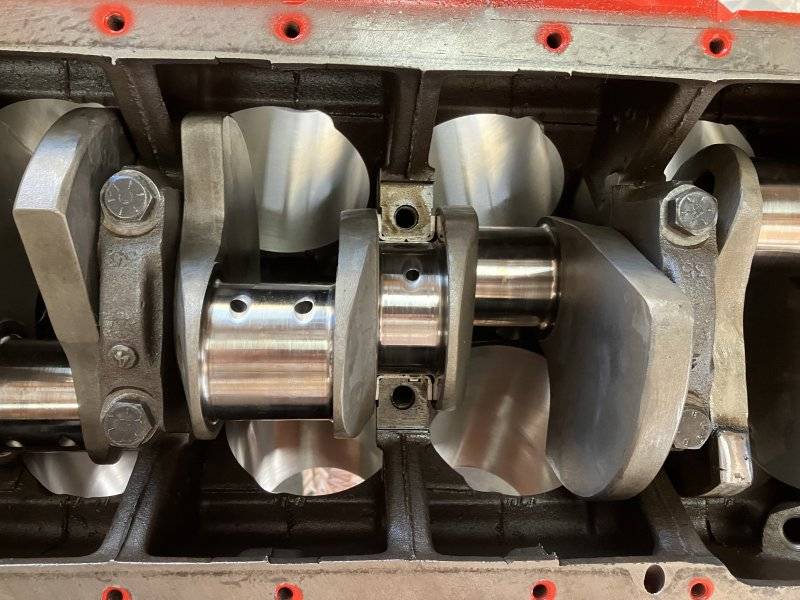

FBBO member C D R suggested that I look at the main bearings to see if the same condition existed as with the rod bearings.
The thrust bearing looked fine. Plenty of clearance there.


Not a chance of contact at the edges.

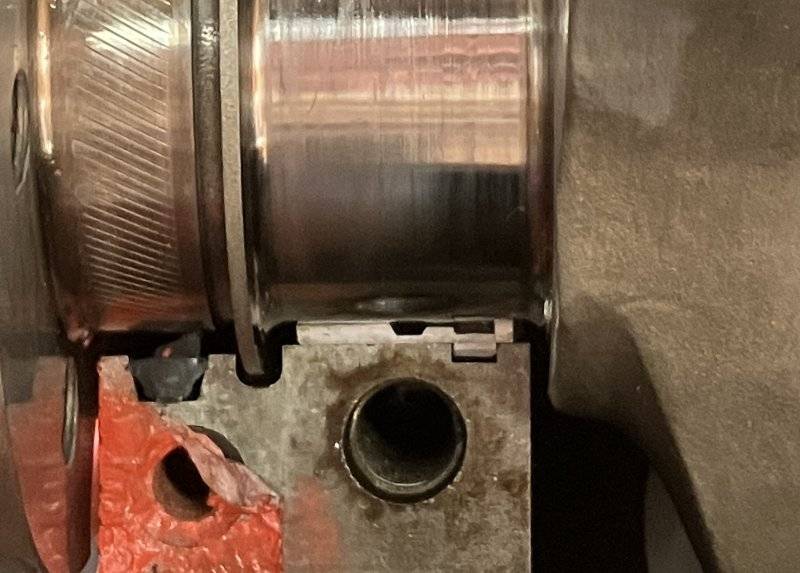

Now #5 bearing:


Seems that I am in the clear. Good to know. (Thanks, Charlie)


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
1:13 PM
Joined
Apr 13, 2012
Messages
27,982
Reaction score
86,795
Location
Granite Bay CA

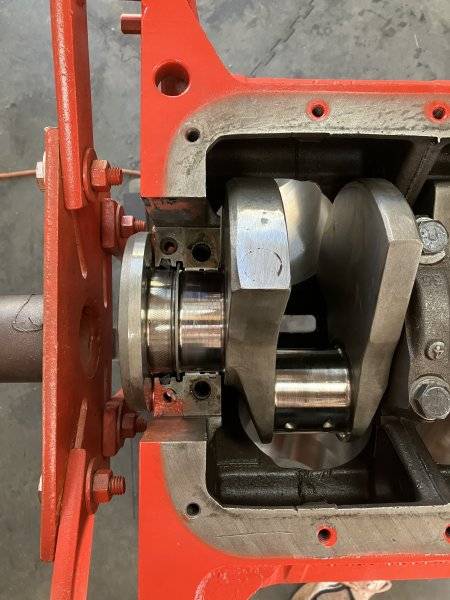

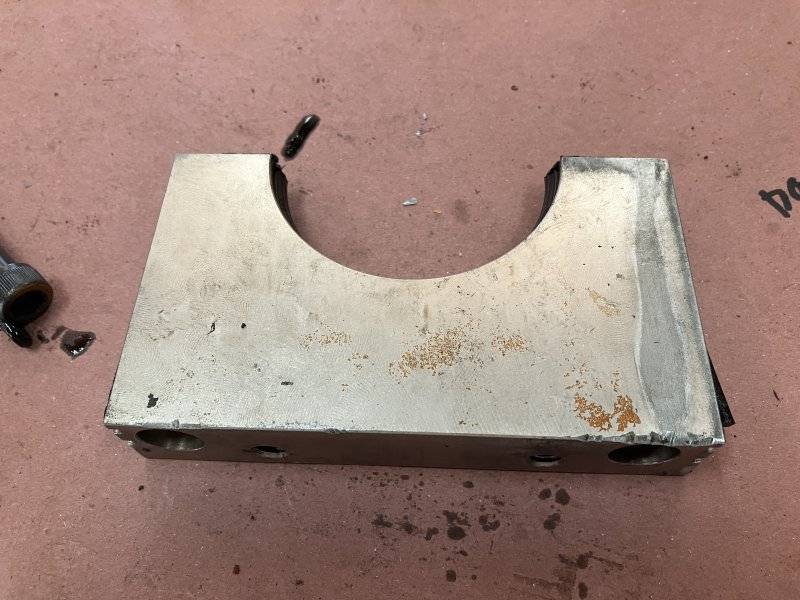

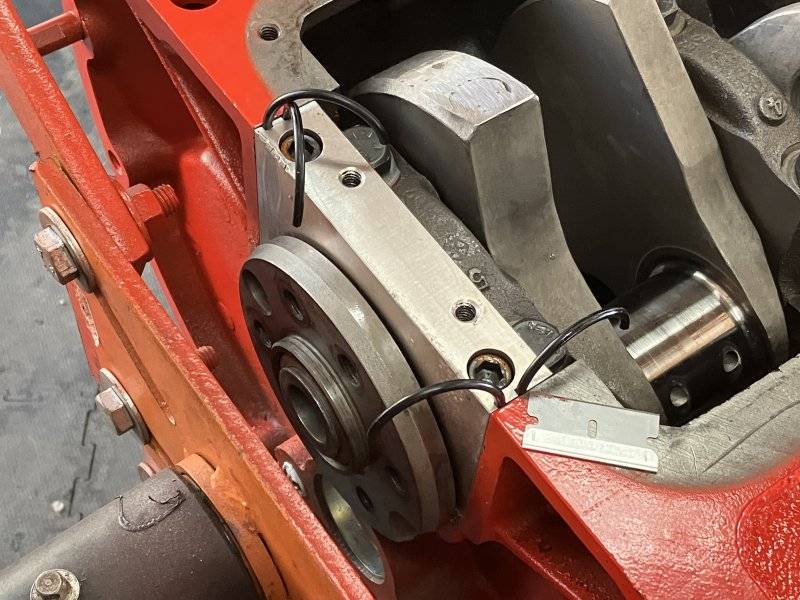

The billet rear main seal retainer I have was a new idea when I heard about it in 2004. It uses cut down “ O” rings on the sides. Today this style seems to be quite common.


This might explain some oil loss at the back of the engine.


The O- rings must have shrunk a bit over time.


They were stiff too.

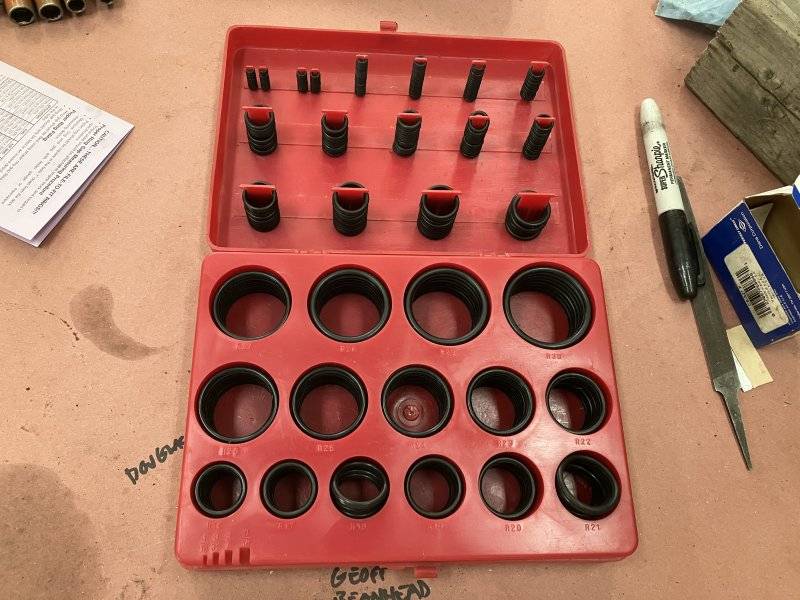

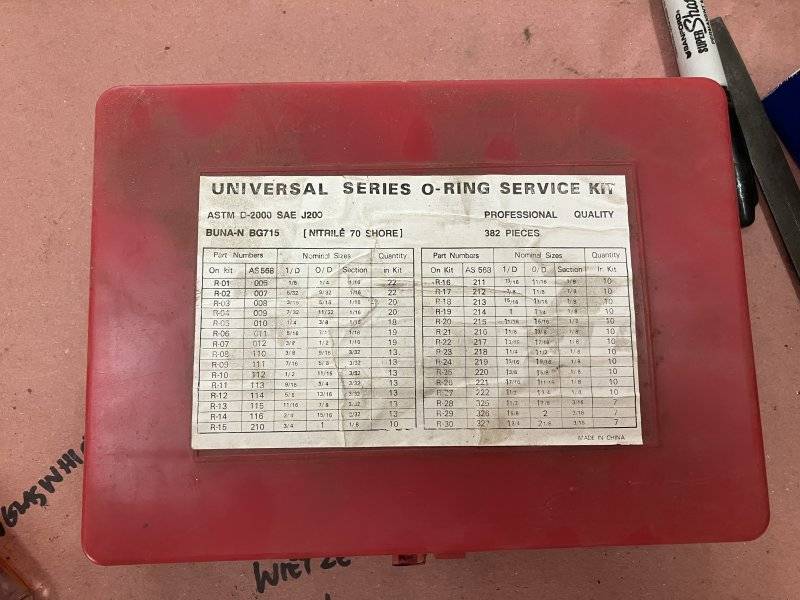

I looked through a box of O rings I had in the shed…

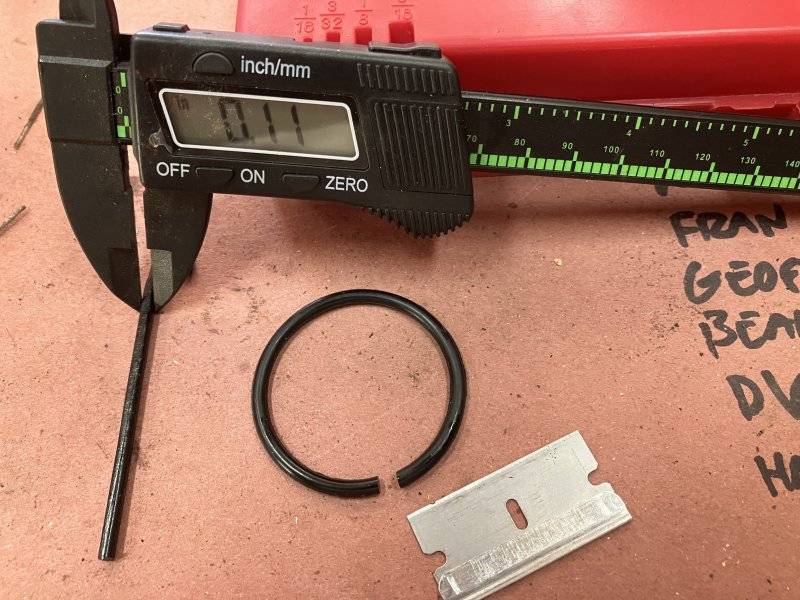

I measured a few to find one that was slightly larger than the groove in the retainer.

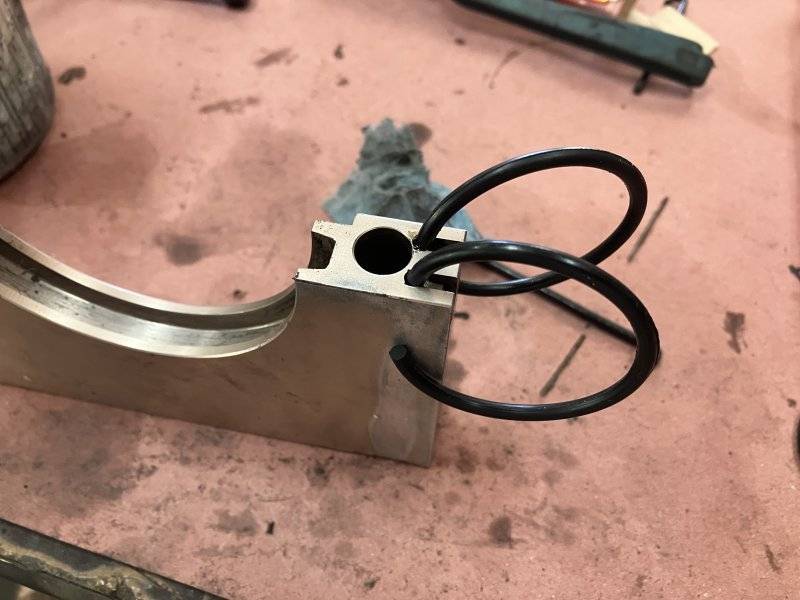

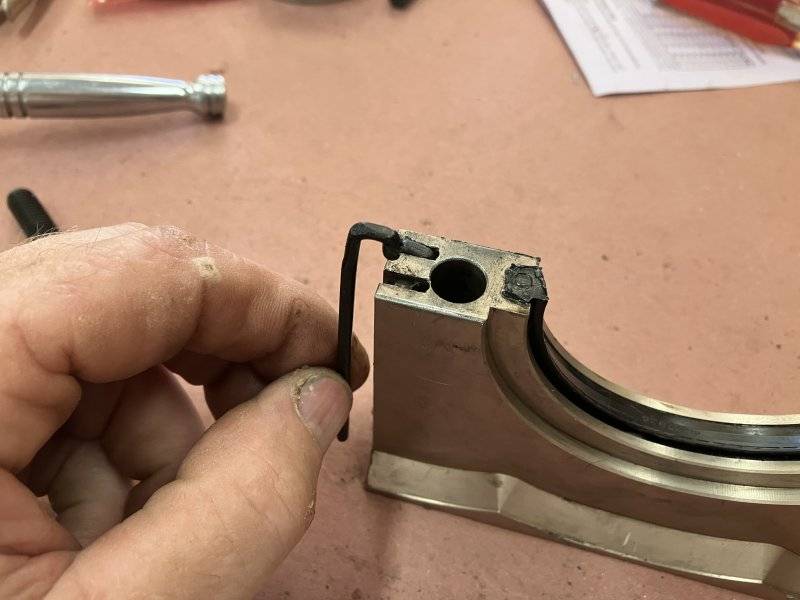

Mine had holes in the end to stick the ends of the O rings in.



It is a bit of an interference fit to press the retainer down in place. Don't forget the lower half of the oil seal!

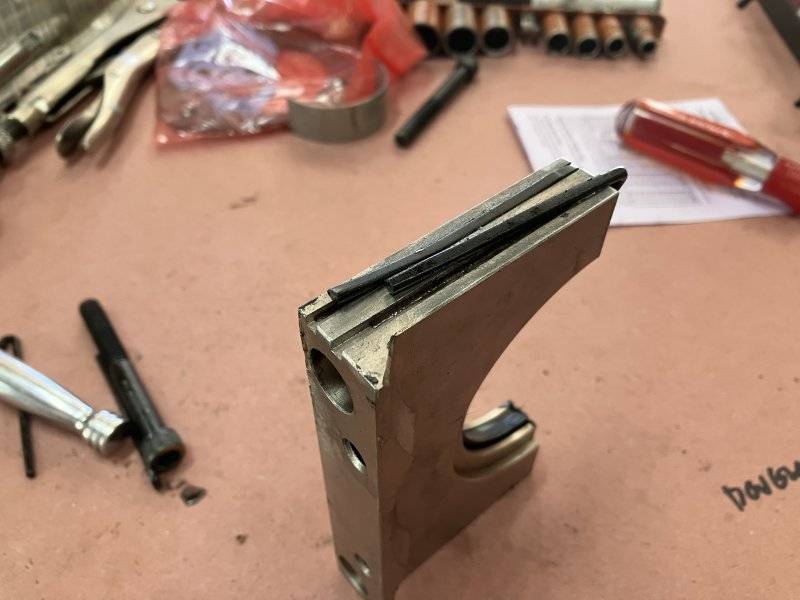

Cut the ends flush with the retainer....

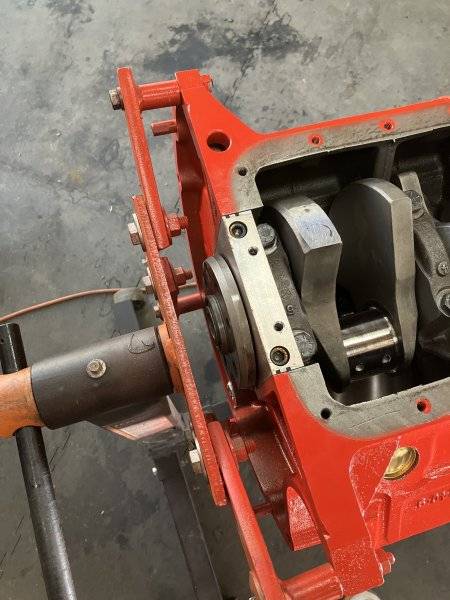

Bada-Bing. Done.
Still waiting on the rod bearings.

Last edited:

cdr

Well-Known Member
Local time
3:13 PM
Joined
Jun 26, 2011
Messages
1,710
Reaction score
1,847
Location
Pattison Texas
Hey Kern, just out of curiosity, what is the part # of the main bearings you used ?

did I use proper punctuation ?? LOL :)


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
1:13 PM
Joined
Apr 13, 2012
Messages
27,982
Reaction score
86,795
Location
Granite Bay CA
Ha ha.
I’m trying hard to overlook errors, man…I really am.

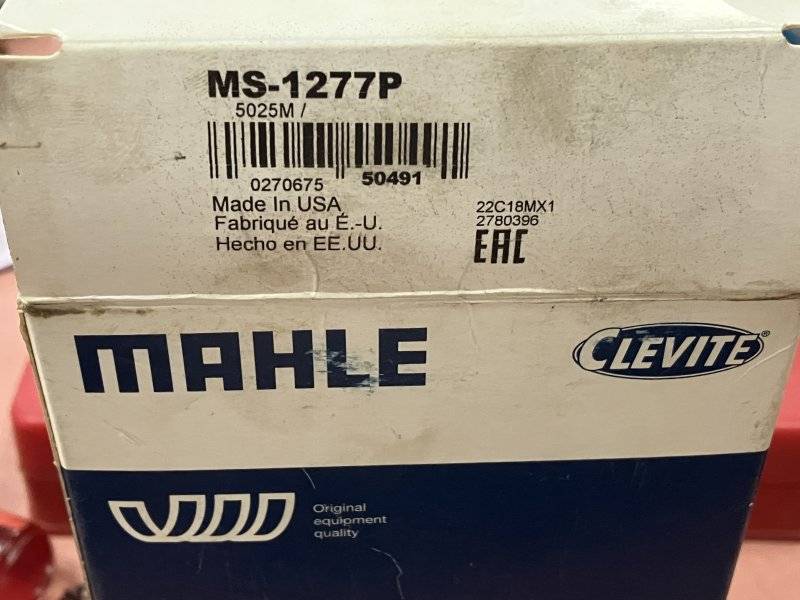

Here is the box that the main bearings came in.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
1:13 PM
Joined
Apr 13, 2012
Messages
27,982
Reaction score
86,795
Location
Granite Bay CA
I was expecting to get the rod bearings today but they were delayed another day. It seems that delays are the theme of this build. I know, others have dealt with the same as me....It's just that I like to finish what I start in a timely manner and usually, it is not ME that holds up progress.
Once they are here, I can actually run straight through....Install the pistons and rods, install the cam and timing chain, button up the bottom end with the timing cover and oil pan too. The heads, rocker shafts and arms, lifters, valley pan and water pump assembly can follow. All sorts of things can be done but for now, they are all held up.
Tomorrow is already spoken for with other commitments.

Last edited:

RemCharger

Well-Known Member
Local time
3:13 PM
Joined
Apr 5, 2014
Messages
3,429
Reaction score
3,073
Location
Sask

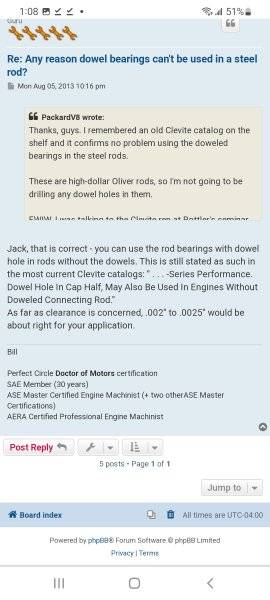

Just thought I'd mention, the talk about rod bearing upper/lowers.. the reason is due to the Dowel hole, which more for aluminum rods.
So the upper and lower designation are somewhat redundant, because the Dowel is at the bottom.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
1:13 PM
Joined
Apr 13, 2012
Messages
27,982
Reaction score
86,795
Location
Granite Bay CA
I'm guessing the hole is a place to retain oil for better lubrication?


RemCharger

Well-Known Member
Local time
3:13 PM
Joined
Apr 5, 2014
Messages
3,429
Reaction score
3,073
Location
Sask
No, a dowel pin holds the bearing in place. Along with the tangs.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
1:13 PM
Joined
Apr 13, 2012
Messages
27,982
Reaction score
86,795
Location
Granite Bay CA

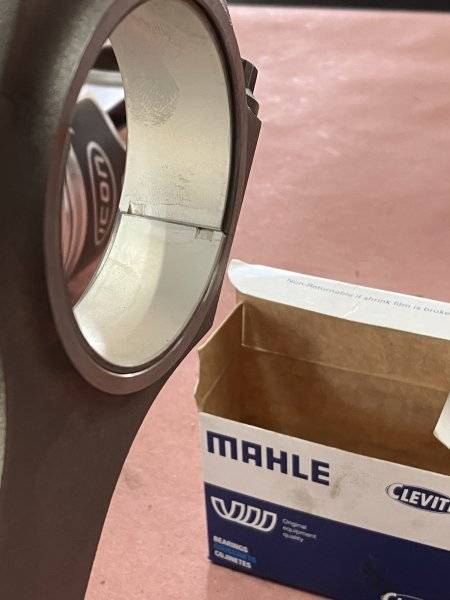

There is no dowel pin in these rods.
Sorry man, that makes no sense to me. I've never seen a dowel pin on a rod or rod cap.

R 497.JPG


cdr

Well-Known Member
Local time
3:13 PM
Joined
Jun 26, 2011
Messages
1,710
Reaction score
1,847
Location
Pattison Texas
Just thought I'd mention, the talk about rod bearing upper/lowers.. the reason is due to the Dowel hole, which more for aluminum rods.
So the upper and lower designation are somewhat redundant, because the Dowel is at the bottom.
no, if you install them wrong they can hang over the chamfer in some brands of rods
