Removal of Headlight and wiper switches?

JohnEngland

Well-Known Member
Local time
1:14 AM
Joined
Feb 15, 2016
Messages
88
Reaction score
17
Location
Northern Illinois
What all is involved with removing the headlight and wiper switches from a 1973 charger rallye gauge cluster...is there any special tools required.


LAScott

New Member
Local time
1:14 AM
Joined
Oct 27, 2016
Messages
4
Reaction score
0
Location
Turkey Creek, LA
What all is involved with removing the headlight and wiper switches from a 1973 charger rallye gauge cluster...is there any special tools required.
Just removed mine yesterday from a 72. I just had to remove the knobs and behind that is a plastic retaining nut that was hand tight, remove that and unplug the wiring and that's it.


moparmarks

I'm just a guy with a screwdriver.
FBBO Gold Member
Local time
12:14 AM
Joined
Jul 31, 2011
Messages
7,753
Reaction score
3,415
Location
Western Colorado
The headlight switch has a button that you push to release the knob shaft from the switch. Can be a pain to reach up under there to get to it.
The wiper knob pulls off of the shaft. Best to pry from the back of the knob with a tool.


Nacho-RT74

FBBO Gold Member
FBBO Gold Member
Local time
8:14 AM
Joined
Oct 8, 2012
Messages
5,358
Reaction score
1,953
Location
Valencia, España
Headlight switch knob ( spring loaded )



Sometimes is somehow tricky try to press and pull out the headlight knob/shaft


After remove the knobs you'll see the attaching nuts.

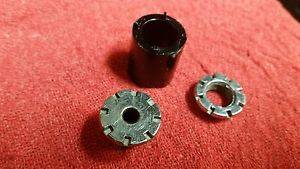

Left, headlight switch, right, wiper switch... black piece, special tool for them. ( I never have needed any special tool LOL )

Last edited:

mopar73dge

Well-Known Member
Local time
2:14 AM
Joined
Jan 15, 2016
Messages
482
Reaction score
180
Location
Connecticut
Yes there is a release button for the head light knob, the manual tells you how, the reason for this is for safety, so the knob will never come loose and fall off, clever engineering for 1973..


69a100

Well-Known Member
Local time
1:14 AM
Joined
Aug 22, 2012
Messages
10,498
Reaction score
14,835
Location
The Real World
Headlight switch knob ( spring loaded )

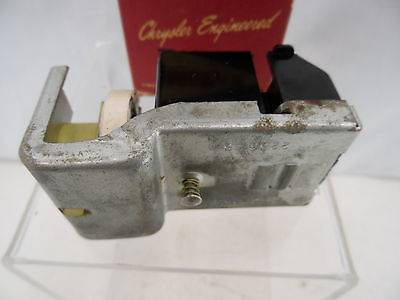

View attachment 493387
Sometimes is somehow tricky try to press and pull out the headlight knob/shaft
After remove the knobs you'll see the attaching nut.

I'm against this same problem with the button and trying to get the shaft out of a 69 A-100 with the exact same switch. The knobs aren't removable. This is about as bad as trying to get a old worn key just right to turn the ignition, what's the trick?


khryslerkid

Well-Known Member
Local time
2:14 AM
Joined
Mar 10, 2010
Messages
26,357
Reaction score
42,437
Location
Hanover, Pennslyvania
it has being in that way before 73.

My '62 has the same switch with the release button.

Push in on the button before pulling on the knob. I'm thinking it works better when you have the knob in the "interior light" position. Of course disconnect the battery before removing switches.


69a100

Well-Known Member
Local time
1:14 AM
Joined
Aug 22, 2012
Messages
10,498
Reaction score
14,835
Location
The Real World
I've been fiddle fartin around with this for the past hour trying everything. I can feel where it hits a point the tab with go down but then kinda tweaks when I pull on the knob. When I release pressure off the tab from the shaft, it comes up & the shaft will further come out a fraction to full on. I don't get it? I don't want to destroy the shaft.

Last edited:

khryslerkid

Well-Known Member
Local time
2:14 AM
Joined
Mar 10, 2010
Messages
26,357
Reaction score
42,437
Location
Hanover, Pennslyvania
I've been fiddle fartin around with this for the past hour trying everything. I can feel where it hits a point the tab with go down but then kinda tweaks when I pull on the knob. When I release pressure off the tab from the shaft, it comes up & the shaft will further come out a fraction to full on. I don't get it? I don't want to destroy the shaft.

Just read the "headlight switch control knob removal".


69a100

Well-Known Member
Local time
1:14 AM
Joined
Aug 22, 2012
Messages
10,498
Reaction score
14,835
Location
The Real World
That's what I've been doing, it seems right before full on is when the tab will depress, I get nothing! I've tried various pressures on the button, all to no avail.


Nacho-RT74

FBBO Gold Member
FBBO Gold Member
Local time
8:14 AM
Joined
Oct 8, 2012
Messages
5,358
Reaction score
1,953
Location
Valencia, España
Try to press it gently, not hard to the max and play with it. I'm telling, it's tricky.

Just in case, you need to press down the button it and pull out the known and stem assembly AT THE SAME TIME!!!

Last edited:

69a100

Well-Known Member
Local time
1:14 AM
Joined
Aug 22, 2012
Messages
10,498
Reaction score
14,835
Location
The Real World
You have to hold your mouth right :p

Well that idea sure as hell didn't work, how'd it work out for you? After repeated frustrating attempts to get the shaft released from the switch, I said screw it! Took a screwdriver and bent 1 tab and started to go to town as a pry bar and started to destroy the switch without bent the shaft, I tore up that switch, PRESTO! Now that the switch was free, there's a small white washer that just wouldn't budge or break with a pair of pliers, I grabbed the knob and gave a good yank, that washer was like welded to the shaft, it took some effort.
Now I gotta get a switch and put it back together and hope it fixes my electrical issue????


kiwigtx

Henchman #4
Staff member
FBBO Gold Member
Local time
6:14 PM
Joined
Jun 12, 2012
Messages
26,890
Reaction score
59,395
Location
NZ - just short of the South Pole
Well that idea sure as hell didn't work, how'd it work out for you? After repeated frustrating attempts to get the shaft released from the switch, I said screw it! Took a screwdriver and bent 1 tab and started to go to town as a pry bar and started to destroy the switch without bent the shaft, I tore up that switch, PRESTO! Now that the switch was free, there's a small white washer that just wouldn't budge or break with a pair of pliers, I grabbed the knob and gave a good yank, that washer was like welded to the shaft, it took some effort.
Now I gotta get a switch and put it back together and hope it fixes my electrical issue????

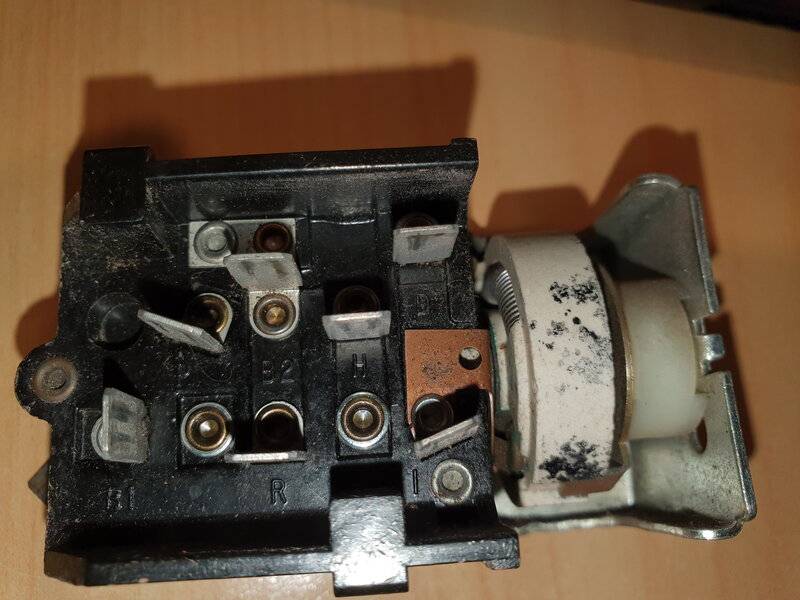

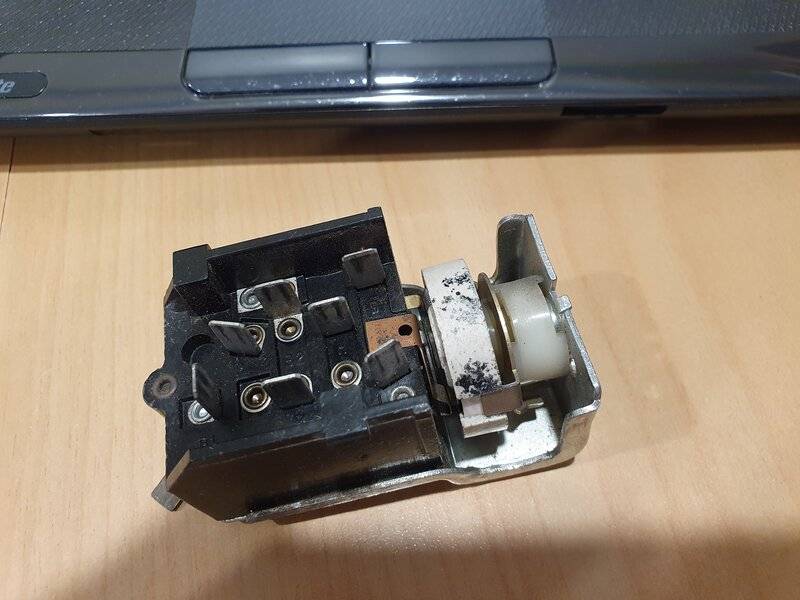

I have just located the original switch I removed from my A100. Pics to follow, and I recall it was not easy wriggling that button to remove the switch.
https://www.1aauto.com/headlight-switch-diy-solutions-bss00649/i/1azhs00023



PART 1AZHS00023
