Remove ignition switch wire

Electrical & Ignition

  1. Mopar69 Bee

    Mopar69 Bee Well-Known Member

    Messages:
    49
    Likes Received:
    91
    Joined:
    Dec 9, 2016
    Location:
    Ontario
    Local Time:
    2:00 AM

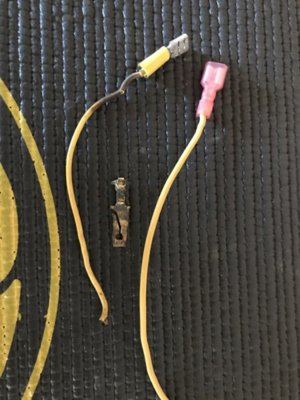

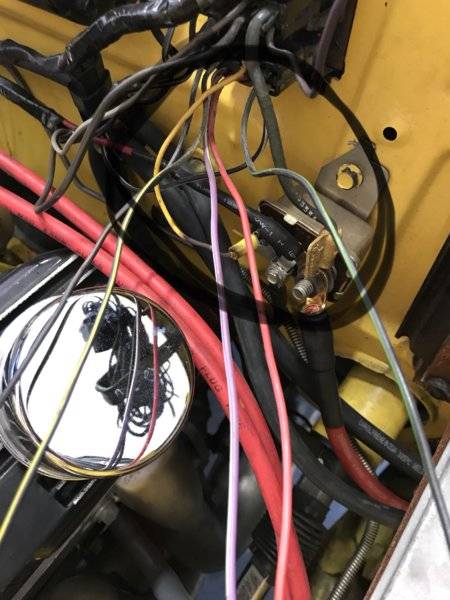

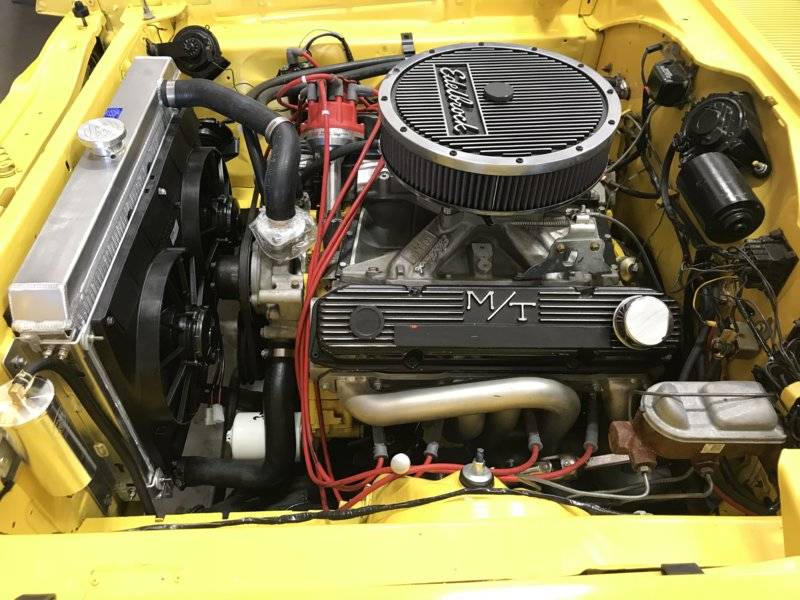

    Can anyone give me some insight on how to remove this yellow ignition wire? I’ve herd it’s tricky. I would like to replace it as it looks burnt and add my electric fans to it as well. Thank you

    03C420FB-6E9D-44FE-97B0-6B1C36524683.jpeg E09B704C-8B4E-429C-B104-6F3BA180B351.jpeg

  2. rlem1977

    rlem1977 Well-Known Member

    Messages:
    791
    Likes Received:
    793
    Joined:
    Feb 12, 2018
    Location:
    Arkansas
    Local Time:
    1:00 AM
    As always, disconnect the battery to be safe. The burnt end looks to have a spade connector, just pull it off of the terminal. Cannot see in the pic what the other end connector is. If not easy to remove, just splice in a new piece and connector. Use some yellow shrink sleeving to seal the splice. Nothing complicated.

  3. Mopar69 Bee

    Mopar69 Bee Well-Known Member

    Messages:
    49
    Likes Received:
    91
    Joined:
    Dec 9, 2016
    Location:
    Ontario
    Local Time:
    2:00 AM
    The end that goes into connector is the one I want to remove. I’d rather replace the whole wire then to splice. Yes the other end just pulls off the starter relay. Thank you.

  4. Gold Rush

    Gold Rush Well-Known Member

    Messages:
    110
    Likes Received:
    88
    Joined:
    Nov 29, 2017
    Location:
    San Angelo TX
    Local Time:
    1:00 AM
    It looks like there is plenty of wire length to reach from the bulkhead connector to the starter relay if you were to cut back the burnt end and replace the terminal lug connector. As mentioned before some yellow shrink tubing over the end of the new terminal lug would make for a clean look.

  5. dadsbee

    dadsbee FBBO Gold Member FBBO Gold Member

    Messages:
    4,374
    Likes Received:
    9371
    Joined:
    Jan 29, 2018
    Location:
    Ontario, Canada
    Local Time:
    2:00 AM
    The real question is "why did it burn". What is drawing that much current or is it a bad crimp heating up?

    Pop the bulkhead connector, take a tiny jewellers screwdriver and while pulling on the wire pry the lock tab down on the wire spade and it will come out. You'll need a new spade to crimp onto the new wire and reinsert.

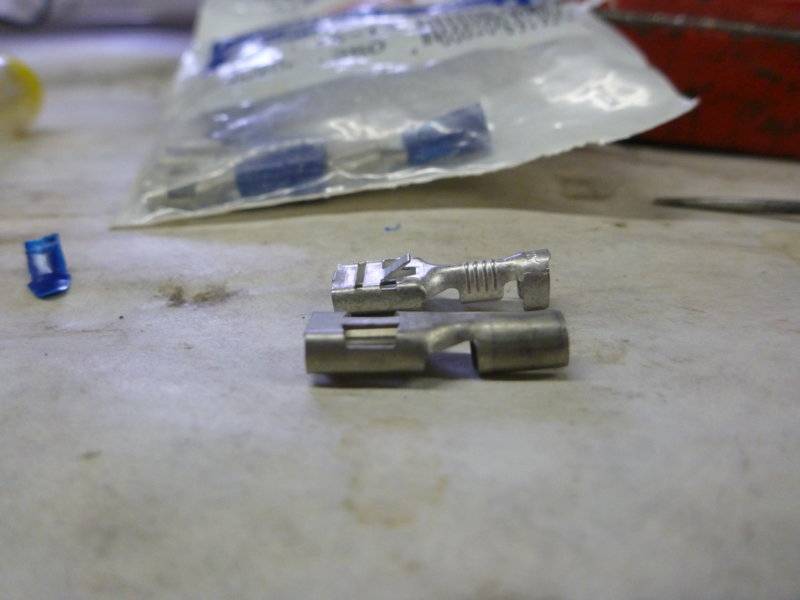

    The spade you'll be pulling out is a male one, but here's a picture of a female (the connector in rear of picture) with the tab. So your screwdriver goes in the connection side to bend the tab down while pulling on the wire.
    beerestoration2017 1368.JPG

    Last edited: May 4, 2018
  6. coloradodave

    coloradodave FBBO Gold Member FBBO Gold Member

    Messages:
    3,402
    Likes Received:
    2725
    Joined:
    Jun 1, 2011
    Location:
    Lincoln, CA
    Local Time:
    11:00 PM
    For lack of a small jeweler's screwdriver, I use a straightened packing staple to push down the tab. Just the right size...

    • Like Like x 1
    • Mopar69 Bee

      Mopar69 Bee Well-Known Member

      Messages:
      49
      Likes Received:
      91
      Joined:
      Dec 9, 2016
      Location:
      Ontario
      Local Time:
      2:00 AM

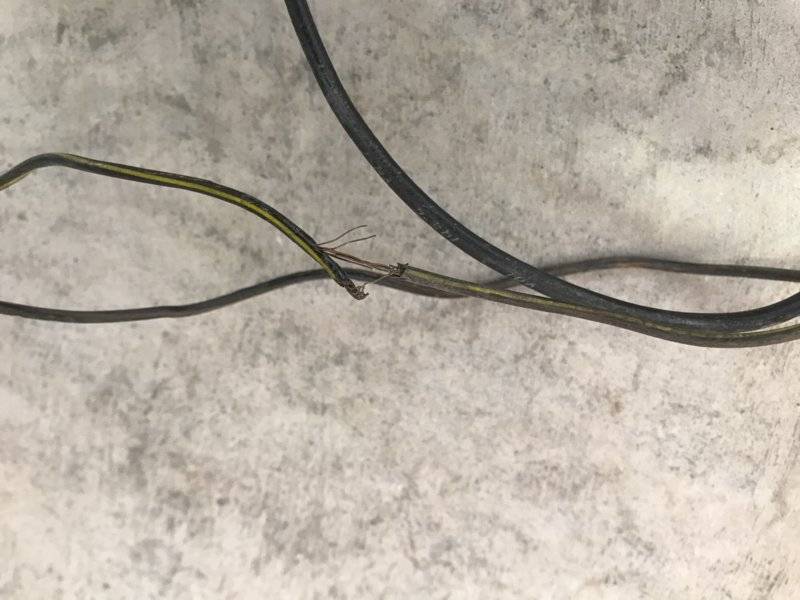

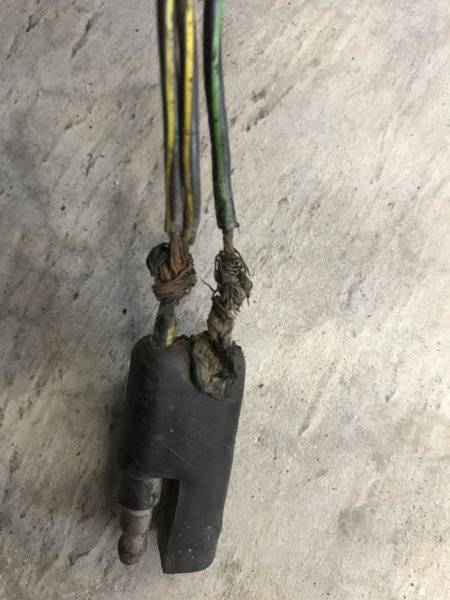

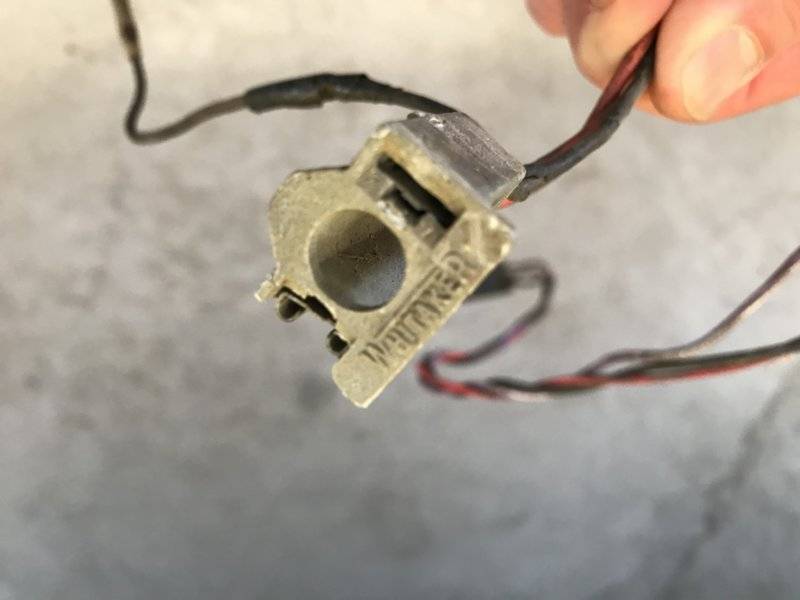

      Well here’s the story. The bee was in working condition when I bought it last year. Everything worked but I could tell it was a wiring mess. Over the winter I re wired engine bay. Here are some pics of old wiring. I was able to plice most wires because they had good connections at the bulkhead connector. The yellow ignition wire has a loose crimp and split at bulkhead connector and that’s why I want to replace it. Thank you dadsbee for that infor. Huge wind storm yesterday. Down trees/power lines. Still no power today in SnowValley, Ontario

      1E7E52FA-7397-455A-9B5B-1848DCD384FF.jpeg 111644E1-56B9-4B02-A53B-3289F2EBAC4A.jpeg 2EE10B55-DADA-4FE0-9EE0-E90349B7198A.jpeg

    • Mopar69 Bee

      Mopar69 Bee Well-Known Member

      Messages:
      49
      Likes Received:
      91
      Joined:
      Dec 9, 2016
      Location:
      Ontario
      Local Time:
      2:00 AM
      Tree down on rv from storm. Get this cleaned up then back to working on bee. Cheers

      29AD3BC9-05F1-4A8D-92DC-AD09C8FACD0B.jpeg DF41607A-B0E2-4B75-89AE-5FA3F7E5DA84.jpeg

    • Mopar69 Bee

      Mopar69 Bee Well-Known Member

      Messages:
      49
      Likes Received:
      91
      Joined:
      Dec 9, 2016
      Location:
      Ontario
      Local Time:
      2:00 AM

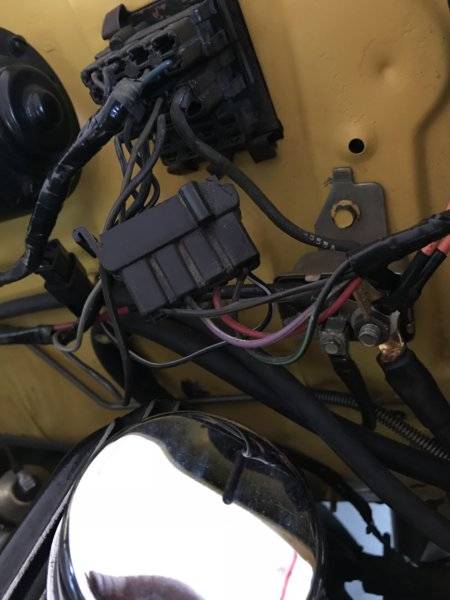

      I was able to remove wire from bulkhead. I will look for connector tomorrow. Dadsbee I live just south of you in SnowValley, Minesing, Ontario. Any idea where I can find them?
      Thanks

      E2790A51-1906-4817-A699-17578CDFA017.jpeg EDE4D6C0-23A9-42B0-93A3-59D2F183D3C9.jpeg

    • dadsbee

      dadsbee FBBO Gold Member FBBO Gold Member

      Messages:
      4,374
      Likes Received:
      9371
      Joined:
      Jan 29, 2018
      Location:
      Ontario, Canada
      Local Time:
      2:00 AM

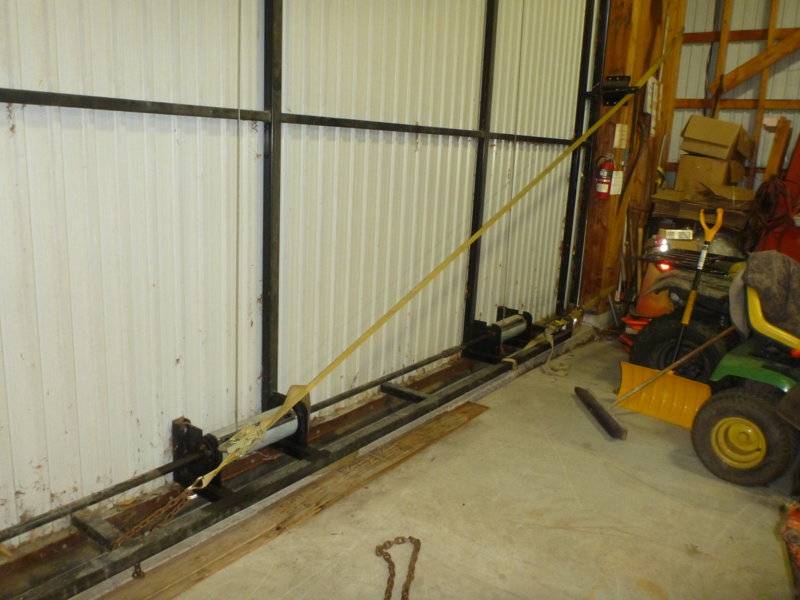

      I almost lost my hangar with that 100K wind blowing directly West against my 100' x 16' long wall + the roof. 5" out of plumb over 16' and my 40' bi fold door ended up INSIDE the door frame and jammed vs rolling up the outside wall. I had 4 x 10,000 lb ratchet straps and chains diagonal across the door and interior 3/8" cross cables up or I would have lost it. Yesterday I had to use the back hoe to pull the hangar further crooked so I could get the door unjammed!

      Pretty sure I have some of the male connectors, let me look in a bit.

      hangarmay42018 003.JPG hangarmay42018 005.JPG hangarmay42018 006.JPG

    • dadsbee

      dadsbee FBBO Gold Member FBBO Gold Member

      Messages:
      4,374
      Likes Received:
      9371
      Joined:
      Jan 29, 2018
      Location:
      Ontario, Canada
      Local Time:
      2:00 AM

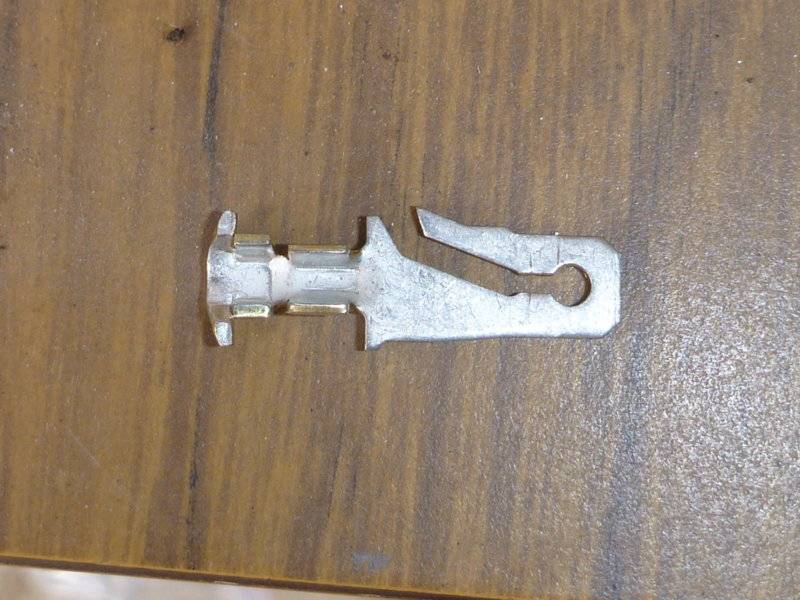

      Just to clarify my "how to remove" post for others, as you obviously already got the connector out. The males are side loaded and you have to push the tab sideways to get them out!
      enclosedatlastrailer24 188.JPG

      I have a few connectors here if you wanna make a trip up this week to get them. Son just showed up to watch Boston go down like the Titanic, so today is out. Wayne

    • Mopar69 Bee

      Mopar69 Bee Well-Known Member

      Messages:
      49
      Likes Received:
      91
      Joined:
      Dec 9, 2016
      Location:
      Ontario
      Local Time:
      2:00 AM
      Wow!! I’m glad you didn’t lose the building. Winds were crazy. I was out of power until Sunday around noon. I will look around barrie this week for connectors. If I can’t find any I may take a trip up Friday. Would that work?
      Cheers, Jeremy

    • dadsbee

      dadsbee FBBO Gold Member FBBO Gold Member

      Messages:
      4,374
      Likes Received:
      9371
      Joined:
      Jan 29, 2018
      Location:
      Ontario, Canada
      Local Time:
      2:00 AM
      My daughter was still out this afternoon over by Mt St Lois. Not sure if she's back on yet or not, haven't heard from her.

      I'm usually here, unless I'm not! LOL Unless there's a good ignition parts place left in Barrie I doubt you'll find one, but who knows. Like I said I have some spares from my bulkhead connector kit, as I'd bought a new engine harness so didn't use the ones intended for that section.
