Replacing dash lights

1975 - 1979 Mopars

  1. d9103365

    d9103365 Well-Known Member

    Messages:
    247
    Likes Received:
    88
    Joined:
    Sep 14, 2010
    Location:
    atlanta
    Local Time:
    3:37 PM
    several of my dash lights are burned out. the chrysler service manual says all you have to do is reach up under the dash and pull the lights out from behind. But I can't see how this can be done unless you are a contortionist...plus I can't see what I'm doing.

    I did pull the front cover off to replace a switch one time, but I remember that the gauge assembly appeared to be sealed, and the lights were way deep down...it does look like they should be pulled out from behind...but damn...I can't get to the suckers.

    Has anyone else done this?

  2. Magnumguy

    Magnumguy Well-Known Member

    Messages:
    52
    Likes Received:
    4
    Joined:
    Feb 6, 2010
    Location:
    SE OHIO
    Local Time:
    3:37 PM
    It's not sealed up. It takes more work to replace them from the "outside" but is easier on your body and hands. Be careful to not turn the bulbs, you might turn the socket out and have to go back in behind anyway.

    You have the cluster cover, and the clear piece with the labeling, you'll need needle nose pliers to get the pins out that hold the cluster cover on.

  3. MAGNUM GT XS22L9R

    MAGNUM GT XS22L9R Well-Known Member

    Messages:
    471
    Likes Received:
    73
    Joined:
    Oct 19, 2009
    Location:
    Orlando Florida area
    Local Time:
    3:37 PM
    Step by step with pictures!

    Here's a typical Late B body dash.

    You will need to unscrew some screws on the bottom side first. You'll need to
    pull the window washer nob off, the one for the light will clear the hole. Then
    give the faceplate a good pull to release the hiddin clips behind it. Tilt the
    dash top side first and this will able you to lift it over the steering console.
    Now there's the lens part, there are little round clips holding this unit on. A
    needle nose pliers works best pulling and replacing these. Then pull it out the
    same way to avoid scratching it. This is what you'll see!
    Note: you do not have to separate the rings from the dash plate as seen in pic!


    For some of the lights you may need to remove a gauge or two? If so it's not
    that hard, a couple of screws and they will slide right out. The fuel gauge
    has two wires that are for the low fuel light, there should be no need to pull
    these! But if so, mark one so that you place the right wire back in to the
    right pin. Now for the speedometer, this one is a little different. It has two
    screws and will have some play before becoming disconnected from the
    cable. Here is a pic of the dash with no gauges, you can see where all the
    lights are located.
    38133890014_medium.jpg Click to enlarge!

    For the lights with blue caps, you will need to squeeze the two catches
    together in order to pull them off. The light bulbs only need to be pulled out,
    do not turn them! If you turn them if may damage the printed circiut board
    behind. Here's a picture of what the board looks like. Doing it this way saves
    wear & tear on that board :)

    Good luck, from this point all you need do is put it back together again.

  4. moparstuart

    moparstuart Well-Known Member

    Messages:
    6,587
    Likes Received:
    928
    Joined:
    Jul 19, 2008
    Location:
    overland park kansas / Former owner a salvage yard
    Local Time:
    2:37 PM
    get the led bulbs , brighter and last longer

  5. Magnumguy

    Magnumguy Well-Known Member

    Messages:
    52
    Likes Received:
    4
    Joined:
    Feb 6, 2010
    Location:
    SE OHIO
    Local Time:
    3:37 PM
    Oh yes, forgot about the blue covers. DUH


    What's the p/n for those LED bulbs?

  6. Satellite65

    Satellite65 Well-Known Member

    Messages:
    480
    Likes Received:
    9
    Joined:
    Aug 22, 2010
    Location:
    Long Island NY
    Local Time:
    3:37 PM
    Are they dimmable?

  7. MAGNUM GT XS22L9R

    MAGNUM GT XS22L9R Well-Known Member

    Messages:
    471
    Likes Received:
    73
    Joined:
    Oct 19, 2009
    Location:
    Orlando Florida area
    Local Time:
    3:37 PM
    Yes

  8. moparstuart

    moparstuart Well-Known Member

    Messages:
    6,587
    Likes Received:
    928
    Joined:
    Jul 19, 2008
    Location:
    overland park kansas / Former owner a salvage yard
    Local Time:
    2:37 PM

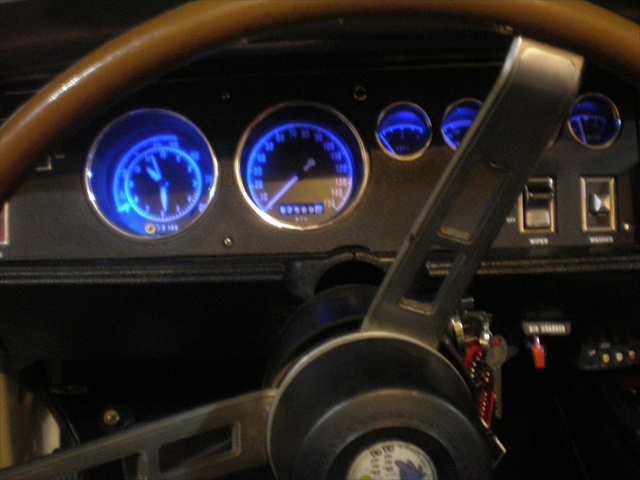

    yes as long as your car has a dimmer ? this is how they look in the dark in the birdible

    led 2dcdcdcdfdf.jpg

  9. canuk

    canuk Well-Known Member

    Messages:
    67
    Likes Received:
    6
    Joined:
    Oct 20, 2009
    Location:
    Chateauguay Quebec Canada
    Local Time:
    2:37 PM
    Do the l,e,d,s work on late sixties rally gauges too? where can I get them

  10. moparstuart

    moparstuart Well-Known Member

    Messages:
    6,587
    Likes Received:
    928
    Joined:
    Jul 19, 2008
    Location:
    overland park kansas / Former owner a salvage yard
    Local Time:
    2:37 PM
  11. scotts74birds

    scotts74birds Well-Known Member

    Messages:
    1,462
    Likes Received:
    145
    Joined:
    Aug 28, 2009
    Location:
    Michigan Thumb
    Local Time:
    2:37 PM
    How much do the LED's dim? I like the look.

  12. moparstuart

    moparstuart Well-Known Member

    Messages:
    6,587
    Likes Received:
    928
    Joined:
    Jul 19, 2008
    Location:
    overland park kansas / Former owner a salvage yard
    Local Time:
    2:37 PM
    they will dim all the way off just like factory

  13. MarPar

    MarPar If it weighs, it pays FBBO Gold Member

    Messages:
    13,929
    Likes Received:
    24893
    Joined:
    Nov 21, 2008
    Location:
    In GTXtacy Illinois
    Local Time:
    2:37 PM
    :hijacked:

  14. MarPar

    MarPar If it weighs, it pays FBBO Gold Member

    Messages:
    13,929
    Likes Received:
    24893
    Joined:
    Nov 21, 2008
    Location:
    In GTXtacy Illinois
    Local Time:
    2:37 PM
    Hey Stuie, do you know if they make 'em for earlier, non-rallye dashes? :icon_axe:

  15. moparstuart

    moparstuart Well-Known Member

    Messages:
    6,587
    Likes Received:
    928
    Joined:
    Jul 19, 2008
    Location:
    overland park kansas / Former owner a salvage yard
    Local Time:
    2:37 PM
    yes same bulbs , I just dont remember how many of each you will need

  16. d9103365

    d9103365 Well-Known Member

    Messages:
    247
    Likes Received:
    88
    Joined:
    Sep 14, 2010
    Location:
    atlanta
    Local Time:
    3:37 PM
    what kind of LED?

    I checked the website and there are several different kinds for the same size 194..which ones did you get? looks like they have different degree angles?

  17. d9103365

    d9103365 Well-Known Member

    Messages:
    247
    Likes Received:
    88
    Joined:
    Sep 14, 2010
    Location:
    atlanta
    Local Time:
    3:37 PM
