Replacing My 67 Coronet Trunk pan

1966 -1967 Mopars

  1. Bold & Old

    Bold & Old FBBO Gold Member FBBO Gold Member

    Messages:
    455
    Likes Received:
    217
    Joined:
    Feb 1, 2020
    Location:
    Michigan
    Local Time:
    6:58 PM
    I am good with sheet metal and welding most of my life replacing panels of all sorts of cars but never worked on any Mopars til two years ago.

    I have a nice 67 R/T that has beautiful original sheet.

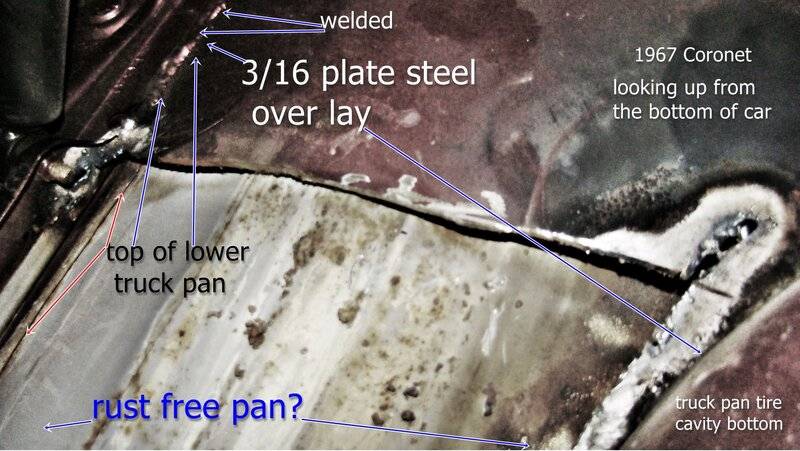

    Someone put a double bottom behind the spare tire from under the car.

    11 11 21 001.JPG

    11 11 21 068.JPG

    I removed the rust free trunk pan because of the previous owner ruin the trunk floor by welding another bottom. The gas tank will not fit because of it.

    I removed the entire original trunk floor and cleaned up the remaining nice floor supports.

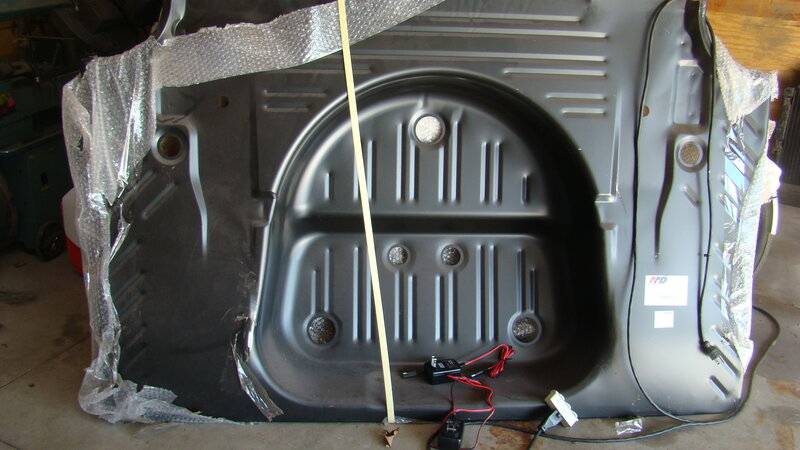

    I have a new AMD trunk panel ready to go into go in.
    11 11 21 067.JPG

    I have read some where here that the tail pan must be removed in order to install it.

    I also read somewhere that the pan can be cut so as to be able to put new panel in form the top.

    i would like not to remove the back panel to do so.

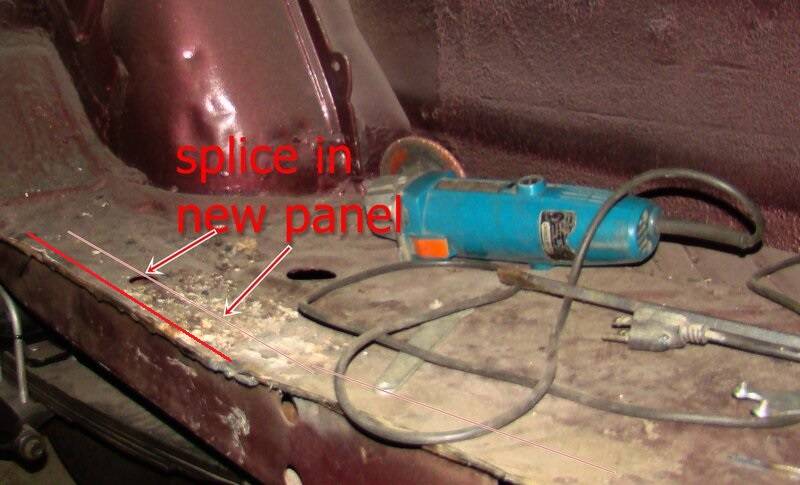

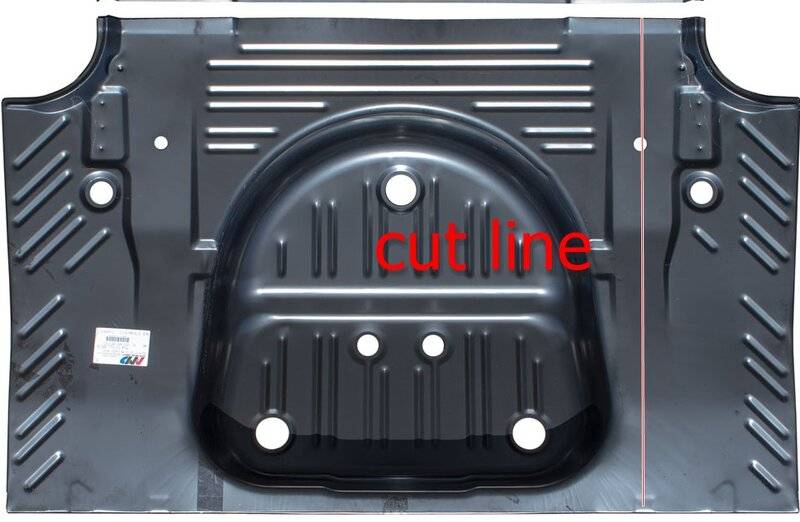

    I would like to install the pan thru the trunk cavity by cutting the new panel over the frame rail like the picture shows.

    11 11 21 085.JPG
    Like to hear some of your ideas pertaining to this cut.

    some of the pictures do not show the bare frames as they are now.

    Thank you.... Happy Thanksgiving.............:usflag:

    Last edited: Nov 25, 2021 at 11:50 AM
  2. dsd1967

    dsd1967 Well-Known Member

    Messages:
    861
    Likes Received:
    406
    Joined:
    Mar 6, 2011
    Location:
    Toledo
    Local Time:
    6:58 PM
    I did a trunk pan replacement in a 67 Belvedere with a full width pan.

    I removed the quarter panel end caps and cut about 2” sections out of the trunk gutter between the taillight opening and the trunk opening. Once the pan was in and welded I just welded the cut out chunks back in.

    I’ll get some pictures tomorrow.

    • Like Like x 1
    • donbmopar

      donbmopar Member

      Messages:
      22
      Likes Received:
      2
      Joined:
      Jun 17, 2017
      Location:
      manchester nh
      Local Time:
      6:58 PM

    • donbmopar

      donbmopar Member

      Messages:
      22
      Likes Received:
      2
      Joined:
      Jun 17, 2017
      Location:
      manchester nh
      Local Time:
      6:58 PM
      I went on that cut line on amd panel...... there is no way you will get full panel in without removing tail panel out of the way. I tried every way possible to get it in. It gets close but won't go in. if you cut neatly on that line you'll never see it under and little skim and no one will know. My 2 cents

      • Like Like x 1
      • eldubb440

        eldubb440 more miracles than Jesus FBBO Gold Member

        Messages:
        9,618
        Likes Received:
        22917
        Joined:
        Jul 17, 2008
        Location:
        South Jersey USA
        Local Time:
        6:58 PM
        rather than cutting right down the middle of the frame rails, consider cutting right on the frame rail flange (new red line)....it will make welding much easier as the flange will "back up" the weld.......... and you can probably keep your original spotwelds for the "original" look by cutting along side the spot welds



        • Agree Agree x 1
        • dsd1967

          dsd1967 Well-Known Member

          Messages:
          861
          Likes Received:
          406
          Joined:
          Mar 6, 2011
          Location:
          Toledo
          Local Time:
          6:58 PM

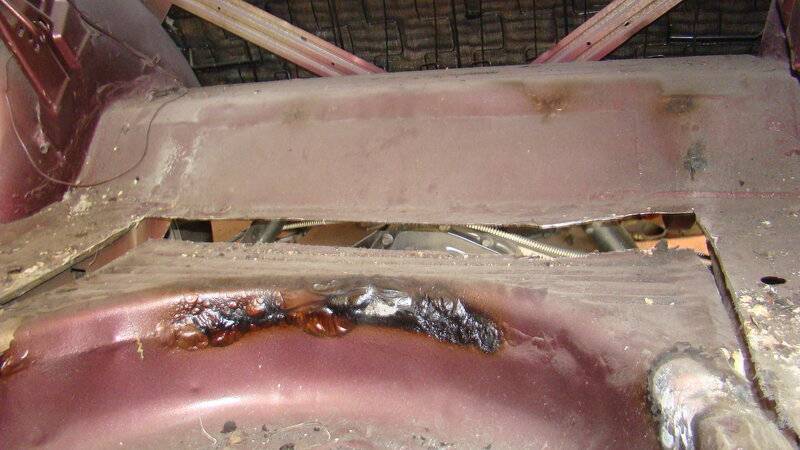

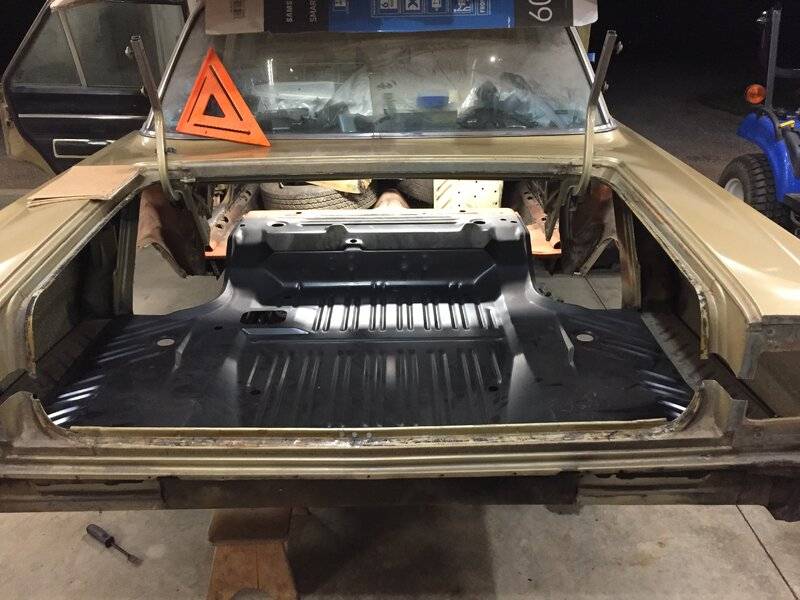

          Here are some before and after pictures of when I inserted the trunk pan. A couple things to note though....I put a 68-70 charger pan in my 67 belvedere so I could get the exhaust out the back with a mini-tub. The charger pan doesn't have the tire well so if you took this route you would have to measure to ensure the tire well would clear the bottom trunk lip. Also, your coronet tail lights are not as tall as the belvedere opening....it may be difficult to get the height needed.

          While I had the sections out, I put a piece of 1/8" strap steel with studs welded in them to go through the innermost end cap holes. That way if I accidently leaned on the quarter, it wouldn't collapse the taillight area. Those only came out for trial fits but were put in otherwise....right up until I welded the cut out sections back in.

          IMG_0866.JPG IMG_0451.jpg

          • Like Like x 1
          • Bold & Old

            Bold & Old FBBO Gold Member FBBO Gold Member

            Messages:
            455
            Likes Received:
            217
            Joined:
            Feb 1, 2020
            Location:
            Michigan
            Local Time:
            6:58 PM
            I am not use to chatting on a social media setting and may make some unintended mistakes.

            please bear with me all.

            I read your posts sir pertaining to replacing the entire trunk and rear fender panels.

            You did a great job...... and your techniques of doing so. Bravo eldubb440

            first off the picture is a old photo like I said in the post.

            all of the old pan has been removed so no spot weld holes... I choose the use a 4 inch cutter that worked very well with the lease amount of cutting.

            however I plan on drilling some smaller holes from the top as the project goes forward.

            I wont dwell on that now.......... as I have a different similar way to what you suggest here.

            I am a thinker and sometimes off the charts ways of doing things..... most of my life.

            my results are aways the way I planned it with a few bumps along the way.

            When I started this post in retrospect I should have said

            "what is the best way to get a new full pan in the trunk opening without taking the rear panel out"

            one person here has address this... in his opinion in this post above.

            I have no problems with making cuts on the new panel (not the old) other than cutting down the middle in the tire well cavity.

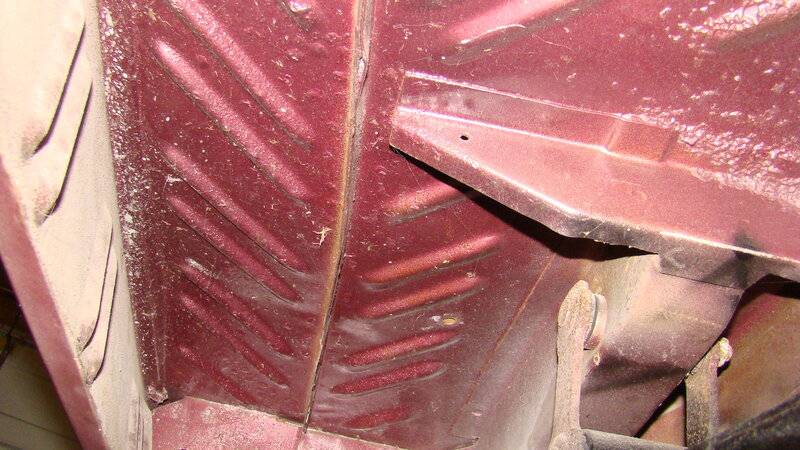

            The car was rust proofed from dealership when it was new... and had a lot of tar like substance I removed.

            previous owner painted over some of the rust proofing in photo.


            11 11 21 024.JPG

            I will explain later

            Last edited: Nov 25, 2021 at 12:03 PM
          • Ghostrider 67

            Ghostrider 67 Power corrupts.....lol..... FBBO Gold Member

            Messages:
            25,267
            Likes Received:
            50877
            Joined:
            Oct 16, 2014
            Location:
            Salisbury, Vermont
            Local Time:
            6:58 PM

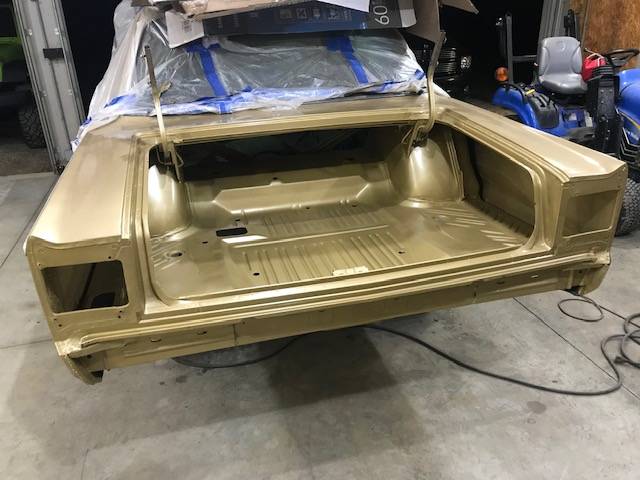

            I welded in a flat trunk floor and the cut lines were along the inner edges of the main floor leaving the factory spot welds. This was to have, as someone above mentioned, the "backing" of the factory frame rail top surface behind my welds, rather than have the open frame rail cavity under my weld line...

          • Bold & Old

            Bold & Old FBBO Gold Member FBBO Gold Member

            Messages:
            455
            Likes Received:
            217
            Joined:
            Feb 1, 2020
            Location:
            Michigan
            Local Time:
            6:58 PM
            yes sir I would like to see that........

            Happy Thanksgiving to you and all!

          • Bold & Old

            Bold & Old FBBO Gold Member FBBO Gold Member

            Messages:
            455
            Likes Received:
            217
            Joined:
            Feb 1, 2020
            Location:
            Michigan
            Local Time:
            6:58 PM
            yes sir I agree... and is in my plan Ghostrider 67. Thank you:thumbsup:

            I plan on using aircraft Cleo s in my reconstruction on both sides of the open frame rails using copper sheet between all cuts to be welded.

            Remember my plan of reconstruction will be not be the traditional way of replacement....

            My original trunk pan being as clean as it was...

            I was surprised to find about 30% of the original factory welds were either not welded or broken from 50+ years of use.

            This 30% is on the entire factory welded surface of the trunk pan and there are many.

            • Like Like x 1
            • Bold & Old

              Bold & Old FBBO Gold Member FBBO Gold Member

              Messages:
              455
              Likes Received:
              217
              Joined:
              Feb 1, 2020
              Location:
              Michigan
              Local Time:
              6:58 PM
              Were you able to get the panel in by cutting the panel in the manner you described?

              before I cut I need to to know for sure........

            • dsd1967

              dsd1967 Well-Known Member

              Messages:
              861
              Likes Received:
              406
              Joined:
              Mar 6, 2011
              Location:
              Toledo
              Local Time:
              6:58 PM
              Bold and Old. Check a few post above. I put some before and after pictures of how I got a full width trunk pan in without removing the entire rear panel

              • Thanks! Thanks! x 1
              • Bold & Old

                Bold & Old FBBO Gold Member FBBO Gold Member

                Messages:
                455
                Likes Received:
                217
                Joined:
                Feb 1, 2020
                Location:
                Michigan
                Local Time:
                6:58 PM
                The 67 Coronet has the tire well and may be more difficult to get in than a flat floor.

                Trimming will be a must to get in..... it appears that your wheel wells have been removed for easier installing.

                Thanks for your post.

              • donbmopar

                donbmopar Member

                Messages:
                22
                Likes Received:
                2
                Joined:
                Jun 17, 2017
                Location:
                manchester nh
                Local Time:
                6:58 PM

              • donbmopar

                donbmopar Member

                Messages:
                22
                Likes Received:
                2
                Joined:
                Jun 17, 2017
                Location:
                manchester nh
                Local Time:
                6:58 PM

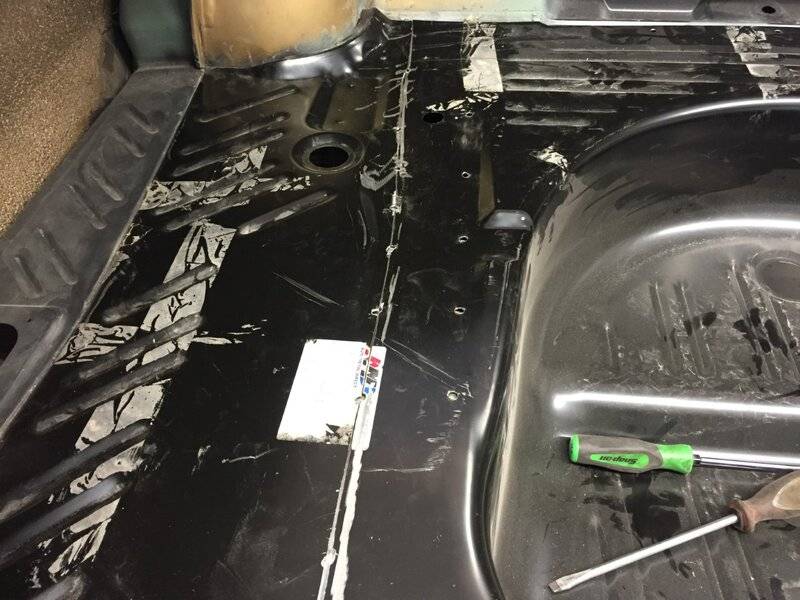

                67 GTX floor pan.jpg I cut as described there. I didn't have that guide but I cut it the same. I cut it right in the middle of flat of the frame rail you got about an inch of flat surface . Then put the two pieces in. Amd is a really good fit. once I laid the pieces in and where they are supposed to go. I went under and chalked the line along frame rail. Then you'll know where to drill for spot-welds. (spot weld look alikes with mig) Hope that helps.... again just my 2 cents

                Last edited: Nov 26, 2021 at 10:37 AM
                • Thanks! Thanks! x 1
                • Bold & Old

                  Bold & Old FBBO Gold Member FBBO Gold Member

                  Messages:
                  455
                  Likes Received:
                  217
                  Joined:
                  Feb 1, 2020
                  Location:
                  Michigan
                  Local Time:
                  6:58 PM
                  I plan on starting my cut very soon on the new trunk panel so if there is a
                  yes sir this is what I am looking for......... only one cut as the photo shows.

                  any trouble of getting the pan thru the opening?

                • donbmopar

                  donbmopar Member

                  Messages:
                  22
                  Likes Received:
                  2
                  Joined:
                  Jun 17, 2017
                  Location:
                  manchester nh
                  Local Time:
                  6:58 PM
                  you'll have to measure the pan carefully on the table. Measure frame on car very carefully. Then measure again and cut. it would be easier to cut panel to have the cut fall in the middle of frame channel. I did it to fall on the flat edges of the frame channel. I personally feel cutting for the middle is fine. Just line it up good and weld it shut. Keep in mind you will be chalking all the lines underneath where the frame is. In and out many times marking then drill holes for weld. I hope this helps.
