reverse light harness help please

[davek]

1970 Bee 4 spd which one and whats the plug for? Pics 1st Brewers 2nd Yearone

previous

Close



[Dipstick]

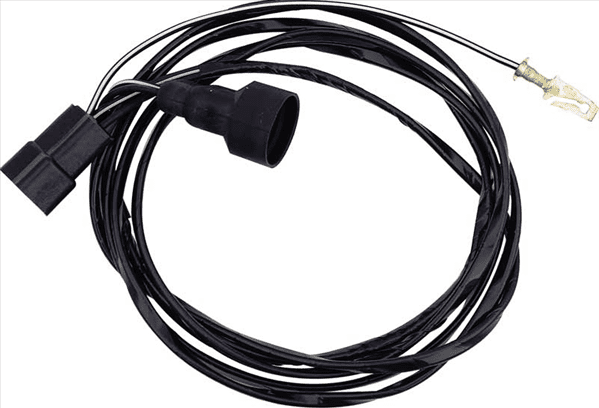

Either one should work, the bottom one includes the connector for the BU lights, top one is just bare terminals. The third wire is for the REVERSE light on the dash.



[dadsbee]

I've shown it a dozen times Dave.. I think even for you!



[davek]

Yes you have dadsbee and thank you. I would think the harness would be 2 plugs 1 for switch on gearbox and 1 female for the bulkhead plug what would be the wire on the Yearone harness for slot z for reverse??And were to order male plug for bulkhead slot c&d?



[dadsbee]

I bought my harness from Brewer's. Think I swapped it into my OE plugs.. let me look...



[dadsbee]

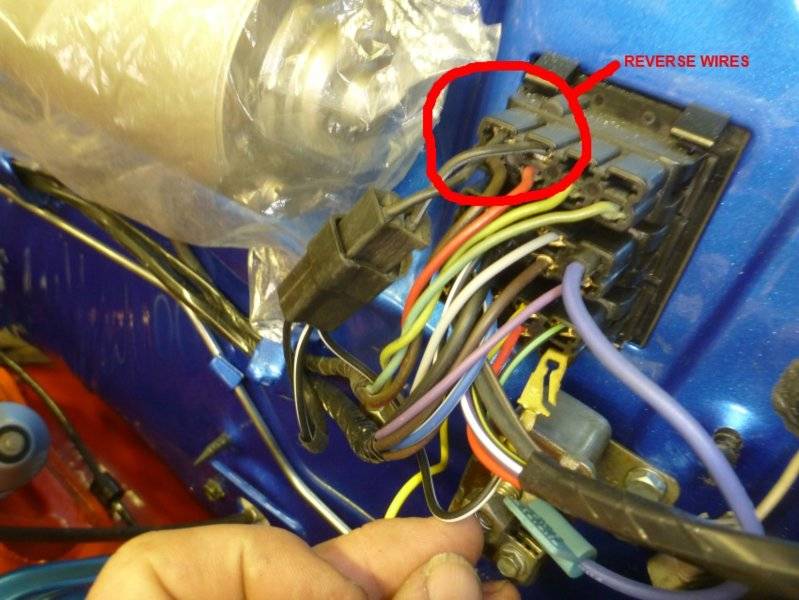

What I got from Brewer's and inserted into my OE dual connector and the "Z" spot for the dash reverse light.



[davek]

I wish mine was that clean,thanks for all your help dadsbee



[Bryce Overturf]

I bought my harness from Brewer's. Think I swapped it into my OE plugs.. let me look...



[Bryce Overturf]

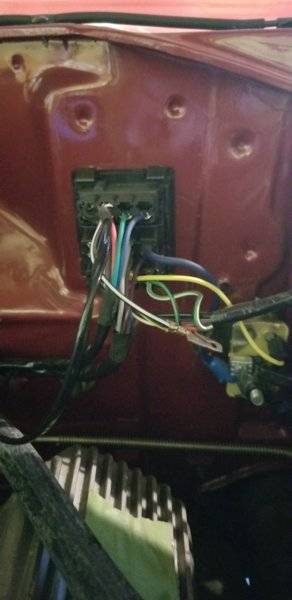

Dadsbee I am having the same issue mine goes from the transmission straight to the bulkhead Got any suggestions for a fix. What is the black and white wire out of the bulkhead used for?
Thanks in Advance
Bryce



[dadsbee]

Extra pigtail is for the dash reverse light. Goes to the "Z" slot on a '69



[Bryce Overturf]

Is it different for a 68 GTX? There's a green and white wire in the z slot. I bought my harness from Evans in Pennsylvania.



[dadsbee]

Is there a dash light on a '68?.. and yes from what we've discussed around here something else takes residence in that spot on a '68's firewall harness.



[Bryce Overturf]

Yes there is a light on the lower dash. Any suggestions. The old reverse light had a purple wire so I plugged the new one into the purple wire from the harness.



[dadsbee]

Someone sorted this out on a '68.. but I can't remember who it was, but I remember it got feed from the kick panel harness instead I believe .. Help guys .. @The Rebel @showard



[The Rebel]

Wasn't me but here's a link to the wiring diagrams.

http://www.mymopar.com/index.php?pid=27
