Rod balancing

cbodybob

Well-Known Member
Local time
11:53 AM
Joined
Jan 10, 2014
Messages
1,496
Reaction score
1,620
Location
youngsville, NC
Or weight matching
Weighing the small end to see how much can be removed there. If you look close you can see where I already had ground in the seam on the beam. I gained 2 grams there. Not much. Certainly not as much as I was hoping.
LY rods. Working with what I have


PurpleBeeper

Well-Known Member
Local time
10:53 AM
Joined
Mar 20, 2011
Messages
4,896
Reaction score
3,630
Location
Chicago
I've never done this. I always "thought" you took the weight off the bottom of the cap and/or the flat spot on the small end as needed. I remember people "polishing rods", so I just assumed removing the numbers on the sides of the rods would be fine. I would have guessed that forging seems would be OK to remove too, but like I said.....I've never done it.


zyzzyx

FBBO Gold Member
FBBO Gold Member
Local time
10:53 AM
Joined
Aug 5, 2011
Messages
2,887
Reaction score
3,702
Location
Lisle, Illinois
If you want to trim and polish the flashings off of the rods, that's O.K., but that's now your starting point
the pads on both ends are for balancing.


HawkRod

Formerly hsorman
FBBO Gold Member
Local time
11:53 AM
Joined
Aug 8, 2011
Messages
5,415
Reaction score
9,355
Location
Lansdale, PA
Or weight matching
Weighing the small end to see how much can be removed there. If you look close you can see where I already had ground in the seam on the beam. I gained 2 grams there. Not much. Certainly not as much as I was hoping.
LY rods. Working with what I have

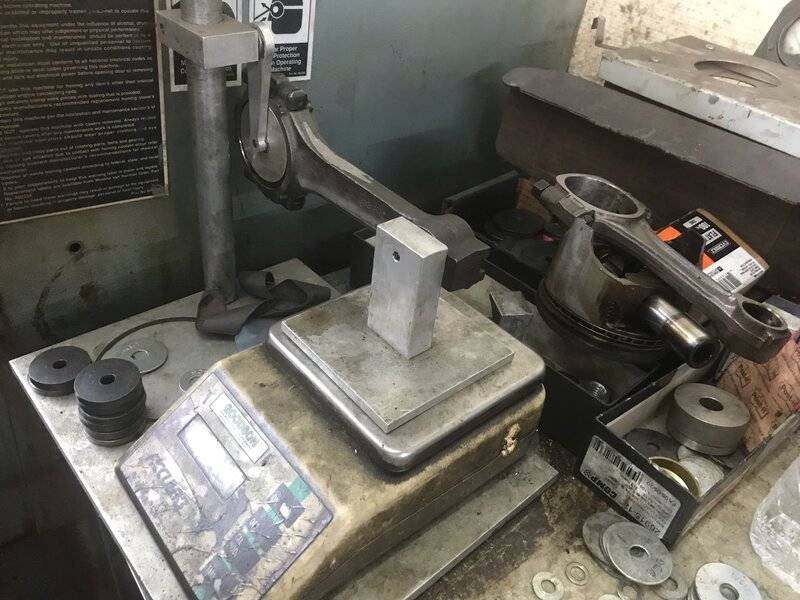

View attachment 1245230
Agree with others you should grind off weight off the top and the bottom of the rods. Start with your lightest rod as your goal.

When you are done, the overall weight of each rod should be the same, as well as the weight of each end of each rod.

Note that grinding weight off of either end changes the weight of the other. So you need to sneak up on it! Just work slowly and you'll get it!


cbodybob

Well-Known Member
Local time
11:53 AM
Joined
Jan 10, 2014
Messages
1,496
Reaction score
1,620
Location
youngsville, NC
This is why I didn’t remove weight from the cap pad. I dimpled the pistons to get them all the same. I thought I had a pic but can’t find it. I’ll get one tomorrow


cbodybob

Well-Known Member
Local time
11:53 AM
Joined
Jan 10, 2014
Messages
1,496
Reaction score
1,620
Location
youngsville, NC
If you want to trim and polish the flashings off of the rods, that's O.K., but that's now your starting point
the pads on both ends are for balancing.
If I were using a better piston I would have polished the rods. I’m not a fan of oil captivity theory.


70bigblockdodge

Well-Known Member
Local time
11:53 AM
Joined
Jul 12, 2012
Messages
307
Reaction score
290
Location
southwestern pa.
Personally with a LY rod I would take that almost that whole lump off the top, leaving just enough to bring them close together weight wise. Weakest part of the rod is the step for the head of the bolts, which you can't fix so getting rid of as much weight as possible is better. Those pistons should be really close (better than years ago) and it is a lot of work to get much weight out of them with those giant pins.


cbodybob

Well-Known Member
Local time
11:53 AM
Joined
Jan 10, 2014
Messages
1,496
Reaction score
1,620
Location
youngsville, NC
Personally with a LY rod I would take that almost that whole lump off the top, leaving just enough to bring them close together weight wise. Weakest part of the rod is the step for the head of the bolts, which you can't fix so getting rid of as much weight as possible is better. Those pistons should be really close (better than years ago) and it is a lot of work to get much weight out of them with those giant pins.
Yep there was 4 grams. Pretty darn good. The rods were a different story.


HawkRod

Formerly hsorman
FBBO Gold Member
Local time
11:53 AM
Joined
Aug 8, 2011
Messages
5,415
Reaction score
9,355
Location
Lansdale, PA

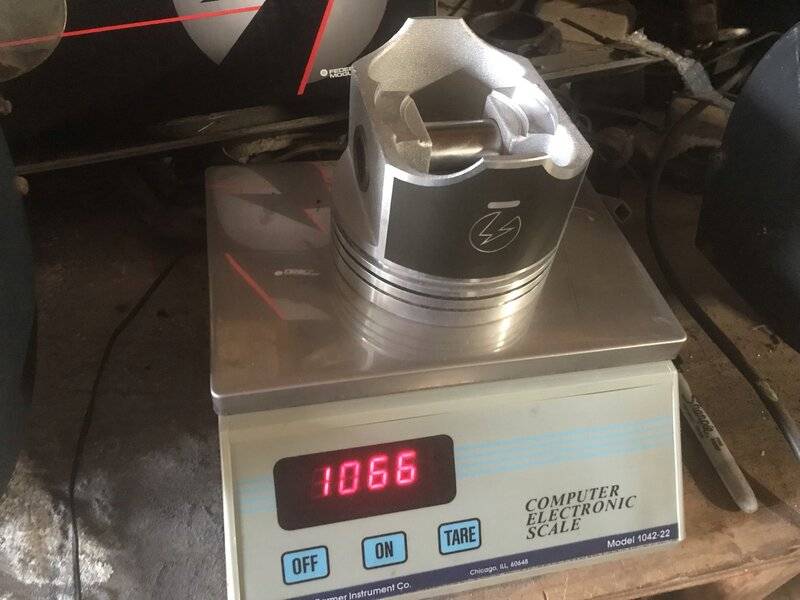

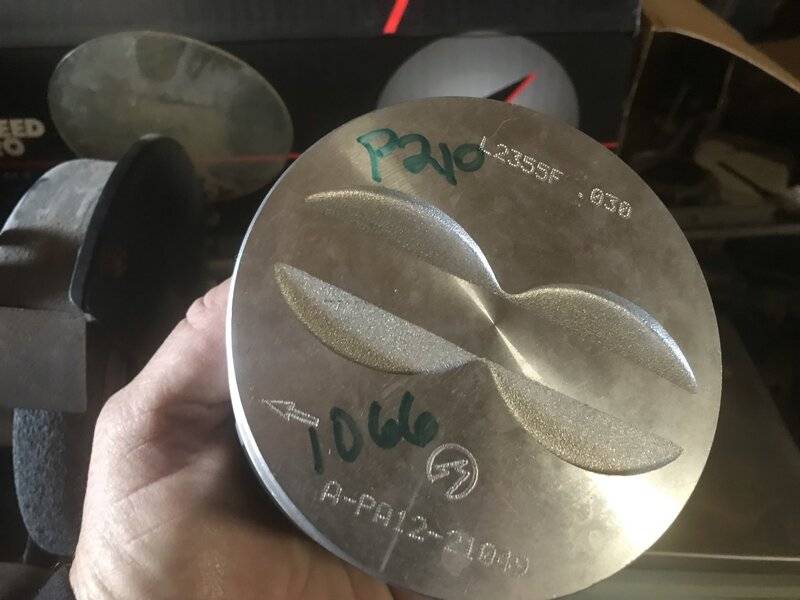

This is why I didn’t remove weight from the cap pad. I dimpled the pistons to get them all the same. I thought I had a pic but can’t find it. I’ll get one tomorrow View attachment 1245410 View attachment 1245411
Sorry for the potentially dumb question, but I'm not sure I understand.

For all the engines I have balanced (so far only 4, so I will not profess to be an expert), I make all the rods the same weight (both on the big end and the small end). Separately, I make all the pistons the same weight. Of course, pins and clips need to be the same weight too, but they almost always are identical in weight.

So I'm not sure I understand your statement that you dimpled the pistons, and that is why you didn't remove weight from the cap end. I'd appreciate if you can elaborate on what you did so I can understand better.

Thanks


dvw

FBBO Gold Member
FBBO Gold Member
Local time
11:53 AM
Joined
Feb 16, 2010
Messages
6,434
Reaction score
9,726
Location
waterford mi
Balance the big end of the rod first. The big end weight can affect the small end weight a small amount. I wouldn't ever remove weight from the beam to balance. I don't understand what "piston dimpling" is? Or what it has to do with removing weight from the weight pads.
Doug


cbodybob

Well-Known Member
Local time
11:53 AM
Joined
Jan 10, 2014
Messages
1,496
Reaction score
1,620
Location
youngsville, NC
Sorry for the potentially dumb question, but I'm not sure I understand.

For all the engines I have balanced (so far only 4, so I will not profess to be an expert), I make all the rods the same weight (both on the big end and the small end). Separately, I make all the pistons the same weight. Of course, pins and clips need to be the same weight too, but they almost always are identical in weight.

So I'm not sure I understand your statement that you dimpled the pistons, and that is why you didn't remove weight from the cap end. I'd appreciate if you can elaborate on what you did so I can understand better.

Thanks
The pistons were seperate. Not part of the equation at this point. There weight is why I didn’t remove weight from the cap end. Big heavy slug & only had one rod that was way out of wack. 4 were close so I wanted to keep weight on the opposite end of the piston as a measure of counter balance. So that resulted in all rods had the same cap end weight & as assembled they are damn close on the piston end. The assemblies are within 4 grams with no weight removed on the cap end.


cbodybob

Well-Known Member
Local time
11:53 AM
Joined
Jan 10, 2014
Messages
1,496
Reaction score
1,620
Location
youngsville, NC
Balance the big end of the rod first. The big end weight can affect the small end weight a small amount. I wouldn't ever remove weight from the beam to balance. I don't understand what "piston dimpling" is? Or what it has to do with removing weight from the weight pads.
Doug
Just drilling holes in the backside of the piston. That’s all. Dimpled them.


dvw

FBBO Gold Member
FBBO Gold Member
Local time
11:53 AM
Joined
Feb 16, 2010
Messages
6,434
Reaction score
9,726
Location
waterford mi
The pistons were seperate. Not part of the equation at this point. There weight is why I didn’t remove weight from the cap end. Big heavy slug & only had one rod that was way out of wack. 4 were close so I wanted to keep weight on the opposite end of the piston as a measure of counter balance. So that resulted in all rods had the same cap end weight & as assembled they are damn close on the piston end. The assemblies are within 4 grams with no weight removed on the cap end.
There is no sense keeping heavy bottom rod weight. You have reciprocating and rotating weight that is used in the bobweight equation. Removing big end weight does nothing to reciprocating weight. I'd read up on engine balancing.
Maybe this will help you.

Doug


70bigblockdodge

Well-Known Member
Local time
11:53 AM
Joined
Jul 12, 2012
Messages
307
Reaction score
290
Location
southwestern pa.
My 2235s were only less than 2 grams apart. Moving pins around got me closer.
I only had one rod (not LYs) at not quite a gram heavy, put it with lightest slug.
Keep moving Bob spring is coming.


cbodybob

Well-Known Member
Local time
11:53 AM
Joined
Jan 10, 2014
Messages
1,496
Reaction score
1,620
Location
youngsville, NC
My 2235s were only less than 2 grams apart. Moving pins around got me closer.
I only had one rod (not LYs) at not quite a gram heavy, put it with lightest slug.
Keep moving Bob spring is coming.
Yep I am. As you know lots going on. Hope to pick up the trans this weekend. As usual I’m behind LOL. They’re already racing here.


RJRENTON

FBBO Gold Member
FBBO Gold Member
Local time
10:53 AM
Joined
Jul 1, 2015
Messages
2,785
Reaction score
2,676
Location
South Shores area of Decatur, Illinois
Curiosity question.....should the rod be balanced with the bearings in place (as reciprocating weight)? Likewise, should the piston be balanced with the rings installed and if using full floating wrist pins, the pin and the pin retainers included? Just asking.....
BOB RENTON


bm02tj

Well-Known Member
Local time
8:53 AM
Joined
Jan 27, 2013
Messages
2,591
Reaction score
5,513
Location
BC Canada
Pin weight varies bearings and rings not so much but they are used in bob weight calculation
