There’s some members on the forum who know more about these that might chime in. Working with mine over the years (I had mentioned earlier) there’s not a lot of slack; but mine has more than yours shows in your photo. Exhaust shouldn’t be impeding the cable, it routes behind (btw it and the firewall) above the pipe. The wire tie looks to be reducing a bit of slack to the adjuster, and if there are more ties used on the cable, this could be an issue as well. There’s a couple guys on the forum I think khryslerkid, and another couple members, can’t recall their handles offhand, that know a lot on this. Other one is the admin Joe Suchy who knows or could point you in the right direction. There were different cable sizes, but if you would have the wrong one, doubt it would work on the b-body..


Stumper

Well-Known Member
Local time
2:35 PM
Joined
Oct 28, 2010
Messages
1,363
Reaction score
268
Location
Bandana, NC
There’s some members on the forum who know more about these that might chime in. Working with mine over the years (I had mentioned earlier) there’s not a lot of slack; but mine has more than yours shows in your photo. Exhaust shouldn’t be impeding the cable, it routes behind (btw it and the firewall) above the pipe. The wire tie looks to be reducing a bit of slack to the adjuster, and if there are more ties used on the cable, this could be an issue as well. There’s a couple guys on the forum I think khryslerkid, and another couple members, can’t recall their handles offhand, that know a lot on this. Other one is the admin Joe Suchy who knows or could point you in the right direction. There were different cable sizes, but if you would have the wrong one, doubt it would work on the b-body..

Actually that zip tie is helping a bit. I pulled what little slack there was and used the tie to hold it from relaxing. So your cable runs behind the down pipe too?


khryslerkid

Well-Known Member
Local time
2:35 PM
Joined
Mar 10, 2010
Messages
27,243
Reaction score
44,540
Location
Hanover, Pennslyvania

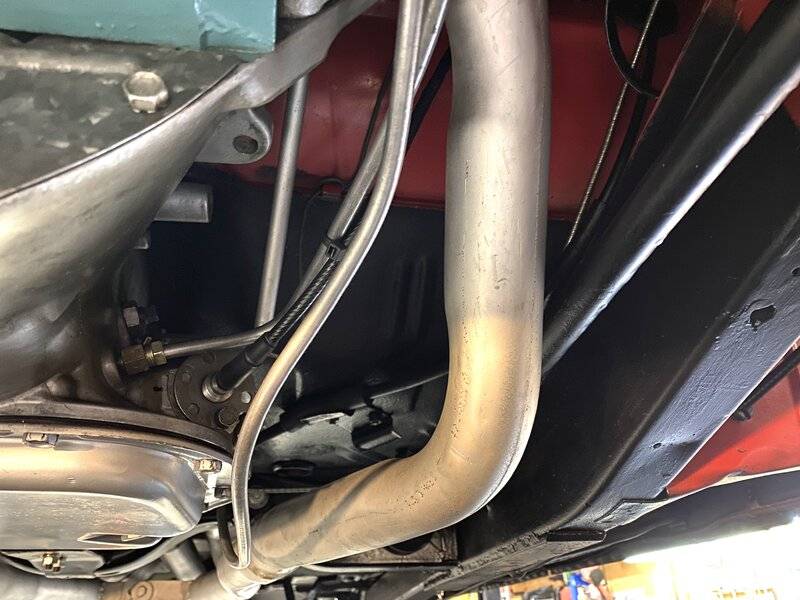

Something else I ran into with this little project that I would appreciate any thoughts / experience on. My shift cable runs behind the exhaust down pipe as seen in this picture.
View attachment 1221276
There is quite a bit of upward tension on the shift cable where it goes into the case. I was hoping I had enough slack in the cable to reroute it to the front of the exhaust pipe so there was less upward tension on the cable but there wasn’t any slack. Can anyone with a stock exhaust tell me if their cable runs in front of or behind the down pipe?
There is quite a bit of upward tension on the cable connector with my setup and while the shrink tube seems to have stopped the cable leak for now there is still seepage around the ORing coming through.

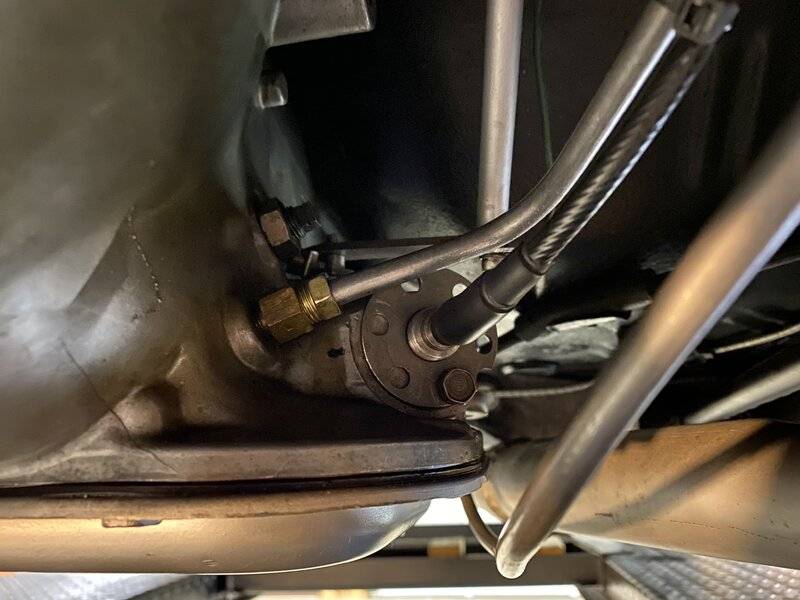

View attachment 1221280

I didn’t realize it before but it is pretty easy to wiggle the cable threaded shaft in the adjuster wheel. Seems like it could use a thin nut on the outside to help keep it centered in the case hole?

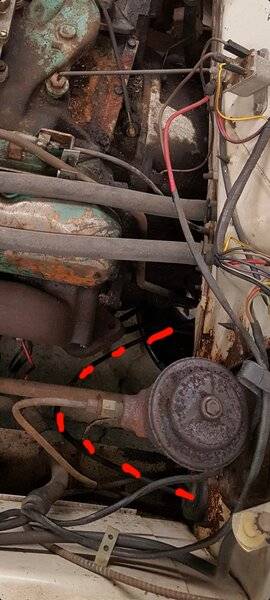

I'm pretty sure my shifter cable ran between the down pipe and the bell housing. This is a picture before I disassembled anything. The down pipe has been removed.


These are pictures with the headers I installed and it's a 440 engine not the original 361. You can use your imagination on where a down pipe would be.



I would think you have the original 361 setup. Was the cable replaced at one time? There are several length cables. Also you could look up under the dash and see how it's routed. Might be some extra under there that you could reroute.

The threaded end can have a little play in the adjuster wheel. As long as you have the correct O-ring on the cable end and it doesn't leak you'll be good.


Ron H

FBBO Gold Member
FBBO Gold Member
Local time
1:35 PM
Joined
Feb 29, 2016
Messages
7,520
Reaction score
8,358
Location
WI
I can send a photo of mine it this helps, it angles down through the firewall, a dual grommet there, for the park cable. It routes over the exhaust (if I follow what you're asking). Exhaust doesn't come into the picture; but want to be aware of it routed with some clearance from it. As for the wire tie, you'd know being your setup...just looks like to me the tie is causing some upward presssure on the cable.


Ron H

FBBO Gold Member
FBBO Gold Member
Local time
1:35 PM
Joined
Feb 29, 2016
Messages
7,520
Reaction score
8,358
Location
WI

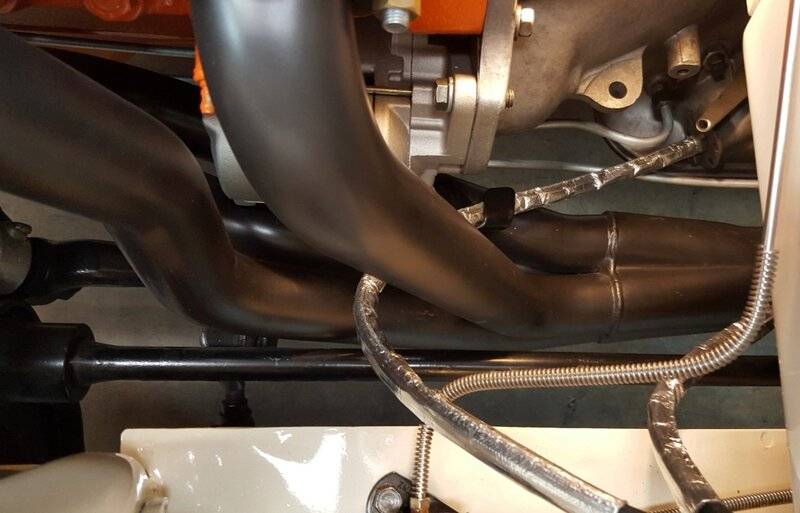

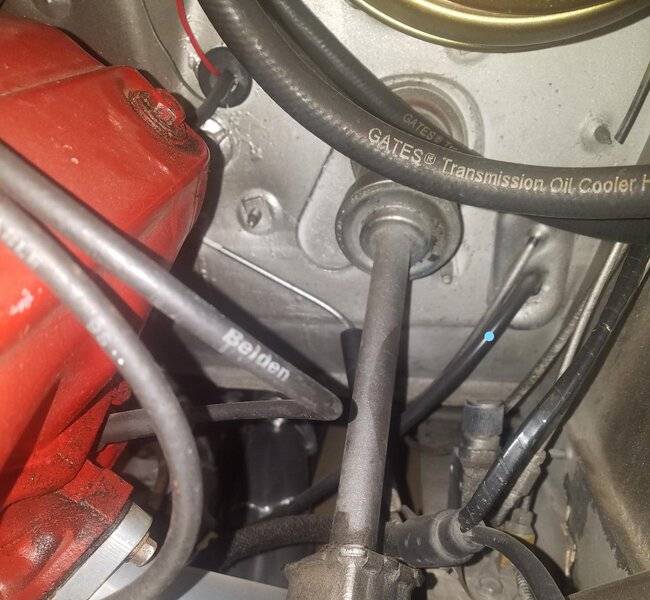

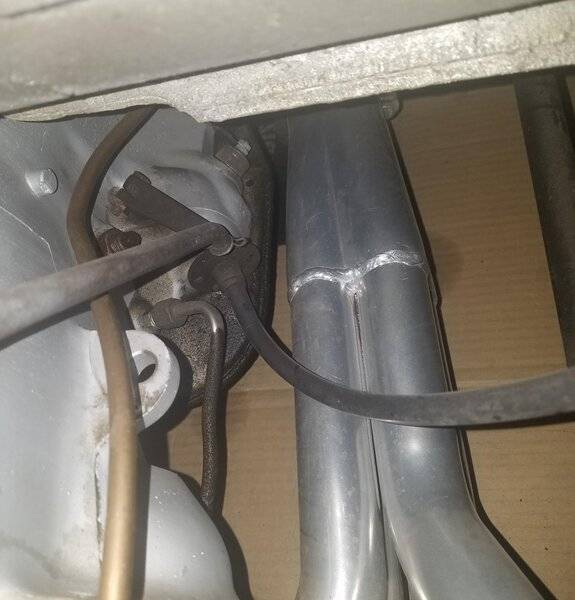

Photos of my cable. Cable has blue dot on it. 2nd photo appears to show the cable laying on top of the header; but it's around 2.5"above it and would be how it was routed over the factory exhaust.

PB Cable 1_LI (2).jpg PB Cable 2.jpg


Stumper

Well-Known Member
Local time
2:35 PM
Joined
Oct 28, 2010
Messages
1,363
Reaction score
268
Location
Bandana, NC
Thanks for the pictures guys. I am inclined to believe that mine might be correctly routed after seeing yours. I checked today and it looks like the seeping I had around the adjuster wheel might have stopped. One corner of the pan seems to have stopped too so just one corner left…


Stumper

Well-Known Member
Local time
2:35 PM
Joined
Oct 28, 2010
Messages
1,363
Reaction score
268
Location
Bandana, NC
By way of an update on this project. So after getting everything back together with what I thought was the proper O ring for the shift cable - I still had leaks. Some were the pan which I believe I finally rectified leaving me with a slight seepage around the shift cable (not through the cable, that is stopped for now with shrink tube). I found another Oring that fits the groove and is 1/8” thick. The other was 3/32”. Of course beging thicker it winds up larger in OD once on the cable. It is very tight and I will attempt to squeeze it into the hole today greased up - will report back…
One thing I wanted to do with the cable back out was to find a thin nut that I could run up against adjuster wheel once it was adjusted to help stabilize the cable in the hole. In case you ever have this idea the nut needed is 21/32” fine thread which seem to be unobtainable…. I have scoured the internet without luck. I really do think that a nut up against the wheel would help eliminate movement of the cable (and Oring) but it doesn’t look feasible.
Hopefully I can cram this thicker Oring in the hole and it stops the leak. I hate to resort to RTV….


khryslerkid

Well-Known Member
Local time
2:35 PM
Joined
Mar 10, 2010
Messages
27,243
Reaction score
44,540
Location
Hanover, Pennslyvania
With the proper size O ring there shouldn't be much play the the adjuster wheel.

I went to a local transmission shop with my old O ring and he matched it up in a matter of seconds. I should have asked for a spare but he wasn't charging me anything. My old one is hanging on a wire with a bunch of other ones so I'm not sure which one it is anymore. It was an odd size not found in your average O ring assortment.


Stumper

Well-Known Member
Local time
2:35 PM
Joined
Oct 28, 2010
Messages
1,363
Reaction score
268
Location
Bandana, NC
With the proper size O ring there shouldn't be much play the the adjuster wheel.

I went to a local transmission shop with my old O ring and he matched it up in a matter of seconds. I should have asked for a spare but he wasn't charging me anything. My old one is hanging on a wire with a bunch of other ones so I'm not sure which one it is anymore. It was an odd size not found in your average O ring assortment.

do you recall if it was 1/8 or 3/32” thickness? Did it slide into the case easily or was it a tight fit getting it in?


khryslerkid

Well-Known Member
Local time
2:35 PM
Joined
Mar 10, 2010
Messages
27,243
Reaction score
44,540
Location
Hanover, Pennslyvania
do you recall if it was 1/8 or 3/32” thickness? Did it slide into the case easily or was it a tight fit getting it in?

Going by what Moe posted in post#12
"Shift cable '60-'65 .700 X .100"

The only O-ring I have in my collection of leftovers that measures .700, measures .105 thick which is just under 7/64"


Stumper

Well-Known Member
Local time
2:35 PM
Joined
Oct 28, 2010
Messages
1,363
Reaction score
268
Location
Bandana, NC
Finding that bugger seems impossible. The case hole measures .656” which is the OD of the threaded section on the cable. .7” should seal well - but that assumes the ID fits the groove just right. If the ID is too tight the ring stretches under .7”. If it’s too loose in the groove in creates seal issues at the groove. This is frustrating as all get out over a simple darn O ring!


khryslerkid

Well-Known Member
Local time
2:35 PM
Joined
Mar 10, 2010
Messages
27,243
Reaction score
44,540
Location
Hanover, Pennslyvania
Finding that bugger seems impossible. The case hole measures .656” which is the OD of the threaded section on the cable. .7” should seal well - but that assumes the ID fits the groove just right. If the ID is too tight the ring stretches under .7”. If it’s too loose in the groove in creates seal issues at the groove. This is frustrating as all get out over a simple darn O ring!

You have the measurements. .700 x .100
Try your local transmission shop. Like I stated before it's not a common size. I also posted a link in the beginning of this thread to someone who sells the O-ring set.


dadsbee

FBBO Gold Member
FBBO Gold Member
Local time
2:35 PM
Joined
Jan 29, 2018
Messages
13,437
Reaction score
37,079
Location
Midland Ontario, Canada
I would think an AS569A-112 is about as close as you can get with a standard O ring. It's 0.487 +/- .005 ID x 0.103 +/- 0.003 thickness... which would give it an OD of 0.682 to 0.704 across the tolerance range.


matthon

Well-Known Member
Local time
2:35 PM
Joined
Mar 3, 2018
Messages
1,203
Reaction score
993
Location
New York
Another seal to check is the kickdown. There is a NAPA part # that is a perfect fit, I don't know it but I could find it.


Stumper

Well-Known Member
Local time
2:35 PM
Joined
Oct 28, 2010
Messages
1,363
Reaction score
268
Location
Bandana, NC
I would think an AS569A-112 is about as close as you can get with a standard O ring. It's 0.487 +/- .005 ID x 0.103 +/- 0.003 thickness... which would give it an OD of 0.682 to 0.704 across the tolerance range.

where is that part number for? Napa?


Ron H

FBBO Gold Member
FBBO Gold Member
Local time
1:35 PM
Joined
Feb 29, 2016
Messages
7,520
Reaction score
8,358
Location
WI
Having issues with O-rings over the years, suggest not trying to force an ill-fitting ring in. I never had luck doing this anyway. Among these encounters were the cable and the heater valve ring on my ’63.


Stumper

Well-Known Member
Local time
2:35 PM
Joined
Oct 28, 2010
Messages
1,363
Reaction score
268
Location
Bandana, NC
I put it back together last night using the closest I could find to a .7” OD. The thickness was only 3/32” so I put another thin (1/16”) in front of it with a bit smaller OD. Filled it back up and so far it seems to be staying dry… Hopefully it stays that way. Now on to the next leak…..


Stumper

Well-Known Member
Local time
2:35 PM
Joined
Oct 28, 2010
Messages
1,363
Reaction score
268
Location
Bandana, NC
I am at a loss…. After getting it back together over two weeks ago it stayed dry the whole time and within the past couple of days started leaking like crazy! The car has not moved since it went back together. I assume the converter drain back eventually flooded it enough to start leaking. It’s leaking around the O ring on the shift cable. I’m really at a loss what to do. Hate to resort to packing the threaded cable adapter with RTV. The ORing I used was as close to .7” as I could measure. Any ideas?
