Shock eyelet size

fine69

Well-Known Member
Local time
10:14 AM
Joined
Nov 2, 2020
Messages
248
Reaction score
411
Location
Saskatchewan

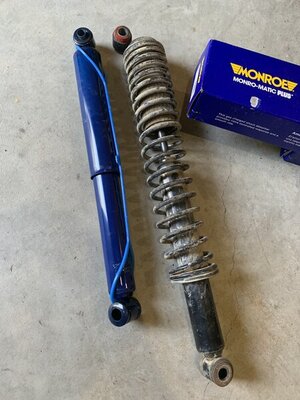

Fellas, what is the right eyelet size for a rear shock of a 69 charger? I broke one the other day, ordered Munroes that are supposed to fit a big block mopar but found the top eyelet on the new shock is too small for my bolt. The old shocks’ eyelets are 5/8” and the top eyelet of this new Munroe is 1/2” I think.



fine69

Well-Known Member
Local time
10:14 AM
Joined
Nov 2, 2020
Messages
248
Reaction score
411
Location
Saskatchewan
Hey I’ve ordered 2 sets of shocks now from the local parts store. They’ve both come with the 1/2” top eyelet. Their computer is saying these are stock replacements for a 69 charger. Have you ever come across something like this? This is getting frustrating.


4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
Gabriel 82131 have 5/8" sleeves. Parts books are listing the blue monroes as 1/2" for some reason.


4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
They are claiming 12mm on some monroes, even smaller than 1/2"


fine69

Well-Known Member
Local time
10:14 AM
Joined
Nov 2, 2020
Messages
248
Reaction score
411
Location
Saskatchewan
Yeah. 1/2” seems to be the default. I just looked up the gabriel 82131 and it has a mount code ES27 which is 1/2” too. So I don’t know what hell to do! Weld the old shock back together haha


69B7RR

Well-Known Member
Local time
9:14 AM
Joined
Jul 13, 2018
Messages
148
Reaction score
385
Location
Ca
Fellas, what is the right eyelet size for a rear shock of a 69 charger? I broke one the other day, ordered Munroes that are supposed to fit a big block mopar but found the top eyelet on the new shock is too small for my bolt. The old shocks’ eyelets are 5/8” and the top eyelet of this new Munroe is 1/2” I think

If it helps, the OE rear upper shock bolts on my ‘69RR are 1/2 x 2-3/4. I also used the stock replacement Monroe’s…..jim

Last edited:

fine69

Well-Known Member
Local time
10:14 AM
Joined
Nov 2, 2020
Messages
248
Reaction score
411
Location
Saskatchewan
If it helps, the OE rear upper shock bolts on my ‘69RR are 1/2 x 2-3/4. I also used the stock replacement Monroe’s…..jim
It certainly helps. So does the bolt rattle around in the mount holes a little bit. The 5/8 bolts that are in there now seem to be the right fit. I tried the 1/2” bolt has some wiggle room


4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
I have never seen 1/2bolts on a 68-70 b-body but that does not mean much. I just installed 4 gabriel classic shocks on my 1970 68 and 69 call for the same shock.



4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
They fit this car perfect with 5/8" bolts. Purchased last week from rock auto, front and rear fit perfect other than rears being 1/8" shorter.







4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
Sleeve should look like this, nos mopar are this size, set of kyb are this size to. It appears monroe went metric.



fine69

Well-Known Member
Local time
10:14 AM
Joined
Nov 2, 2020
Messages
248
Reaction score
411
Location
Saskatchewan
I’ve never poked around under a clean B body before. Now I know there’s been some funny business under my car. It’s undercoated plus dirty. I thought there were some boogery welds that looked out of place. For some reason the ends of the shock mount cross rail were cut off at the frame rails. And perhaps the shock mount holes have been tampered with.





4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
That was caused by loose air shocks or no serrations on the washers, wallows the frame out, somebody added those tabs, but not a problem. 70 ft lbs on that 5/8 upper bolt.



4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
Factory welds on that crossmember were pretty bad, many ripped out of the car with air shocks.



fine69

Well-Known Member
Local time
10:14 AM
Joined
Nov 2, 2020
Messages
248
Reaction score
411
Location
Saskatchewan
Thanks very much 4406bbl! I don’t think we have rockauto up here but I located some KYBs on a Canadian website. I just wrote to confirm the eyelet size. Fingers crossed!


mrhemi

Well-Known Member
Local time
12:14 PM
Joined
Jan 9, 2019
Messages
331
Reaction score
380
Location
Ontario
Rockauto ships to Canada for quite reasonable. They collect the HST at purchase so it arrives at your door with no extra bs charges.


4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
I was wrong here, bolts should be 1/2", was drilling a bunch of 1/2 and 5/8" holes for transport brackets and screwed up. Kyb eye, has a thick sleeve, maybe could be drilled 9/16", no way it could go 5/8".



fine69

Well-Known Member
Local time
10:14 AM
Joined
Nov 2, 2020
Messages
248
Reaction score
411
Location
Saskatchewan
I appreciate the honesty. I’m starting to feel defeated though. I think I’ll try knocking the sleeves out of the bushings, and squeeze a slightly bigger one in them, even if I have to drill the rubber to make the sleeve fit. Whoever modified the car before royally screwed me over haha.


4406bbl

Well-Known Member
Local time
11:14 AM
Joined
Feb 8, 2015
Messages
716
Reaction score
732
Location
nebraska
Depending on the eye size of the shock you may be able to use an energy suspension hourglass shock bushing. They can be bought with a 5/8" sleeve hole and with heat and lube the sleeve should press in. The ends of the bushing can be ground off if need be to get it in the crossmember, spreading the crossmember to get it in is better so the urethane compresses the sleeve better.
