Shop Wiring, Finally Complete!

mrhemi

Well-Known Member
Local time
3:50 PM
Joined
Jan 9, 2019
Messages
324
Reaction score
375
Location
Ontario

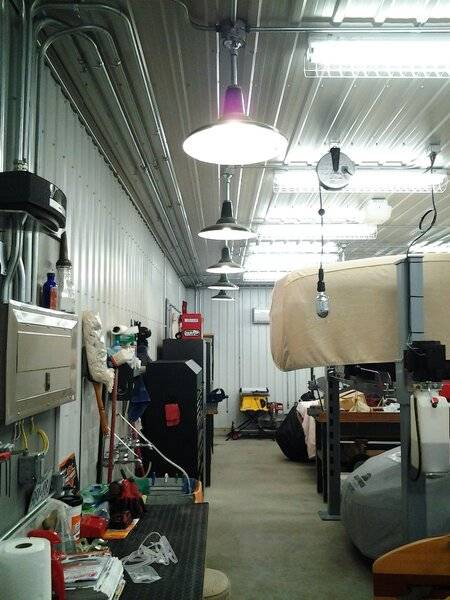

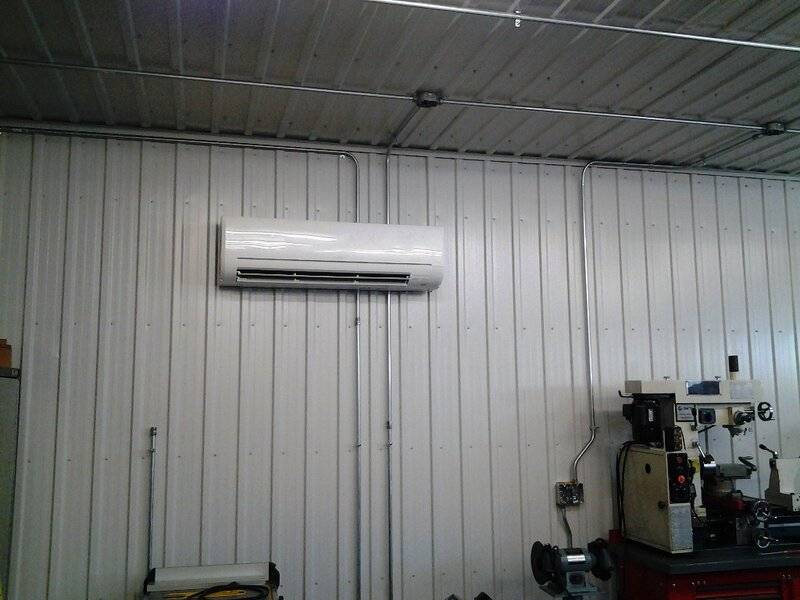

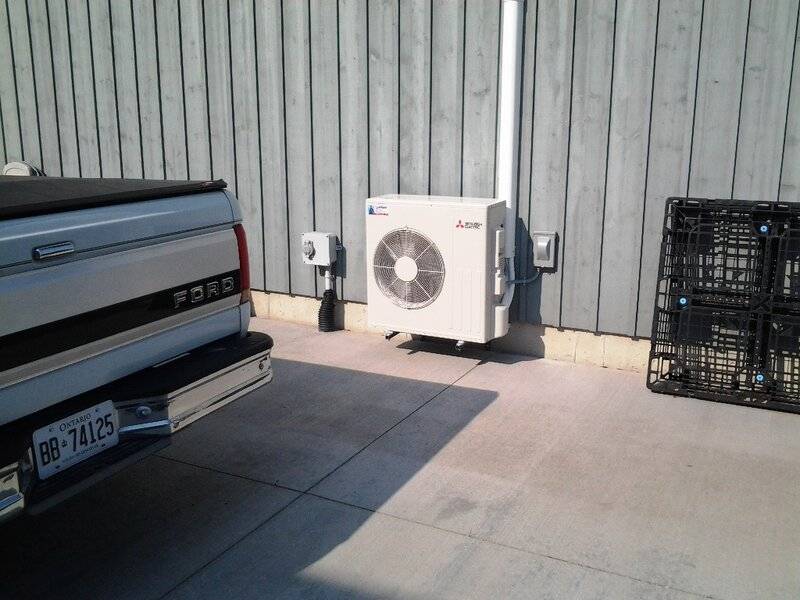

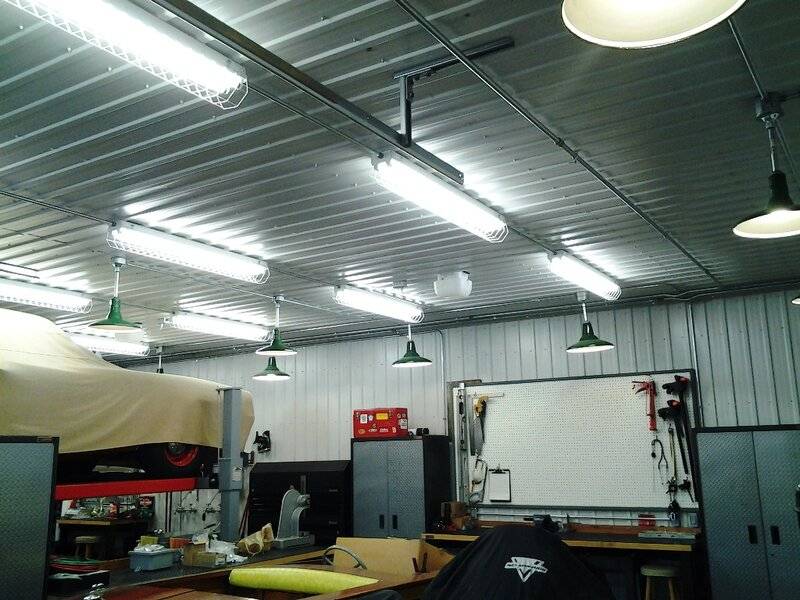

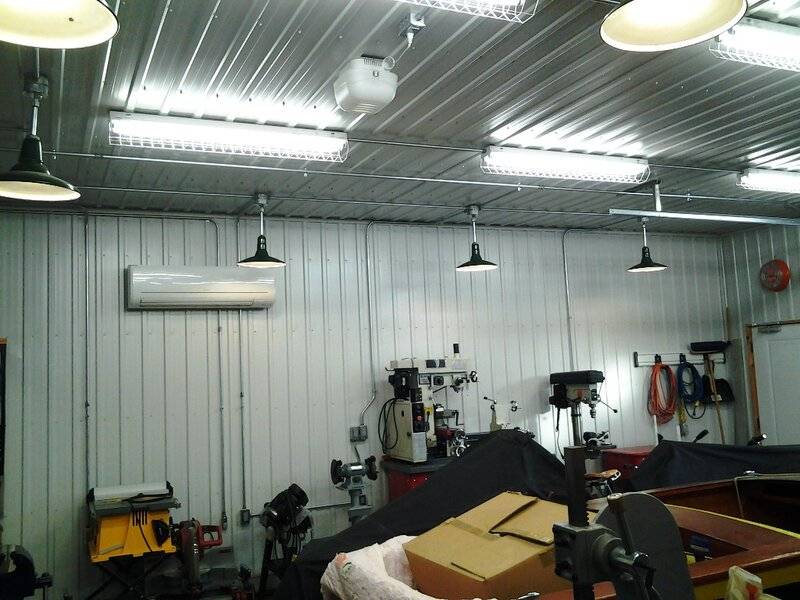

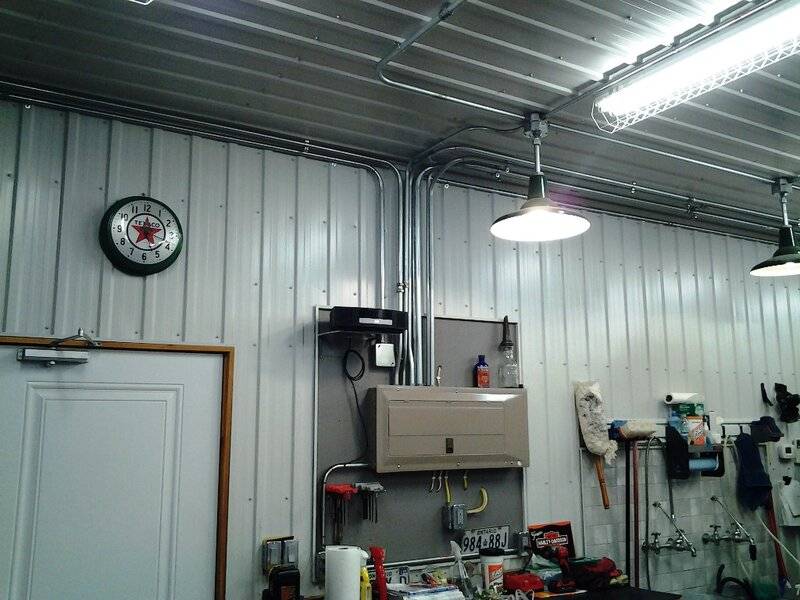

It has taken me awhile, because of one thing or another, but my shop wiring is now completed to my satisfaction, including the A/C. Next project is the air lines.

2020-10-21 17.17.54.jpg 2020-10-21 17.18.14.jpg 2020-10-21 17.18.35.jpg 2020-10-21 17.18.58.jpg 2020-08-27 10.21.49.jpg 2020-08-27 10.22.41.jpg


Photon440

FBBO Gold Member
FBBO Gold Member
Local time
12:50 PM
Joined
Mar 14, 2012
Messages
13,295
Reaction score
16,654
Location
Surrey, B.C. Canada
You're going to wire up the air lines next? :)

That looks neater than some of the wiring I saw on vacation last winter!



493 Mike

FBBO Gold Member
FBBO Gold Member
Local time
3:50 PM
Joined
Dec 25, 2011
Messages
4,258
Reaction score
4,741
Location
White Cloud, MI
Sure, I am going to do them in copper.

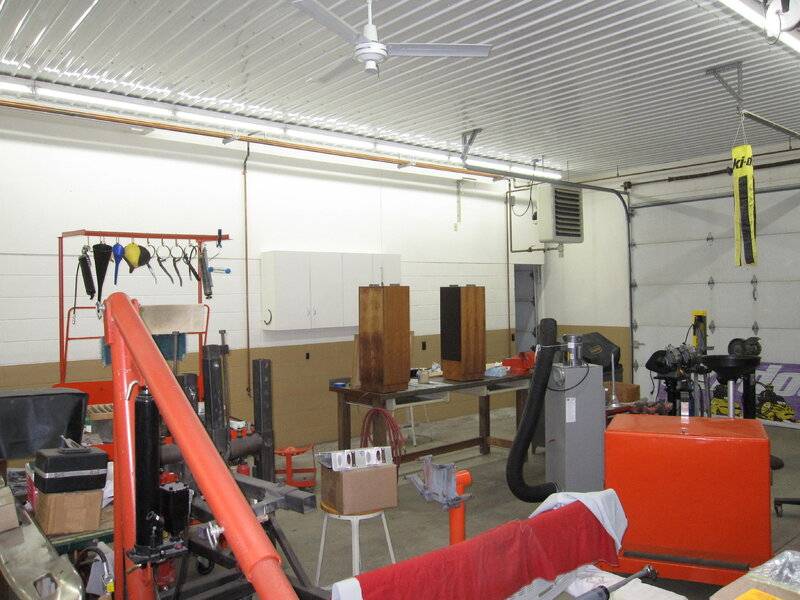

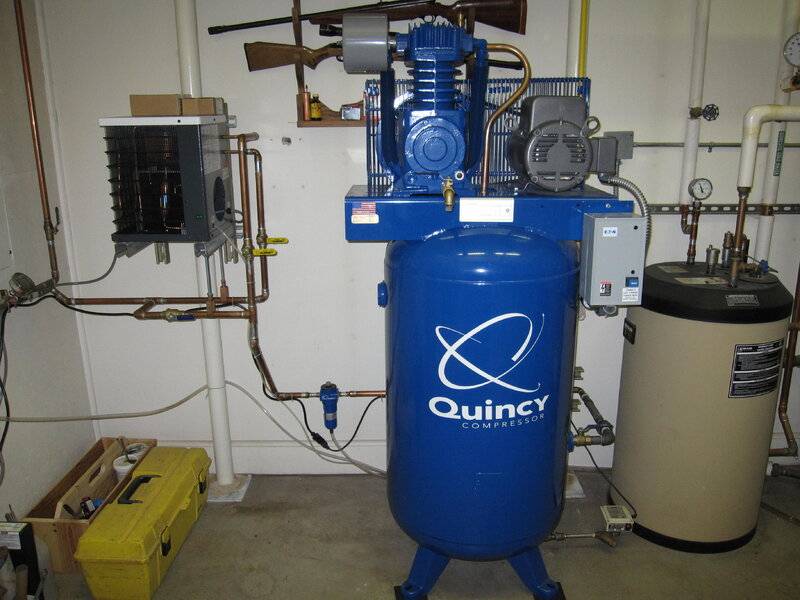

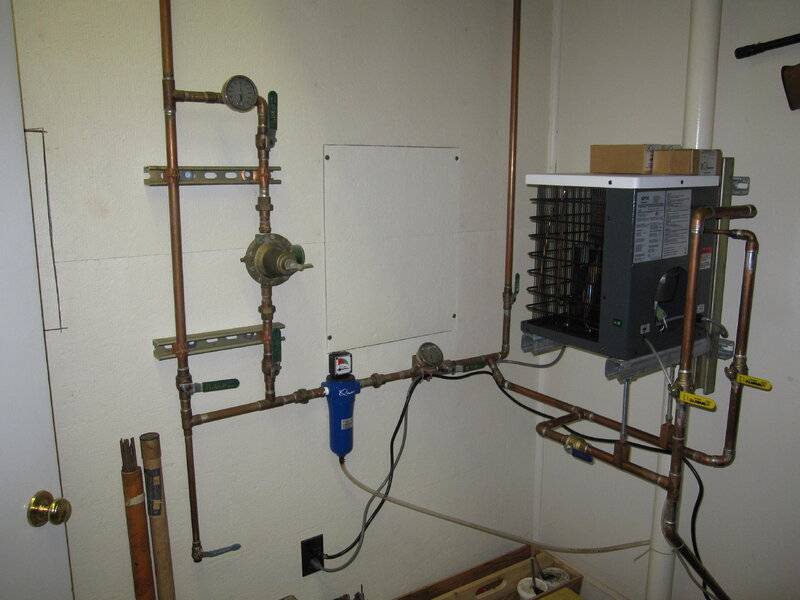

I did mine in copper in the last two garages I worked in. Put a flex at the compressor connection. I made a loop of the whole shop with 3/4" all pitched to one corner with a drain/blow off and took all taps (1/2")
off the top. Install service valves (ball) at each drop for the future. Solder everything.
Mike


dadsbee

FBBO Gold Member
FBBO Gold Member
Local time
3:50 PM
Joined
Jan 29, 2018
Messages
12,442
Reaction score
33,077
Location
Midland Ontario, Canada
How I did my plastic plant in the late '80's and the next one in the 90's.. 1" HEAVY wall copper, with 3/4 and 1/2 in drops. Sure wouldn't wanna buy that pipe today and can you even get it, or is it all just the light residential stuff these days.

That's a LOT of lights mrhemi....


Stanton

Well-Known Member
Local time
3:50 PM
Joined
Aug 8, 2012
Messages
4,094
Reaction score
4,389
Location
Ontario, Canada
Light residential stuff is rated somewhere around 1200 psi !! I've been dragging the same copper from shop to shop for the past 35 years.


mrhemi

Well-Known Member
Local time
3:50 PM
Joined
Jan 9, 2019
Messages
324
Reaction score
375
Location
Ontario
How I did my plastic plant in the late '80's and the next one in the 90's.. 1" HEAVY wall copper, with 3/4 and 1/2 in drops. Sure wouldn't wanna buy that pipe today and can you even get it, or is it all just the light residential stuff these days.

That's a LOT of lights mrhemi....

The vintage incandescent barn / gas station fixtures are to take the edge off of the florescents. They are not on all of the time, only when working on one of the benches or the power tool areas. I find my vision is better for close up work with incandescent light. Some of those are nearing 100 years old.


493 Mike

FBBO Gold Member
FBBO Gold Member
Local time
3:50 PM
Joined
Dec 25, 2011
Messages
4,258
Reaction score
4,741
Location
White Cloud, MI
How I did my plastic plant in the late '80's and the next one in the 90's.. 1" HEAVY wall copper, with 3/4 and 1/2 in drops. Sure wouldn't wanna buy that pipe today and can you even get it, or is it all just the light residential stuff these days.

That's a LOT of lights mrhemi....
Copper is available in K,L, and M grades. M is what you will find in the big box stores and is heavy enough for normal shop line pressure. I used L in my shop as I was in the pipe trades and got a discount through my employer. K is usually found in annealed condition and used under ground for water service (safer than lead!).
Mike


Scott Engelhardt

FBBO Gold Member
FBBO Gold Member
Local time
2:50 PM
Joined
Jul 14, 2017
Messages
2,270
Reaction score
6,075
Location
Iowa
I plumbed my shop with Pet tubing 10 years ago.
