    I'm sure this is common knowledge to some of you, but I've seen head weights asked about and lots of general 'oh pretty good' type answers so I thought I'd post these. We like real info!

    '452' assembled................49.9 lbs
    '452' bare.........................45.4 lbs
    Edelbrock RPM assembled..29.1 lbs
    Edelbrock RPM bare...........23.7 lbs
    TF 240 assembled.............32.0 lbs
    TF 240 bare......................??? I dunno, didn't strip one down just to weigh it:)
    (If I remember to do it later when I set up the springs, I'll update)

    These are all Big-Block heads.
    Assembled heads are castings with valves/springs/hardware only, no rocker gear.
    The Edelbrocks are milled .020" with no porting or other machining.
    The 452s have stock valves/springs/hardware with the exception of P/C-type seals. The only machining is a .005" deck skim and the minor cutting needed for the seals.

    :usflag:

    • Thanks! Thanks! x 2
    • 5.7 hemi

      5.7 hemi FBBO Gold Member FBBO Gold Member

      Messages:
      14,563
      Likes Received:
      13038
      Joined:
      Dec 21, 2008
      Location:
      ca
      Local Time:
      9:16 AM
      How about 440Source heads?

    • beanhead

      beanhead Well-Known Member

      Messages:
      6,118
      Likes Received:
      10237
      Joined:
      May 18, 2014
      Location:
      Wackyfornia
      Local Time:
      7:16 AM
      I don't have any or I would! I'd guess them to be close to the Edelbrocks though.

      • Agree Agree x 2
      • Thanks! Thanks! x 1
      • 33 IMP

        33 IMP Well-Known Member

        Messages:
        5,507
        Likes Received:
        7445
        Joined:
        Dec 21, 2017
        Location:
        taxifornia,soon 2b Arizona.
        Local Time:
        7:16 AM
        Next time im home, I'll contribute a ported irom maxwedge weight.

        • Like Like x 1
        • beanhead

          beanhead Well-Known Member

          Messages:
          6,118
          Likes Received:
          10237
          Joined:
          May 18, 2014
          Location:
          Wackyfornia
          Local Time:
          7:16 AM
          That'd be cool!

        • 1 Wild R/T

          1 Wild R/T FBBO Gold Member FBBO Gold Member

          Messages:
          4,437
          Likes Received:
          9644
          Joined:
          Jul 9, 2019
          Location:
          California
          Local Time:
          7:16 AM
          As much grinding as I've done my bare 915 casting's should be about 30 lbs... But their not..... LOL.... I'll try to scale them in the next few days...

          I can tell ya the stock 440 Magnum pistons were 860 Grams... The stock wrist pin was an additional 220 grams.. And the stock rods were 900 grams....

          So the stock piston and pin is nearly 2.4 lbs...

          Each new Icon forged piston & wrist pin is a half pound lighter

          • Thanks! Thanks! x 1
          • 33 IMP

            33 IMP Well-Known Member

            Messages:
            5,507
            Likes Received:
            7445
            Joined:
            Dec 21, 2017
            Location:
            taxifornia,soon 2b Arizona.
            Local Time:
            7:16 AM
            The grant (maybe, no i.d.) dome pistons i took out of my maxwedge were over 1000 grams.....



            without the pin! They had 1/4" thick steel welded to the crank cheeks to balance them.

          • 1 Wild R/T

            1 Wild R/T FBBO Gold Member FBBO Gold Member

            Messages:
            4,437
            Likes Received:
            9644
            Joined:
            Jul 9, 2019
            Location:
            California
            Local Time:
            7:16 AM
            Technologies change... Get with the program....:lol:

          • 33 IMP

            33 IMP Well-Known Member

            Messages:
            5,507
            Likes Received:
            7445
            Joined:
            Dec 21, 2017
            Location:
            taxifornia,soon 2b Arizona.
            Local Time:
            7:16 AM
            I did say "had"! Lol:rolleyes:

          • BSB67

            BSB67 Well-Known Member

            Messages:
            1,693
            Likes Received:
            1373
            Joined:
            Jan 18, 2018
            Location:
            PA
            Local Time:
            10:16 AM

            Were these the heavier rods? LY's are about 840.

          • 1 Wild R/T

            1 Wild R/T FBBO Gold Member FBBO Gold Member

            Messages:
            4,437
            Likes Received:
            9644
            Joined:
            Jul 9, 2019
            Location:
            California
            Local Time:
            7:16 AM

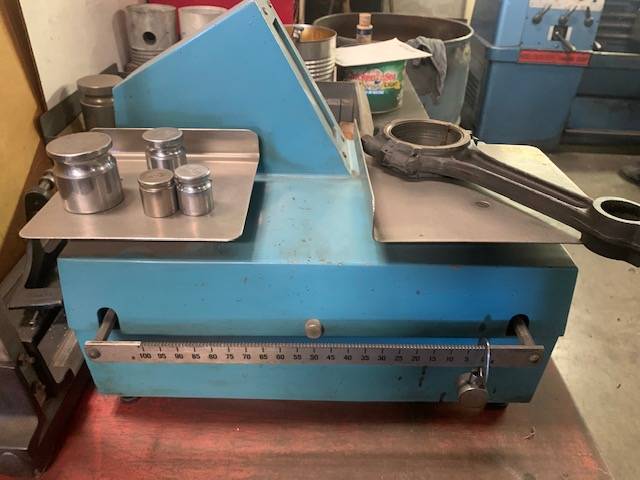

            LY..


            . IMG_5871.jpg


          • BSB67

            BSB67 Well-Known Member

            Messages:
            1,693
            Likes Received:
            1373
            Joined:
            Jan 18, 2018
            Location:
            PA
            Local Time:
            10:16 AM
          • 1 Wild R/T

            1 Wild R/T FBBO Gold Member FBBO Gold Member

            Messages:
            4,437
            Likes Received:
            9644
            Joined:
            Jul 9, 2019
            Location:
            California
            Local Time:
            7:16 AM
            I didn't bother to go there... At the time I figured I'd get back to it but after deciding on a piston that takes a .990 pin & looking at the cost of rod bolts, small end bushings, my time I decided to order new rods....

          • not so famous bob

            not so famous bob Well-Known Member

            Messages:
            1,837
            Likes Received:
            1200
            Joined:
            May 20, 2016
            Location:
            okla. 74021
            Local Time:
            9:16 AM
            Back to the o.p , My victor knock offs are only 6 pounds apiece liter than the 915 heads I sold . One maybe a little liter , , I had to grind the heck out of the front of the pass. side for clearance on the fast 2.0 dist. that they use on their fuel inj. , they use a chevy type w/ a mopar blade on the bottom.

          • 1 Wild R/T

            1 Wild R/T FBBO Gold Member FBBO Gold Member

            Messages:
            4,437
            Likes Received:
            9644
            Joined:
            Jul 9, 2019
            Location:
            California
            Local Time:
            7:16 AM

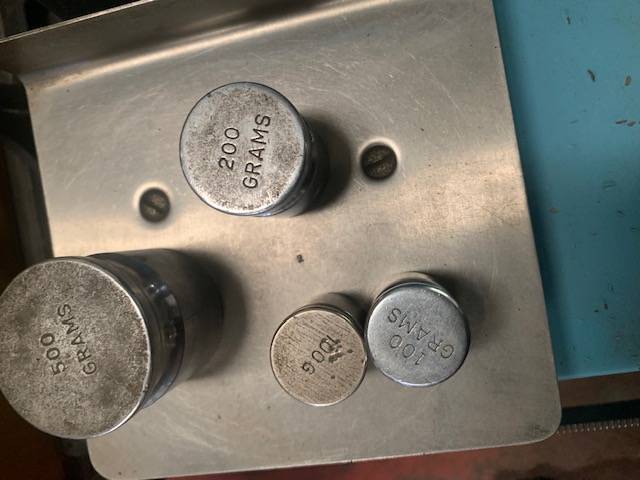

            To be honest the rod might have been 895ish... But I slid the weight over to the left & it didn't hit level, then I slid it back to the right & dropped another 100g on the scale & it seemed just a touch to much.... I wasn't looking for the final numbers, just wanted a starting point...

          • BSB67

            BSB67 Well-Known Member

            Messages:
            1,693
            Likes Received:
            1373
            Joined:
            Jan 18, 2018
            Location:
            PA
            Local Time:
            10:16 AM
            We know factory tolerances were not great, but obviously generally good enough. Just a little hard to imagine that a rod with a 4 gram tolerance would be 50 grams over.

            My 915s weighed 48.4 lbs
            My Eddy RPM/Mopar Heads weighed 26.8 lbs. CNC ported and Ti retainers.

            Last edited: May 6, 2021
            • Thanks! Thanks! x 1
            • beanhead

              beanhead Well-Known Member

              Messages:
              6,118
              Likes Received:
              10237
              Joined:
              May 18, 2014
              Location:
              Wackyfornia
              Local Time:
              7:16 AM
              Bare Trick Flow 240.......25.9 lbs.

            • 33 IMP

              33 IMP Well-Known Member

              Messages:
              5,507
              Likes Received:
              7445
              Joined:
              Dec 21, 2017
              Location:
              taxifornia,soon 2b Arizona.
              Local Time:
              7:16 AM

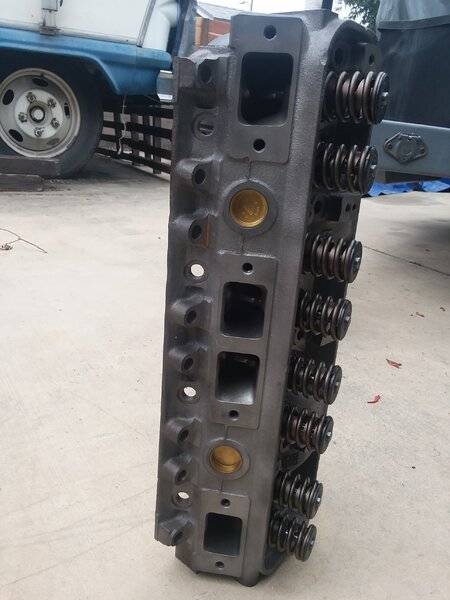

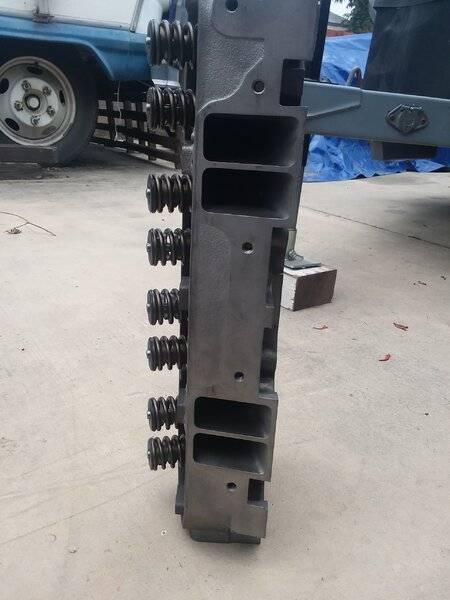

              Max port on a set of 286 closed chamber maxwedge iron heads. Castings, valves springs and retainers, no rockers, shafts or shaft stands. 42 lbs each.
              For giggles and reference.....speedmaster aluminum big port big block chevy heads, same condition....32 lbs each.
              (I have a set of iron closed chamber 396 chevy heads i was gonna weigh to compare, but where they are under the bench.... i couldnt lift em. Lol.

              20210519_114327.jpg 20210519_114311.jpg
