    Hello All,

    I'm in the process of refurbishing my Dash harness, and following the MAD instructions on bypassing the ammeter.

    My question concerns soldering the butt connectors. I'm amateurish at best when it comes to soldering, so forgive my ignorance.

    Has anyone had success using an iron or gun vs a torch? It seems a tall task to this amateur, in getting 10 awg leads and the butt connector hot enough.

    On the same subject, has anyone had success using the "heat shrink self solder" connectors?

    I'm leaning towards the non insulated butt connectors, followed by high quality heat shrink, no soldering...

    Before I proceed, thought I would tap the vast knowledge present in this forum, as it's proven a very wise decision in the past.

    Thanks in advance for any and all help.

    Rob

  2. 69Bee

    69Bee FBBO Gold Member FBBO Gold Member

    Messages:
    2,684
    Likes Received:
    2333
    Joined:
    Nov 17, 2009
    Location:
    Whetstone, AZ
    Local Time:
    9:13 PM
    Do it right, no gimmicks. Buy or borrow a soldering gun 125W, rosin core solder, and a pack of heat shrink tubes. Put the heat shrink (cut to desired size) on the wire, solder the lug on, slide the heat shrink into place and use a lighter to shrink it. Try not to catch it on fire, just wave the flame over it quickly until it stops shrinking.

    • Agree Agree x 9
    • Like Like x 1
    • Thanks! Thanks! x 1
    • RJRENTON

      RJRENTON FBBO Gold Member FBBO Gold Member

      Messages:
      1,621
      Likes Received:
      1445
      Joined:
      Jul 1, 2015
      Location:
      South Shores area of Decatur, Illinois
      Local Time:
      11:13 PM
      IMO....
      ABSOLUTELY the correct method....no gimmicks or "just as good as" methods. Use the above outlined method to achieve excellent connectivity.
      BOB RENTON

      • Thanks! Thanks! x 1
      • funknut

        funknut Well-Known Member

        Messages:
        1,335
        Likes Received:
        1583
        Joined:
        Jul 29, 2015
        Location:
        Cincinnati, OH
        Local Time:
        11:13 PM
        When starting soldering it's sometimes quite hard to get everything to sit in place when you're dealing with wires, soldering iron solder, etc. Consider getting some 'helping hands' to keep stuff in place and let you focus on just the iron and solder.

        https://www.amazon.com/helping-hands/s?k=helping+hands

        • Agree Agree x 2
        • Like Like x 1
        • Thanks! Thanks! x 1
        • Nevada dan

          Nevada dan Well-Known Member

          Messages:
          285
          Likes Received:
          333
          Joined:
          Dec 28, 2020
          Location:
          Nevada
          Local Time:
          9:13 PM
          if you have access to a heat gun they work better on the heat shrink tubing ,and get hot enough to melt the solder in the connectors with solder witch have a heavier outer shield then most heat shrink tubing

          • Agree Agree x 2
          • Thanks! Thanks! x 1
          • threewood

            threewood FBBO Gold Member FBBO Gold Member

            Messages:
            4,957
            Likes Received:
            6422
            Joined:
            May 30, 2014
            Location:
            Yuma, AZ
            Local Time:
            9:13 PM

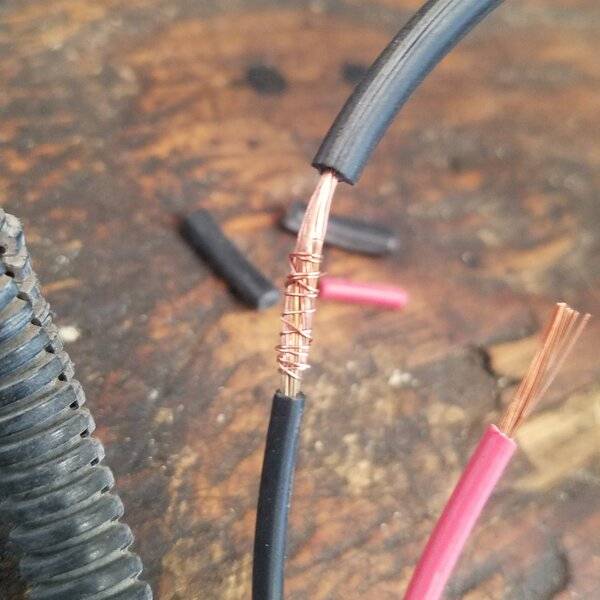

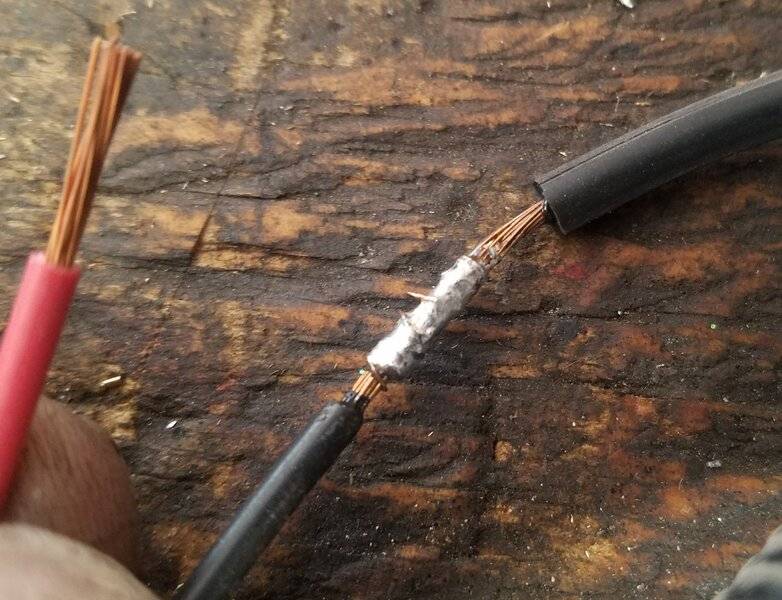

            Place shrink tube on wire, stab ends together, wrap with strand of wire, heat joint until solder flows into joint. I use a soldering iron I bought on Amazon.
            20201222_131700.jpg 20201222_131642.jpg

            • Like Like x 7
            • Thanks! Thanks! x 2
            • Agree Agree x 1
            • bee71

              bee71 Well-Known Member

              Messages:
              905
              Likes Received:
              484
              Joined:
              Aug 10, 2012
              Location:
              St. Augustine, FL
              Local Time:
              12:13 AM
              Or cut two slits in an aerosol cap.

              • Thanks! Thanks! x 3
              • Like Like x 1
              • Agree Agree x 1
              • slepr1

                slepr1 Well-Known Member

                Messages:
                1,646
                Likes Received:
                1544
                Joined:
                Jul 19, 2014
                Location:
                Stoney Creek, Ontario
                Local Time:
                12:13 AM
                Do a search on 'crimp vs soldering wires' and in the gold standard is proper crimping (get a good crimper). I've seen several reasons from wire fatigue to solder recrystallization to tin (the main component of most solder) has about 5 times the resistance of copper. I researched this when I was installing my stereo system in my car and was about to solder everything. Glad I didn't.

                https://monroeengineering.com/blog/...r, more reliable,cause the connection to fail.

                https://millennialdiyer.com/articles/motorcycles/electrical-repair-crimp-or-solder/

                https://www.reichelt.com/magazin/en/crimping-vs-soldering/

                • Agree Agree x 3
                • Thanks! Thanks! x 1
                • 747mopar

                  747mopar FBBO Gold Member FBBO Gold Member

                  Messages:
                  12,764
                  Likes Received:
                  16242
                  Joined:
                  Oct 30, 2012
                  Location:
                  ohio
                  Local Time:
                  11:13 PM
                  One thing to keep in mind is that stranded copper wire is used in automobiles because it can withstand the vibrations, careless soldering can wick up the wire turning inches of it solid.

                  • Agree Agree x 4
                  • Thanks! Thanks! x 1
                  • RemCharger

                    RemCharger Well-Known Member

                    Messages:
                    470
                    Likes Received:
                    271
                    Joined:
                    Apr 5, 2014
                    Location:
                    Sask
                    Local Time:
                    11:13 PM
                    Agreed. Mechanical connection is best. Have fought electrical issues from soldering before. Not fun.

                    • Thanks! Thanks! x 1
                    • Agree Agree x 1
                    • RJRENTON

                      RJRENTON FBBO Gold Member FBBO Gold Member

                      Messages:
                      1,621
                      Likes Received:
                      1445
                      Joined:
                      Jul 1, 2015
                      Location:
                      South Shores area of Decatur, Illinois
                      Local Time:
                      11:13 PM
                      An additional method (to that shown in #6) I've used previously, is thru the use of UN INSULATED crimp-on parallel butt connectors. Ive aquired an AMP ratcheting "W" crimp tool that works very well. The exposed conductor are shorter than those in #6 pix. Slip on a piece of appropriately sized shrink tubing over the wire b4 crimping, crimp on the butt connector, solder it to the wire using a ROSIN flux electrical grade 50/50 tin lead solder and either a soldering iron or a Weller type soldering gun (125 watts), heat the joint, apply the solder, allowing it to flow sparingly into the joint, remove the heat source, allow the joint to cool, slide the heat shrink tubing over the soldered connection, apply heat to shrink the tubing....job done. The connection is permanent with as much conductivity as the wire itself.


                      Just my opinion of course.
                      BOB RENTON

                      • Agree Agree x 8
                      • Thanks! Thanks! x 2
                      • Like Like x 1
                      • Charged440

                        Charged440 Well-Known Member

                        Messages:
                        149
                        Likes Received:
                        154
                        Joined:
                        Apr 14, 2016
                        Local Time:
                        11:13 PM
                        I recently used two pieces of clay to hold the wires steady, worked like a charm.

                        • Like Like x 1
                        • Thanks! Thanks! x 1
                        • LowBikeMike

                          LowBikeMike Well-Known Member

                          Messages:
                          49
                          Likes Received:
                          42
                          Joined:
                          Nov 28, 2020
                          Location:
                          St Louis, Mo
                          Local Time:
                          11:13 PM

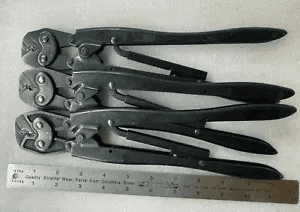

                          I'm in the no solder camp on stranded wires. A good crimping tool is the most important part. A good crimping tool will eliminate a crushed, not crimped connector and yield a good tight connection. Get the right tool for the job.

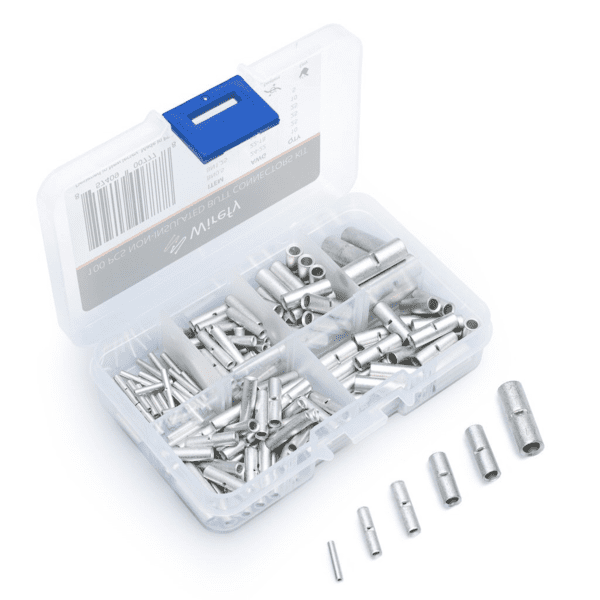

                          Wirefy makes some good heat shrink butt connectors also.

                          • Like Like x 1
                          • Thanks! Thanks! x 1
                          • 69Bee

                            69Bee FBBO Gold Member FBBO Gold Member

                            Messages:
                            2,684
                            Likes Received:
                            2333
                            Joined:
                            Nov 17, 2009
                            Location:
                            Whetstone, AZ
                            Local Time:
                            9:13 PM
                            I disagree with all of these articles on substance. First, to your point and the second article, normal "old school" solder which is PbSn solder 63%Lead and 37%Tin, has slightly less resistivity than copper. I did not look up the resistivity of current RoHS "Lead Free" solder which I know is harder to use due to the higher tin content.

                            Resistance of Solder Joints - RC Groups: Here are some values for the materials of interest:
                            copper - resitivity=1.68E-8 ohm-m (0.0000000168)
                            typical eutectic PbSn solder (63% lead, 37% tin) - resitivity=1.65E-7 ohm-m

                            Next, a properly soldered joint will last a long time, and won't allow contaminants into the joint. I have seen "Cold" solder joints, but they are usually rare. Now, in total disagreement with all three articles, a crimped joint is neither "gas tight" or sealed. In an outside environment, moisture WILL wick into the joint causing corrosion, higher resistance, and eventually a failed joint. As far as mechanical fatigue, either joint can fail with enough movement, and if a crimped joint can move as referred to in one article, that is a failed joint waiting to happen due to a higher joint resistance. If the crimped wire can move, it will have a higher joint resistance. The crimped examples in the articles were also factory crimps, and will definitely surpass any crimped joint done in the field, and done by the dyi'er.

                            In conclusion, any joint can fail due to corrosion, weak joint (mechanical or bad soldering), external forces. A properly applied joint soldered or crimped should last. Also, all soldered or crimped joints should be properly sealed to the environment to prevent failure, which will eventually happen.

                            • Agree Agree x 6
                            • Thanks! Thanks! x 1
                            • BeepBeepRR

                              BeepBeepRR FBBO Gold Member FBBO Gold Member

                              Messages:
                              5,944
                              Likes Received:
                              8088
                              Joined:
                              Oct 16, 2016
                              Location:
                              Atlanta,Ga
                              Local Time:
                              12:13 AM
                              • Agree Agree x 3
                              • Thanks! Thanks! x 1
                              • 72 Satellite

                                72 Satellite Well-Known Member

                                Messages:
                                102
                                Likes Received:
                                80
                                Joined:
                                Apr 14, 2019
                                Location:
                                18040
                                Local Time:
                                12:13 AM
                                Thank you all for the input.

                                I should have been more specific in my question, and my soldering experience.

                                In the past I've been successful soldering 2 pieces of stranded copper together.

                                What I'm NOT familiar with is soldering a 10awg splice with non-insulated butt connectors.

                                I looked for and couldn't find any video's showing a demonstration with that gauge wire and butt connectors...

                                Have any of you sucessfully done EXACTLY as the MAD ammeter Bypass article suggests???

                                And if so, what were your steps and soldering equipment involved.

                                Thanks again.

                                Rob

                              • 747mopar

                                747mopar FBBO Gold Member FBBO Gold Member

                                Messages:
                                12,764
                                Likes Received:
                                16242
                                Joined:
                                Oct 30, 2012
                                Location:
                                ohio
                                Local Time:
                                11:13 PM
                                I've done this in a pinch, I used insulated butt connectors but pulled the insulation off. Leave just enough wire exposed to get the solder on the wire and put the heat to the connector not the wire. To combat corrosion and wire fatigue now that it's solid at least at the connector I use a high shrink ratio self sealing (gluing) shrink wrap much like you'd use on a submersible pump. Using high shrink ratio shrink wrap will give you a really thick sturdy wrap, coupled with the glue it takes a lot of the abuse off of the connection while also sealing it water tight. Overkill, maybe.. but it's usually done for good.

                                Last edited: Apr 20, 2021
                                • Thanks! Thanks! x 2
                                • Agree Agree x 2
                                • Like Like x 1
                                • 72 Satellite

                                  72 Satellite Well-Known Member

                                  Messages:
                                  102
                                  Likes Received:
                                  80
                                  Joined:
                                  Apr 14, 2019
                                  Location:
                                  18040
                                  Local Time:
                                  12:13 AM

                                  Thank you.

                                • Timothy

                                  Timothy Member

                                  Messages:
                                  9
                                  Likes Received:
                                  7
                                  Joined:
                                  Mar 15, 2018
                                  Location:
                                  Buffalo NY
                                  Local Time:
                                  12:13 AM
                                  Just my opinion, if your looking for a splice that is not only load bearing but a tight and low resistance splice I would use what is called a Western Union splice or a Linesman splice. I think is a much stronger splice than what is shown in #6 above but similar.

                                  • Thanks! Thanks! x 1
                                  • Agree Agree x 1
                                  • 72 Satellite

                                    72 Satellite Well-Known Member

                                    Messages:
                                    102
                                    Likes Received:
                                    80
                                    Joined:
                                    Apr 14, 2019
                                    Location:
                                    18040
                                    Local Time:
                                    12:13 AM
                                    Thanks! I just watched a video on the Western Union Splice, pretty cool, can't believe it's been around since the 19th century! I wonder how easy it would be with 10 awg in such a tight spot to work in, couple inches in between sections of the Junction Block?
