Solid Pinion bushing in a 9 inch

General Discussion

  1. joe smith

    joe smith Well-Known Member

    Messages:
    343
    Likes Received:
    1479
    Joined:
    Jan 4, 2018
    Location:
    Florida
    Local Time:
    12:42 AM
    I am building a 9" for my car.. First time I am going to use a solid shim and NOT a crush type shim for my pinion preload..... I have run out of shims and have to order more..
    .509 is too loose and .498 is too tight, which is the best I can do for now with what shims I have..
    Will 1 or 2 thousandths make a alot of difference or is it more like 3 or 4 thousandths at a time for much of change?
    I need to order some more shims to adjust preload and this will help me figure out what I need... Thanks

    Last edited: Apr 8, 2021 at 2:55 PM
  2. 33 IMP

    33 IMP Well-Known Member

    Messages:
    4,820
    Likes Received:
    6421
    Joined:
    Dec 21, 2017
    Location:
    taxifornia,soon 2b Arizona.
    Local Time:
    9:42 PM
    Friend of mine that had a one man rearend shop, specialized in nines (tho he did my 8 3/4 locker) . He always did .005 shim change at a time, said one or two thou was hard to detect.

    • Thanks! Thanks! x 1
    • pnora

      pnora FBBO Gold Member FBBO Gold Member

      Messages:
      542
      Likes Received:
      458
      Joined:
      Apr 21, 2020
      Location:
      Ishpeming, Mi.
      Local Time:
      12:42 AM
      I assume you are talking pinion preload. If you can not get the right drag on rotation get the right shim.

    • joe smith

      joe smith Well-Known Member

      Messages:
      343
      Likes Received:
      1479
      Joined:
      Jan 4, 2018
      Location:
      Florida
      Local Time:
      12:42 AM
      I just went back to my post and you are correct, I never said what I was preloading....

    • joe smith

      joe smith Well-Known Member

      Messages:
      343
      Likes Received:
      1479
      Joined:
      Jan 4, 2018
      Location:
      Florida
      Local Time:
      12:42 AM
      Thank you, this is just what I was looking for ....

    • pnora

      pnora FBBO Gold Member FBBO Gold Member

      Messages:
      542
      Likes Received:
      458
      Joined:
      Apr 21, 2020
      Location:
      Ishpeming, Mi.
      Local Time:
      12:42 AM
      So you still need the correct shim to have the correct rotational torque on the pinion. .005 is BS.

    • 33 IMP

      33 IMP Well-Known Member

      Messages:
      4,820
      Likes Received:
      6421
      Joined:
      Dec 21, 2017
      Location:
      taxifornia,soon 2b Arizona.
      Local Time:
      9:42 PM
      .005 CHANGE! He's already tried .498 and .509.

    • pnora

      pnora FBBO Gold Member FBBO Gold Member

      Messages:
      542
      Likes Received:
      458
      Joined:
      Apr 21, 2020
      Location:
      Ishpeming, Mi.
      Local Time:
      12:42 AM
      He can try .005 but it still may need more or less to make it right.

    • khryslerkid

      khryslerkid FBBO Gold Member FBBO Gold Member

      Messages:
      23,668
      Likes Received:
      36500
      Joined:
      Mar 10, 2010
      Location:
      Hanover, Pennslyvania
      Local Time:
      12:42 AM
      I'm a little lost on the amount of shims being used. Maybe because it's a 9" furd. Or the bushing being used. Are .005 shims available?

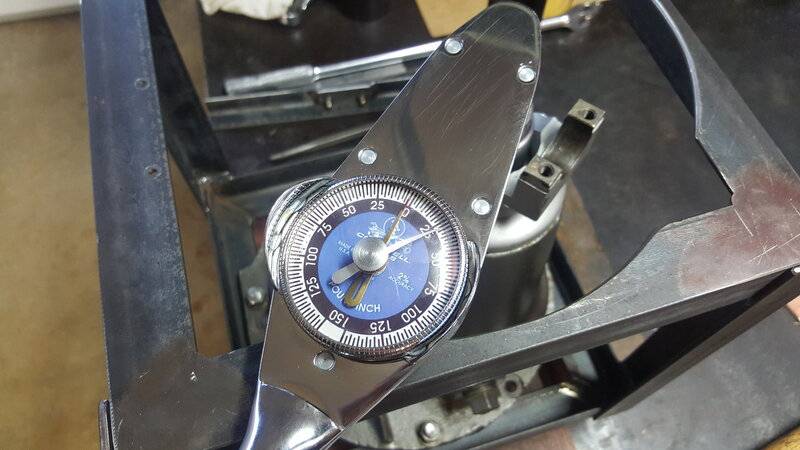

      You're using the needle inch lb wrench?

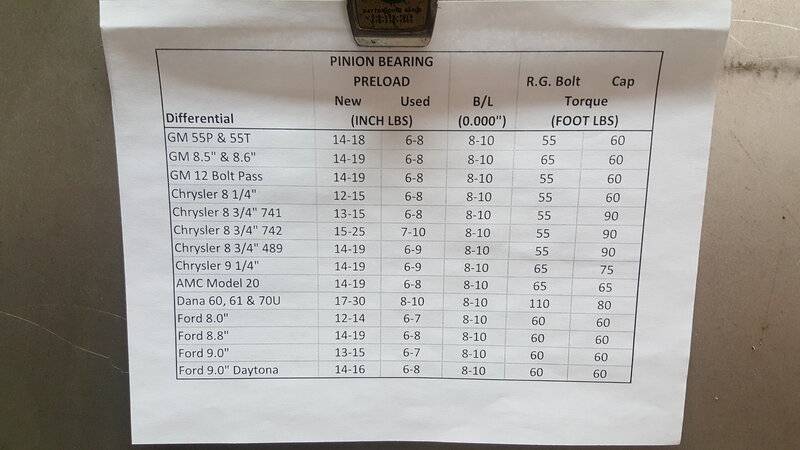

      Here's a preload chart. Looks like 13-15 inch lbs.

      Last edited: Apr 8, 2021 at 10:01 PM
    • joe smith

      joe smith Well-Known Member

      Messages:
      343
      Likes Received:
      1479
      Joined:
      Jan 4, 2018
      Location:
      Florida
      Local Time:
      12:42 AM

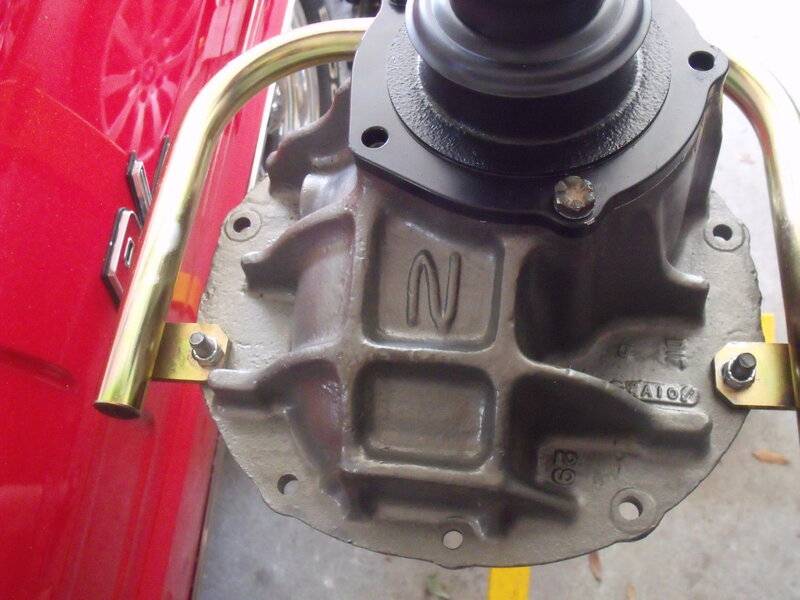

      The shim kit I purchased had a large shim of .432 and the 5 small shims ranged from .11 to .22... I had all 6 of the shims on it for a total of .509 or with the smallest one out .498.. Seems a bit hard to find loose shims the size I need for sale and I do only need some small sizes ( .001 to .009) to figure out what works. I was ready to install the crush shim for a bit, but there is NO hurry yet to this project.. DSCF0737.JPG
      I found a rear end shop that is going to go through there "large" shim pile for me next week ( Super nice guys in NC). They think they have some .502 or .505 shims.. The anal way to do these is to have ONE shim machined to the size you need..

      Last edited: Apr 9, 2021 at 11:19 AM
      • Like Like x 1
      • joe smith

        joe smith Well-Known Member

        Messages:
        343
        Likes Received:
        1479
        Joined:
        Jan 4, 2018
        Location:
        Florida
        Local Time:
        12:42 AM
        Krysler kid, I have seen specs from 5 to 35 inch pounds..LOL..The specs on your post seem to be the most common.... I will use them unless the Place in NC( Gear FX) recommends different.....

        • Like Like x 1
        • khryslerkid

          khryslerkid FBBO Gold Member FBBO Gold Member

          Messages:
          23,668
          Likes Received:
          36500
          Joined:
          Mar 10, 2010
          Location:
          Hanover, Pennslyvania
          Local Time:
          12:42 AM
          I believe the thinnest one I have is .007. I have some .011, .012 and larger. Let me know if you need them.
          Cass aka Dr. Diff sent me the chart along with the Nitro gear set I bought from him. Have Fun! :)

        • joe smith

          joe smith Well-Known Member

          Messages:
          343
          Likes Received:
          1479
          Joined:
          Jan 4, 2018
          Location:
          Florida
          Local Time:
          12:42 AM
          DSCF0740.JPG DSCF0738.JPG DSCF0739.JPG
          Thanks for the offer... I do appreciate it.... If your chart is from Cass, I would call it good......

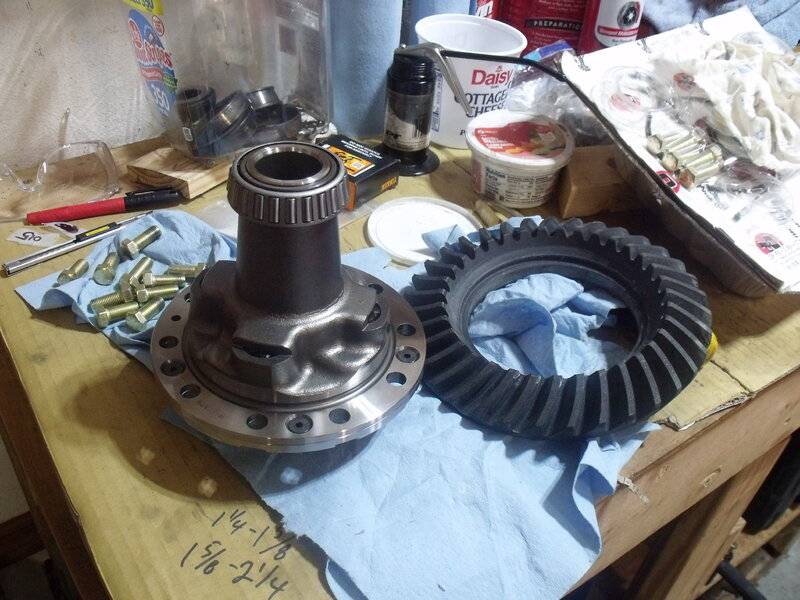

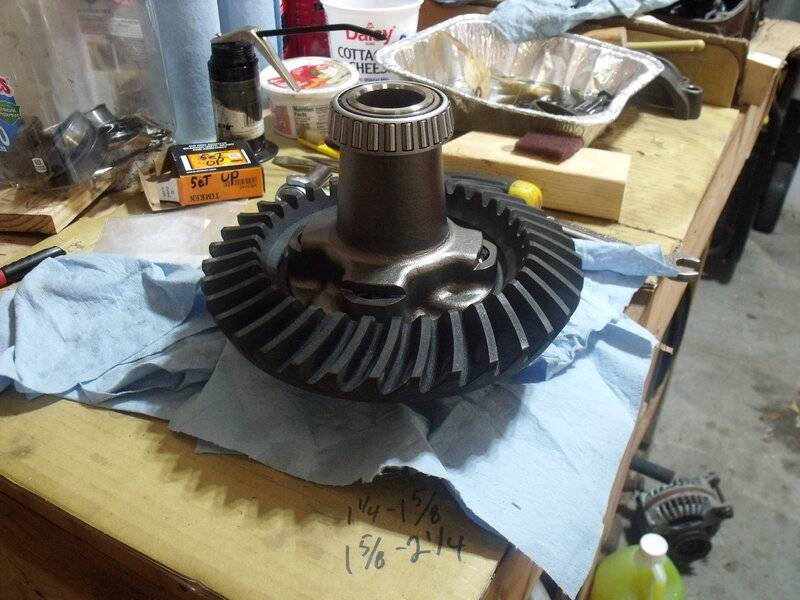

          Just installed the ring gear on the new eaton posi unit...

        • khryslerkid

          khryslerkid FBBO Gold Member FBBO Gold Member

          Messages:
          23,668
          Likes Received:
          36500
          Joined:
          Mar 10, 2010
          Location:
          Hanover, Pennslyvania
          Local Time:
          12:42 AM
          Have you checked back lash yet. IIRC if it's off and you need to change your pinion shim won't that change the bearing preload and you'll have to add or subtract shims accordingly for that? May not need different thickness shims?

        • joe smith

          joe smith Well-Known Member

          Messages:
          343
          Likes Received:
          1479
          Joined:
          Jan 4, 2018
          Location:
          Florida
          Local Time:
          12:42 AM
          Your getting ahead of me.. Can't check the backlash until I get the pinion preload done then install the pinion carrier on the third member housing.. Still have to mess with pinion depth too.....

          • Agree Agree x 2
          • khryslerkid

            khryslerkid FBBO Gold Member FBBO Gold Member

            Messages:
            23,668
            Likes Received:
            36500
            Joined:
            Mar 10, 2010
            Location:
            Hanover, Pennslyvania
            Local Time:
            12:42 AM
            The ford adds/subtracts shims under the pinion housing, I forgot! :rolleyes:

          • 33 IMP

            33 IMP Well-Known Member

            Messages:
            4,820
            Likes Received:
            6421
            Joined:
            Dec 21, 2017
            Location:
            taxifornia,soon 2b Arizona.
            Local Time:
            9:42 PM
            When you get the true track up and running, can you let us know how you like it?
            Im trying to decide what to do with a 3.50 open center ive got. I have a center with good gear and a spool, but the spool and the axles i want to use dont match. Im leaning toward a lock right locker for the open, or maybe the center section from jegs with the spool.

          • joe smith

            joe smith Well-Known Member

            Messages:
            343
            Likes Received:
            1479
            Joined:
            Jan 4, 2018
            Location:
            Florida
            Local Time:
            12:42 AM
            Will do, but it will be a while still..... My block and crank are in Machine shop hell.
            I chose the Eaton because it will never wear out ( no clutch discs) and it needs NO additional fluids... GL5 recommended, NO synthetics......
            Not much horsepower, a stock Explorer 302 with a Flow tech "designed for the car" cam, is all that will be in it....

          • 33 IMP

            33 IMP Well-Known Member

            Messages:
            4,820
            Likes Received:
            6421
            Joined:
            Dec 21, 2017
            Location:
            taxifornia,soon 2b Arizona.
            Local Time:
            9:42 PM
            Thanks for that, and no hurry!
            Definately agree on the NO synthetics! My friend referenced above (sadly passed away young, pancreatic cancer) , if the customer insisted on synthetic, would warrentee his work for 6 inches/6 seconds, which ever came first. He recommended Torco, and never used anything else. He felt synthetic was too thin, too slippery, and wouldnt cling to the gears properly.
