    Does anybody have a wiring diagram to share for2008/2009 SRT seats in an-body?

    The driver seat is electronic adjustable 3 ways, has heating and a seatbelt wiring. The passenger seat has heating and a seatbelt wiring.


  2. BeepBeepRR

    BeepBeepRR Well-Known Member

    Messages:
    3,334
    Likes Received:
    3298
    Joined:
    Oct 16, 2016
    Location:
    Atlanta,Ga
    Local Time:
    11:43 PM
  3. dickdale

    dickdale Well-Known Member

    Messages:
    350
    Likes Received:
    95
    Joined:
    Oct 29, 2010
    Location:
    Europe
    Local Time:
    10:43 PM

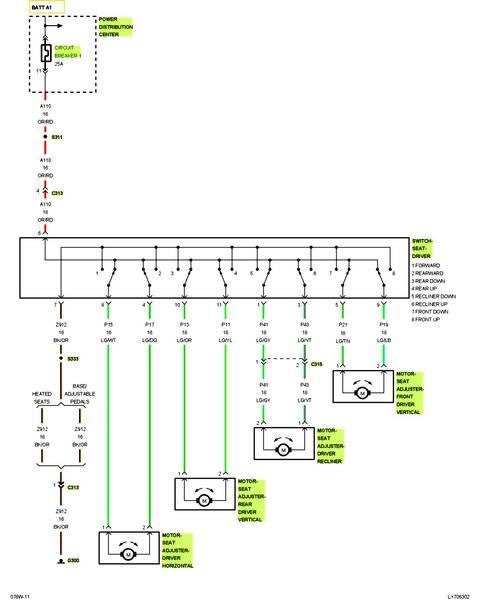

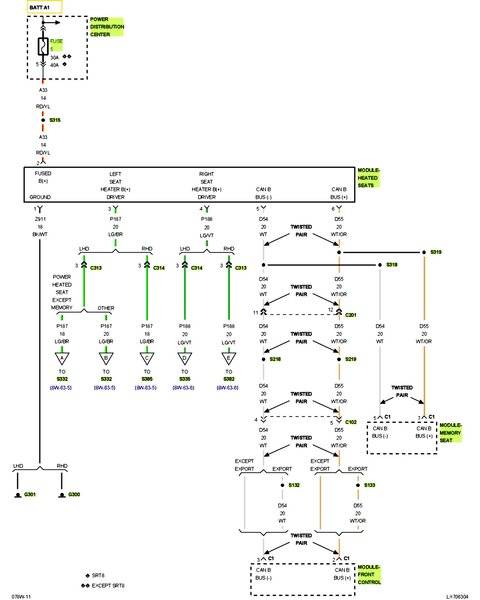

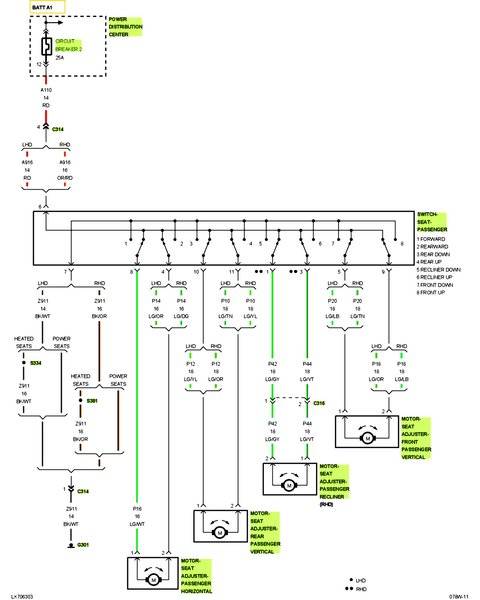

    I have found this but can’t seem to figure it out. And because the 2008/2009 Challenger uses can bus and my old Satellite doesn’t I don’t know how to connect it.

  4. BeepBeepRR

    BeepBeepRR Well-Known Member

    Messages:
    3,334
    Likes Received:
    3298
    Joined:
    Oct 16, 2016
    Location:
    Atlanta,Ga
    Local Time:
    11:43 PM
    Did you get both sides of the bus? Seems to me that the power side only shows one fuse that you power the seats with for movement. Possibly another circuit for the heated seats. But one is a 30 amp and the other is a 20 amp fuse. Thats a hell of a load for an old harness unless you have some upgraded wiring.

    Last edited: Aug 1, 2019
  5. dickdale

    dickdale Well-Known Member

    Messages:
    350
    Likes Received:
    95
    Joined:
    Oct 29, 2010
    Location:
    Europe
    Local Time:
    10:43 PM
    I've only got the seat and the connector. I'm going to upgrade the harness.

  6. JoePole

    JoePole Well-Known Member

    Messages:
    109
    Likes Received:
    77
    Joined:
    Jan 24, 2018
    Location:
    Hyde Park,NY. NOT NYC!
    Local Time:
    11:43 PM
    Pardon my novice question (I am considering a similar swap) but I assumed you only needed 12v power, ground and switch (with appropriate breakers, wiring, etc) to use factory seats via the factory connector. Stated another way, find seats with both sides of plug, and supply power via wiring diagram to options you are using (is heat, cool, lumbar, recline....). Are you saying that you need the communication part of it too?
    I don't want to use any computer modules.

    Also....@dickdale what car are you putting them in? Do you you have any pics? I am concerned about the seat height in our older cars.I

    Thanks

  7. BeepBeepRR

    BeepBeepRR Well-Known Member

    Messages:
    3,334
    Likes Received:
    3298
    Joined:
    Oct 16, 2016
    Location:
    Atlanta,Ga
    Local Time:
    11:43 PM
    I was saying 2 12v circuits to power these seats, 1 20 amp and 1 30 amp. Thats if you want the heated portion of the seats to function. When I said both sides of the bus. I meant the plug from the car side of the harness that connects to the seat.

    • Thanks! Thanks! x 1
    • JoePole

      JoePole Well-Known Member

      Messages:
      109
      Likes Received:
      77
      Joined:
      Jan 24, 2018
      Location:
      Hyde Park,NY. NOT NYC!
      Local Time:
      11:43 PM
      That makes sense. Thank you BBRR. The CAN/BUS had me scratchin.

    • dickdale

      dickdale Well-Known Member

      Messages:
      350
      Likes Received:
      95
      Joined:
      Oct 29, 2010
      Location:
      Europe
      Local Time:
      10:43 PM
      I only have the connector of the seat. The other one is no problem. They can be bought through: http://connectors.dcctools.com/home.htm

      I don't want to use a computer either. Haven't installed them yet. There from a 2008/2009 Challenger and going into a 1970's Satellite.

      • Thanks! Thanks! x 1
      • Coronet R/T 68

        Coronet R/T 68 Active Member

        Messages:
        27
        Likes Received:
        13
        Joined:
        Jun 25, 2017
        Location:
        Erie
        Local Time:
        11:43 PM
        I have seats from a 2011-2012 challenger in my 68 coronet, not sure if there the same. Only needed a pos and a negative to get the power seats working. Haven't figured out the heat and cooling yet.

      • JoePole

        JoePole Well-Known Member

        Messages:
        109
        Likes Received:
        77
        Joined:
        Jan 24, 2018
        Location:
        Hyde Park,NY. NOT NYC!
        Local Time:
        11:43 PM
        R/T 68

        How is the seat height? Do they look too tall for the car? Got a pic?

      • Coronet R/T 68

        Coronet R/T 68 Active Member

        Messages:
        27
        Likes Received:
        13
        Joined:
        Jun 25, 2017
        Location:
        Erie
        Local Time:
        11:43 PM

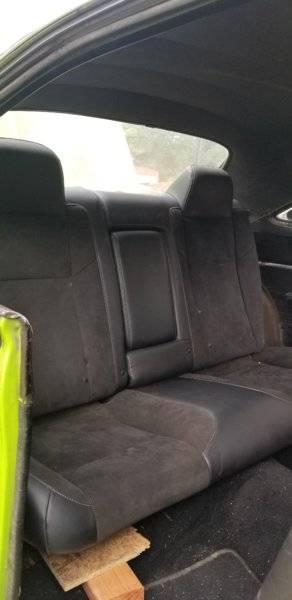

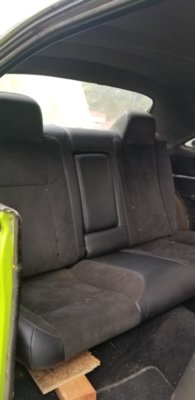

        Seat height is close, I am more comfortable leaned back a little so that frees up some headspace. If it is straight up, my head hits the headliner and I'm 5'11", But they look great and match the car perfectly. Dont mind the mess, I'm in the process of putting the rear challenger seats in.


        • Thanks! Thanks! x 3
        • Like Like x 1
        • Coronet R/T 68

          Coronet R/T 68 Active Member

          Messages:
          27
          Likes Received:
          13
          Joined:
          Jun 25, 2017
          Location:
          Erie
          Local Time:
          11:43 PM

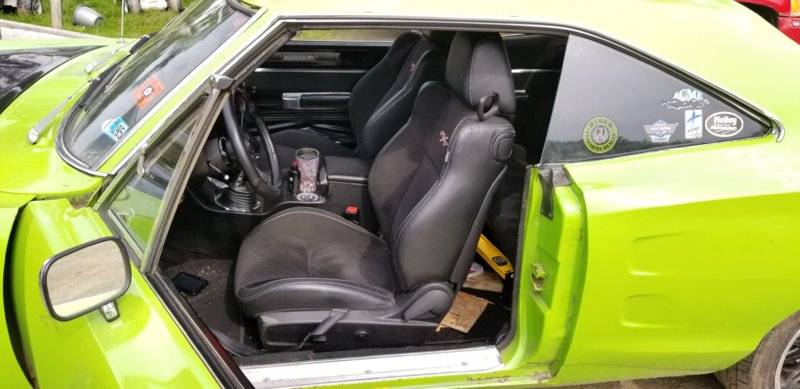

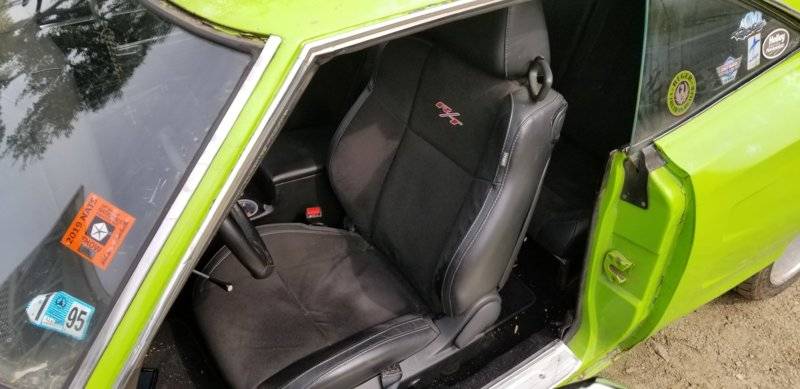

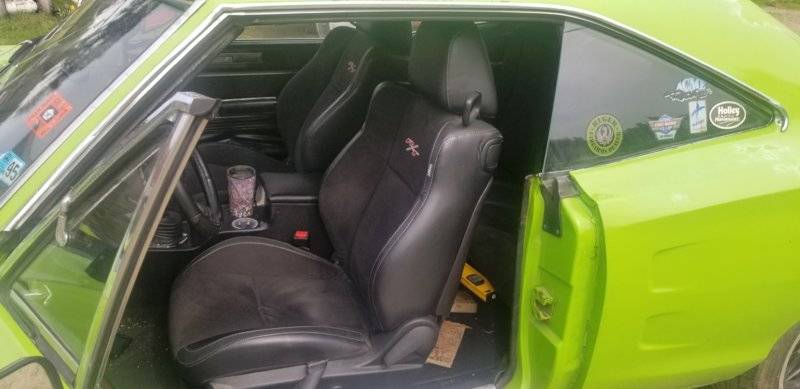

          20190815_160535.jpg 20190815_160527.jpg

          • Like Like x 1
          • Thanks! Thanks! x 1
          • Hey-O

            Hey-O FBBO Gold Member FBBO Gold Member

            Messages:
            5,105
            Likes Received:
            15898
            Joined:
            Nov 21, 2018
            Location:
            Ballwin Mo
            Local Time:
            10:43 PM
            My last car I add a painless fuse box in the truck for all the extra add on's, 4 hot , 3 key on hot.

            • Like Like x 1
            • nstyle73

              nstyle73 Well-Known Member

              Messages:
              387
              Likes Received:
              103
              Joined:
              Jan 17, 2012
              Location:
              Illinois
              Local Time:
              10:43 PM
              The seat will be pretty tall depending on the model and floorpan. I have mocked up 2012 SRT seats in the 71-74 charger and the headrest is very near headliner with the stock mounting rails. The Sebring sears in my wagon fit better but aren’t quite as cool. Side note, all of the power seat functions are powered through one positive wire so through the process of elimination, I was able to find the wire I needed. The seat belt and the heat connectors are separate on the Sebring seats.

              • Thanks! Thanks! x 1
              • dickdale

                dickdale Well-Known Member

                Messages:
                350
                Likes Received:
                95
                Joined:
                Oct 29, 2010
                Location:
                Europe
                Local Time:
                10:43 PM
                Did you also replaced the back seat? I found the SRT's are pretty small in with.

              • Coronet R/T 68

                Coronet R/T 68 Active Member

                Messages:
                27
                Likes Received:
                13
                Joined:
                Jun 25, 2017
                Location:
                Erie
                Local Time:
                11:43 PM
                Yes I did, and they quite a bit narrower than stock. I have the back rests mounted so I can still flip them down and still working on the lower seat mounts. I'll just make some filler pieces for the sides and call it done. It really does finish off the inside of the car having matching front and rear seats


                • Like Like x 1
                • Thanks! Thanks! x 1
                • dickdale

                  dickdale Well-Known Member

                  Messages:
                  350
                  Likes Received:
                  95
                  Joined:
                  Oct 29, 2010
                  Location:
                  Europe
                  Local Time:
                  10:43 PM
                  Can you post pictures of the filler pieces? I need some ideas for my seats.

                • Coronet R/T 68

                  Coronet R/T 68 Active Member

                  Messages:
                  27
                  Likes Received:
                  13
                  Joined:
                  Jun 25, 2017
                  Location:
                  Erie
                  Local Time:
                  11:43 PM
                  I will when I get that far, but I'm not pressed to get it done right away

                  • Thanks! Thanks! x 1
                  • Jarven1977

                    Jarven1977 Well-Known Member

                    Messages:
                    76
                    Likes Received:
                    152
                    Joined:
                    Mar 8, 2017
                    Location:
                    Sweden
                    Local Time:
                    5:43 AM
                    Looks great, going the same route in my car. Forgot about the seat heat option, would be nice to have that working as well!
                    I am also worried about the height. Wondering if I should try and modify the rails to get them as low as possible? Anyone done that?
                    My interior parts came out of a -17 Challenger.
