SSBC rear disc brake help!!!

Brakes, Steering & Suspension

  1. Dbl_R69

    Dbl_R69 Well-Known Member

    Messages:
    81
    Likes Received:
    4
    Joined:
    May 7, 2017
    Location:
    Fairfield, ca
    Local Time:
    3:48 PM
    Looking for some insight on SSBC rear disc brakes.

    I bought a set of the SSBC rear disc brakes (A-155, standard kit, single piston) a couple years back for my 69 RR. Well I finally decided to install them on the car with the plans to go 4 wheel disc. But for some reason it doesn’t look right to me. I noticed that both calipers are for the right side & labeled 2424R. To top it off SSBC is not longer in business so I can’t get answers from them, go figure. I’ve seen a couple old forums stating they have the same 2 calipers, with one caliper mounting towards the rear of the rotor and the other mounts towards the front. The instructions suck *ss and the catalog states it comes with 2424L and 2424R caliper (left & right).

    Has anyone installed a set of these on their car before? Any info, instructions & pictures would be greatly appreciated. Starting to think I wasted my money on these.

  2. 70GTX Texas

    70GTX Texas Member

    Messages:
    22
    Likes Received:
    14
    Joined:
    Oct 1, 2015
    Location:
    Texas
    Local Time:
    5:48 PM
    I have them on my 70 GTX. Both are mounted to the rear. Sounds like you may have gotten a bad deal. Sorry bro. That sucks.

    • Agree Agree x 1
    • dryheat

      dryheat FBBO Gold Member FBBO Gold Member

      Messages:
      783
      Likes Received:
      450
      Joined:
      Feb 4, 2011
      Location:
      Glendale, AZ 85308
      Local Time:
      4:48 PM
    • Darter6

      Darter6 FBBO Gold Member FBBO Gold Member

      Messages:
      3,602
      Likes Received:
      3585
      Joined:
      Dec 29, 2009
      Location:
      Nevada
      Local Time:
      5:48 PM
      Dbl_R69, I answered your question over on A Bodies. For others the rear calipers are Ford Thunderbird rears in the late 80's and into the early 90's. I ordered a replacement for my car at AutoZone. I asked for a Ford T-bird 1993. The park brake arm is different only where the cable attaches,the hole is larger. A small cable clamp took care of that.

    • 70GTX Texas

      70GTX Texas Member

      Messages:
      22
      Likes Received:
      14
      Joined:
      Oct 1, 2015
      Location:
      Texas
      Local Time:
      5:48 PM

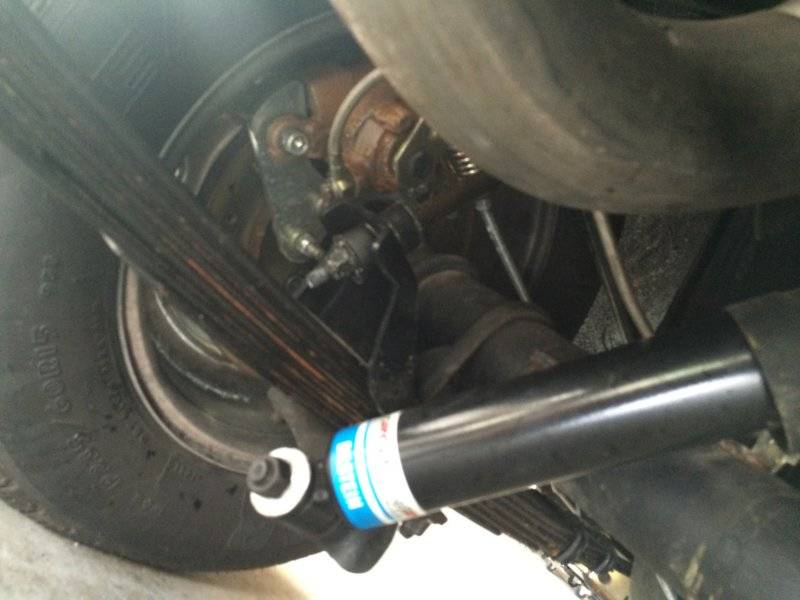

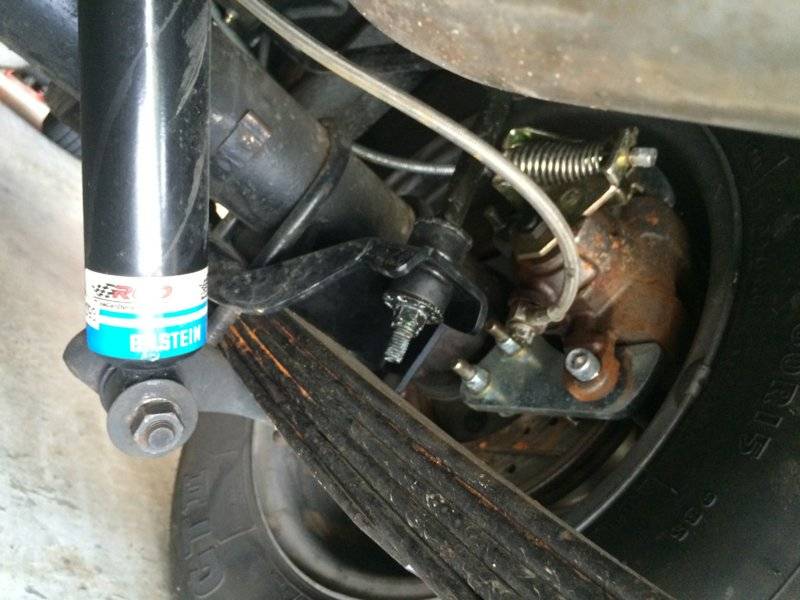

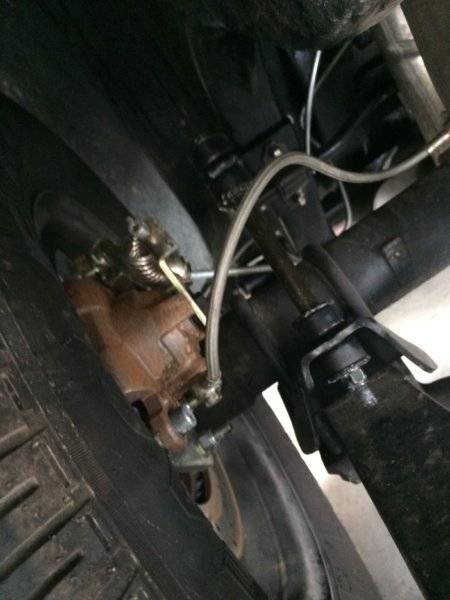

      Here’s the brakes on mine.

      A1158271-897F-4FF9-8D2C-0FB634ECC5BF.jpeg 7E3EC041-D6FF-499B-A513-A2A9D9B97762.jpeg 6C2EB0AC-77A6-440F-8E17-AA3C18A659ED.jpeg
