Steering Couper Location

Brakes, Steering & Suspension

  1. JCroadrunner

    JCroadrunner Active Member

    Messages:
    25
    Likes Received:
    8
    Joined:
    Oct 26, 2016
    Location:
    Kansas
    Local Time:
    9:15 AM
    The manual for my 70 RR says the end cap on the steering coupler should be 13/16ths from the small indent on the steering shaft. Mine is 1 3/16 from that dot. Don't know how I can move the shaft into the coupler any more. Are the "shoes" in the coupler in backwards maybe? Or is that even possible? My steering column is already used into the dash so tight that it's hard to move the automatic shift column lever. Mounting bracket is bottomed out, no more outward adjustment. Something is not right how I have it now. I know about master splines etc. Getting ready to pull it out agin but not sure what to do to fix problem. Any help would be appreciated. Thanks!

  2. dadsbee

    dadsbee FBBO Gold Member FBBO Gold Member

    Messages:
    5,508
    Likes Received:
    11720
    Joined:
    Jan 29, 2018
    Location:
    Ontario, Canada
    Local Time:
    10:15 AM

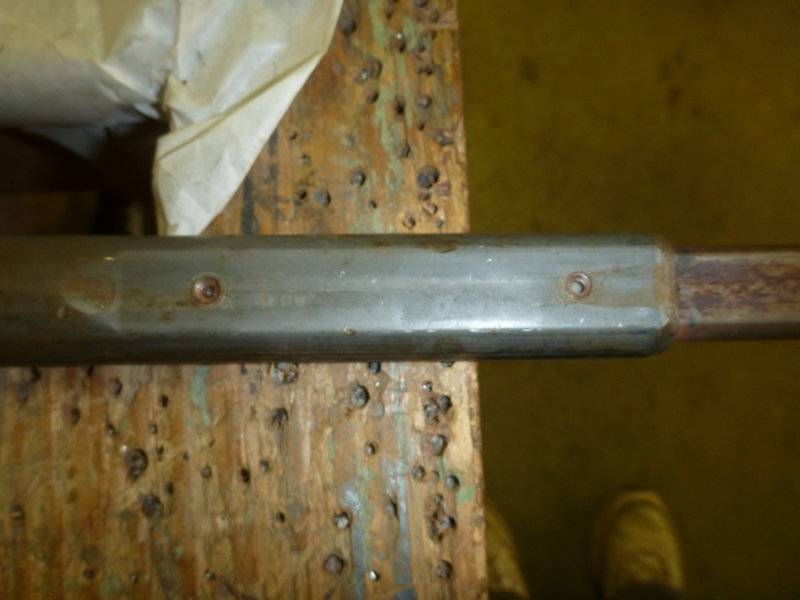

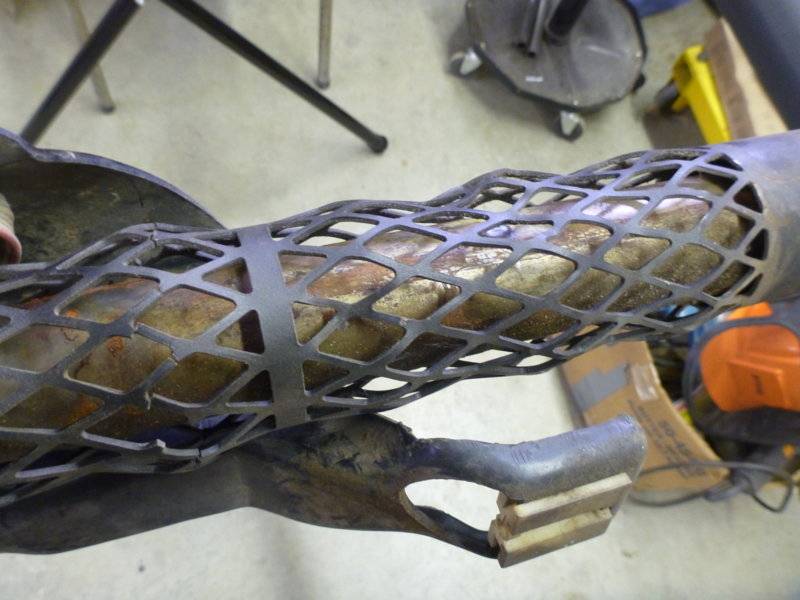

    Any chance your steering shaft took a hit and is slightly collapsed / sheared the plastic shaft retainers? Look for deformation in the mesh section of the column tube.
    beerestoration2018 1400.JPG
    beerestoration2018 1328.JPG

  3. David Stillie

    David Stillie Well-Known Member

    Messages:
    142
    Likes Received:
    110
    Joined:
    Jul 9, 2017
    Location:
    Burlington Ontario
    Local Time:
    10:15 AM
    Don't worry, the coupler shoes cannot be installed backwards.
    If the column is too short then I'm afraid your steering column is collapsed.
    You may be able to pull it back into position, but it really should be disassembled and repaired. I fixed mine with hot glue. Be sure to mark and measure it before so you know how much to extend it.

  4. JCroadrunner

    JCroadrunner Active Member

    Messages:
    25
    Likes Received:
    8
    Joined:
    Oct 26, 2016
    Location:
    Kansas
    Local Time:
    9:15 AM
    I don't think it has collapsed but the plastic retainers are rotted and busted. I have new ones to install. I'm headed back to the shop to check the mesh to see if its deformed. Will let you know.

  5. JCroadrunner

    JCroadrunner Active Member

    Messages:
    25
    Likes Received:
    8
    Joined:
    Oct 26, 2016
    Location:
    Kansas
    Local Time:
    9:15 AM
    David Stillie what did you fix with hot glue? The plastic retainers?

  6. David Stillie

    David Stillie Well-Known Member

    Messages:
    142
    Likes Received:
    110
    Joined:
    Jul 9, 2017
    Location:
    Burlington Ontario
    Local Time:
    10:15 AM
    I removed and torn down the column, pulled the shaft apart, drilled out the remaining plastic from the holes in the shaft. I realigned the inner and outer shaft then injected the hot glue.

  7. JCroadrunner

    JCroadrunner Active Member

    Messages:
    25
    Likes Received:
    8
    Joined:
    Oct 26, 2016
    Location:
    Kansas
    Local Time:
    9:15 AM
    I pulled the column out and it looks like it may have taken a light hit. The outer jacket looks like it is bunched up (collapsed) just a little. Does the steering shaft itself collapse also?

  8. dadsbee

    dadsbee FBBO Gold Member FBBO Gold Member

    Messages:
    5,508
    Likes Received:
    11720
    Joined:
    Jan 29, 2018
    Location:
    Ontario, Canada
    Local Time:
    10:15 AM

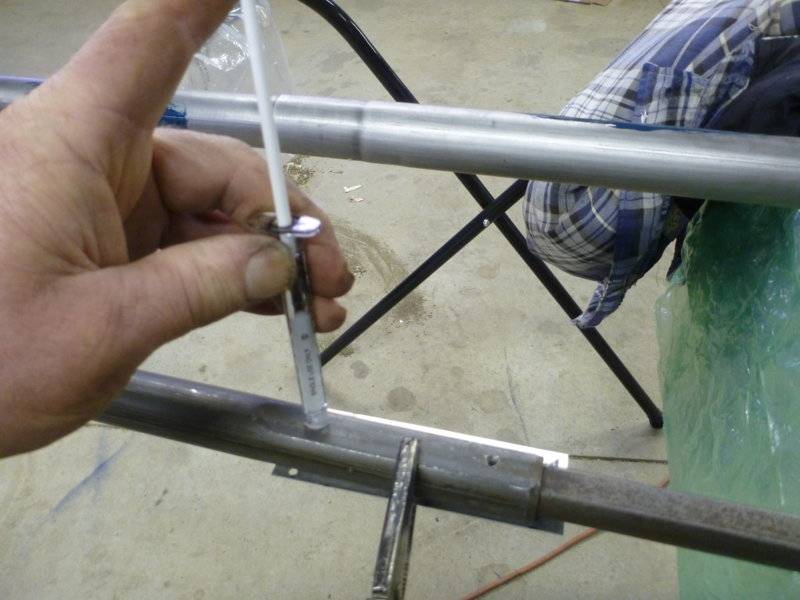

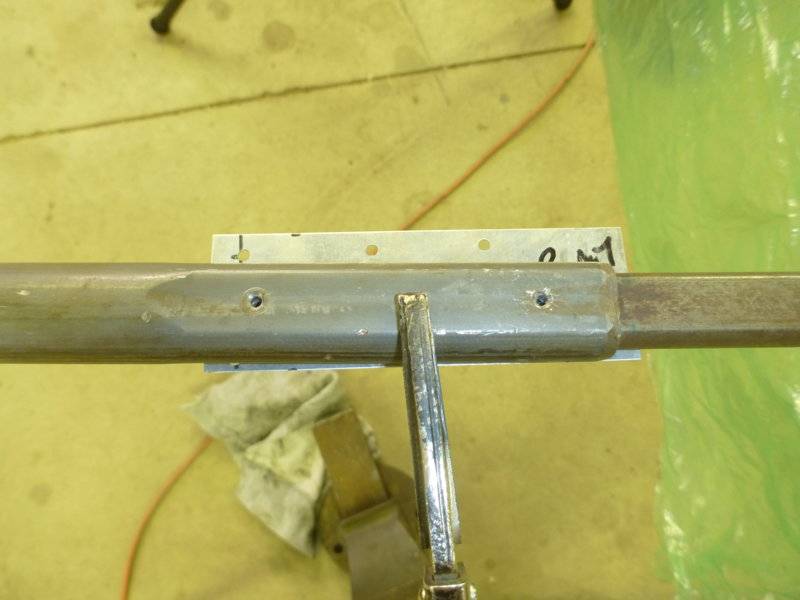

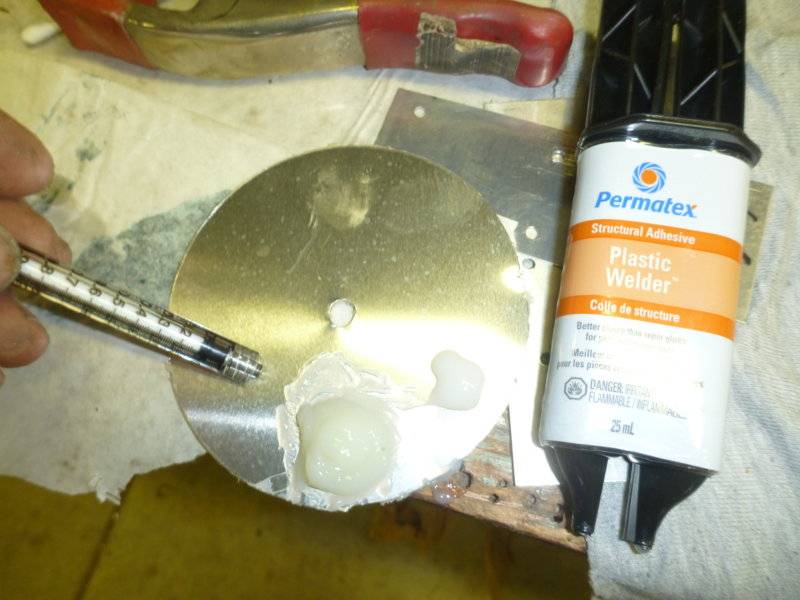

    Yes.. why I showed the center shaft and it's two plastic rivets.
    beerestoration2018 1539.JPG beerestoration2018 1540.JPG beerestoration2018 1542.JPG beerestoration2018 1543.JPG

    • Like Like x 1
    • David Stillie

      David Stillie Well-Known Member

      Messages:
      142
      Likes Received:
      110
      Joined:
      Jul 9, 2017
      Location:
      Burlington Ontario
      Local Time:
      10:15 AM
      yes the shaft can collapse as well. Usually it is the shaft that is the problem. It can get collapsed easily by dropping or rough handling.

    • JCroadrunner

      JCroadrunner Active Member

      Messages:
      25
      Likes Received:
      8
      Joined:
      Oct 26, 2016
      Location:
      Kansas
      Local Time:
      9:15 AM
      OK, I didn't realize the shaft itself collapsed. I will have to take it all apart and check. Needs a good cleanup anyway.
      Thanks dads bee and David!
