Superbird wing placement specs.

Daytona - Superbird Forum

  1. Satellbirdbrain

    Satellbirdbrain Member

    Messages:
    9
    Likes Received:
    10
    Joined:
    Jan 19, 2019
    Location:
    Hillsboro MO
    Local Time:
    8:38 AM

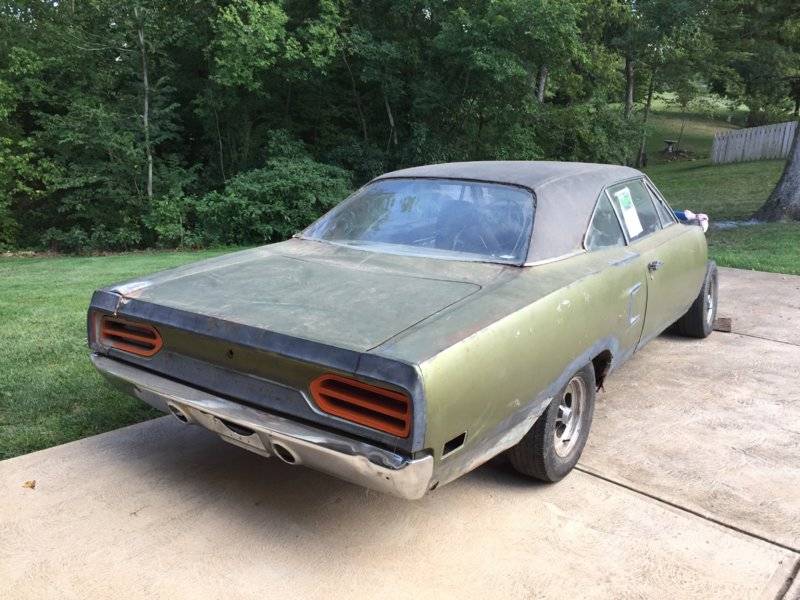

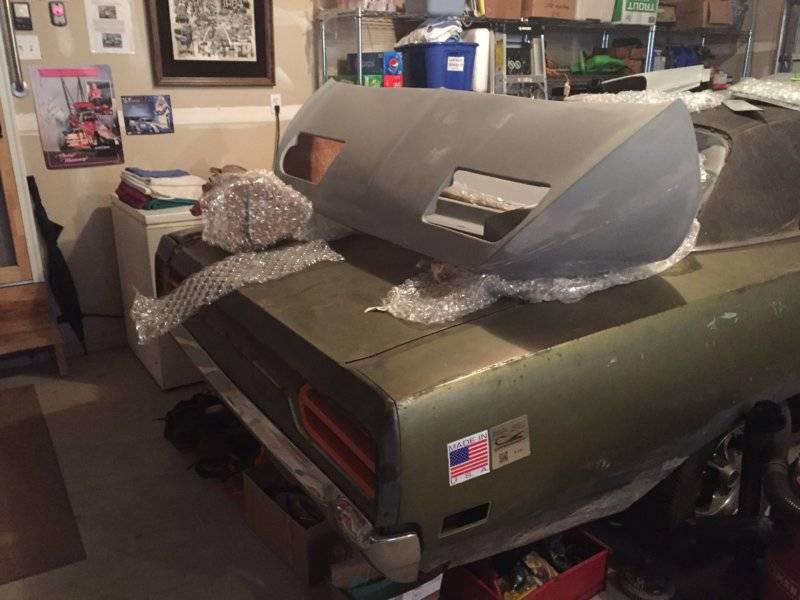

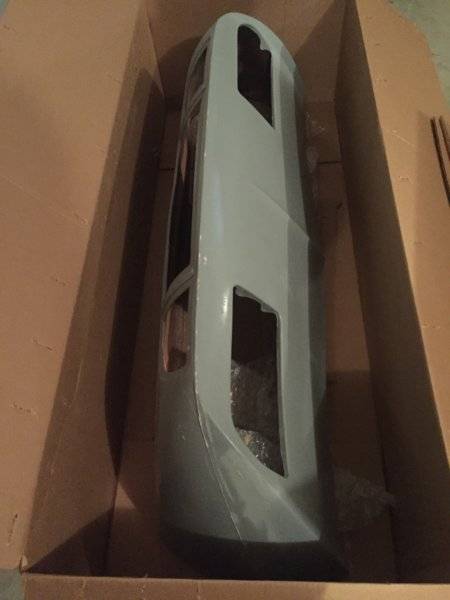

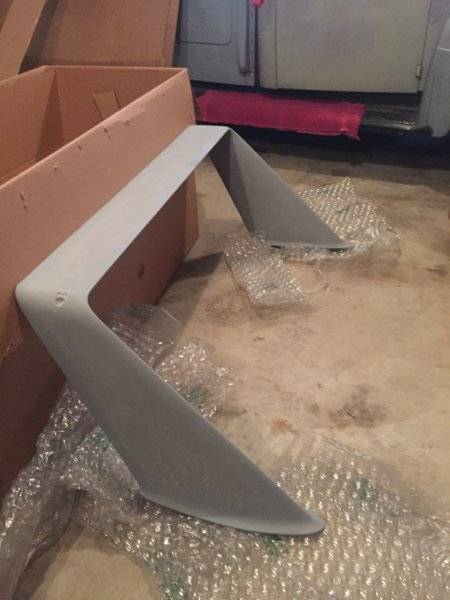

    I have a 70 Satellite and just got a Superbird clone kit and fenders from Stinger. I was wondering if anyone has measurements for rear wing placement. I know the deck lid has to clear when opened but beyond that I am not finding anything but 8.5 inches from the rear edge of the quarter and centered. Thanks! IMG_2711.JPG IMG_9584.JPG IMG_9587.JPG IMG_9599.JPG

    • Like Like x 2
    • kiwigtx

      kiwigtx Trendsetter Staff Member FBBO Gold Member

      Messages:
      22,099
      Likes Received:
      45194
      Joined:
      Jun 12, 2012
      Location:
      NZ - the newest 3rd World Country
      Local Time:
      1:38 AM
      Nice car...and a cool project. Contact @Hemirunner ....he may be able to offer some tips. :thumbsup:

      • Agree Agree x 1
      • Satellbirdbrain

        Satellbirdbrain Member

        Messages:
        9
        Likes Received:
        10
        Joined:
        Jan 19, 2019
        Location:
        Hillsboro MO
        Local Time:
        8:38 AM
        Thanks much. Will do!

      • dadsbee

        dadsbee FBBO Gold Member FBBO Gold Member

        Messages:
        9,222
        Likes Received:
        21834
        Joined:
        Jan 29, 2018
        Location:
        Midland Ontario, Canada
        Local Time:
        9:38 AM
        Deck lid does not have to clear the wing (although it probably will) as they welded stops on the hinge brackets to stop it below the wings. I can measure mine if you like, but not going to get anything much more than a distance from the rear as well. About all you can go by as your repro may not match OE for bolt locations.

        • Thanks! Thanks! x 1
        • kiwigtx

          kiwigtx Trendsetter Staff Member FBBO Gold Member

          Messages:
          22,099
          Likes Received:
          45194
          Joined:
          Jun 12, 2012
          Location:
          NZ - the newest 3rd World Country
          Local Time:
          1:38 AM
          or this guy ^^^^ :lol:

          • Like Like x 2
          • Hemirunner

            Hemirunner Well-Known Member

            Messages:
            4,835
            Likes Received:
            5865
            Joined:
            Jul 12, 2011
            Location:
            Down South
            Local Time:
            8:38 AM
            I think I posted pics and measurements in my build thread. If not, here you go.

            • Like Like x 1
            • Thanks! Thanks! x 1
            • Hemirunner

              Hemirunner Well-Known Member

              Messages:
              4,835
              Likes Received:
              5865
              Joined:
              Jul 12, 2011
              Location:
              Down South
              Local Time:
              8:38 AM
              The deck lid will clear using the 8.5” dimension.

              Last edited: Jan 19, 2019
            • Satellbirdbrain

              Satellbirdbrain Member

              Messages:
              9
              Likes Received:
              10
              Joined:
              Jan 19, 2019
              Location:
              Hillsboro MO
              Local Time:
              8:38 AM
              Thanks to all who replied! I have a LONG way to go on this but I felt if the wing was on, it would give me inspiration to press on. I am picking away at it now but retire in about 2 years and will get serious.

            • Chris Gal

              Chris Gal Well-Known Member

              Messages:
              99
              Likes Received:
              44
              Joined:
              Aug 1, 2016
              Location:
              Seabeck, Wa
              Local Time:
              6:38 AM
              Hi Satellbirdbrain,

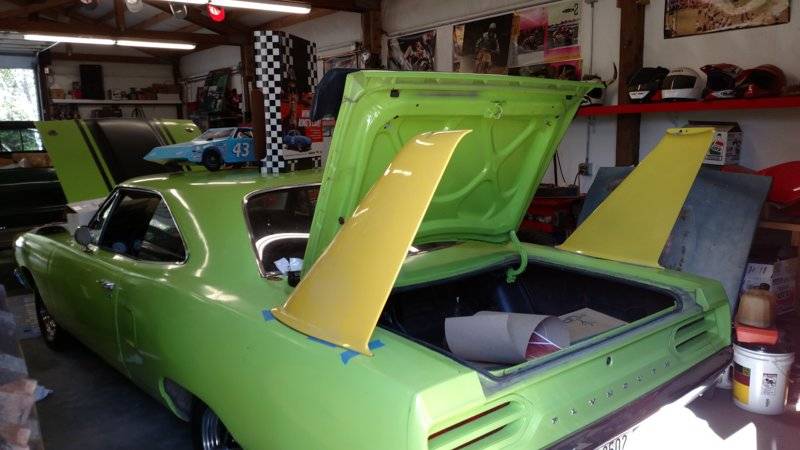

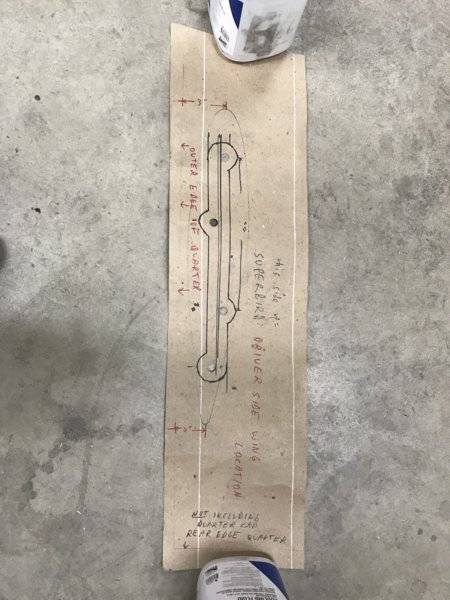

              I'm doing the same thing just a few steps ahead of you. And I did just that, installed the wing for motivation. I spoke with a knowledgable person at http://www.performancecargraphics.com. Unfortunately I can't recall his name right now, but every time I've called he has been the one who's answered. He sent me templates for the locations. Here's a photo of my project.
              Because he was so nice and helpfull, I'll be ordering more parts from him as he has quite abit for your build.

              • Like Like x 1
              • 6PKRTSE

                6PKRTSE Well-Known Member

                Messages:
                1,918
                Likes Received:
                2732
                Joined:
                Nov 15, 2010
                Location:
                Motor City
                Local Time:
                8:38 AM
                It might be the angle or the template you used was wrong. It looks like the wing is mounted too far forward?

              • 62MAX

                62MAX Well-Known Member

                Messages:
                1,573
                Likes Received:
                1103
                Joined:
                Jul 21, 2008
                Location:
                PA
                Local Time:
                9:38 AM

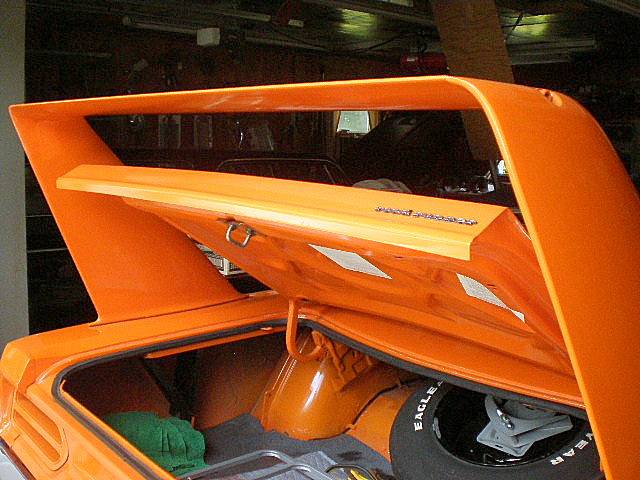

                Probably is from what I can see with mine,exact measurement is 8 1/2" from tip of base to end of quarter panel less extension. P7020010-001.JPG

              • dadsbee

                dadsbee FBBO Gold Member FBBO Gold Member

                Messages:
                9,222
                Likes Received:
                21834
                Joined:
                Jan 29, 2018
                Location:
                Midland Ontario, Canada
                Local Time:
                9:38 AM

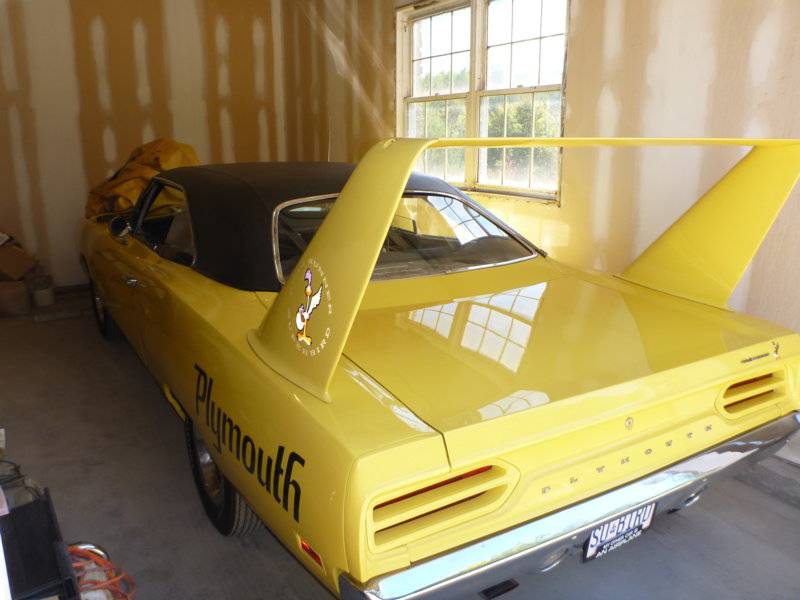

                I think it's just the angle of the picture... here's mine from a similar angle. superbirdoct12015housegarage 006.JPG

                • Like Like x 1
                • coronet68mx

                  coronet68mx FBBO Gold Member FBBO Gold Member

                  Messages:
                  3,747
                  Likes Received:
                  7214
                  Joined:
                  Sep 18, 2014
                  Location:
                  Uruapan, Michoacán, México
                  Local Time:
                  8:38 AM
                  :rofl:

                  • Thanks! Thanks! x 1
