WTB SureGrip Spiders gears

WTB - Mopar Parts and Cars Wanted

  1. 63SPF

    63SPF FBBO Gold Member FBBO Gold Member

    Messages:
    967
    Likes Received:
    908
    Joined:
    Oct 26, 2014
    Location:
    Kona , Hawaii
    Local Time:
    1:48 PM
    Aloha, anyone got a set or 2 of large & small Spider gears for a cone style sure grip unit ? Cones also if available ? Mahalo C

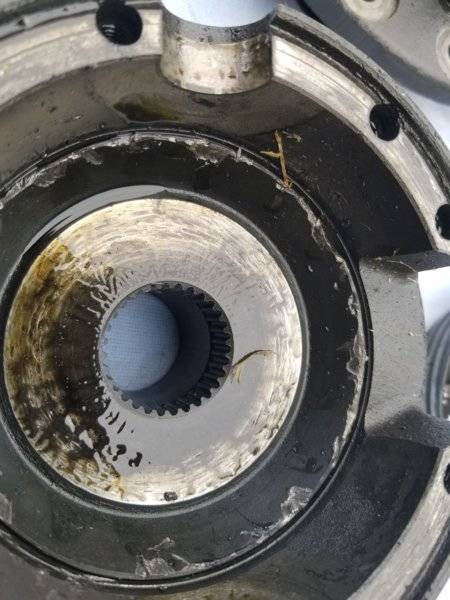

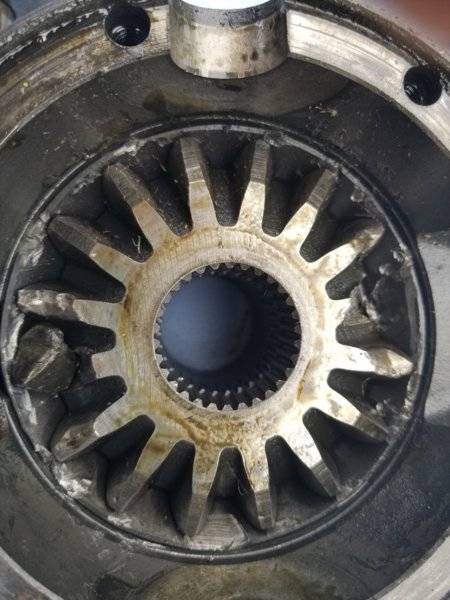

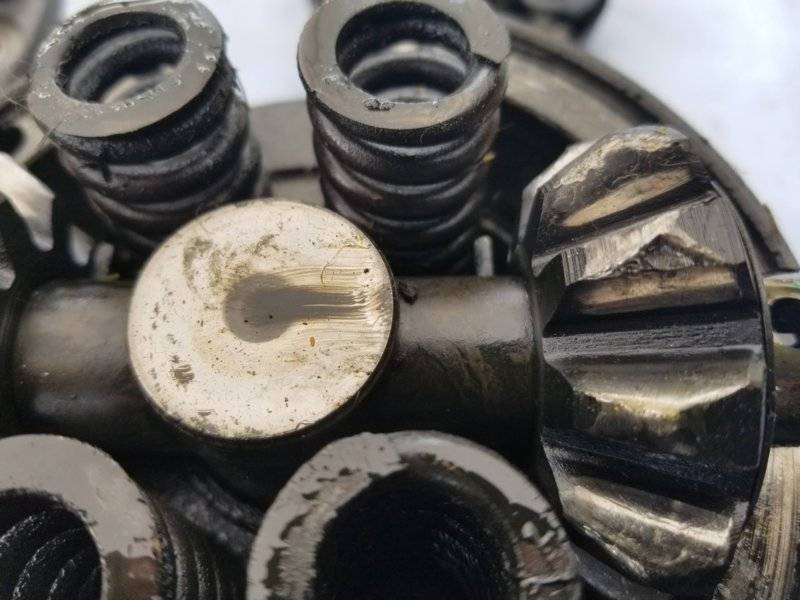

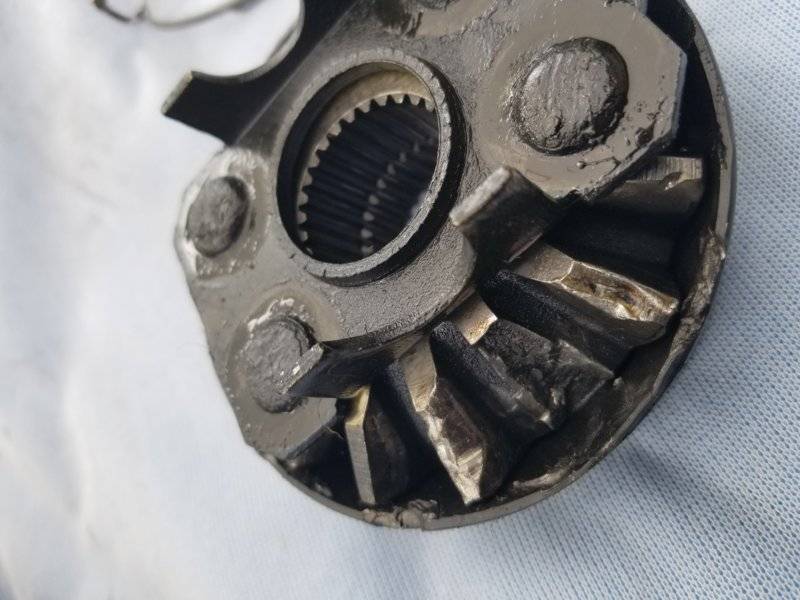

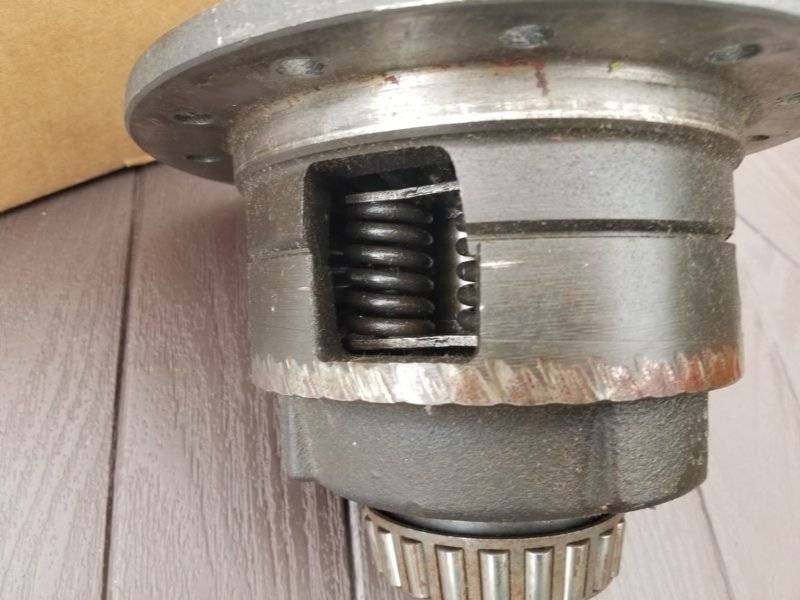

    20190608_091026.jpg 20190608_091315.jpg 20190608_091733.jpg 20190608_091305.jpg 20190608_091619.jpg

    Last edited: Jun 12, 2019 at 11:01 AM
  2. 63SPF

    63SPF FBBO Gold Member FBBO Gold Member

    Messages:
    967
    Likes Received:
    908
    Joined:
    Oct 26, 2014
    Location:
    Kona , Hawaii
    Local Time:
    1:48 PM
    Anyone get parts ?

  3. Belle66

    Belle66 Well-Known Member

    Messages:
    254
    Likes Received:
    169
    Joined:
    Aug 26, 2010
    Location:
    Newport News, VA
    Local Time:
    7:48 PM
    Only place i can think of is Dr. Diff.

    • Thanks! Thanks! x 1
    • MiradaMegaCab

      MiradaMegaCab Well-Known Member

      Messages:
      152
      Likes Received:
      281
      Joined:
      Dec 3, 2013
      Location:
      Long Island
      Local Time:
      6:48 PM
      I got a mixed box of spider gears from open 8.25”s , 8.75’s and suregrip 8.75. I’ll check later when I’m home.
      In the mean time, post up the diameter dimensions of the gears, so I will have an idea of which gears I should be looking for....
      Chuck

      • Thanks! Thanks! x 1
      • 63SPF

        63SPF FBBO Gold Member FBBO Gold Member

        Messages:
        967
        Likes Received:
        908
        Joined:
        Oct 26, 2014
        Location:
        Kona , Hawaii
        Local Time:
        1:48 PM
        Aloha, spiders out of an open gear unit will not work !
        Has to be out of a cone style S/G unit !
        Many thanks, will try to get picts of Dia. Dim. asap

      • MiradaMegaCab

        MiradaMegaCab Well-Known Member

        Messages:
        152
        Likes Received:
        281
        Joined:
        Dec 3, 2013
        Location:
        Long Island
        Local Time:
        6:48 PM

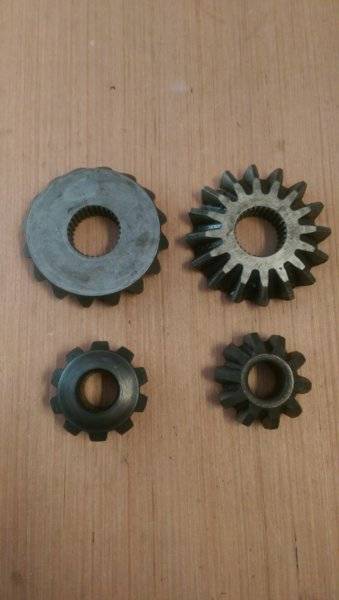

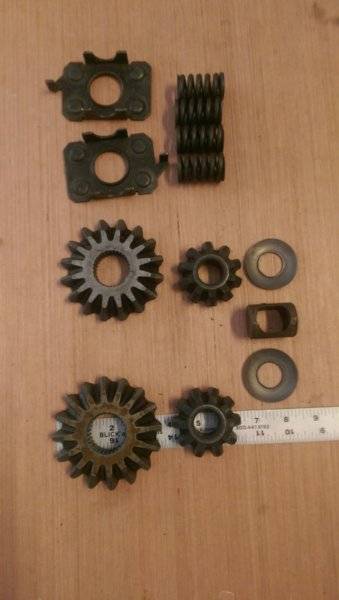

        405D33BC-C790-4509-963F-7D9332B7DABD.jpeg F82A5999-B9DC-4C77-BEB6-094B805D243A.jpeg Aloha, I’m pretty sure these are from a stock cone type sure grip from an 8 3/4.
        So it’s 30 spline, 3 3/4” diameter side gears. (Measured at the largest point, which is from outside of tooth to outside of tooth)
        2 3/8” diameter spider gears (Measured as above) with around a 7/8” inner hole for the pin.
