The first "Hawk-Rod" resurrection, Roadkill style

Member's Projects & Restorations

  1. HawkRod

    HawkRod Formerly hsorman FBBO Gold Member

    Messages:
    4,931
    Likes Received:
    7252
    Joined:
    Aug 8, 2011
    Location:
    Lansdale, PA
    Local Time:
    1:34 PM
    Car Details and History
    I know many of you don't like super wordy stuff, but some history is worth mentioning.

    This 1973 Road Runner is a factory 340, 727, with a 3.55 8.75 rear. Major options include air conditioning, power brakes, power steering, bucket seats, console and Slap Stik shifter. It's original color was "Tahitian Gold Metallic". In other words, metallic brown. :rolleyes:

    It isn't worth a whole lot compared to other cars, yet it is invaluable to me. It is my first car I ever had, and it is still in the family. There are thousands of great stories with this car, from when I drove it in high school and college, met my wife through this car, and later gave it to my son. It has been through a lot and it is still with us.

    Here is the car when it came home in 1979. That's my dad driving it up the driveway.


    Here is one of the only known pictures of my car when I was driving it in college. This is fall 1984. Yes, that's me in a powder blue polyester suit at a wedding!

    So I "restored" this car starting in 1988 through 1992. It was done on almost no budget, so many shortcuts were taken. At the time, the only color interior I could get was black or white. The gold parchment interior my car had was not available and I didn't want to dye the seat covers, so I ended up buying black interior components. Since I was changing the interior color, I changed the exterior too. So the car became lemon twist yellow with a black interior. I couldn't afford to properly do the engine compartment, so I painted it rattle can black. :eek: I know, I know, sacrilege for a Mopar, but that was what I did at the time with the money I had! :poke:

    Here is a picture of me with my son at a car show in 1997:

    I then gave it to him when he turned 16 in 2010. I told him to drive it like any other car, and use it. I knew this would create rust, dings, issues, etc. But that is the way you develop good memories with these cars. He loved his car and was known all throughout his high school for his bright yellow hot rod.

    In 2016 as he was driving the car to college, the engine let loose BAD. It threw a rod out the side of the block , and destroyed two cylinders.

    You can believe what you want, but I think this was a freak accident and no fault of his own. Regardless, he was/is not in a position to spend money on the car so it has been sitting since the engine blew. He finally said he wanted to give it back to me since he could not do justice to the car. Eventually, I want to give it back to him again, but for now, I have decided to get it back on the road so it doesn't just sit and rot away.

    • Like Like x 26
    • HawkRod

      HawkRod Formerly hsorman FBBO Gold Member

      Messages:
      4,931
      Likes Received:
      7252
      Joined:
      Aug 8, 2011
      Location:
      Lansdale, PA
      Local Time:
      1:34 PM
      Car Plans
      So this car has obviously changed a lot since it was new. Now that the original engine is shot, I found a date code correct 340 block to replace it. The original block was cast 2/9/73 and the replacement block I found was cast 2/7/73 - only two days different! Not bad!

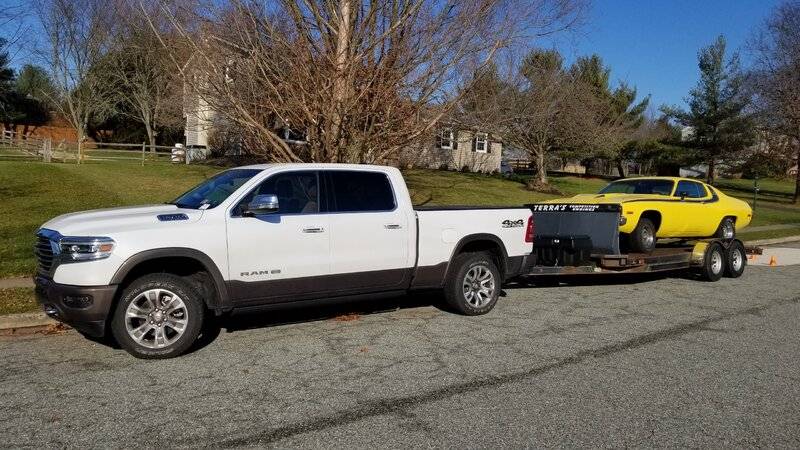

      I brought the car up to my father-in-laws place and will slowly build a new engine for the car.

      I do not currently have the time or budget to do a full restoration on the car. So It will get a new engine and some light cleanup of rust and any needed repairs. Then it will hit the roads again as a ratty old muscle car. Later my buddy and I may very well drive this car across the country "Roadkill" style!

      Engine Plans
      Since I needed a new crank, rods a pistons, why not get stroker parts?!? :D So it will displace 416 cubic inches once it is done. The engine rebuild will still be a budget build, and may take some time.

      I will do all machine and engine work on this. I am a bit of an apprentice at my father-in-law's place. He has built race engines since 1968, and has built many record holding cars back in the day: Project Six-Pack and Ken Montgomery's Triple Nickle cars are two examples. I am slowly learning engine building from him so the next set of posts will cover engine build details for the build.

      Hawk

      • Like Like x 14
      • Thanks! Thanks! x 1
      • tallhair

        tallhair Rufus "Mod-hair" Firefly Staff Member

        Messages:
        8,142
        Likes Received:
        3518
        Joined:
        Jan 1, 2013
        Location:
        Mascoutah, Illinois
        Local Time:
        12:34 PM
        A new Hawk build thread yeah !!!

        • Agree Agree x 6
        • Like Like x 2
        • Thanks! Thanks! x 1
        • 747mopar

          747mopar FBBO Gold Member FBBO Gold Member

          Messages:
          13,454
          Likes Received:
          18226
          Joined:
          Oct 30, 2012
          Location:
          ohio
          Local Time:
          12:34 PM
          Great story, sounds like the memories will continue:thumbsup:. It still appears to be in good shape from what I can tell, sharp car!

          • Agree Agree x 4
          • Thanks! Thanks! x 1
          • HawkRod

            HawkRod Formerly hsorman FBBO Gold Member

            Messages:
            4,931
            Likes Received:
            7252
            Joined:
            Aug 8, 2011
            Location:
            Lansdale, PA
            Local Time:
            1:34 PM
            First order of business was to start working on the block. My main bearing bores were a little on the large side: A couple were .0008" over (with an allowance of .0005")

            So I cut my main caps about .0015 in preparation for align boring. Main caps thickness is not standard, so both sides need to be measured.

            Since caps are not machined to be perfectly square either, cutting them can be a pain in the arse. I started cutting them on a standard cap cutting machine, but then went to the Bridgeport so I could cut them more precisely.

            After cutting the caps, I finally was able to align hone them to get them to the proper size. The spec for a 340 main journal is 2.6925" to 2.6930". In other words, only 5 ten thousands of an inch!

            I cut the caps until they were about .001" under the minimum spec. I screwed one up and it was under by almost .002". When we align honed them, we kept checking each cap. When any cap reached .0003" under minimum, we loosened the cap so it would not get honed any more. My screwed up cap was the last one to get honed down to about 0.0003". Then they were all about the same and the final honing was completed to get them in spec.

            Let me tell you - this is a LOT of work, and I have newfound respect for machine shops that get these things spot on to where they are supposed to be. It is time consuming and very detailed work to get everything perfect!

            But now the mains were spot on where they should be. Right size (about .0002" into spec) with no taper.

            First step done!

            • Like Like x 14
            • Thanks! Thanks! x 2
            • 747mopar

              747mopar FBBO Gold Member FBBO Gold Member

              Messages:
              13,454
              Likes Received:
              18226
              Joined:
              Oct 30, 2012
              Location:
              ohio
              Local Time:
              12:34 PM
              I couldn't agree more, every time I'm in the shop I use I tend to wonder around and watch the various steps in a build, there's a lot going on! On assembly I double check everything and have yet to find a mistake. There's definitely a reason it's not cheap.

              Very cool that you have the opportunity to experience this, I'm sure it will benefit you in other aspects as well.

              • Like Like x 3
              • Agree Agree x 2
              • Thanks! Thanks! x 1
              • Ghostrider 67

                Ghostrider 67 Power corrupts.....lol..... FBBO Gold Member

                Messages:
                25,740
                Likes Received:
                52289
                Joined:
                Oct 16, 2014
                Location:
                Salisbury, Vermont
                Local Time:
                1:34 PM
                I have been soaking up the 440 engine build videos of Pete's Garage on You Tube. Surprisingly he has it going on and I actually learned a few things. One thing was that even a new oil pump right out of the box is very dirty. Everything new is dirty, couldn't believe the crap he got out of everything, including the check valve. Lots of timely tips about assembly and what the machine shop does and all. Very worthwhile watching. He's a cleanliness nut. I mean OCD about it. but that's a good thing when assembling engines.

                • Agree Agree x 4
                • Like Like x 1
                • Thanks! Thanks! x 1
                • HawkRod

                  HawkRod Formerly hsorman FBBO Gold Member

                  Messages:
                  4,931
                  Likes Received:
                  7252
                  Joined:
                  Aug 8, 2011
                  Location:
                  Lansdale, PA
                  Local Time:
                  1:34 PM
                  Unfortunately, the tin worm is starting around the rear wheels. There is also some rust in the trunk rain.
                  So it is far from being a show car, but also not a total rust bucket either!

                  Yes, I am really enjoying learning the machine work, and I will take you all on my journey of learning the details of engine machine shop work. It is detailed and time consuming work to get it right. While the cuts take mostly only seconds to make, the setup to make sure they are EXACTLY right takes time!

                  • Agree Agree x 3
                  • Like Like x 2
                  • Ghostrider 67

                    Ghostrider 67 Power corrupts.....lol..... FBBO Gold Member

                    Messages:
                    25,740
                    Likes Received:
                    52289
                    Joined:
                    Oct 16, 2014
                    Location:
                    Salisbury, Vermont
                    Local Time:
                    1:34 PM
                    Since even a minor mistake can trash a block or head...

                    • Like Like x 1
                    • Agree Agree x 1
                    • HawkRod

                      HawkRod Formerly hsorman FBBO Gold Member

                      Messages:
                      4,931
                      Likes Received:
                      7252
                      Joined:
                      Aug 8, 2011
                      Location:
                      Lansdale, PA
                      Local Time:
                      1:34 PM
                      I couldn't agree more. So to checking parts: My new Scat rods were over spec (very slightly, but still over spec) right out of the box! I'll post about those parts shortly as I catch this thread up to current day.
                      Regarding cleanliness: My father-in-law is nuts about this too, and it makes sense. You can't have this crud floating around your engine - small stuff destroys bearings and such! He wants machined surfaces to be wiped with 2+2 and have the rag come out 100% clean. Only then is it clean enough to assemble!

                      • Agree Agree x 3
                      • Like Like x 1
                      • Ghostrider 67

                        Ghostrider 67 Power corrupts.....lol..... FBBO Gold Member

                        Messages:
                        25,740
                        Likes Received:
                        52289
                        Joined:
                        Oct 16, 2014
                        Location:
                        Salisbury, Vermont
                        Local Time:
                        1:34 PM
                        It's the same way with choppers. Don't want to be falling out of the sky over a small bit FOD in an engine...it's a religion there...

                        • Like Like x 2
                        • Agree Agree x 1
                        • Ghostrider 67

                          Ghostrider 67 Power corrupts.....lol..... FBBO Gold Member

                          Messages:
                          25,740
                          Likes Received:
                          52289
                          Joined:
                          Oct 16, 2014
                          Location:
                          Salisbury, Vermont
                          Local Time:
                          1:34 PM
                          Pete was even telling how your fingers have oil that's acidic and will create rust...like on bearing surfaces...

                          • Agree Agree x 3
                          • Thanks! Thanks! x 1
                          • Cranky

                            Cranky Henchman #1 Staff Member FBBO Gold Member

                            Messages:
                            25,277
                            Likes Received:
                            24772
                            Joined:
                            Dec 4, 2009
                            Location:
                            Down southeast Taxas
                            Local Time:
                            12:34 PM
                            Can't remember now where I read it that an oil pump needs to be opened up to be cleaned but to also check the rotor face clearance. Lots of years ago I got a 340 in that was new but had no oil pressure. Turns out the pump only had .001" clearance and a tiny piece of casting flash (looked like) got in and locked up the pump.

                            Nothing like working for hours on a huge horizontal boring mill to do a 15 minute machining operation lol. If you know what a channel head for a heat exchanger is (big ones like in a refinery), those things were usually easy to set up and took at least 45 minutes to make a cut across the faces...but were noisy because of the interrupted cuts from the channel partitions and were done on a 54" Bullard or 100" King VTL.

                            • Like Like x 3
                            • Thanks! Thanks! x 1
                            • qkcuda

                              qkcuda Well-Known Member

                              Messages:
                              701
                              Likes Received:
                              902
                              Joined:
                              Aug 29, 2019
                              Location:
                              Jarvis, Ontario
                              Local Time:
                              1:34 PM
                              Geez Hawk, that sounds familiar. That's how the 500 was born.

                              • Like Like x 1
                              • zyzzyx

                                zyzzyx FBBO Gold Member FBBO Gold Member

                                Messages:
                                2,522
                                Likes Received:
                                3064
                                Joined:
                                Aug 5, 2011
                                Location:
                                Lisle, Illinois
                                Local Time:
                                12:34 PM
                                Car looks great for it's age Hawk! You did a nice job on the paint. You're treating her right!

                                • Thanks! Thanks! x 1
                                • HawkRod

                                  HawkRod Formerly hsorman FBBO Gold Member

                                  Messages:
                                  4,931
                                  Likes Received:
                                  7252
                                  Joined:
                                  Aug 8, 2011
                                  Location:
                                  Lansdale, PA
                                  Local Time:
                                  1:34 PM
                                  So onward with engine block work:

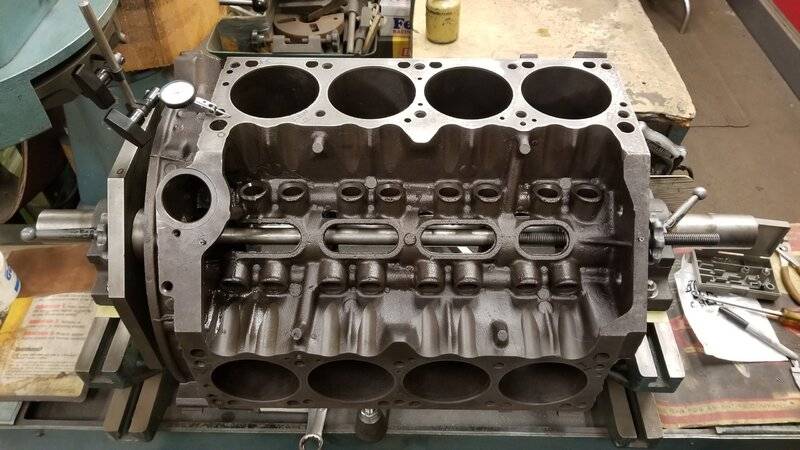

                                  The foundation of a block are the mains. They must be absolutely in spec, no taper and perfectly in line. Getting this done was covered in post #5 above. From there, you want the deck surface to be perfectly plane (flat), 90* to one another, and in a perfect line with the crank. This means the deck height must be the same for every cylinder. This is often known as squaring up a block.
