Thumbwheel AM radio wiring Q

[Grabbergreendream]

I finally pulled out a few things to sell so I can buy a few things I need & free up some needed space. One item I have is a very nice thumbwheel AM radio out of a 69 Dart, I believe. I'd like to test it to verify it works. I can do it on a bench that I test CB's on & have an antenna & a speaker, but I need to know which wires go to what. I assume red power, orange illumination, green speaker+, black speaker-, & ground radio body... Is that correct?
Thanks in advance.



[oldbee]

Sounds right to me.



[JimCoronette]

I finally pulled out a few things to sell so I can buy a few things I need & free up some needed space. One item I have is a very nice thumbwheel AM radio out of a 69 Dart, I believe. I'd like to test it to verify it works. I can do it on a bench that I test CB's on & have an antenna & a speaker, but I need to know which wires go to what. I assume red power, orange illumination, green speaker+, black speaker-, & ground radio body... Is that correct?
Thanks in advance.

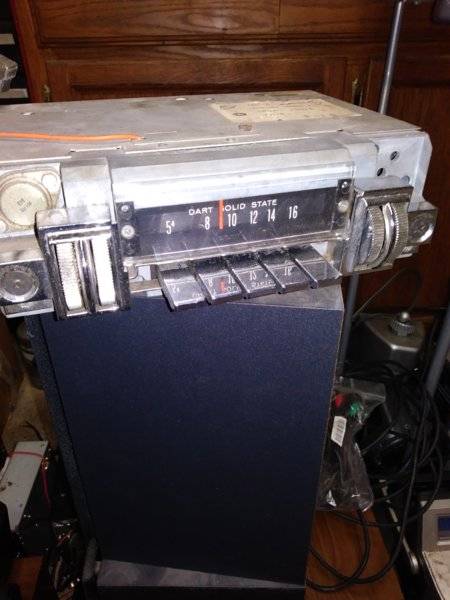

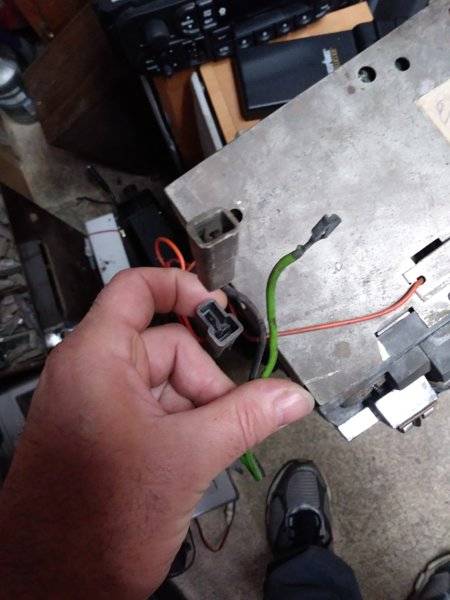

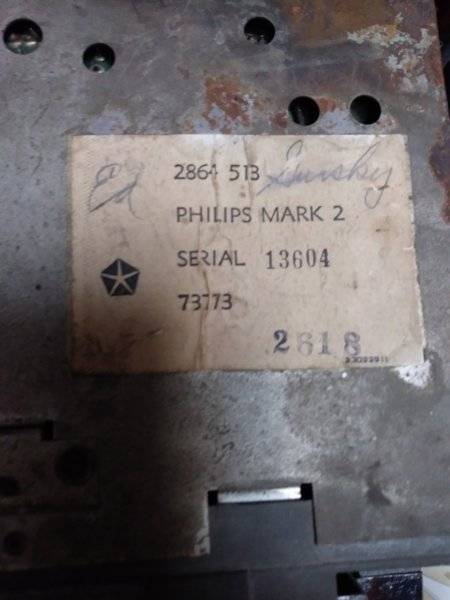

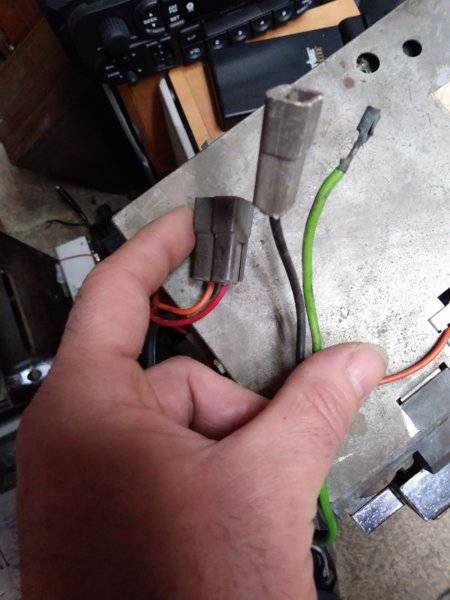

View attachment 724982 View attachment 724983 View attachment 724984 View attachment 724985

Correct



[Grabbergreendream]

Great! Thanks guys!



[Mike Szadaj]

Does the dial indicator move with the thumbwheel or just with the buttons?



[JimCoronette]

Does the dial indicator move with the thumbwheel or just with the buttons?

both



[Grabbergreendream]

Yes, both. Its not in front of me but I always thaught the older radios with the buttons were saved stations so you could find a local station, and save it by pulling out on the button(to reset it) and then push it in to save it. I know thats how my folks GM cars were when I was a kid... I'll have to check & see if this one works the same, but would assume so.



[Mike Szadaj]

I was asking because it is a very common failure on the thumbwheel radios that the thumbwheel tuning knob won't move the indicator. I have repaired a few with that problem. There is a beveled plastic gear that cracks, but it can be glued back together. That is exactly how the push buttons are set.



[Grabbergreendream]

Ok, we're on the same page now, sorry. This radio should work without issue, but it has been in a cabinet in the garage since the early 70's. It was my father-in-laws & I got it about 10 yrs ago when he was cleaning out things. He told me the Dart was only a year old when his wife wrecked it... The thumbwheel does move the indicator like it should & I'm going to test it after work tonight.



[Mike Szadaj]

I should have indicated the reason for the question when I first asked it. Glad to hear it is in good mechanical shape. Those thumbwheel radios are a hot commodity. Be aware that depending on what type of power supply you use that it might cause a hum in the reception. Also, I don't know what your plans for it are, but these radios are usually not interchangeable between A, B, and C bodies because the chrome trim around the dial and buttons can be different.



[Grabbergreendream]

these radios are usually not interchangeable between A, B, and C bodies because the chrome trim around the dial and buttons can be different

Thanks you.
I knew there were differences but didn't know what they were.
