torsion bar relocate...

casey henson

Well-Known Member
Local time
10:36 AM
Joined
Jun 27, 2020
Messages
156
Reaction score
194
Location
TX
Does anyone know If there is such a thing or if anyone sells torsion bar sockets. The part that is build into the frame and welded in that the torsion bar goes in. I have a 77 with isolated mounts and am thinking about relocating the mounts to the place where they would normally be if it didn't have the separate crossmember. Like the older cars have just forward of my current mount. If I could make it work I think you would be able to used standard length B body torsion bars.

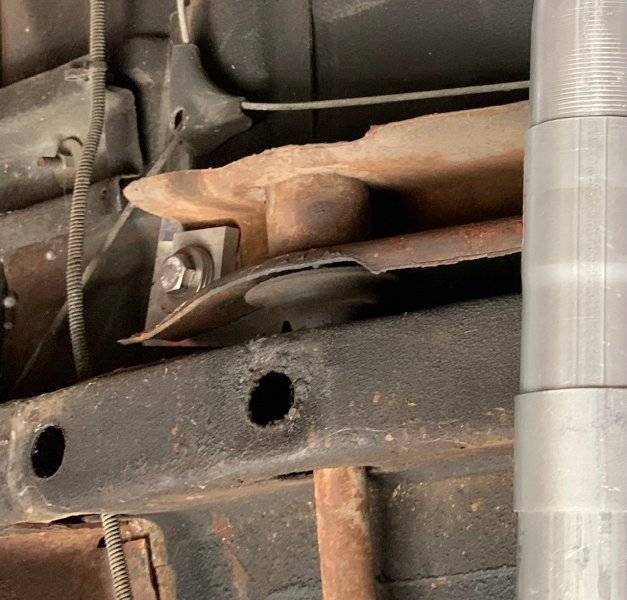

torsion bar mount.jpg

Last edited:

RemCharger

Well-Known Member
Local time
10:36 AM
Joined
Apr 5, 2014
Messages
3,052
Reaction score
2,665
Location
Sask
Yes it's a normal upgrade.
Why could you not use the current sockets you have?


casey henson

Well-Known Member
Local time
10:36 AM
Joined
Jun 27, 2020
Messages
156
Reaction score
194
Location
TX
Yes it's a normal upgrade.
Why could you not use the current sockets you have?
I could, just didn't want to destroy my existing crossmember until I was sure it would work.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
8:36 AM
Joined
Apr 13, 2012
Messages
27,081
Reaction score
81,445
Location
Granite Bay CA
I haven't seen anyone that did this but it does seem like a feasible change. You'd just need a 1962-72 torsion bar crossmember cut out from a wreck....use the hex sockets and weld them into the forward crossmember at the 62-72 position. 41 inches is the torsion bar length, with a tape measure and some planning, this can work.


casey henson

Well-Known Member
Local time
10:36 AM
Joined
Jun 27, 2020
Messages
156
Reaction score
194
Location
TX
I haven't seen anyone that did this but it does seem like a feasible change. You'd just need a 1962-72 torsion bar crossmember cut out from a wreck....use the hex sockets and weld them into the forward crossmember at the 62-72 position. 41 inches is the torsion bar length, with a tape measure and some planning, this can work.
I feel pretty sure the other cross member you see that the bar is going through now is in the correct position. like you said just a matter of welding them in the perfect spot. I thought I might plate them on both sides also with some 3/16 plate.


casey henson

Well-Known Member
Local time
10:36 AM
Joined
Jun 27, 2020
Messages
156
Reaction score
194
Location
TX
would love it someone sold just the socket. I see you can get new cross members pretty easy.

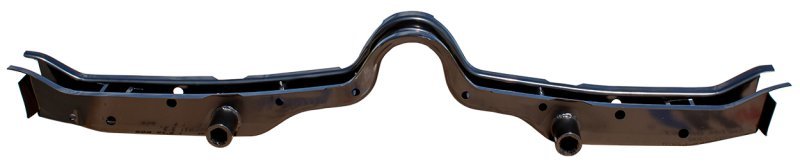

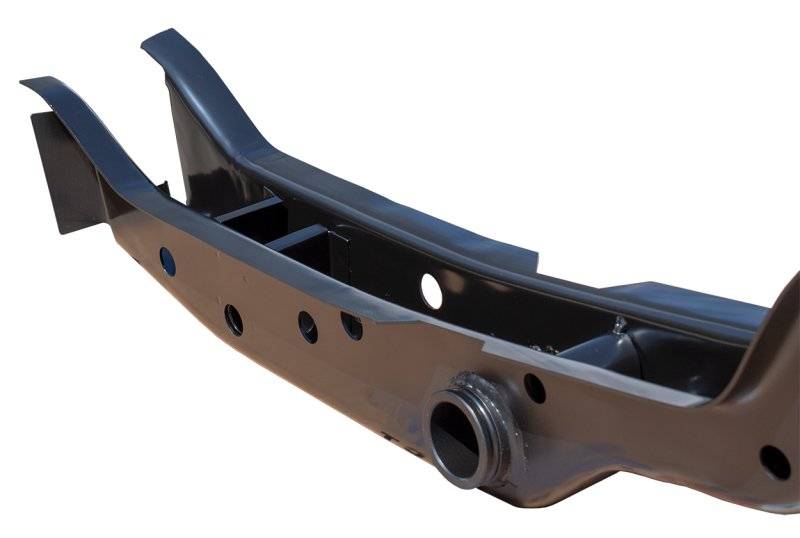

395-1466-side.jpg 395-1466_800.jpg


Tony Tee

Well-Known Member
Local time
11:36 AM
Joined
Jun 4, 2018
Messages
849
Reaction score
1,068
Location
ocala florida
Are you wanting to move the crossmember so you will have room for a 4-speed conversion? Just curious? Because I was able to do so on my 78 Magnum without moving it.


casey henson

Well-Known Member
Local time
10:36 AM
Joined
Jun 27, 2020
Messages
156
Reaction score
194
Location
TX
Are you wanting to move the crossmember so you will have room for a 4-speed conversion? Just curious? Because I was able to do so on my 78 Magnum without moving it.
no, just removing the isolated cross member in favor of the old style that is part of the unibody floor structure. This would enable the use of standard length torsion bars.


Cranky

Henchman #27
Staff member
FBBO Gold Member
Local time
10:36 AM
Joined
Dec 4, 2009
Messages
27,640
Reaction score
28,126
Location
Down southeast Taxas
Might contact the suppliers/manufacturers that make the replacement cross members and see if you can get them to help you get the parts....


eldubb440

more miracles than Jesus
FBBO Gold Member
Local time
11:36 AM
Joined
Jul 17, 2008
Messages
12,332
Reaction score
30,173
Location
South Jersey USA
Might contact the suppliers/manufacturers that make the replacement cross members and see if you can get them to help you get the parts....

I bet someone would be willing to rough cut a couple off a rusty crossmember for a small fee


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
8:36 AM
Joined
Apr 13, 2012
Messages
27,081
Reaction score
81,445
Location
Granite Bay CA
OP should send me a PM. I do have a few bits and pieces out back.....
