    Just received my SD Concepts serpentine kit today, been busting butt on the A/C install along with dual fans and all the wiring that comes with it while waiting on the kit so now it's time to finish it off. I couldn't help but head straight to the garage for a quick test fit to prepare myselffor the agony of trying to make anything fit in front of a BB in a 69 Charger (tight is an understatement).

    The pro's

    True single belt design with a tensioner.

    Side mounted A/C cleaning things up by keeping the plumbing on the correct side of the motor.

    Smaller alt also cleaning up more space.

    Cons

    No pulleys, you can buy the crank and water pump pulley or source them from the salvage yard.

    No tensioner but is readily available at most auto parts store.

    Reverse rotation water pump means you'll need to get the proper water pump and either get a reverse rotation fan or go electric.

    Power steering pump also needs to be swapped but for a smaller unit also easily available.

    For me the fitment and design is worth the effort.

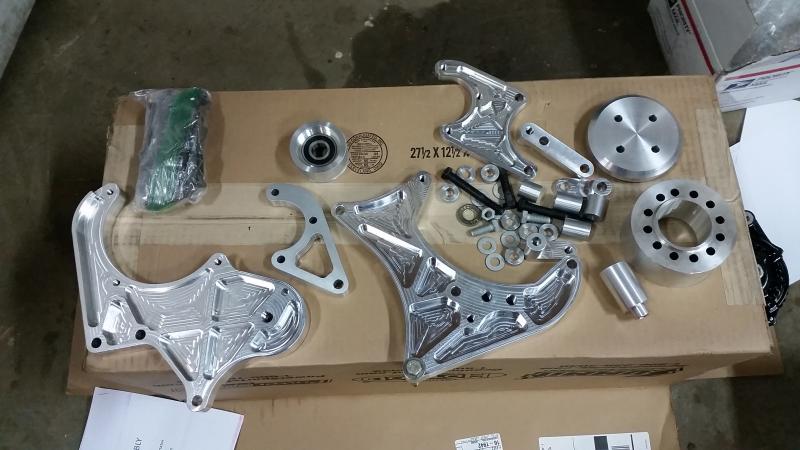

    Here's what you get with the kit, my kit has a few extra brackets to compensate for the low deck A/C mount and for the 1 wire alt. Very nicely made and comes with all the correct fasteners.

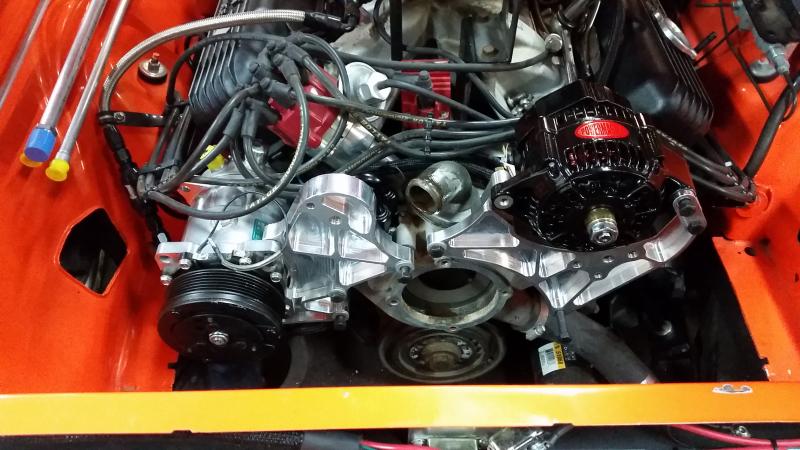

    A quick peak at the main brackets loosely bolted on.

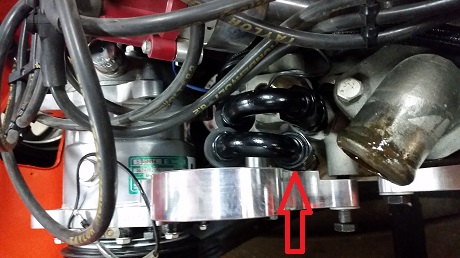

    1 minor fitment issue that's caused by me running AN fittings for the heater plumbing (a standard nipple would clear) but I'll mill this enough to clear the nut.

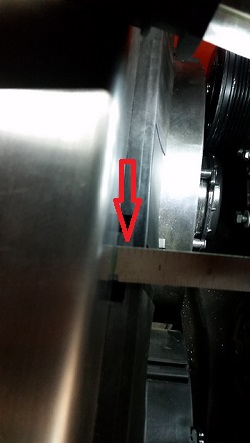

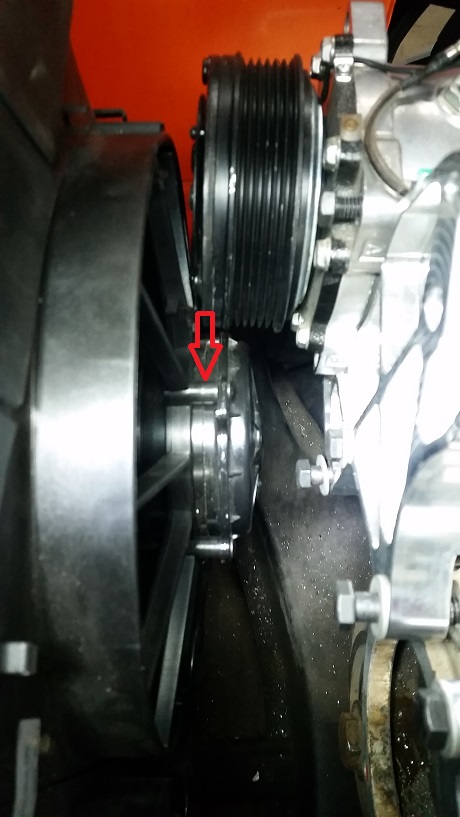

    Here was my big concern, anybody who's ever worked on a 2nd Gen Charger knows your very limited on space. The arrow points to 1 of my 2 plans on making up the 3/4" of space I need to create, looks like trimming the fan bosses back 1/2" will push the motors in gaining 1/2".


    2nd plan is to take a router to the mounting surface of the fans and gain another 1/4"-1/2"?


    This weekend I'll tackle the install but for now I need to track down a few more parts.

    - - - Updated - - -

    For those who haven't seen this kit yet.


    20160328_214221.jpg 20160328_214228[1].jpg 20160328_215612[1].jpg 20160328_215733[1].jpg 20160328_211608.jpg Screenshot_2016-02-22-11-08-56.jpg

    • Like Like x 5
    • furryfrog

      furryfrog Well-Known Member

      Messages:
      225
      Likes Received:
      104
      Joined:
      May 7, 2015
      Location:
      Vancouver Canada
      Local Time:
      7:31 PM
      Nice, I am sure you will sort it out, will look good when you do, always something that comes up when changes are made. I like the black alternator on the shiny bracket look. The 180'ish AN fittings off your water pump housing for your heater hoses, Do they end up getting hooked to the hard plumbing I see on the side of your engine bay? I intend to hard plumb a bunch of items, one of them being my heater hoses as well, right now they are over top my engine and kinda in the way.

      • Like Like x 1
      • 747mopar

        747mopar FBBO Gold Member FBBO Gold Member

        Messages:
        11,257
        Likes Received:
        12571
        Joined:
        Oct 30, 2012
        Location:
        ohio
        Local Time:
        9:31 PM
        The hard lines will get turned down the inner fender shooting the heater hoses under the A/C to keep it as clean as possible. I'll post plenty pics once I get into it.

        • Like Like x 1
        • HYRDGOON

          HYRDGOON Well-Known Member

          Messages:
          3,348
          Likes Received:
          2600
          Joined:
          Apr 20, 2013
          Location:
          Breslau, Ontario, Canada
          Local Time:
          10:31 PM
          That looks sexy in there! The modifications you're making to the fan shroud are pretty much exactly what we're doing in mine for the blower/crank pulley

          • Like Like x 1
          • 747mopar

            747mopar FBBO Gold Member FBBO Gold Member

            Messages:
            11,257
            Likes Received:
            12571
            Joined:
            Oct 30, 2012
            Location:
            ohio
            Local Time:
            9:31 PM
            This weekend I'm putting it on stands so I can look into the possibility of sliding the whole motor and tranny back a 1/2"? I'm really tired of the lack of space and would really like to free up as much as possible but can't remember how much wiggle room I have with the T56? Just an idea but altering the motor mount and slotting the transmission crossmember are easily done so we'll see. The big problem I've ran into everytime I looked into electric fans is in order to get the cfm's you need space, these fans put out 2,700 cfm so I chose to get the right fan and make it work one way or the other.

            • Like Like x 1
            • HYRDGOON

              HYRDGOON Well-Known Member

              Messages:
              3,348
              Likes Received:
              2600
              Joined:
              Apr 20, 2013
              Location:
              Breslau, Ontario, Canada
              Local Time:
              10:31 PM
              That was the biggest reason we haven't committed to any spacing until we could trial fit the MF front end. Now we know where everything has to go and how much room we had to play with backwards. The Charger's are worse than the RR for space up there though!

              • Like Like x 2
              • Derwud

                Derwud Well-Known Member

                Messages:
                1,031
                Likes Received:
                821
                Joined:
                Aug 18, 2014
                Location:
                Pasadena, CA
                Local Time:
                7:31 PM
                • Like Like x 4
                • HYRDGOON

                  HYRDGOON Well-Known Member

                  Messages:
                  3,348
                  Likes Received:
                  2600
                  Joined:
                  Apr 20, 2013
                  Location:
                  Breslau, Ontario, Canada
                  Local Time:
                  10:31 PM
                  • Like Like x 1
                  • 747mopar

                    747mopar FBBO Gold Member FBBO Gold Member

                    Messages:
                    11,257
                    Likes Received:
                    12571
                    Joined:
                    Oct 30, 2012
                    Location:
                    ohio
                    Local Time:
                    9:31 PM

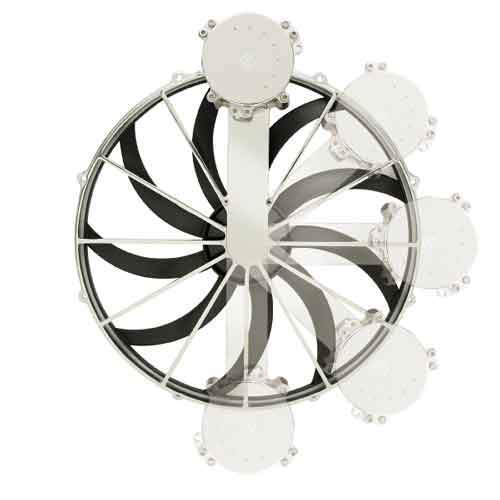

                    Hmmm, that's a cool idea. Would rather a direct drive but that's an option.

                    - - - Updated - - -

                    Yeap that pic pretty well sums up why I'm considering the motor shift, ridiculous how little room there is.

                    • Like Like x 1
                    • ckessel

                      ckessel Well-Known Member

                      Messages:
                      802
                      Likes Received:
                      671
                      Joined:
                      Apr 23, 2015
                      Location:
                      Los Osos Ca.
                      Local Time:
                      7:31 PM
                      Does any of the brackets, hardware etc mount to the heads?

                      • Like Like x 1
                      • 747mopar

                        747mopar FBBO Gold Member FBBO Gold Member

                        Messages:
                        11,257
                        Likes Received:
                        12571
                        Joined:
                        Oct 30, 2012
                        Location:
                        ohio
                        Local Time:
                        9:31 PM
                        I haven't installed it all yet but I know there's an A/C rear support bracket that bolts to the head.

                      • ckessel

                        ckessel Well-Known Member

                        Messages:
                        802
                        Likes Received:
                        671
                        Joined:
                        Apr 23, 2015
                        Location:
                        Los Osos Ca.
                        Local Time:
                        7:31 PM
                        When you get it on there, can I score a picture of its mounting in the head area? I have EZ heads on the new engine and would like to compare head mount holes and see if its feasible. I have seen a company thats similar to Eddie Motorsports that does not mount to the head, only on the water pump housing. Like that one too as its nice and clean unlike the Transformers look from March. I like having readily available replacement components which the SDC is the king hands down. The others would be a little tougher but not bad.

                        • Like Like x 1
                        • 747mopar

                          747mopar FBBO Gold Member FBBO Gold Member

                          Messages:
                          11,257
                          Likes Received:
                          12571
                          Joined:
                          Oct 30, 2012
                          Location:
                          ohio
                          Local Time:
                          9:31 PM
                          Will do.

                        • sdconcepts

                          sdconcepts FBBO Gold Member FBBO Gold Member

                          Messages:
                          45
                          Likes Received:
                          66
                          Joined:
                          Feb 22, 2016
                          Location:
                          troy
                          Local Time:
                          10:31 PM
                          we can custom mod any of the parts in our kit to help them fit your engine. I wouldn't trust cantilevering the ac compressors just on the front bracket alone. its to massive and could cause a problem. we toyed with the idea of a bottom mount for the ac compressor but then you'd lose the mechanical fuel pump.

                          • Like Like x 2
                          • 747mopar

                            747mopar FBBO Gold Member FBBO Gold Member

                            Messages:
                            11,257
                            Likes Received:
                            12571
                            Joined:
                            Oct 30, 2012
                            Location:
                            ohio
                            Local Time:
                            9:31 PM
                            Glad to see your chiming in, customer support earns business in my book. You may be misunderstanding what I'm referring to with the milling I'm talking about because none of your mounting will be altered just a minor amount of clearance will be made for a fitting. I just hate hose clamps and nipples so I'm using AN fittings. I'll post it so you can see.

                            Thanks again for what in my opinion is the cleanest looking kit out there and at a fraction of the cost of the other single belt setups. Love it.

                          • sdconcepts

                            sdconcepts FBBO Gold Member FBBO Gold Member

                            Messages:
                            45
                            Likes Received:
                            66
                            Joined:
                            Feb 22, 2016
                            Location:
                            troy
                            Local Time:
                            10:31 PM
                            actually I was commenting on the other post about the indy EZ heads. we can make the custom brackets to fit our kit to other heads if need be. also if needed I can mod your bracket to clear the AN fitting so it doesn't looked hacked on. let me know.

                            • Like Like x 1
                            • 747mopar

                              747mopar FBBO Gold Member FBBO Gold Member

                              Messages:
                              11,257
                              Likes Received:
                              12571
                              Joined:
                              Oct 30, 2012
                              Location:
                              ohio
                              Local Time:
                              9:31 PM
                              Gotcha, good to have you answering questions. Since your new to the sight I'll help you on this so there's no misunderstandings. When replying to a particular post click on REPLY WITH A QUOTE in the bottom right corner of the one your wanting to address and it will display his question and your answer together like I did in this reply. Should help eliminate misunderstandings.

                              I can appreciate you not wanting your bracket butchered up and I wouldn't either but rest assured I have a full machine shop so when I say milled it will be milled not hacked up. Thanks

                              • Like Like x 1
                              • ckessel

                                ckessel Well-Known Member

                                Messages:
                                802
                                Likes Received:
                                671
                                Joined:
                                Apr 23, 2015
                                Location:
                                Los Osos Ca.
                                Local Time:
                                7:31 PM
                                Cool. No need for photos then. Thank you SDC!

                                • Like Like x 1
                                • SAC

                                  SAC Member

                                  Messages:
                                  15
                                  Likes Received:
                                  7
                                  Joined:
                                  Feb 8, 2014
                                  Location:
                                  Texas
                                  Local Time:
                                  9:31 PM
                                  Great thread! This is one of my next modifications, thanks 747 for posting your experiences! Big advantage is the easily-sourced replacement parts and the fact that it's a TRUE serpentine setup with automatic tensioner. I have always felt that the A/C compressor detracts from the beauty of a classic engine compartment so I like the way the compressor is mounted off to the side with this setup. The alternator is also well-positioned to shorten the charging wire path.

                                  I will be interested to hear about P/S pump, seems like that will be the next hurdle, perhaps needing to have adapter fittings and such, also interested in difference in feel/effort versus the Saginaw-style pump.

                                  I agree with ckessel, never was a fan of the March setup, looks too billet-y, like for the street rod set. "Transformers look" summed it up pretty well, also no automatic tensioner.

                                  • Like Like x 1
                                  • sdconcepts

                                    sdconcepts FBBO Gold Member FBBO Gold Member

                                    Messages:
                                    45
                                    Likes Received:
                                    66
                                    Joined:
                                    Feb 22, 2016
                                    Location:
                                    troy
                                    Local Time:
                                    10:31 PM

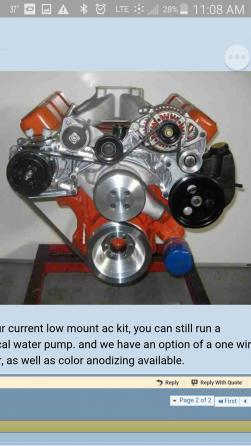

                                    These kits look really slick black anodized. we've had people question whether its a factory option that was little known about.

                                    • Like Like x 3
