Trying to piece together some rear drum brakes from a pile of parts!

Brakes, Steering & Suspension

  1. Kern Dog

    Kern Dog FBBO Gold Member FBBO Gold Member

    Messages:
    15,856
    Likes Received:
    35399
    Joined:
    Apr 13, 2012
    Location:
    Granite Bay CA
    Local Time:
    1:46 PM
    With the chance of the swap meets and car shows being cancelled, instead of waiting to scrounge for brake stuff, I'm looking to piece together some stuff together myself.
    I have 5 axles here that don't have brakes on them. I have been looking for 10 inch setups since they are light and work great for the A bodies and even the street driven B body stuff.

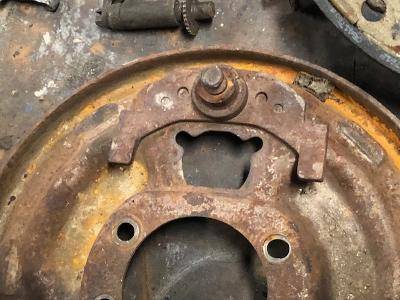

    I have 3 sets of backing plates, 2 sets look like this:
    Brake B.jpg
    They have that U shaped stiffener bracket visible above the wheel cylinder hole.
    I have a pair of these as well:
    Brake BB.jpg
    They look otherwise identical.

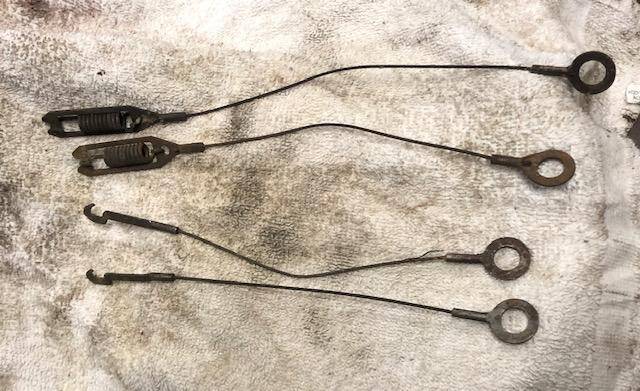

    I have a bunch of 2 1/2" shoes I can use, a bunch of springs and pins but I am missing the parking brake lever that hinges from the rear shoe and the horizontal flat bar that pushes against both shoes.

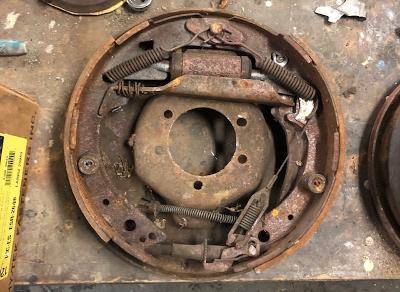

    This 11" setup is here to help me figure where everything goes:
    Brake AX.jpg

    I'm also tempted to pull the drums off of a car out back to see what it looks like inside. I have seen some slight differences in the hardware throughout the years. I've worked on Mopar stuff from the mid 1960s through the late 80s and seen differences like this:
    Brake BBB.jpg
    Does anyone have some pictures of their drum brake assemblies that I can use for reference?
    Since I have 5 axles and only three sets of backing plates with all sorts of parts missing, I would LOVE to hear from members willing to sell their take-off 10" assemblies. Short of that, I'd appreciate assembly advice or any suggestions on where to find the parts that are not being reproduced.
    Thanks!

  2. R413

    R413 Well-Known Member

    Messages:
    600
    Likes Received:
    1218
    Joined:
    Feb 4, 2019
    Location:
    NW USA
    Local Time:
    1:46 PM

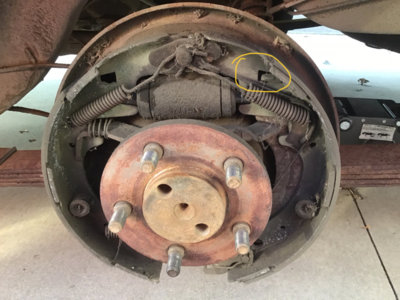

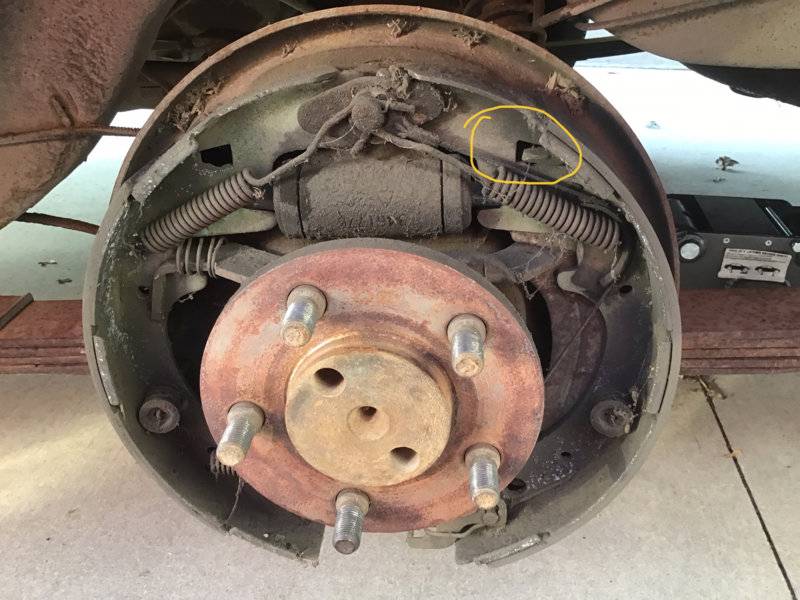

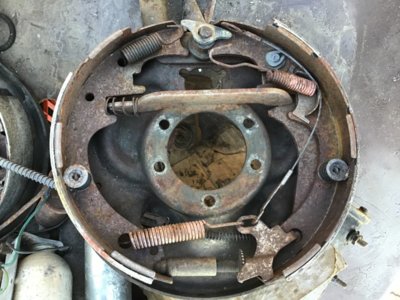

    The rusted one you have pictured is 1970 and newer hardware. Up to late 70 somewhere, unsure exactly.

    Top picture below is a 1967 10” with the wheel cylinder removed, everything else is in place.

    note the difference in the cable end and the lever for self adjusting. Here it has a tab that goes into a hole. On 70 and newer there is a pivot pin pounded in the shoe and the lever is flat.

    bottom picture is a 1978 Fury 11”.

    note how the park brake lever attaches to the shoe. 1967 has a pin through the shoe with a U shaped retainer clip with the tails bent to retain it in a groove. 1978 has a rectangular hole with a tab that goes through. Yellow circle.

    D32776EF-0D1C-4827-BBCF-E902F98C925A.jpegView attachment 923481 FC5CECD2-1F19-4CA0-B0C2-97E024C1EFB8.jpeg

    Last edited: Mar 16, 2020
    • Like Like x 2
    • Thanks! Thanks! x 2
    • Agree Agree x 1
    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      7,565
      Likes Received:
      7143
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      4:46 PM
      Have you put BP's shoe side and measured down through axle hole to make sure they're the same. Service manuals have pictures. Picture 11" brakes.


      Last edited: Mar 16, 2020
      • Thanks! Thanks! x 1
      • Kern Dog

        Kern Dog FBBO Gold Member FBBO Gold Member

        Messages:
        15,856
        Likes Received:
        35399
        Joined:
        Apr 13, 2012
        Location:
        Granite Bay CA
        Local Time:
        1:46 PM
        Service manuals have black and white pictures of mediocre clarity!

        • Agree Agree x 1
        • Fran Blacker

          Fran Blacker FBBO Gold Member FBBO Gold Member

          Messages:
          7,565
          Likes Received:
          7143
          Joined:
          Sep 23, 2016
          Location:
          Connecticut
          Local Time:
          4:46 PM
          Another pictures 11". rearb1.JPG Manual adjusters.

          • Like Like x 1
          • Thanks! Thanks! x 1
          • coronet68mx

            coronet68mx FBBO Gold Member FBBO Gold Member

            Messages:
            2,974
            Likes Received:
            5374
            Joined:
            Sep 18, 2014
            Location:
            Uruapan, Michoacán, México
            Local Time:
            3:46 PM
            Does the front drum brakes have the same arrangement?

          • Kern Dog

            Kern Dog FBBO Gold Member FBBO Gold Member

            Messages:
            15,856
            Likes Received:
            35399
            Joined:
            Apr 13, 2012
            Location:
            Granite Bay CA
            Local Time:
            1:46 PM
            They don't have a parking brake. Besides that, I'm not sure.

          • khryslerkid

            khryslerkid FBBO Gold Member FBBO Gold Member

            Messages:
            20,388
            Likes Received:
            29789
            Joined:
            Mar 10, 2010
            Location:
            Hanover, Pennslyvania
            Local Time:
            4:46 PM

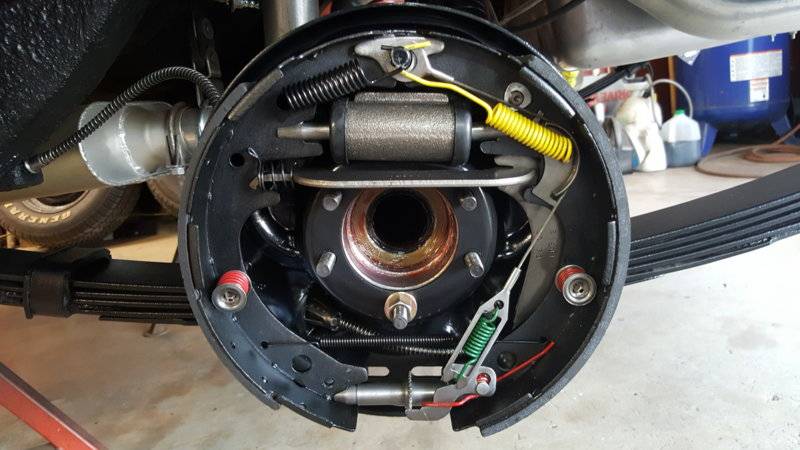

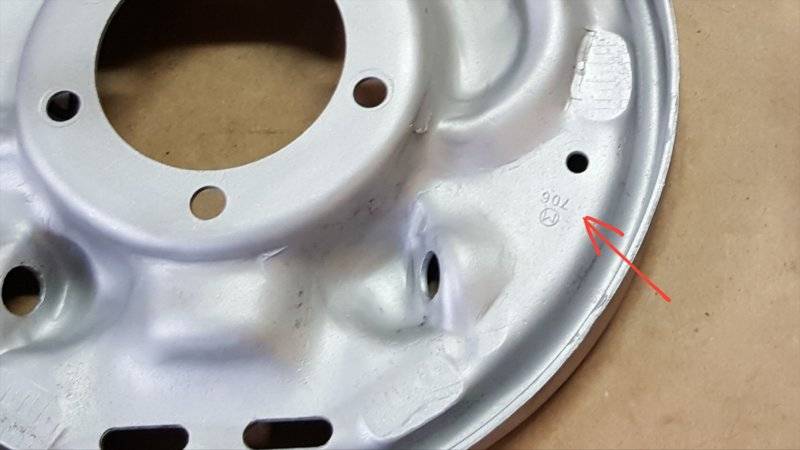

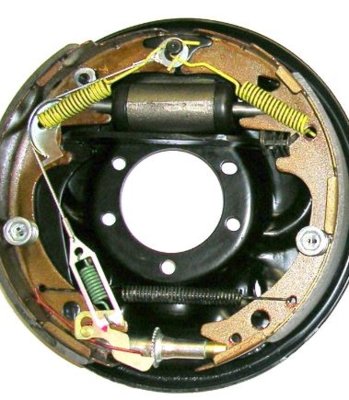

            These are the newer self adjuster setup. 10" x 2.5" backing plates. The only number I can see on the backing plate is a 706.
            20170809_095255.jpg Screenshot_20200316-225444.jpg 20200316_224820.jpg

            • Like Like x 2
            • Thanks! Thanks! x 1
            • Sahara

              Sahara FBBO Gold Member FBBO Gold Member

              Messages:
              1,004
              Likes Received:
              1597
              Joined:
              Jan 18, 2017
              Location:
              Way North Canada. Polar Bear shaped license plates
              Local Time:
              2:46 PM
              I was in the same boat; a box of parts from three different rear ends.
              Got rebuild parts from Dr. Diff which came with a page of instructions. That, coupled with a YouTube video made it a piece of cake to put my brakes back together.

              • Thanks! Thanks! x 1
              • Kern Dog

                Kern Dog FBBO Gold Member FBBO Gold Member

                Messages:
                15,856
                Likes Received:
                35399
                Joined:
                Apr 13, 2012
                Location:
                Granite Bay CA
                Local Time:
                1:46 PM
                KhryslerKid, those brakes look amazing!
                I first wonder what the reason is for the two designs that I posted. Is one early and the other late or are they from different vendors? Does that U bracket have a purpose? I've seen some that have a stiff spring below the self adjuster and others that have a longer thin spring above it like Khrysler Kid's brakes.

              • khryslerkid

                khryslerkid FBBO Gold Member FBBO Gold Member

                Messages:
                20,388
                Likes Received:
                29789
                Joined:
                Mar 10, 2010
                Location:
                Hanover, Pennslyvania
                Local Time:
                4:46 PM
                Your top picture is more than likely the newer style of the two. They started putting those tabs at each end of the wheel cylinder probably to keep the cups from blowing out. That's the only reason I could come up with when I used to service them.

                They were constantly changing the design of the hardware throughout the years mainly it had to do with the adjusters.

                Full manual adjuster...

                Back up and hit the brakes to adjust them...

                Then the adjustment made all the time going forward and reverse.

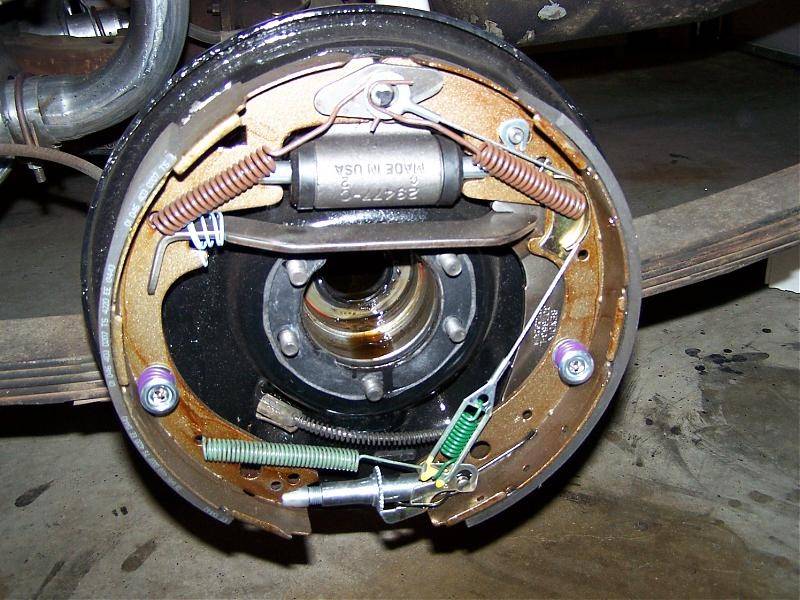

                11 Brakes.jpg
                Same thing, just a different spring across the bottom.

                • Thanks! Thanks! x 1
                • Cornpatch MO

                  Cornpatch MO Well-Known Member

                  Messages:
                  3,333
                  Likes Received:
                  2490
                  Joined:
                  Nov 28, 2011
                  Location:
                  Southwest Iowa
                  Local Time:
                  3:46 PM
                  The parking brake strut is confusing on the 10" drums. Some pics and aftermarket struts show they are flat. My factory service manual pictures the 10" as having a 90 degree bend along it's length , like the 11" strut. Is that for strength or for clearance? I used the flat one, and they seem to work OK , but the park brake does not work very well even with new shoes and the drums turned...................MO

                  I don't think the 10" strut shown in my SM is the correct picture. I think the one shown with the 90 degree bend , is an 11"

                  Last edited: Mar 17, 2020
                  • Thanks! Thanks! x 1
                  • Kern Dog

                    Kern Dog FBBO Gold Member FBBO Gold Member

                    Messages:
                    15,856
                    Likes Received:
                    35399
                    Joined:
                    Apr 13, 2012
                    Location:
                    Granite Bay CA
                    Local Time:
                    1:46 PM
                    I only have 3 of them and I need 10.

                  • hunt2elk

                    hunt2elk FBBO Gold Member FBBO Gold Member

                    Messages:
                    6,050
                    Likes Received:
                    4343
                    Joined:
                    Jul 15, 2009
                    Location:
                    WI
                    Local Time:
                    3:46 PM
                    The U shaped stiffener bracket you posted in your first pic is a piston stop. Supposedly to prevent the piston from coming out of the cylinder. It is not necessary and I don't believe they were even on the newer backing plates.

                    • Thanks! Thanks! x 1
                    • Cornpatch MO

                      Cornpatch MO Well-Known Member

                      Messages:
                      3,333
                      Likes Received:
                      2490
                      Joined:
                      Nov 28, 2011
                      Location:
                      Southwest Iowa
                      Local Time:
                      3:46 PM
                      I always thought that was to keep the rubber boot from coming off...??...............MO

                    • hunt2elk

                      hunt2elk FBBO Gold Member FBBO Gold Member

                      Messages:
                      6,050
                      Likes Received:
                      4343
                      Joined:
                      Jul 15, 2009
                      Location:
                      WI
                      Local Time:
                      3:46 PM

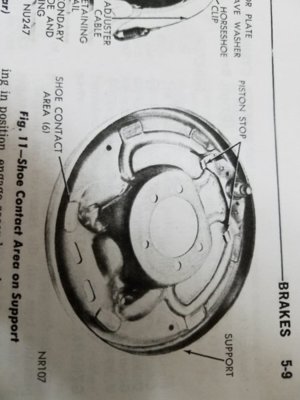

                      Now that I think about it, you are probably correct. Here is a pic from my 69 service manual showing them as piston stops. Regardless, they are not necessary.


                      • Like Like x 1
                      • Thanks! Thanks! x 1
                      • Kern Dog

                        Kern Dog FBBO Gold Member FBBO Gold Member

                        Messages:
                        15,856
                        Likes Received:
                        35399
                        Joined:
                        Apr 13, 2012
                        Location:
                        Granite Bay CA
                        Local Time:
                        1:46 PM
                        Uhhh...????
                        1968 Coronets had rear drum brakes but what does your post have to do with the topic here ?

                      • coronet68mx

                        coronet68mx FBBO Gold Member FBBO Gold Member

                        Messages:
                        2,974
                        Likes Received:
                        5374
                        Joined:
                        Sep 18, 2014
                        Location:
                        Uruapan, Michoacán, México
                        Local Time:
                        3:46 PM
                        Damm it was met to go to this crazy german tread trying to convet a coronet into a charger :lol::rofl::screwy:

                        • Like Like x 3
                        • coronet68mx

                          coronet68mx FBBO Gold Member FBBO Gold Member

                          Messages:
                          2,974
                          Likes Received:
                          5374
                          Joined:
                          Sep 18, 2014
                          Location:
                          Uruapan, Michoacán, México
                          Local Time:
                          3:46 PM
                          Deleted , sorry Greg.

                          • Like Like x 1
                          • khryslerkid

                            khryslerkid FBBO Gold Member FBBO Gold Member

                            Messages:
                            20,388
                            Likes Received:
                            29789
                            Joined:
                            Mar 10, 2010
                            Location:
                            Hanover, Pennslyvania
                            Local Time:
                            4:46 PM
                            mexican.gif mexican.gif mexican.gif mexican.gif
