TTI + Roadrace Pan + Exernal oiling = Problem

Engine, Trans & Driveline

  1. Sascha

    Sascha Well-Known Member

    Messages:
    60
    Likes Received:
    60
    Joined:
    Aug 17, 2018
    Location:
    Sprockhövel
    Local Time:
    2:17 PM
    Hello!

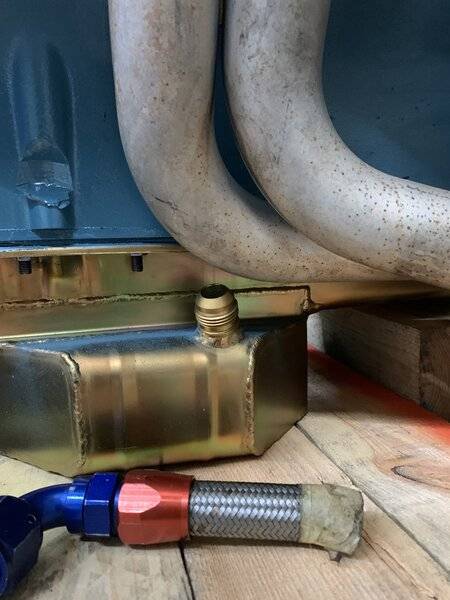

    Today we checked fitment of the Headers with the oilline from the pan.
    No chance with this.
    I do not want to ding this header as much as nescessary.
    I bought this 1 7/8 headers about 8 years ago new.
    What to do with ist?
    Rewelding the pipe?
    Thanks for help!

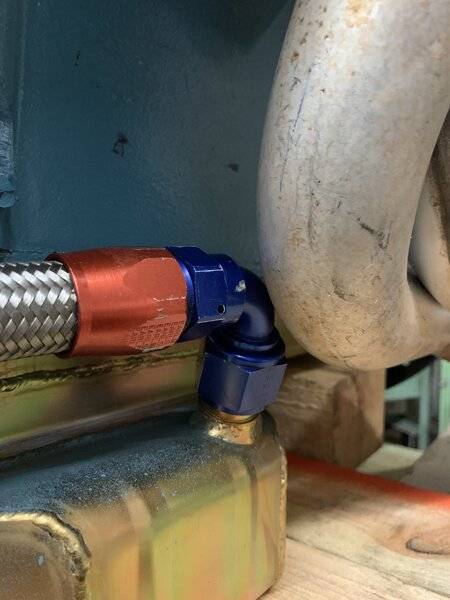

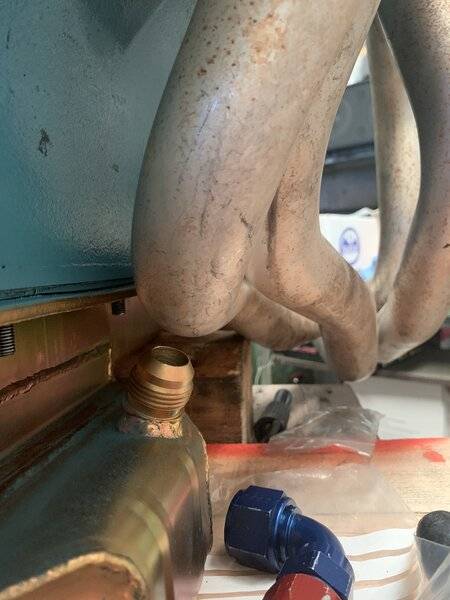

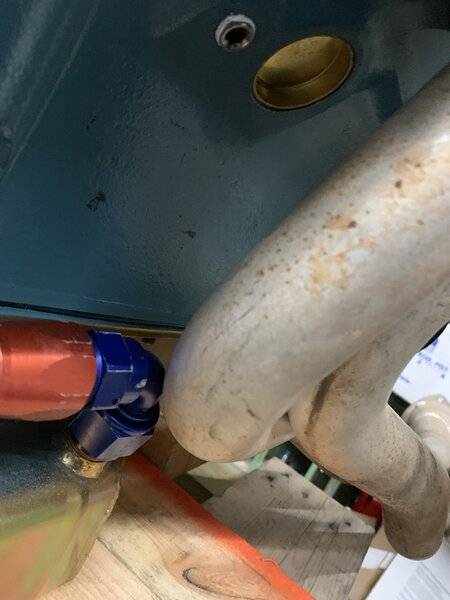

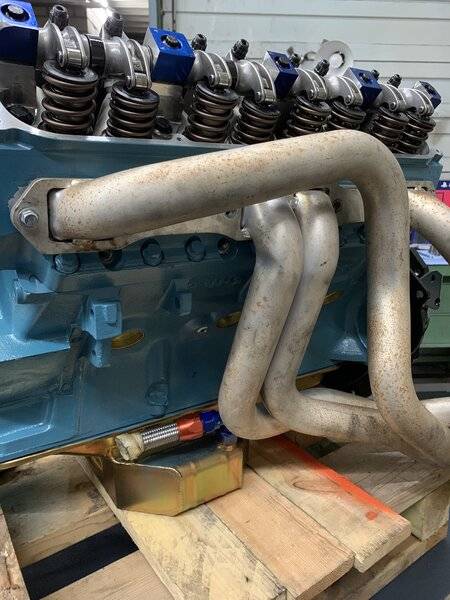

    3CCF8BCD-6B6D-4A76-80B6-FDAAC54FAEDC.jpeg 87D1F079-41FB-4020-B099-CFF42ABA3A80.jpeg 3C2B7FEF-99E7-4E74-987D-28D910E44CD2.jpeg 2EA45F4B-CB40-4B48-AF74-704238CD9C17.jpeg

  2. 70chall440

    70chall440 FBBO Gold Member FBBO Gold Member

    Messages:
    2,542
    Likes Received:
    3621
    Joined:
    Feb 11, 2018
    Location:
    Yelm, Washington
    Local Time:
    5:17 AM
    Yep, I would cut it off high and low and make a new pipe with a bend in it and weld it back in. If you cut it high enough you wont need a sharp bend. Before cutting I would go to an exhaust shop and ask to get a piece of 1 7/8" pipe bent or several with different degrees of bend, then take them home and see what you can make work.

    • Like Like x 1
    • ruffcut

      ruffcut FBBO Gold Member FBBO Gold Member

      Messages:
      423
      Likes Received:
      545
      Joined:
      Dec 26, 2016
      Location:
      northwestern pa
      Local Time:
      8:17 AM
      Might try a low profile fitting. fittings are expensive, I know , but easier than cutting up a header. Ruffcut

    • 66 Sat

      66 Sat Well-Known Member

      Messages:
      910
      Likes Received:
      1475
      Joined:
      Apr 26, 2015
      Location:
      Australia
      Local Time:
      7:17 AM
      Can't you alter the oil line instead?

    • #41

      #41 Well-Known Member

      Messages:
      372
      Likes Received:
      633
      Joined:
      Oct 18, 2012
      Location:
      Lewis County, WA
      Local Time:
      5:17 AM
      Cut off the oil bung and weld a 90' degree pipe and straight extension with and NTP end so that you can connect to to it with a straight fitting?

      • Like Like x 2
      • Agree Agree x 1
      • 5.7 hemi

        5.7 hemi FBBO Gold Member FBBO Gold Member

        Messages:
        14,027
        Likes Received:
        12096
        Joined:
        Dec 21, 2008
        Location:
        ca
        Local Time:
        7:17 AM
        Cap the bung and weld a new forward of the old one. That’s the cheapest and easiest way to solve the problem.

        • Agree Agree x 2
        • Like Like x 1
        • Stanton

          Stanton Well-Known Member

          Messages:
          2,742
          Likes Received:
          2634
          Joined:
          Aug 8, 2012
          Location:
          ON
          Local Time:
          8:17 AM
          This is mine - no clearance issues BUT I'm using Dougs headers.

          IMG_1178 (2019_05_01 16_39_04 UTC).JPG

          • Like Like x 1
          • MOPOWER871

            MOPOWER871 FBBO Gold Member FBBO Gold Member

            Messages:
            1,856
            Likes Received:
            3300
            Joined:
            Dec 9, 2013
            Location:
            TAX ISLAND N.Y.
            Local Time:
            8:17 AM
            In this mock-up are there header gaskets on the headers? can't tell , and is that a windage tray I see . I don't see gaskets .gaskets will bring the header out further and gaskets on the pan will bring the pan lower, unless it's a windage tray that does not require a gasket. To be honest I would just crease that tube many Studies have shown on back to back dyno test, creasing a tube shows no loss of horsepower or torque. there are plenty of videos on YouTube showing this. Good luck

            • Agree Agree x 2
            • Sascha

              Sascha Well-Known Member

              Messages:
              60
              Likes Received:
              60
              Joined:
              Aug 17, 2018
              Location:
              Sprockhövel
              Local Time:
              2:17 PM
              Hello!
              Thanks to you all!
              We tried with Remflex gasket but dosn´t fit.
              In the pictures it is not possible to see the angle the header flange is at the head.
              If I would bend or crease it it will have max. half of the diamter it has now.
              Engine has main girdle and windage. For the moment I don´t want to remove the pan;)
              Will look for a low profile fitting or weld in a new pipe I think.
              Is there any fitting to go for?
              @ Stanton: Do you have a picture with Header?
              Again, thanks to you all!

            • Derwud

              Derwud Well-Known Member

              Messages:
              1,344
              Likes Received:
              1168
              Joined:
              Aug 18, 2014
              Location:
              Pasadena, CA
              Local Time:
              5:17 AM
              I am with Stanton, I have the same set-up with Doug's and have a little more clearance. I am running a 120 degree fitting.

            • Stanton

              Stanton Well-Known Member

              Messages:
              2,742
              Likes Received:
              2634
              Joined:
              Aug 8, 2012
              Location:
              ON
              Local Time:
              8:17 AM
              You realize that bung is the pickup, right ?!?!? Moving it to a new location means re-fabbing the whole pickup assembly as well as modifying baffles etc.. This is NOT and "easy" solution !!!

              • Agree Agree x 3
              • Like Like x 1
              • Stanton

                Stanton Well-Known Member

                Messages:
                2,742
                Likes Received:
                2634
                Joined:
                Aug 8, 2012
                Location:
                ON
                Local Time:
                8:17 AM
                Photos with headers to follow shortly

              • Derwud

                Derwud Well-Known Member

                Messages:
                1,344
                Likes Received:
                1168
                Joined:
                Aug 18, 2014
                Location:
                Pasadena, CA
                Local Time:
                5:17 AM
                Thank you. Was going to say that..

              • Sascha

                Sascha Well-Known Member

                Messages:
                60
                Likes Received:
                60
                Joined:
                Aug 17, 2018
                Location:
                Sprockhövel
                Local Time:
                2:17 PM
                Great, thanks!


              • Mike67

                Mike67 FBBO Gold Member FBBO Gold Member

                Messages:
                6,409
                Likes Received:
                10217
                Joined:
                Nov 23, 2014
                Location:
                Woodlands Tx
                Local Time:
                7:17 AM
                Just curious why you do not want to clearance the header if you're willing to cut it and weld it? Looks like it wouldnt need much.
                I had to do my 2" Doug's on the passenger side for the torsion bar and mine are coated. Took a oxy/ac rig heated it up cherry red laid the wrist pin on it gave a few good hits and it looks like it was made that way. Nice radiused relief.

              • Fran Blacker

                Fran Blacker FBBO Gold Member FBBO Gold Member

                Messages:
                9,279
                Likes Received:
                8899
                Joined:
                Sep 23, 2016
                Location:
                Connecticut
                Local Time:
                8:17 AM
                If dinging the header a 1/4" or so makes it work ding it. Been tests about dinged headers little or no loss in HP unless you really close a tube. MO.

              • Sascha

                Sascha Well-Known Member

                Messages:
                60
                Likes Received:
                60
                Joined:
                Aug 17, 2018
                Location:
                Sprockhövel
                Local Time:
                2:17 PM
                1/4 would not be enough.
                Took a few more pictures.
                Header is in correct position

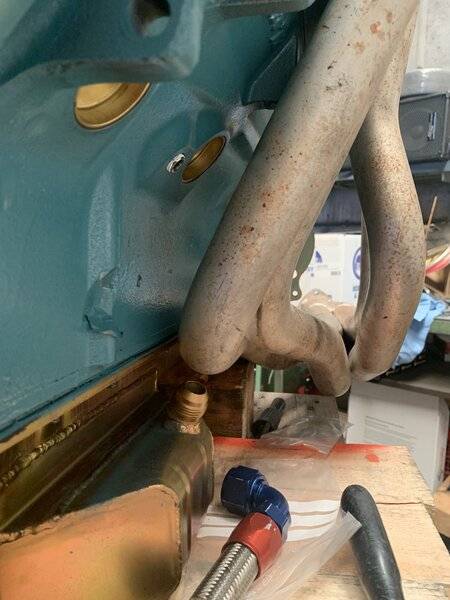

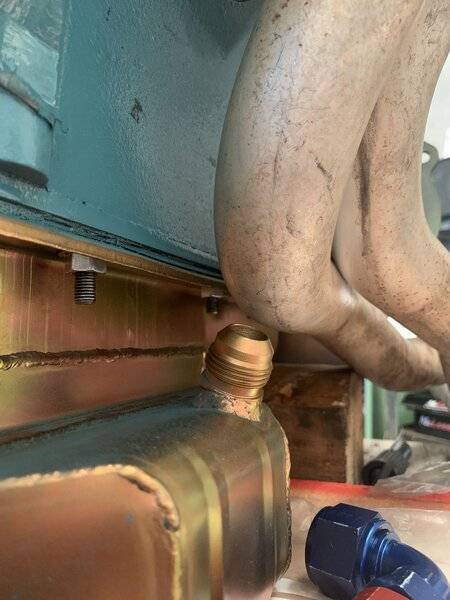

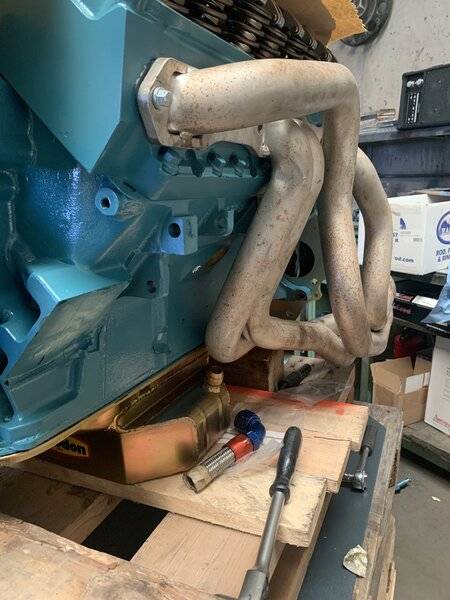

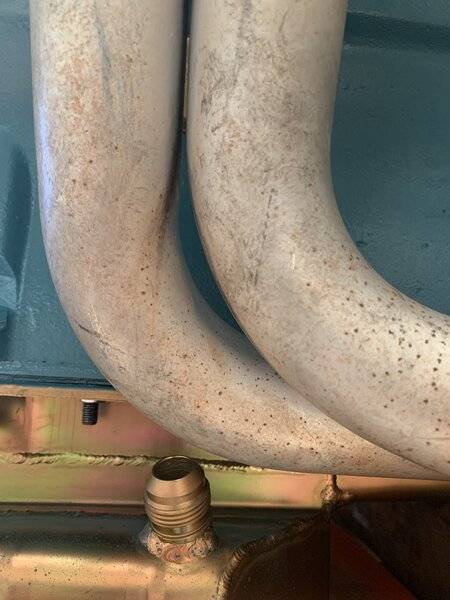

                37234BCB-37B2-4B07-BD81-1F69DAF7ECDE.jpeg C0021492-120A-4C0B-B5E8-3FADDF68287F.jpeg A2C67616-3411-45AE-8074-50743358677F.jpeg A8A4DCDD-1A69-4114-BEC6-1F08148235BF.jpeg F9066046-4C08-406C-874B-F6C42E1C0FBE.jpeg

              • Fran Blacker

                Fran Blacker FBBO Gold Member FBBO Gold Member

                Messages:
                9,279
                Likes Received:
                8899
                Joined:
                Sep 23, 2016
                Location:
                Connecticut
                Local Time:
                8:17 AM
                No dinging that. What about sandwiching in a bare 3/8" header flange with a gasket on each side. Could cause fit problem else where. Not the best way to solve it.

              • Sascha

                Sascha Well-Known Member

                Messages:
                60
                Likes Received:
                60
                Joined:
                Aug 17, 2018
                Location:
                Sprockhövel
                Local Time:
                2:17 PM
                You mean a spacer?

                • Agree Agree x 1
                • 5.7 hemi

                  5.7 hemi FBBO Gold Member FBBO Gold Member

                  Messages:
                  14,027
                  Likes Received:
                  12096
                  Joined:
                  Dec 21, 2008
                  Location:
                  ca
                  Local Time:
                  7:17 AM
                  Wasn’t aware that is a pick up point, thought it was a drain back.
