Who can tell me how much higher the tunnel must be to fit a NAG1 behind a 2013 6.4/392 in a 70's Plymouth Satellite?

Does the tunnel have to be wider?

I only had to put two blisters on the tunnel, for the dipstick and shifter-cable attachment point.

I'll have to look them up. Try the-body forum[my thread]......may not apply to your b-body.

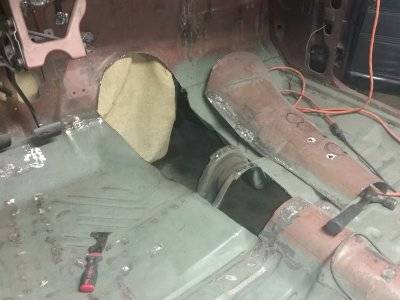

I cut my tunnel out . . .

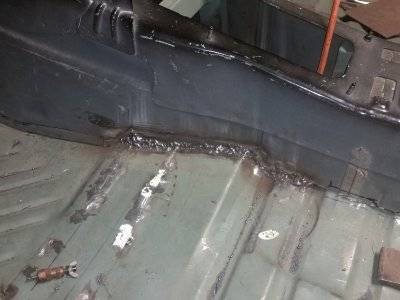

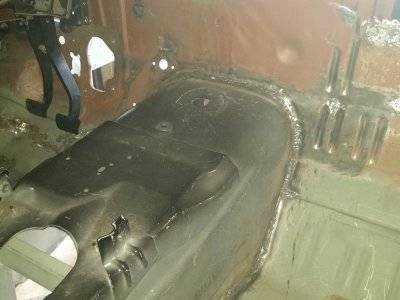

Got a tunnel from a 2014 Challenger . . . and welded it into my car . . .



Mine is for a 6 speed - but a tunnel hump from a new car with the NAG-1 in it would get you the same result . . .

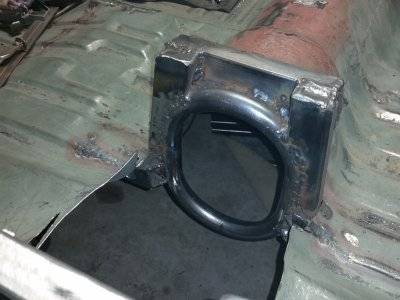

And while I was at it . . . I built a driveshaft loop into the setup . . .


very cool! In retrospect I could have done that and saved myself a bunch of time and welding.

Saturday I've been to a junkyard and cutted out a tunnel from a Chrysler 300C from 2007. I'm going to see if this is usable.
