U.S. Radiator 26" for 22" core support

Heating, Cooling & AC

  1. OKDart

    OKDart FBBO Gold Member FBBO Gold Member

    Messages:
    384
    Likes Received:
    304
    Joined:
    Nov 9, 2012
    Location:
    Oklahoma
    Local Time:
    2:13 AM
  2. sabre67

    sabre67 FBBO Gold Member FBBO Gold Member

    Messages:
    199
    Likes Received:
    112
    Joined:
    Apr 26, 2018
    Location:
    Port Alberni, B.C Canada
    Local Time:
    12:13 AM
    :popcorn:watching

    • Agree Agree x 1
    • DGE330/NC

      DGE330/NC Well-Known Member

      Messages:
      124
      Likes Received:
      44
      Joined:
      Jul 17, 2019
      Location:
      kernersville NC
      Local Time:
      3:13 AM
      there are extra holes in the core support , it may be set up to use those?

    • hunt2elk

      hunt2elk FBBO Gold Member FBBO Gold Member

      Messages:
      7,692
      Likes Received:
      6783
      Joined:
      Jul 15, 2009
      Location:
      WI
      Local Time:
      2:13 AM
      That's what I would guess as well. Look how close the hole spacing is for the passenger side mount.

    • OKDart

      OKDart FBBO Gold Member FBBO Gold Member

      Messages:
      384
      Likes Received:
      304
      Joined:
      Nov 9, 2012
      Location:
      Oklahoma
      Local Time:
      2:13 AM

      Looks like a standard 26” bolt spacing, there aren’t holes there on a 22” core support.

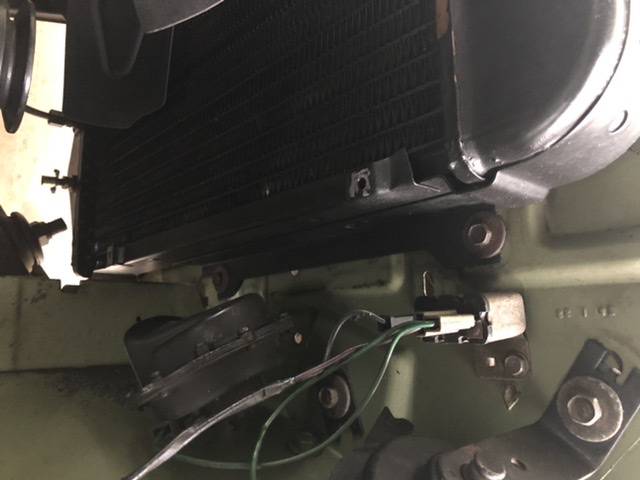

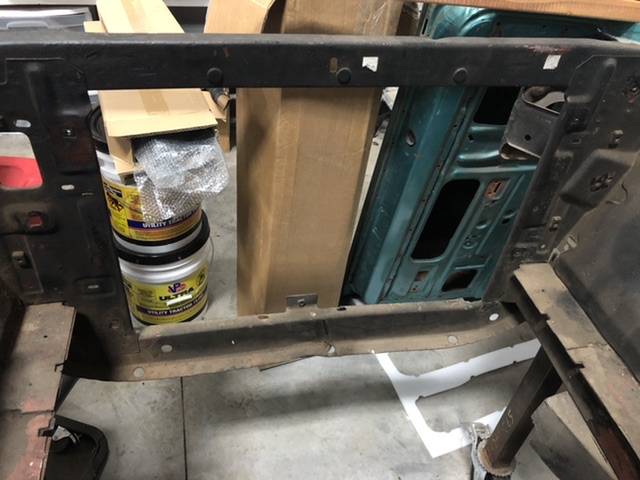

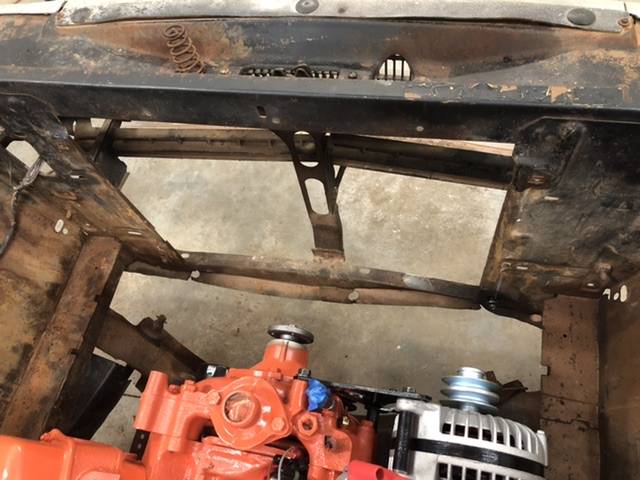

      1st pic is a ‘70 Charger 26” core support, 2nd is a ‘70 Roadrunner 22”, and 3rd is a stock 26” radiator in a ‘68 Coronet.

      13530903-FE9A-4AF9-95DE-6C2BC725FFA3.jpeg 1E3920F2-AB50-41DE-9D9D-3B1A81A7C72A.jpeg B4362F05-A3D6-4A63-85A9-15795CF23283.jpeg

    • OKDart

      OKDart FBBO Gold Member FBBO Gold Member

      Messages:
      384
      Likes Received:
      304
      Joined:
      Nov 9, 2012
      Location:
      Oklahoma
      Local Time:
      2:13 AM

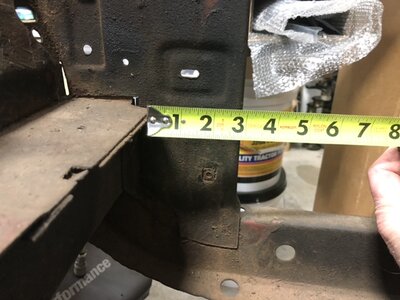

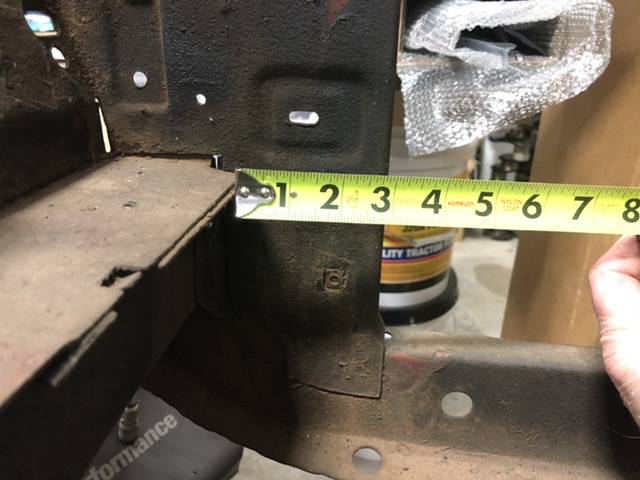

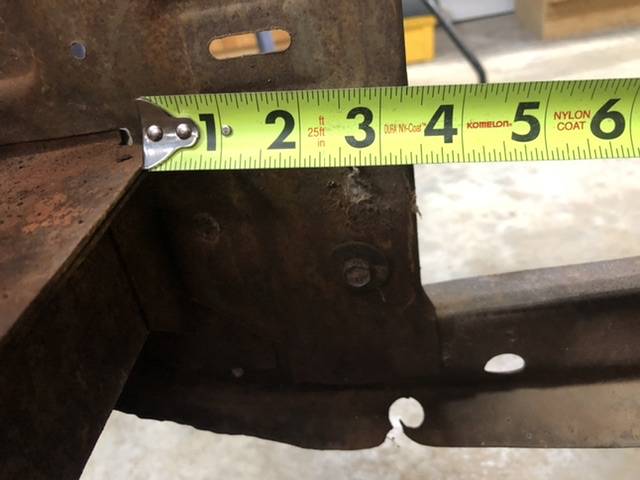

      Also, the 26” is positioned about 1/2” to 3/4” closer to the frame rail on the drivers side.

      61F1BCF6-86D8-4404-A3C2-9FD0E5029565.jpeg 68FB3569-4FA8-40F2-BFE1-6527E1237D10.jpeg

    • oldbee

      oldbee FBBO Gold Member FBBO Gold Member

      Messages:
      9,509
      Likes Received:
      9533
      Joined:
      Oct 15, 2011
      Location:
      NE Ohio
      Local Time:
      3:13 AM
      At least 3 holes for a 26" rad. are already there on a 22" core support. "Been there,done that" back in the 70's on my '68.

      • Like Like x 1
      • Agree Agree x 1
      • OKDart

        OKDart FBBO Gold Member FBBO Gold Member

        Messages:
        384
        Likes Received:
        304
        Joined:
        Nov 9, 2012
        Location:
        Oklahoma
        Local Time:
        2:13 AM

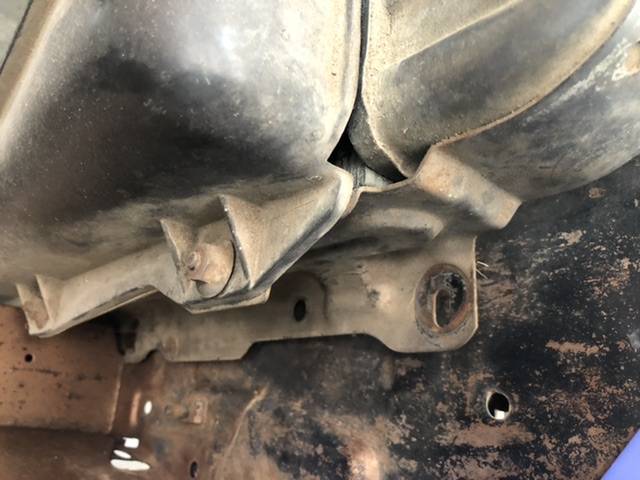

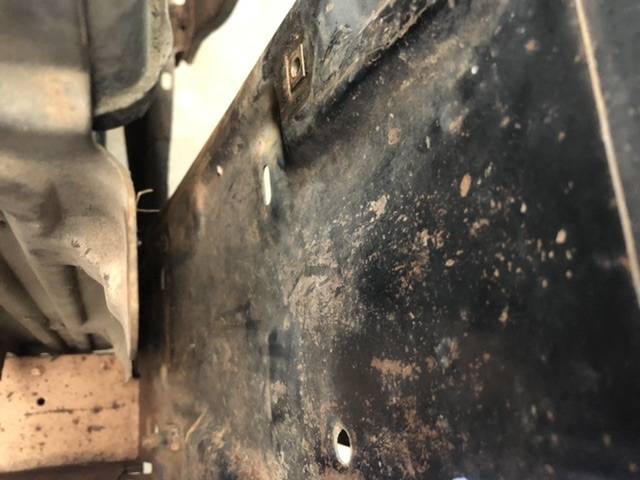

        Not on this ‘70 RR

        33DB9F41-5648-4D9F-9855-6ECEACEA0566.jpeg DCC96D4B-7A43-40FA-B107-054F5A1C3D27.jpeg

      • Dave6T4

        Dave6T4 Well-Known Member

        Messages:
        806
        Likes Received:
        1055
        Joined:
        Dec 31, 2020
        Location:
        Ontario, Canada
        Local Time:
        3:13 AM
        Why would anyone want to put a 26" rad on a 22"' inch hole anyway? Maybe somebody that puts size 12 shoes on size 9 feet?

      • OKDart

        OKDart FBBO Gold Member FBBO Gold Member

        Messages:
        384
        Likes Received:
        304
        Joined:
        Nov 9, 2012
        Location:
        Oklahoma
        Local Time:
        2:13 AM
        Out of the radiators in my possession, the 26” radiators are thinner than the 22” and leave more room for fan choices

      • oldbee

        oldbee FBBO Gold Member FBBO Gold Member

        Messages:
        9,509
        Likes Received:
        9533
        Joined:
        Oct 15, 2011
        Location:
        NE Ohio
        Local Time:
        3:13 AM
        Better cooling (?) Chop out 2" from the opening. Sorry, there wasn't any thought of originality back then. Functionality was only criteria! That's what we did!
