Ugh got wrong bushing! Need help!

Marco Perez

Well-Known Member
Local time
10:14 PM
Joined
May 16, 2022
Messages
48
Reaction score
8
Location
Central California

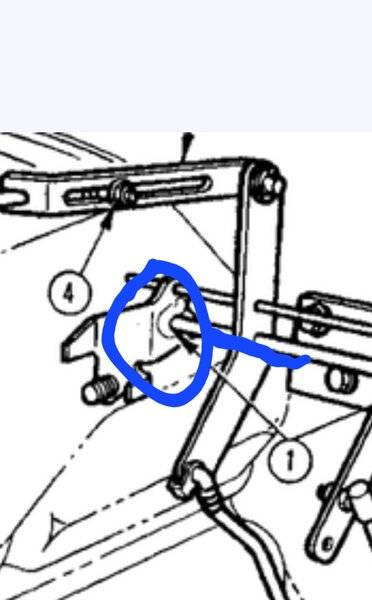

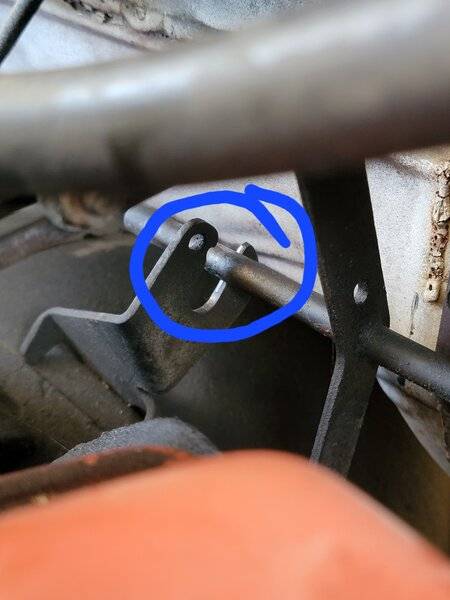

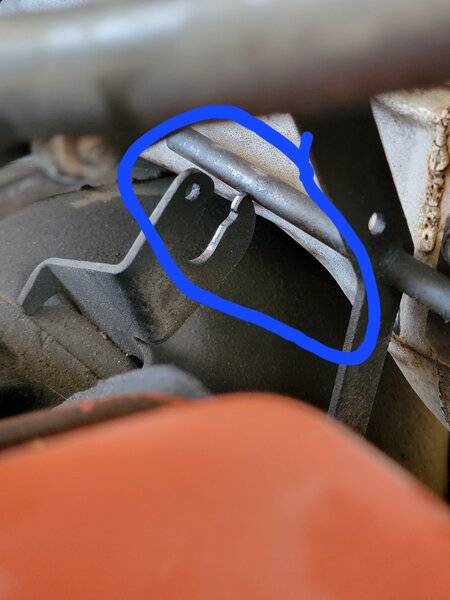

Hey guys i thought i have purchased the right bushing.. if anyone can help I'd would really appreciate it.. I have pictures of what I need from the Manuel just doesn't say what it's called.

Screenshot_20220519-155824_Chrome.jpg 20220516_192006.jpg 20220516_191958.jpg


Marco Perez

Well-Known Member
Local time
10:14 PM
Joined
May 16, 2022
Messages
48
Reaction score
8
Location
Central California

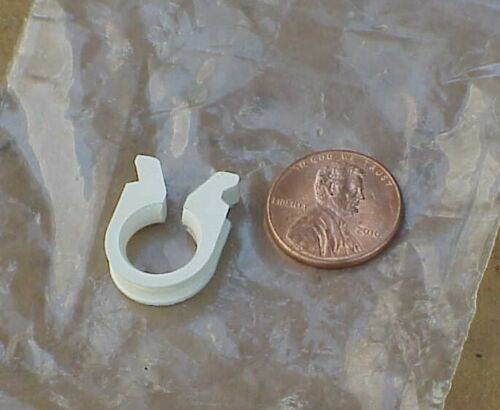

Ok thanks it's ordered! Now my next question is does the clip like the bracket (( or does it go against the bracket to make. () thanks again beep beep


BeepBeepRR

FBBO Gold Member
FBBO Gold Member
Local time
1:14 AM
Joined
Oct 16, 2016
Messages
8,859
Reaction score
13,571
Location
Atlanta,Ga

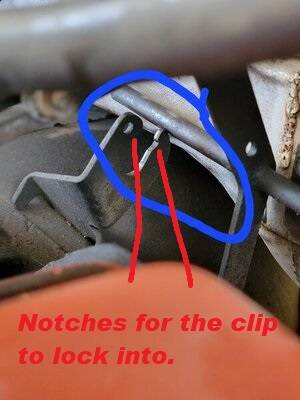

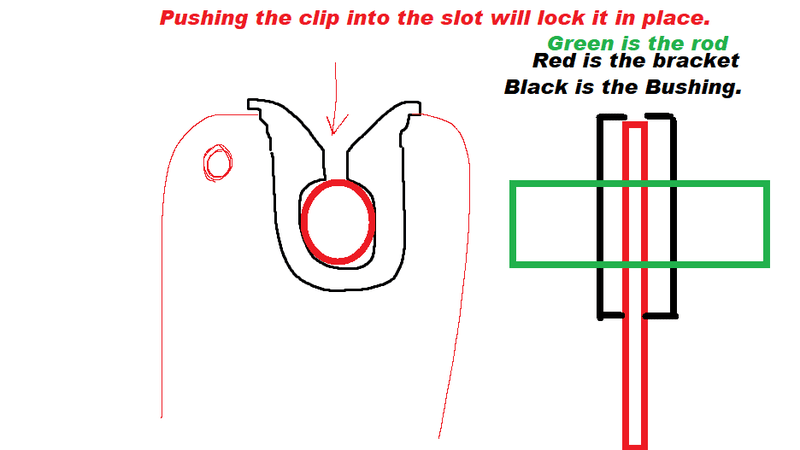

It has grooves that are like slots. The bracket rides in that groove and you push it in until it locks into place.



Last edited:

Marco Perez

Well-Known Member
Local time
10:14 PM
Joined
May 16, 2022
Messages
48
Reaction score
8
Location
Central California
Awesome! Love this group very helpful I can't wait to get more hands on with this car after this I'd like to work on my guages I've been doing my homework, it's my fuel and temp guages don't work, I've read that are tied in together once fuel goes put temp guage also goes out any idea or know where I can start check.. I want to test the guages I just need to learn to take dash off and also how to test it, seen couple yt videos on it but with different model cars.


BeepBeepRR

FBBO Gold Member
FBBO Gold Member
Local time
1:14 AM
Joined
Oct 16, 2016
Messages
8,859
Reaction score
13,571
Location
Atlanta,Ga
Awesome! Love this group very helpful I can't wait to get more hands on with this car after this I'd like to work on my guages I've been doing my homework, it's my fuel and temp guages don't work, I've read that are tied in together once fuel goes put temp guage also goes out any idea or know where I can start check.. I want to test the guages I just need to learn to take dash off and also how to test it, seen couple yt videos on it but with different model cars.
Voltage limiter.. Since both of those gauges work off of 5volts. The voltage limiter is found on the back of the cluster. I'm not familiar with 64 chryslers but almost all dodges/chrysler and plymouth cars back in the day used them.

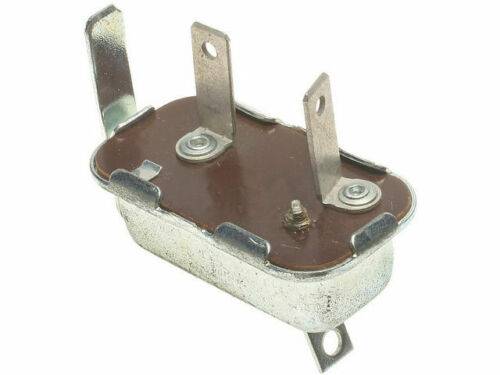

It looks like this. But now they sell a solid state style that's supposed to be better than the old type.

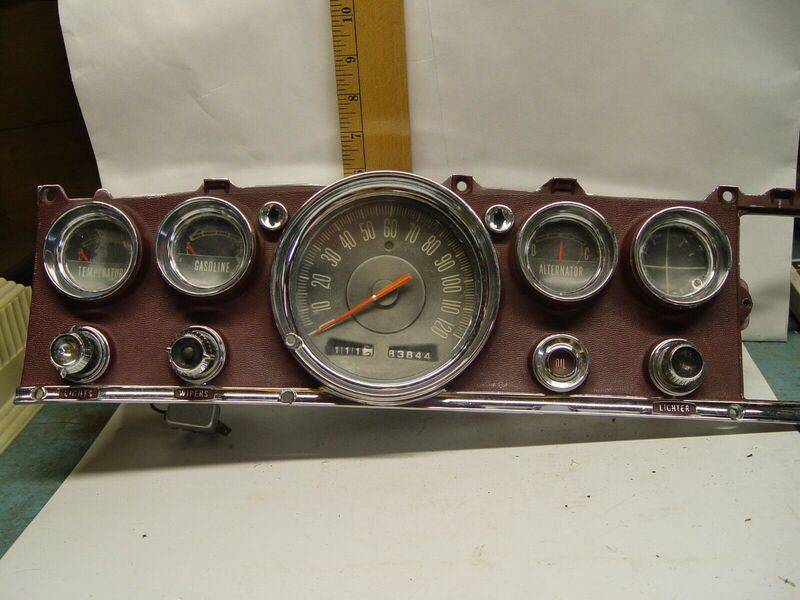

I looked on google. Is this the same dash you have? If so I do not see a limiter on the back side of this. It may be elsewhere but as I stated not familiar with them.

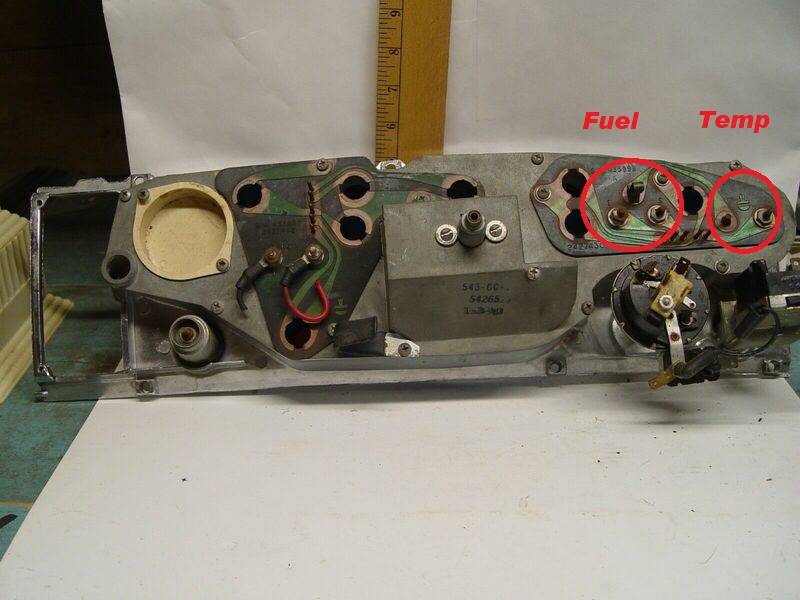

Upper right side of the cluster are the 2 gauges from the rear of the cluster view.

Last edited:

Marco Perez

Well-Known Member
Local time
10:14 PM
Joined
May 16, 2022
Messages
48
Reaction score
8
Location
Central California

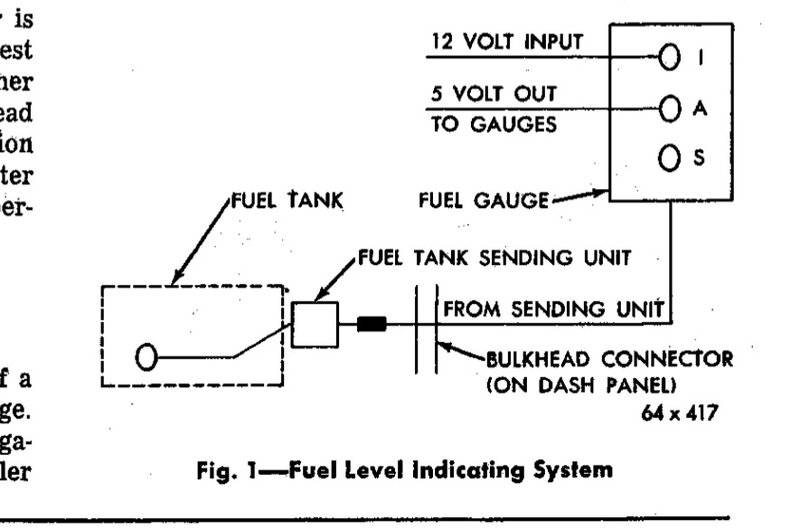

From what I just read the fuel guage is the voltage limitor as it's labeled with 3 connection points behind it and is in sequence with the temp guage



BeepBeepRR

FBBO Gold Member
FBBO Gold Member
Local time
1:14 AM
Joined
Oct 16, 2016
Messages
8,859
Reaction score
13,571
Location
Atlanta,Ga

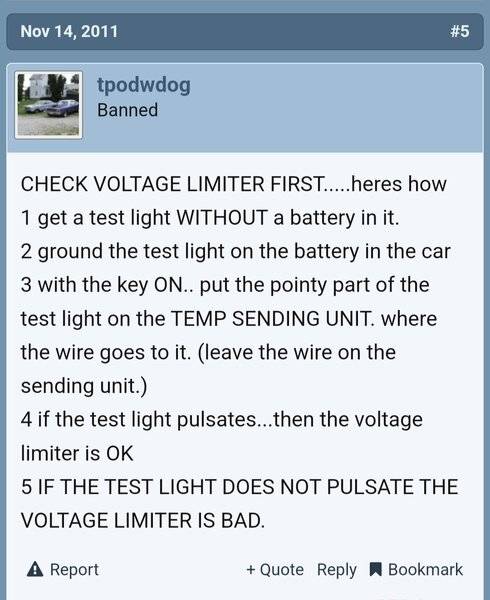

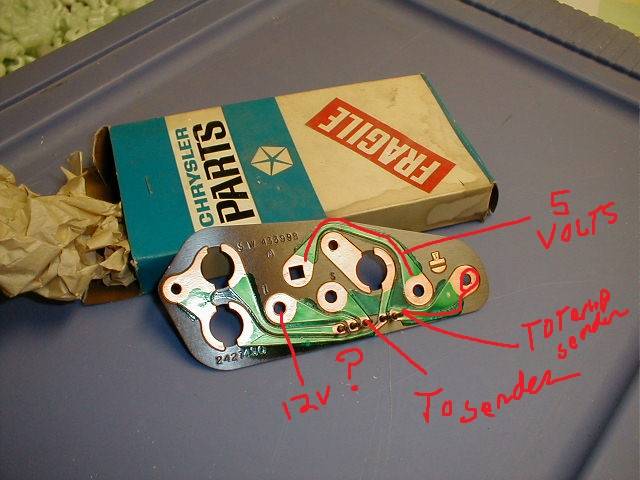

Just spit balling here.. Check this out maybe it will make sense.



BeepBeepRR

FBBO Gold Member
FBBO Gold Member
Local time
1:14 AM
Joined
Oct 16, 2016
Messages
8,859
Reaction score
13,571
Location
Atlanta,Ga
That is probably correct for a 64.. 66 and up use the plug in style. So go with that info and it should help you out.


Marco Perez

Well-Known Member
Local time
10:14 PM
Joined
May 16, 2022
Messages
48
Reaction score
8
Location
Central California
Thanks beepbeep just got my clip today, popped it in and the throttle stopped sticking! Ginally thank you also she was idling bit high so I loosened the nut on the throttle and just pushed back my pedal, she went back to idling lil lower. brakes are next but I am having a shop take a look at those, I want to get my fuel and temp guage working again.
