    So since I'm running all brand new wiring, I bought a bunch of Harnesses from Year One(M&H) and Mopar. I'm wasting a bunch of time trying to figure out what all these connectors are for and where they go. My goal for this guide is to provide a easy, picture diagram for those looking to hook up their car fast, and effectively with little to no time wasted. With each pick I'll provide the wire colors to the connector as the resolution may be off on some of your screens so you know exactly what your looking at. Keep in mind that these are aftermarket harnesses and may not coincide with the original colored wires, and that's where I need your help. I'm gonna keep this updated as best as possible, What I need/want from the mopar community is to help me identify the connectors, and what they plug into. Just type pic# in the reply and type A) what its for, B) what it plugs into. Also, as I have found out already, do not throw away your old harnesses, some of the wires from your old harness may have to be reused with the new harness. If I had made a mistake, please let me know and I'll correct it asap.


    ***update (1) had to switch the brown and red wire leads on the windshield wiper motor harness as they were backwards when plugged into the bulkhead****

    ***update (2) M&H for some reason moved the horn wiring from the lamp harness to the engine harness, and they moved the low brake switch wiring from the engine harness to the lamp harness. So if one wanted to run a mix of old harnesses and new, you would have to change these wires in the actual harness themselves to get it to work.***



    Now let's begin:

    M&H main harness for 1971 Rallye Dash for Plymouth / Dodge Bbody:


    (pic1) [​IMG]

    (pic2)
    [​IMG]

    (pic3)
    [​IMG]

    1) 2 wires, both dark blue with yellow stripes
    A) headlamp washer
    B) only required for those equipped with this option

    (pic4)
    [​IMG]

    1) brown wire with white stripe
    A) headlamp washer
    B) The rubber grommet goes into the hole, through the fire wall, its the upper hole near the master cylinder (or booster)

    (pic5)
    [​IMG]

    1) dark blue wire with yellow stripe, black wire with red stripe
    A) concealed headlamps
    B) for dodge chargers not used on GTX/Roadrunner/Satellite

    2) Other side of brown wire with white stripe
    A) headlamp washer
    B) engine side for headlamp washer

    (pic6)
    [​IMG]

    1) 2 solid orange wires, one red wire with white stripe, solid black wire
    A) AM Radio
    b) Radio Harness

    (pic7)
    [​IMG]

    1) solid tan wires to 3 port yellow female connector
    A) accessory feed
    B) ?

    (pic8)
    [​IMG]

    1) solid pink wire
    A) stop lamp switch
    B) switch on brake pedal

    2) solid white wire
    A) stop lamp switch
    B) switch on brake pedal

    (pic9)
    [​IMG]

    1) solid yellow wire, solid black wire, blue wire with white stripe, solid brown wire, solid red wire, solid orange wire, solid black wire, solid black wire
    A) steering column
    B) steering column harness

    2) black wire white stripe, solid light green wire, solid tan wire, solid pink wire, solid red wire, solid dark green wire, solid brown wire, solid white wire
    A) steering column
    B) steering column harness

    (pic10)
    [​IMG]

    (pic10a)
    [​IMG]

    1) solid pink wire, black wire with white stripe
    A) hazard flasher
    B) electronic flasher

    (pic 11)
    [​IMG]

    1) 2 solid black wires, 2 black wires with yellow stripe
    A) headlamp-on warning buzzard
    B) harness gets an extra pigtail to reach the buzzer mounted on dash frame between glovebox and ashtray. Buzzer gets a plug like the blinker flashers ones.

    2) 2 yellow wires with black stripes
    A) to ignition switch lamp time delay relay wiring
    B) It is used for the little lite that shines from the steering column to the ignition key hole when the door is opened.

    (pic12)
    [​IMG]

    1) solid orange wire
    A) cluster illumination lamp
    B) back of rallye dash

    2) solid tan wire
    A) right turn signal indicator lamp
    B) back of rallye dash

    3) solid grey wire
    A) oil gauge
    B) back of rallye dash

    4) solid dark blue wire
    A) fuel gauge
    B) back of rallye dash

    (pic13)
    [​IMG]

    1) solid orange wire
    A) cluster illumination lamp
    B) back of rallye dash

    2) solid violet wire
    A) temperature gauge
    B) back of rallye dash

    3) black wire with white stripe
    A) instrument cluster ground
    B) plug into male blade attached to the backing plate on the cluster

    (pic14)
    [​IMG]

    1) solid red wire
    A) ammeter gauge
    B) back of rallye dash

    2) solid black wire
    A) ammeter gauge
    B) back of rallye dash

    3) solid black wire
    A) POSITIVE source for voltage limiter
    B) plugs straight to voltage limiter double prong

    4) solid orange wire
    A) cluster illumination lamp
    B) back of rallye dash

    (pic15)
    [​IMG]
    [​IMG]

    1) solid red wire, solid black wire
    A) turn signal flasher
    B) electronic flasher

    (pic16)
    [​IMG]

    1) solid green wire
    A) concealed headlamp relay
    B) be sure to tape over the ring terminals or cut them out completely

    2) 2 dark blue wires with white stripe
    A) concealed headlamp relay
    B) be sure to tape over the ring terminals or cut them out completely

    3) dark blue wire with yellow stripe, black wire with red stripe
    A) concealed headlamps
    B) for dodge chargers not used on GTX/Roadrunner/Satellite

    (pic17)
    [​IMG]

    1) solid red wire, solid pink wire
    A) cigar lighter
    B) cigar lighter back of ash tray

    2) solid orange wire
    A) ash tray receiver lamp
    B) back of ash tray

    (pic18)
    [​IMG]

    1) 2 solid pink wires to 3 port red mold
    A) battery feed
    B) glove box lamp, map lamp harness

    (pic19)
    [​IMG]

    1) 2 solid yellow wires to 3 port black mold
    A) Lamp ground
    B) for map, courtesy lamp, open door indicator lamp, rear door light switch

    (pic20)
    [​IMG]

    1) yellow wire with black stripe, solid yellow wire
    A) right front door automatic switch
    B) passenger door switch

    (pic21)
    [​IMG]

    1) solid light green wire
    A) left turn signal indicator lamp
    B) back of rallye dash

    2) solid orange wire
    A) cluster illumination lamp
    B) back of rallye dash

    3) solid orange wire
    A) cluster illumination lamp
    B) back of rallye dash

    (pic22)
    [​IMG]

    1) solid orange wire
    A) cluster illumination lamp
    B) back of rallye dash

    2) back wire with white stripe, dark blue wire with white stripe
    A) brake system warning lamp
    B) back of rallye dash

    3) solid orange wire
    A) cluster illumination lamp
    B) back of rallye dash

    4) solid red wire
    A) high beam indicator lamp
    B) back of rallye dash

    (pic23)
    [​IMG]

    1) 2 solid yellow wires, 2 solid light green wires, one solid tan wire, one solid pink wire, one black wire with white stripe, one black wire with yellow stripe, one solid black wire
    A) headlamp switch
    B) headlamp switch back of rallye dash

    (pic24)
    [​IMG]

    1) is a 71 setup... the one piece plug to wiper switch began on 72, when wiper switches were smaller. Same wires though on diff prongs disposition
    A) windshield wiper switch
    B) wiper switch back of rallye dash

    (pic25)
    [​IMG]

    1) **the M&H harness just came with the black wire with white stripe, I had to add this to the red connector myself**one solid dark green wire, one solid light green wire, one solid brown wire
    A) heater blower switch
    B) heater blower under dash passenger footwell

    (pic26)
    [​IMG]

    (pic26a)
    [​IMG]

    1) 2 solid orange wires, one solid black wire, one black wire with white stripe
    A) light for Heater-A/C control face
    B) plugs into a small pigtail harness for it using dual bulb on 71/72 correctly shown on 26 A (use from your existing harness)

    (pic27)
    [​IMG]

    1) solid orange wire to 3 port orange mold
    A) accessory title lamp
    B) lamp source for accessories switch under the dash... Air Ram, Rear Deffog, whatever switch down the dash driver side.
    2) solid orange wire
    A) ?
    B) ?

    3) solid orange wire
    A) ?
    B) ?

    (pic 28)
    [​IMG]

    1) black wire with white stripe
    A) parking brake lamp switch
    B) to a switch on the emergency brake that triggers a light in the dash when the emergency brake is engaged or if the brake pressure fails. The switch is just a ground to activate the light.

    2) 2 solid light green wires
    A) time delay for headlights
    B) delay relay gets an extra harness for that plug

    (pic 29)
    [​IMG]

    1) one solid yellow wire, one yellow wire with black stripe, one solid black wire
    A) left front door automatic switch
    b) driver's side door

    (pic 30)

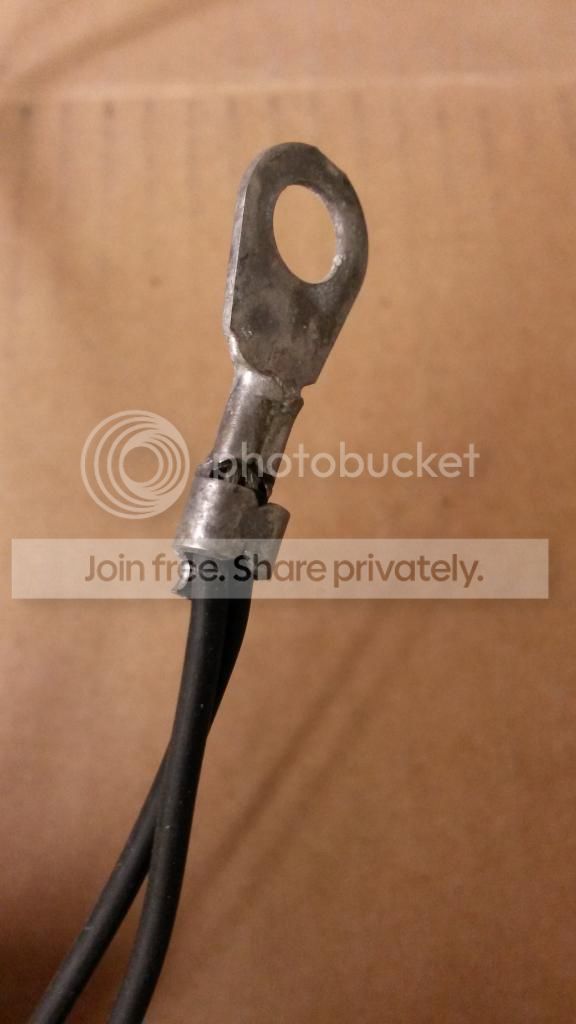

    [​IMG]

    1) solid black wire
    A) harness ground
    B) actually the underdash frame gets a J nut attached around the emergency brake area. Thats a ground source for the harness.

    (pic 31)
    [​IMG]

    1) solid dark blue wire, solid black wire, solid dark green wire, solid brown wire, 2 solid pink wires, white wire with black stripe
    A) rear body harness to rear lights
    B) yes some colors won't match... its on that way from factory. white with black trace becomes in violet for example... some other changes too.

    2) solid pink wire, 2 solid yellow wires
    A) to dome lamp
    B) dome lamp harness , driver's side kickpanel

    (pic32)
    [​IMG]

    (pic32a)
    [​IMG]

    1) violet wire with white stripe, solid light green wire, 2 solid red wires
    A) foot dimmer switch
    B) driver's side floor pan


    Rear lamp harness

    (pic33)
    [​IMG]

    (pic34)
    [​IMG]

    1) solid dark blue wire, solid black wire, solid dark green wire, solid brown wire, solid grey wire, solid violet wire
    A) rear lamp harness
    B) to body wiring harness on main harness

    (pic35)
    [​IMG]

    1) solid grey wire, solid black wire
    A) rear driver's side marker lamp
    B) rear driver's side marker lamp housing

    2) solid violet wire, solid dark green wire, solid brown wire, solid dark blue wire
    A) rear taillights
    B) rear taillight harness in trunk


    Clutch Safety Switch Wire

    (pic36)
    [​IMG]

    (pic37)
    [​IMG]

    1) solid dark green wire
    A) clutch safety switch wire
    B) to a single wire with a grommet through firewall when car is manual transmission

    2) solid dark green wire
    A) clutch safety wire
    B) to starter relay "G" prong (when auto, this prong on relay gets the source from NSS tranny harness )

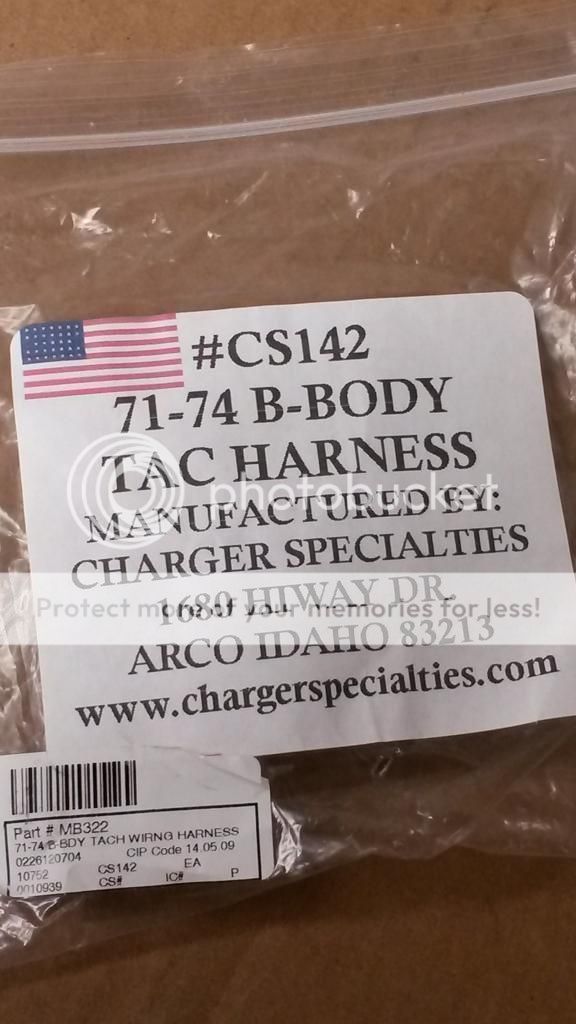

    Tach Harness

    (pic38)
    [​IMG]

    (pic39)
    [​IMG]

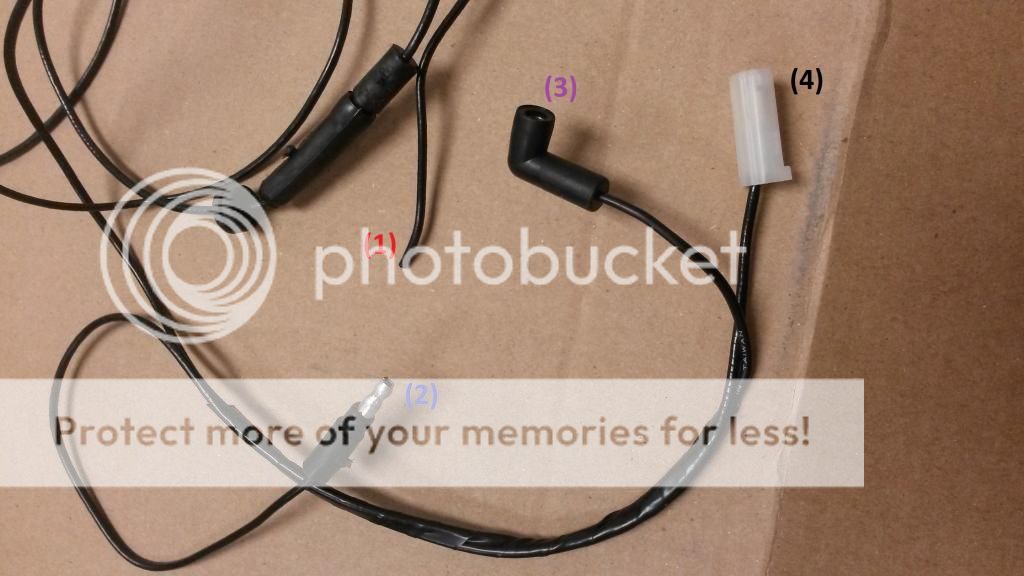

    1) solid black wire
    A) tachometer harness
    B) negative post on ignition coil

    2) solid black wire
    A) tachometer harness
    B) to yellow accessory yellow mold

    3) solid black wire
    A) tachometer harness
    B) back of tachometer

    4) solid black wire
    A) tachometer harness
    B) back of tachometer


    Electronic Ignition Conversion Harness

    (pic40)
    [​IMG]

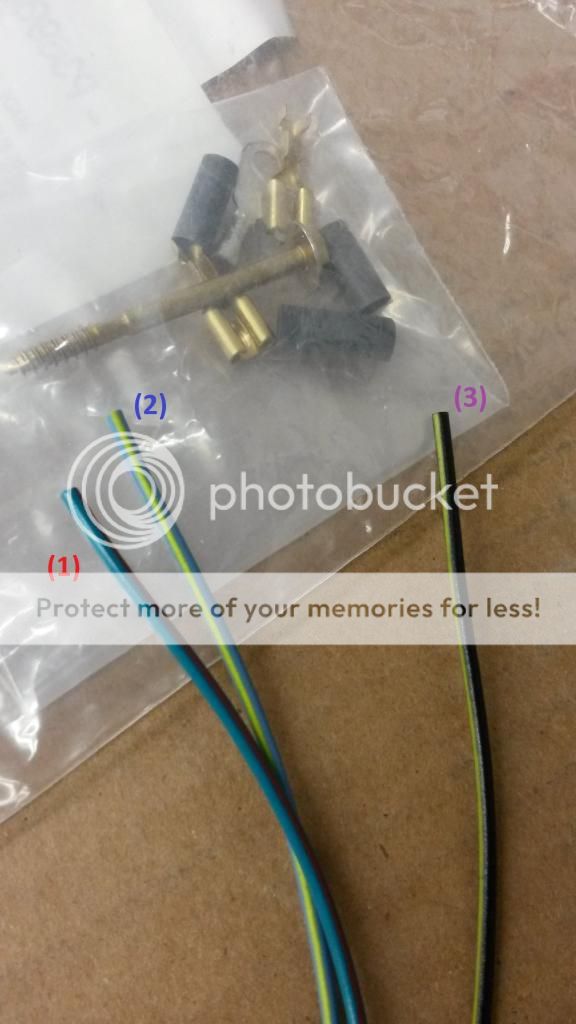

    (pic41)
    [​IMG]

    1) green with red stripe
    A) un-used in 4 pin ecu,
    B) on 5 pin ecu, goes to "auxiliary" post ballast resistor

    2) light blue with yellow stripe
    A) ballast resistor "run" wire
    B) "run side of ballast resistor

    3) black with yellow stripe
    A) ignition coil
    b) to ignition coil negative

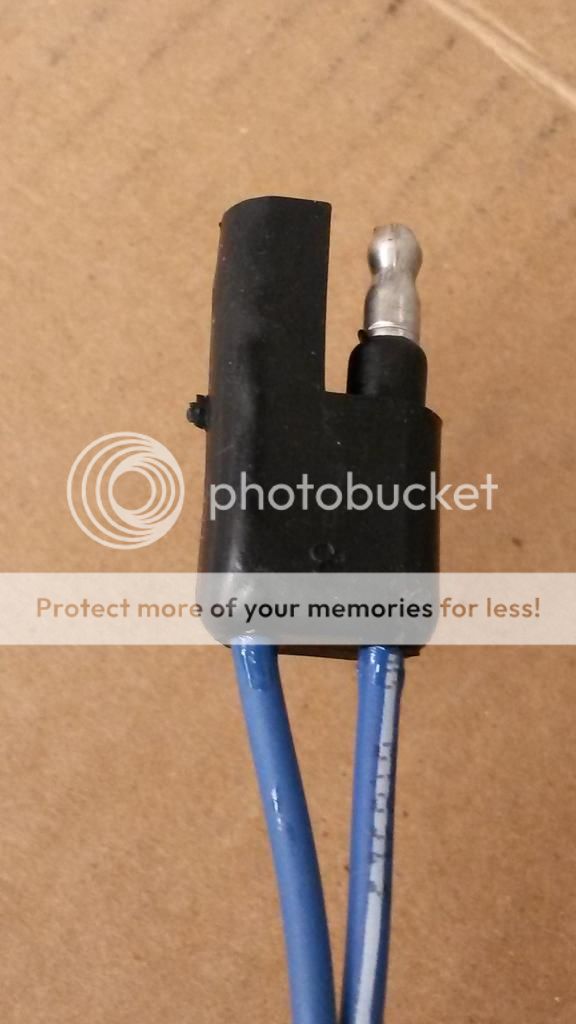

    (pic42)
    [​IMG]

    1) dark blue with white stripe, solid dark blue wire
    A) distributor connector
    B) on the distributor

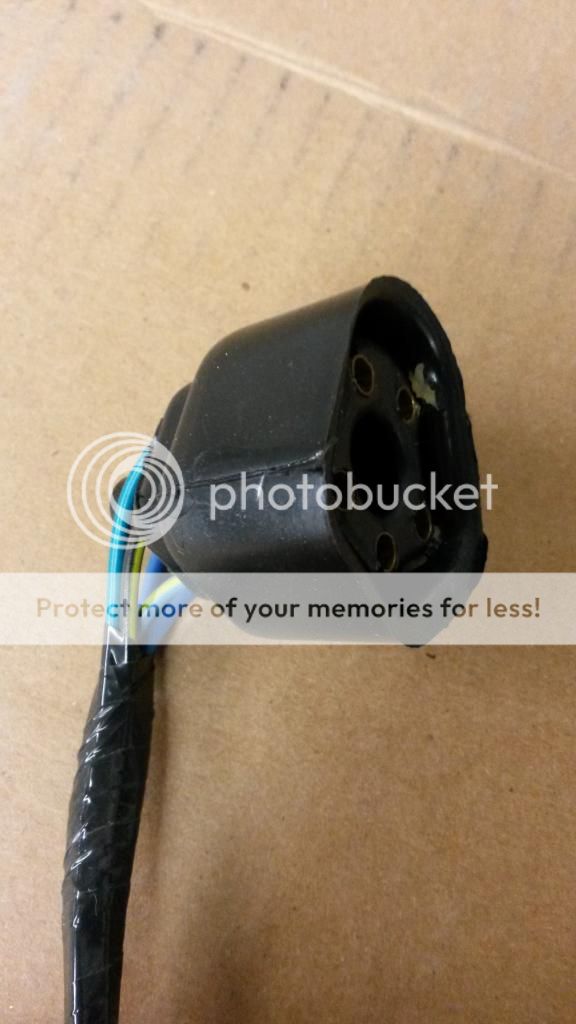

    (pic43)
    [​IMG]

    1) blue with white stripe, solid blue wire, black with yellow stripe, green with red stripe, light blue with yellow stripe
    A) control unit ecu harness
    B) on the control unit on the firewall

    Windshield Wiper Harness

    (pic44)
    [​IMG]

    (pic45)
    [​IMG]

    (pic46)
    [​IMG]

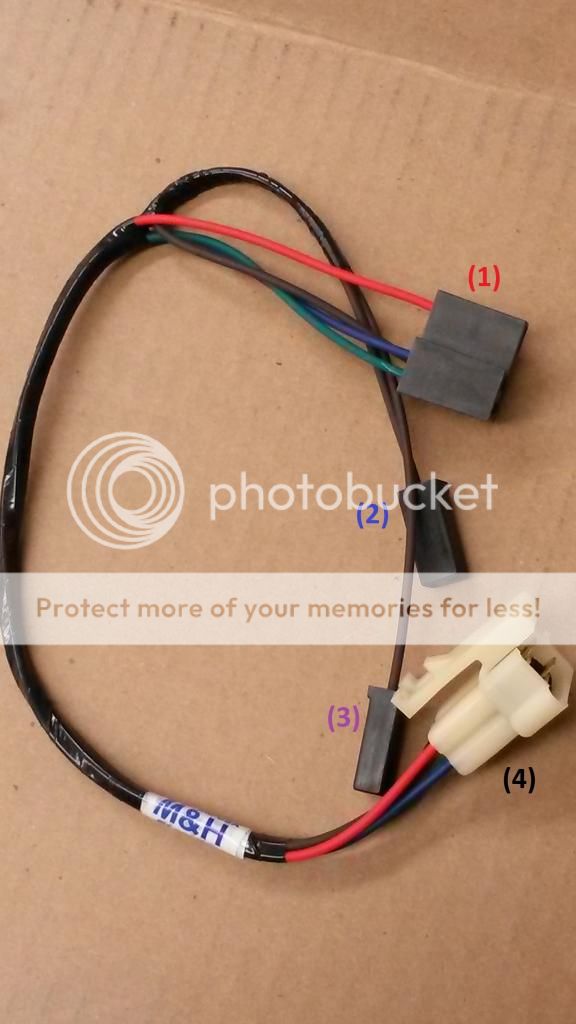

    (pic47)
    [​IMG]

    1) solid red wire, solid brown wire, solid dark blue wire, solid dark green wire
    A) wiper harness
    B) windshield wiper motor

    2) solid brown wire
    A) ballast resistor
    B) ballast resistor on wiper motor

    3) solid brown wire
    A) ballast resistor
    B) ballast resistor on wiper motor

    4) solid dark blue wire, solid red wire, solid dark green wire, solid brown wire
    A) wiper harness
    B) main fuse block


    AC / Heater Harness

    (pic48)
    [​IMG]

    (pic49)
    [​IMG]

    1) 2 solid tan wires, one solid light green wire, one solid dark green wire
    A) blower switch
    B) on back of rallye dash

    2) light green wire with black stripe, solid brown wire, tan wire, one dark blue wire
    A) AC and heater control switch
    B) on back of rallye dash

    (pic50)
    [​IMG]

    1) solid light green wire
    A) clutch feed
    B) yellow mold accessory feed

    (pic51)
    [​IMG]

    1) solid dark blue wire
    A) clutch
    B) just on 71 they used cavities left empty on neutral safety switch harness. 72/73 where shared between engine harness an NSS harness, using the green ( blower ) on NSS harness plug and Blue ( clucth ) on engine harness. 74s got a separate grommet for that on firewall due the lack of cavities left
    2) 2 solid dark green wires
    A) blower
    B) same answer as 1B

    (pic52)
    [​IMG]

    1) solid tan wire
    A) heater motor resistor
    B) on the motor in the passenger footwell

    2) solid light green wire, solid dark green wire, solid brown wire
    A) heater motor resistor
    B) on the motor in the passenger footwell

    (pic53)
    Engine Harness For A 383-440 W/O Six Pack

    (pic54)
    [​IMG]

    (pic55)
    [​IMG]

    1) solid grey wire, solid black wire, solid brown wire, grey wire with black stripe, dark green wire with red stripe, dark blue wire with white stripe, solid brown wire, solid violet wire
    A) engine harness
    B) plugs into main bulkhead

    (pic56)
    [​IMG]

    1) 2 solid brown wires
    A) ignition ballast/resistor
    B) above windshield wiper motor

    (pic57)
    [​IMG]

    1) dark blue wire with white stripe
    A) ignition ballast/resistor
    B) above windshield wiper motor

    (pic58)
    [​IMG]

    1) solid grey wire
    A) oil gauge wire
    B) oil pressure switch on back of engine

    (pic59)
    [​IMG]

    1) solid dark green wire, dark blue with white stripe
    A) alternator regulator
    B) on the voltage regulator on firewall

    (pic60)
    [​IMG]

    1) solid dark blue wire
    A) carburetor solenoid
    B) on carburetor

    (pic61)
    [​IMG]

    1) solid brown wire
    A) ignition coil
    B) positive post on the ignition coil

    2) grey wire with black stripe
    A) not used on GTX/Roadrunner/Satellite
    B) Can be used for the TACHOMETER WIRE... negative lead of coil...the tach harness can use this cavity on back oh bulkhead ( number 20 ) instead of using the grommet on harness to go through firewall

    (pic62)
    [​IMG]

    1) solid dark blue wire, dark blue wire with white stripe
    A) from the ignition resistor/ballast
    B) back of alternator

    2) solid dark green wire
    A) alternator field
    B) back of alternator

    (pic63)
    [​IMG]

    1) solid black wire
    A) Ammeter gauge wire
    B) back of alternator

    (pic64)
    [​IMG]

    1) solid violet wire
    A) temperature gauge sending unit
    B) temperature switch on engine

    (pic65)
    [​IMG]

    1) 2 dark green wires with red stripe
    A) horn
    B) for those equipped with dual horns

    (pic66)
    [​IMG]

    1) solid brown wire
    A) windshield washer motor?
    B) windshield washer fluid bottle in the front passenger engine bay

    2) dark green wire with red stripe
    A) horn
    B) horn front passenger engine bay

    Front Lamp Harness

    (pic67)
    [​IMG]

    (pic68)
    [​IMG]

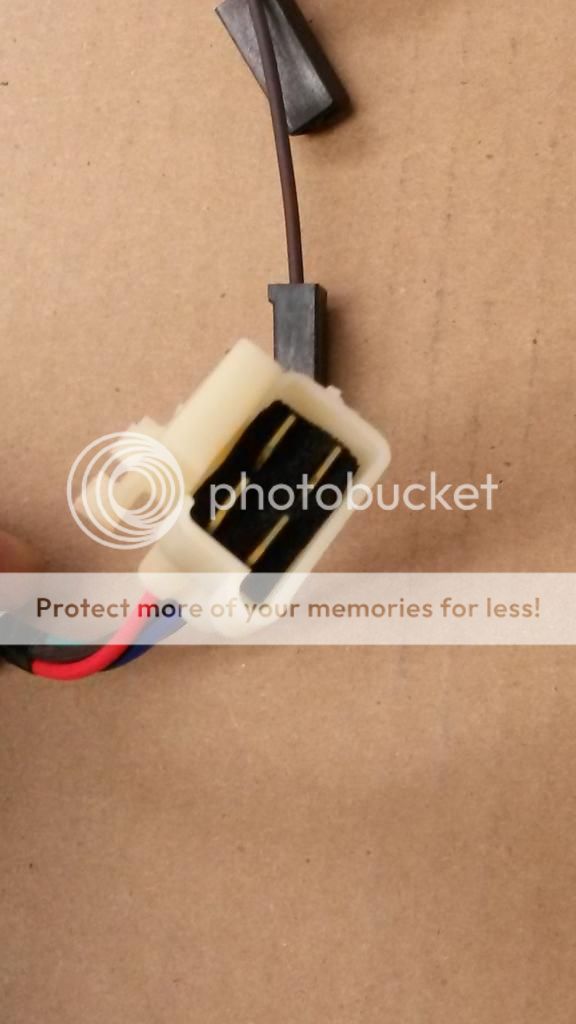

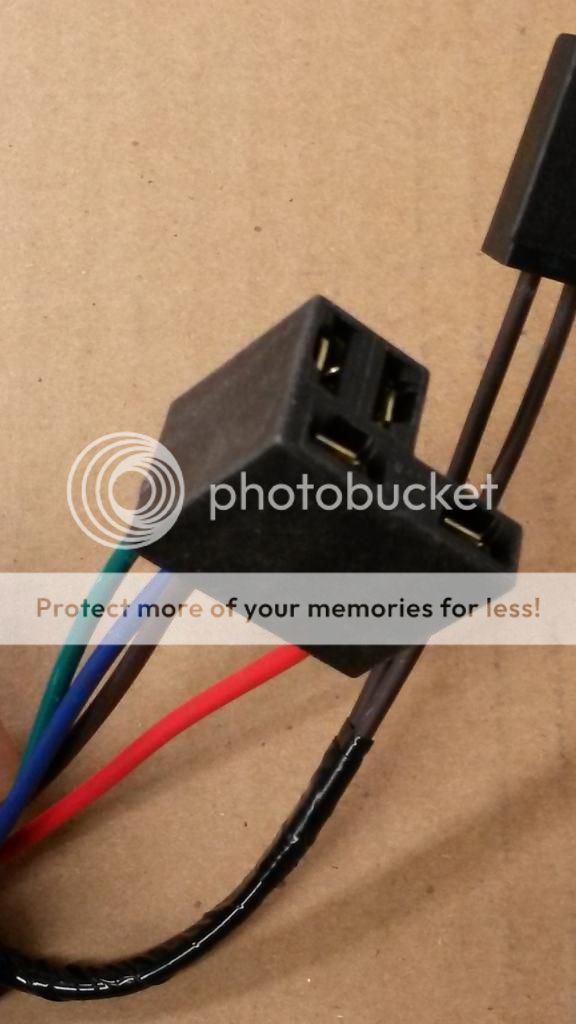

    1) solid red wire, violet wire with white stripe, solid red wire, black wire with green stripe, solid black wire, black wire with brown stripe, black wire with yellow stripe, solid yellow wire
    A) front lamp harness
    B) bulkhead connector on firewall

    (pic69)
    [​IMG]

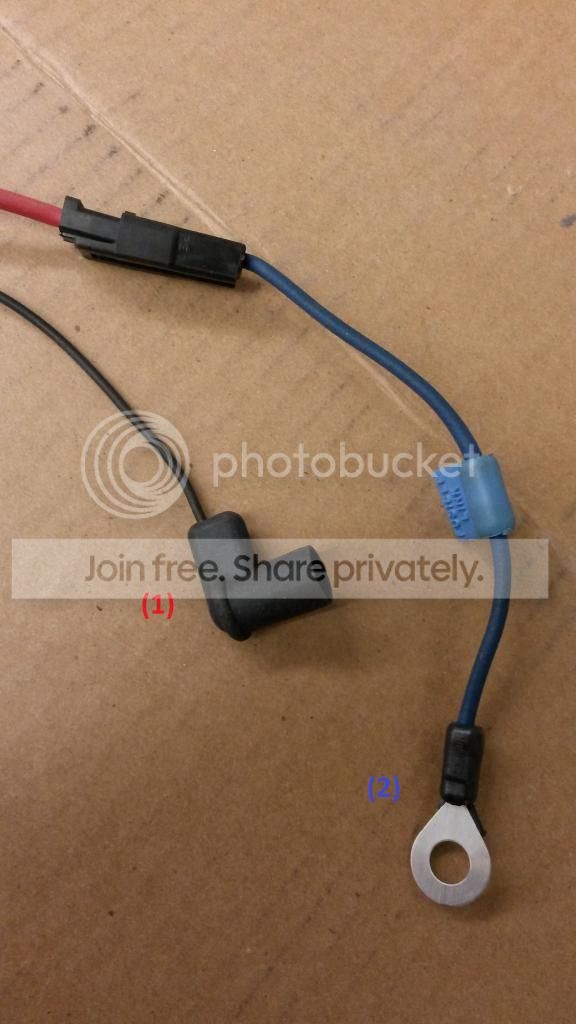

    1) solid black wire
    A) low brake switch
    B) located on your brake distribution block

    2) solid red wire to solid blue wire
    A) ammeter feed
    B) to the "B" on the starter relay

    (pic70)
    [​IMG]

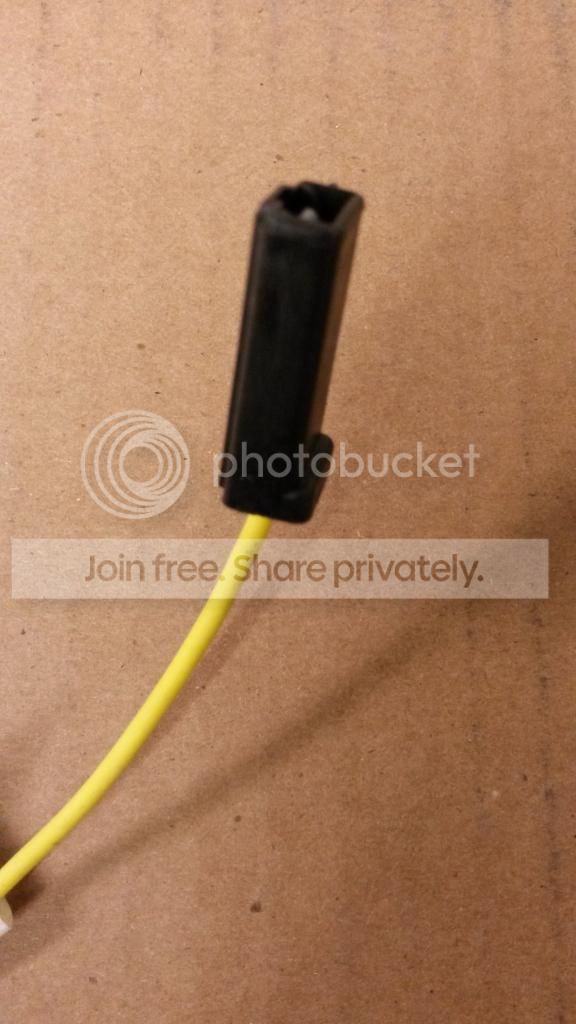

    1) solid yellow wire
    A) starter relay
    B) to the "I" on starter relay

    (pic71)
    [​IMG]

    1) 2 solid black wires
    A) harness ground
    B) on radiator core support

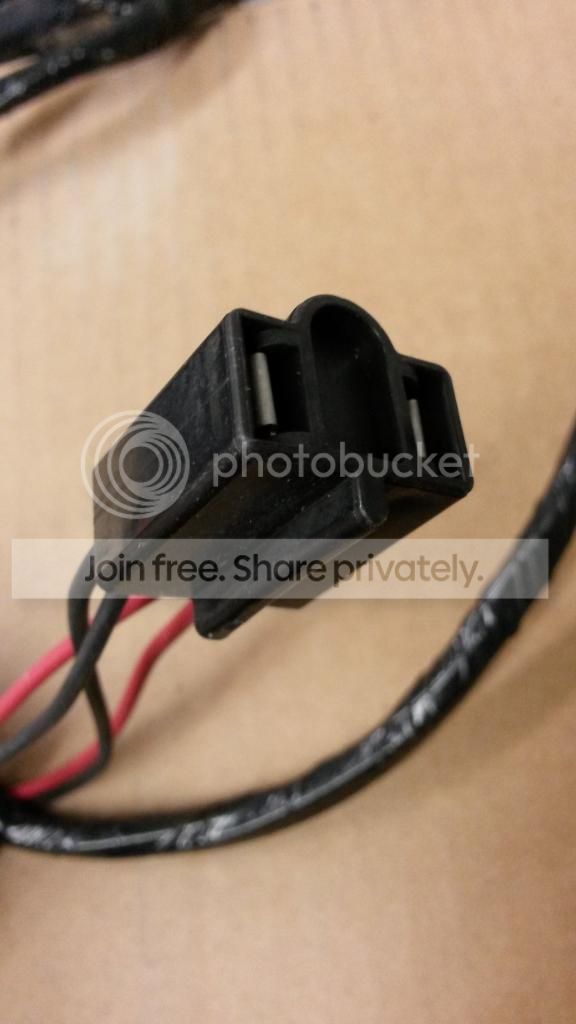

    (pic72)
    [​IMG]

    1) 2 solid red wires, 2 solid black wires
    A) left high beam lamp
    B) inside lamp front grill, driver's side

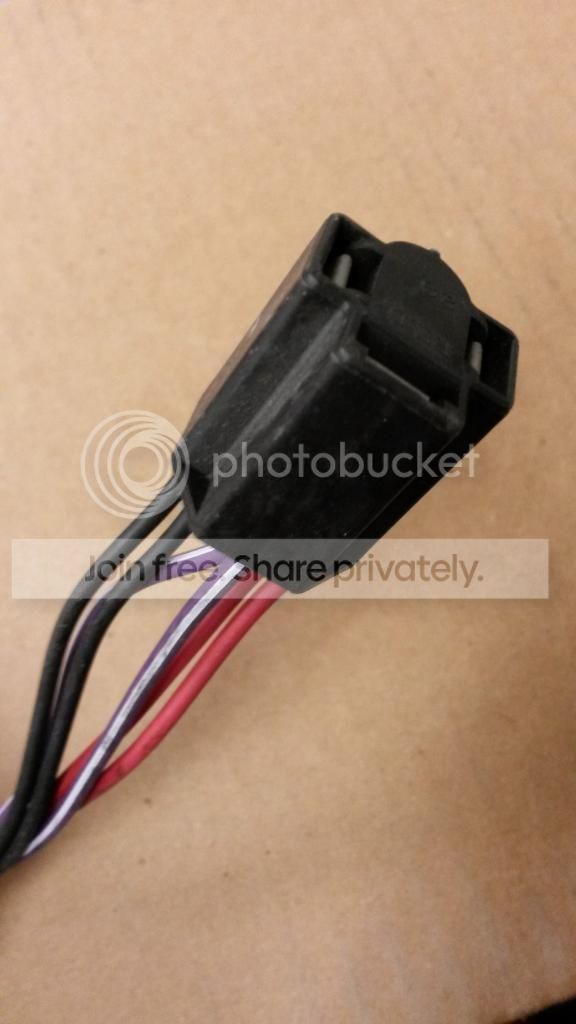

    (pic73)
    [​IMG]

    1) 2 solid red wires, 2 violet wires with white stripe, 2 solid black wires
    A) left low beam lamp
    B) outside lamp front grill, driver's side

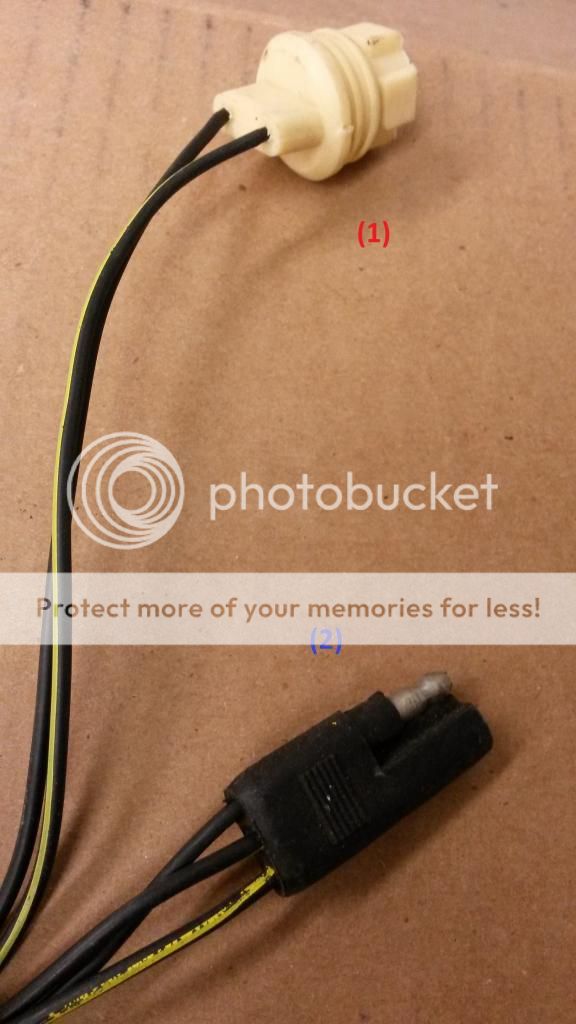

    (pic 74)
    [​IMG]

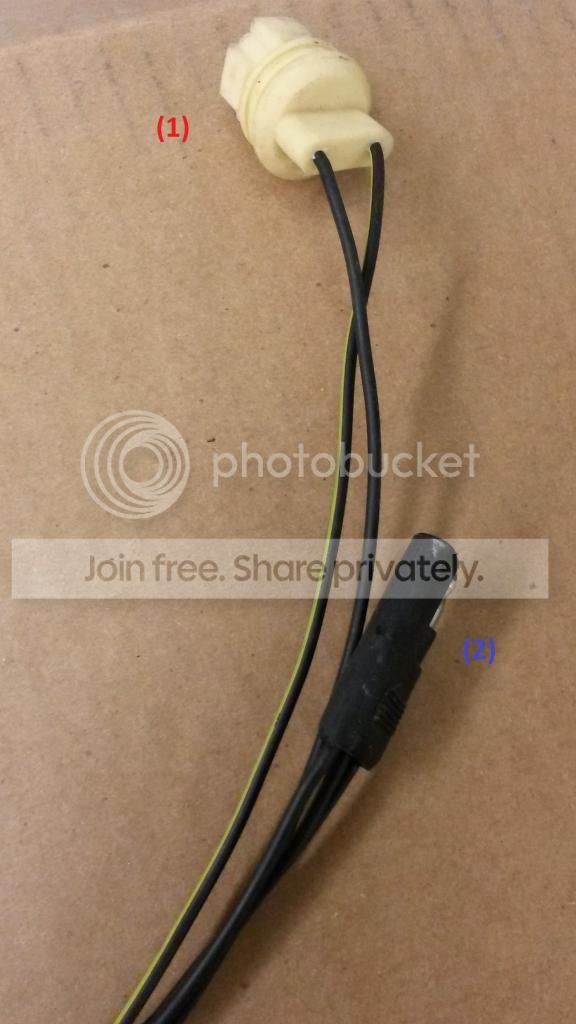

    1) solid black wire, black wire with yellow stripe
    A) left marker lamp
    B) inside driver's front fender

    2) solid black wire, black wire with yellow stripe, black wire with green stripe
    A) left parking light
    B) front valance driver's side

    (pic75)
    [​IMG]

    1) 2 solid red wires, 2 solid black wires
    A) right high beam lamp
    B) inside lamp, front grill passenger side

    (pic76)
    [​IMG]

    1) solid black wire, solid red wire, violet wire with white stripe
    A) right low beam lamp
    B) outside lamp, front grill passenger side

    (pic77)
    [​IMG]

    1) solid black wire, black wire with yellow stripe,
    A) right marker lamp
    B) inside front passenger fender

    2) solid black wire, black wire with yellow stripe, black wire with a brown stripe
    A) right parking light
    B) front valance passenger side

    Last edited: Jan 22, 2015
    • Like Like x 6
    • Nacho-RT74

      Nacho-RT74 FBBO Gold Member FBBO Gold Member

      Messages:
      3,020
      Likes Received:
      935
      Joined:
      Oct 8, 2012
      Location:
      Caracas, Venezuela
      Local Time:
      3:26 PM
      ok, so long that it took to open two browser windows to type in one and check pics one by one in another without miss a beat LOL

      Pic 3.
      WHATEVER ACCESORY ON CAR... rear deffog, powered trunk latch, A/C clutch source ( pic 49 )...

      Pic 11. (1)
      Harness gets an extra pigtail to reach the buzzer mounted on dash frame between glovebox and ashtray. Buzzer gets a plug like the blinker flashers ones

      Pic 24
      Thats a 71 setup... the one piece plug to wiper switch began on 72, when wiper switches were smaller. Same wires though on diff prongs disposition

      Pic 25
      the wire "left alone" on underdash harness is the same for A/C or Heater setup. Just need to be inserted on the propper Heater o A/C Harness ( pic 49-2 ). This wire feeds the blower on both setups

      Pic 26
      light for Heater-A/C control face... plugs into a small pigtail harness for it using dual bulb on 71/72 correctly shown on 26 A

      Pic 27
      lights source for accesories switch under the dash... Air Ram, Rear Deffog, whatever switch down the dash driver side. CONSOLE LIGHTS GETS THE SOURCE FROM THERE, with a LOOONG WIRE reaching the passenger side kick area, then another wire from there up to shifter.

      pic 28-1
      Straights to emergency brake switch

      pic 28-2
      delay relay gets an extra harness for that plug

      pic 30
      actually the underdash frame gets a J nut attached around the emergency brake area. Thats a ground source for the harness.

      Pic 31-1
      rear body harness to rear lights... shown on pic 34... yes some colors won't match... its on that way from factory. white with black trace becomes in violet for example... some other changes too.


      Pic 42
      just an opinion... what a POS made... wrong colors


      Pic 51...
      just on 71 they used cavities left empty on NSS switch harness. 72/73 where shared between engine harness an NSS harness, using the green ( blower ) on NSS harness plug and Blue ( clucth ) on engine harness. 74s got a separatelly grommet for that on firewall due the lack of cavities left

      Pic 61-2
      TACHOMETER WIRE... negative lead of coil...the tach harness can use this cavity on back oh bulkhead ( number 20 ) instead use the grommet on harness to go through firewall

      Pic 71
      on radiator core support

      - - - Updated - - -

      about your note number two.

      What you found on the M&H harness is what 71 diagrams on FSM shows ilustrated

      - - - Updated - - -

      BIG NOTE TO NOTE!!!

      on your pics 13 and 14... you show two spade terminals ( both labeled 3 ) one is solid black and one black traced white AND BOTH says cluster ground. NO.

      Soild black wire is POSITIVE source for voltage limiter... plugs straight to voltage limiter double prong

      Black traced white which is a wider terminal... plugs into the voltage limiter chassis prong... is correctly a ground

      - - - Updated - - -

      Pic 37-1
      To a single wire with a grommet through firewall when car is manual transmision

      Pic 37-2
      to Starter relay "G" prong ( when auto, this prong on relay gets the source from NSS tranny harness )

      • Like Like x 1
      • dangina

        dangina Well-Known Member

        Messages:
        643
        Likes Received:
        152
        Joined:
        Aug 17, 2010
        Location:
        lethbridge
        Local Time:
        12:26 PM
        THANK YOU!!!!! I APPRECIATE THE HELP!!! I have a couple questions for you about a couple answers marked in red



      • Xp29h

        Xp29h FBBO Gold Member FBBO Gold Member

        Messages:
        4,170
        Likes Received:
        3688
        Joined:
        Aug 9, 2013
        Location:
        Maine
        Local Time:
        2:26 PM
        Wow! Very nice! That will help some folks out I'm sure!

      • PappyJoe

        PappyJoe Well-Known Member

        Messages:
        199
        Likes Received:
        63
        Joined:
        Jul 20, 2014
        Location:
        Azle Tx
        Local Time:
        1:26 PM
        Very nice! Thanks! Following this info for sure!

      • Nacho-RT74

        Nacho-RT74 FBBO Gold Member FBBO Gold Member

        Messages:
        3,020
        Likes Received:
        935
        Joined:
        Oct 8, 2012
        Location:
        Caracas, Venezuela
        Local Time:
        3:26 PM
        Pic 3.
        WHATEVER ACCESORY ON CAR... rear deffog, powered trunk latch, A/C clutch source ( pic 49 )...

        M&H emailed me back about this and that was their answer, so it can be used for more than one option?

        yes, you could get in fact those feeds full in 71, a bit less in 72. 73/74s got less accesories options and they got just one mold instead two on Harness. All extra stuff to be plugged on those molds USUALLY match the color of the molds on harness. You can see it on the A/C clutch feed of the pic 50 ( correcting my notes, is not 49 like I mentioned is the plug on pic 50 ), male is molded in yellow same as the harness mold... its a 20 amps fused source BTW

        Pic 25
        the wire "left alone" on underdash harness is the same for A/C or Heater setup. Just need to be inserted on the propper Heater o A/C Harness ( pic 49-2 ). This wire feeds the blower on both setups

        The M&H harness just had the black wire with white tracer and I inserted it into my old 71 heater harness, was that the right thing to do? Or should I just use the new AC/heater harness instead even though i don't have AC?

        You did it right... heater and A/C harnesses are separated from the underdash and just linked ( according with your car equippment ) with Underdash harness there to switch input and on bulkhead for blower source green wire ( and blue wire clutch if AC ). If you had A/C must use the empty cavity on the A/C harness ( pic 49-2 ) to insert there the black traced wire left alone on Underdash harness, just like you did with Heater harness

        Pic 27
        lights source for accesories switch under the dash... Air Ram, Rear Deffog, whatever switch down the dash driver side. CONSOLE LIGHTS GETS THE SOURCE FROM THERE, with a LOOONG WIRE reaching the passenger side kick area, then another wire from there up to shifter.

        is that what the long orange one is for (pic27#3) do you mean center console or glove box ? This wire is from my old harness

        Orange circuit is for cluster dimmed sources, Batt source ( glove box light ) is pink circuit. Center console is the one I meant which dims out the same than cluster, and also radio faceplate ( hence the orange wire arriving to Radio )

        pic 28-2
        delay relay gets an extra harness for that plug

        Was this an option?

        Yes, separated and weird to find option on B bodies, more common on C bodies


        Pic 51...
        just on 71 they used cavities left empty on NSS switch harness. 72/73 where shared between engine harness an NSS harness, using the green ( blower ) on NSS harness plug and Blue ( clucth ) on engine harness. 74s got a separatelly grommet for that on firewall due the lack of cavities left

        since mine is a 71, should these be taped off if one were not using them?


        As far I have read, Your car is heater... won't use the A/C harness, you can sell it or send it back, if posible

        Pic 61-2
        TACHOMETER WIRE... negative lead of coil...the tach harness can use this cavity on back oh bulkhead ( number 20 ) instead use the grommet on harness to go through firewall

        NO question here, just thought this was the best idea I have read on here to do this conversion!!!!!

        yeah, well you can just cut the Tach harness/wire just right before the grommet coming with it, attach an spade terminal on it and insert it on bulkhead matching that gray traced black wire. Its visible on plug, on one of the corners.


        about your note number two.

        What you found on the M&H harness is what 71 diagrams on FSM shows ilustrated

        curious about how would it work this way if their switched on the plug in harness?


        They who ? Factory or M&H ? LOL... you meant the underdash harness they make/sent what doesn't match their own engine bay harnesses LOL ?

        BIG NOTE TO NOTE!!!

        Black traced white which is a wider terminal... plugs into the voltage limiter chassis prong... is correctly a ground

        The answer I have is again what M&H gave me. Its the prong on the side, not the ones on the back right?

        OK full exposition of the deal:

        voltage limiter have three prongs on bakelite face ( dunno if call it front or back LOL, because on standard cluster they are used backwards LOL )... two of them are actually an U shaped sheet. These two get the POSITIVE SOURCE from harness and the condenser noise supressor which is attached with a phillips screw on back of cluster.. 3rd prong is the 5 volts output for gauges... it gets a small pigtail which sources all gauges on black wire.

        the black traced wire SHOULD be a wider terminal to be plugged on the prong ( and bracket at the same time ) welded to voltage limiter "back case". This is made intentionally to NOT BE ABLE TO ATTACH by mistake the positive wire from harness on it ( would get a short as soon you put the key in RUN or ACC with this connected wrong ), since the prong on limiter case is also wider, matching the ground source plug

        • Like Like x 1
        • dangina

          dangina Well-Known Member

          Messages:
          643
          Likes Received:
          152
          Joined:
          Aug 17, 2010
          Location:
          lethbridge
          Local Time:
          12:26 PM
          Thanks again NACHO!!! I can't edit my post anymore :( but I did order a NSS harness and will be adding that and all of the rest of the answers to a new post for those who are interested



        • Nacho-RT74

          Nacho-RT74 FBBO Gold Member FBBO Gold Member

          Messages:
          3,020
          Likes Received:
          935
          Joined:
          Oct 8, 2012
          Location:
          Caracas, Venezuela
          Local Time:
          3:26 PM
          is correct, between 71 and 74 several changes were made on wiring location: starter relay, horn, washer, brake pressure fail light were the ones usually moved out... but as far I could tell from the pics you got correctly 71 setup... hard to see every detail though

          • Like Like x 1
          • rs1

            rs1 Well-Known Member

            Messages:
            460
            Likes Received:
            22
            Joined:
            Nov 7, 2011
            Location:
            nj
            Local Time:
            1:26 PM
            what is the wire in pic 4

          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            3,020
            Likes Received:
            935
            Joined:
            Oct 8, 2012
            Location:
            Caracas, Venezuela
            Local Time:
            3:26 PM
            bud, its is mentioned ;)

          • RRSweden

            RRSweden Well-Known Member

            Messages:
            168
            Likes Received:
            19
            Joined:
            Apr 3, 2015
            Location:
            gothenburg
            Local Time:
            1:26 PM
            Thank you for putting effort in this. This will sure help me putting it all together!

          • Adam Nathan

            Adam Nathan Well-Known Member

            Messages:
            335
            Likes Received:
            329
            Joined:
            Mar 13, 2013
            Location:
            London, UK.
            Local Time:
            7:26 PM
            Nicely presented. Made for an interesting read. Thank you.

          • Cmxe58

            Cmxe58 New Member

            Messages:
            2
            Likes Received:
            1
            Joined:
            Aug 18, 2017
            Location:
            Florida
            Local Time:
            1:26 PM
            I'm not able to see ANY of the photos in this post.... I know it's ALOT to ask, but u really need to get a look at then.... Any chance you have the solution or could possibly email them? Needed asap I really appreciate this. First time poster and first time ever joining a forum

          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            3,020
            Likes Received:
            935
            Joined:
            Oct 8, 2012
            Location:
            Caracas, Venezuela
            Local Time:
            3:26 PM
            Blame photobucket and their intend to get $300 extras per every account t be able to host to 3rds websites

          • dangina

            dangina Well-Known Member

            Messages:
            643
            Likes Received:
            152
            Joined:
            Aug 17, 2010
            Location:
            lethbridge
            Local Time:
            12:26 PM
            $399.99 per year they want, its fucking hiway robbery

          • dangina

            dangina Well-Known Member

            Messages:
            643
            Likes Received:
            152
            Joined:
            Aug 17, 2010
            Location:
            lethbridge
            Local Time:
            12:26 PM
            I apologize I haven't had the time to convert or move my pic files to another photo hosting site, I'm still pissed that they are now charging a ridiculous amount of money to show my threads that span over ten years on different forums...is their any particular pic you need help with, I can try to email them to you...

          • gary h

            gary h Well-Known Member

            Messages:
            213
            Likes Received:
            124
            Joined:
            Aug 30, 2015
            Location:
            USA
            Local Time:
            1:26 PM
            Very Good Info ! Thanks

          • BeepBeepRR

            BeepBeepRR Well-Known Member

            Messages:
            3,473
            Likes Received:
            3529
            Joined:
            Oct 16, 2016
            Location:
            Atlanta,Ga
            Local Time:
            2:26 PM
            I have a question.. Will have to follow up with a picture. I have a plug that comes out of the column it has a 3 pin connector its about 1/2 inch wide. When I was installing the harness I could not find a place for it to plug into the dash harness. I want to say the 3 wires are grey,violet and green. Don't quote me on that Ill get a picture later today and edit this post.

          • fatecaptured

            fatecaptured FBBO Gold Member FBBO Gold Member

            Messages:
            946
            Likes Received:
            176
            Joined:
            Apr 25, 2010
            Location:
            Illinois
            Local Time:
            1:26 PM
            Cornering plug.. It's Not used.

            Last edited: Sep 30, 2019
          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            3,020
            Likes Received:
            935
            Joined:
            Oct 8, 2012
            Location:
            Caracas, Venezuela
            Local Time:
            3:26 PM
            MaMopar began to make somekind universal replacement parts able to fit on several bodies at the same time. Cornering lights are option on Chryslers and Imperials, maybe some Dodge and Plymouth C bodies too? Can’t tell. But the rest of wiring is the same for all bodies, simply won’t use what is not optioned even provisions are there.

          1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
            By continuing to use this site, you are consenting to our use of cookies.
