    Let's see em!! My motor's almost done and I wanna get some ideas of how things are gonna look under there. I ended up going 400/499 with trick flow 240s. Feel free to give a little info on your combo. TIA

    • Like Like x 1
    • ckessel

      ckessel Well-Known Member

      Messages:
      1,330
      Likes Received:
      1109
      Joined:
      Apr 23, 2015
      Location:
      Los Osos Ca.
      Local Time:
      8:35 PM

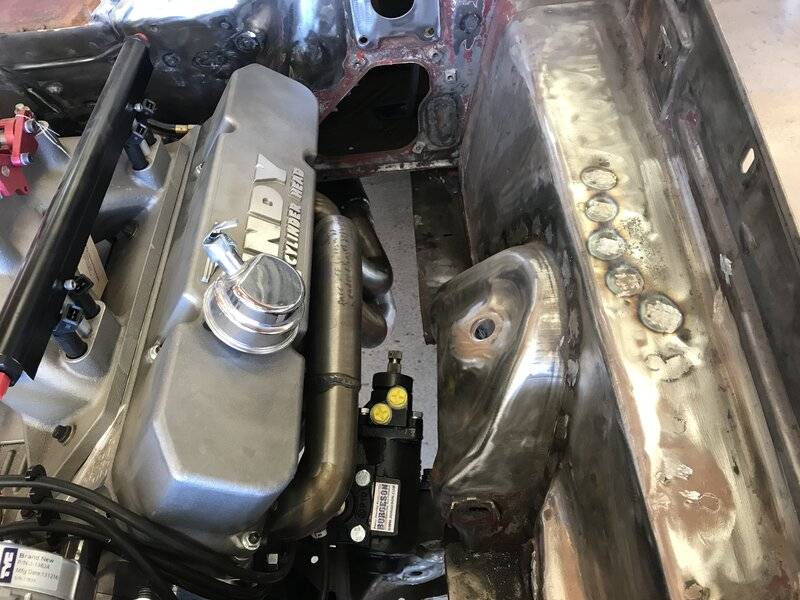

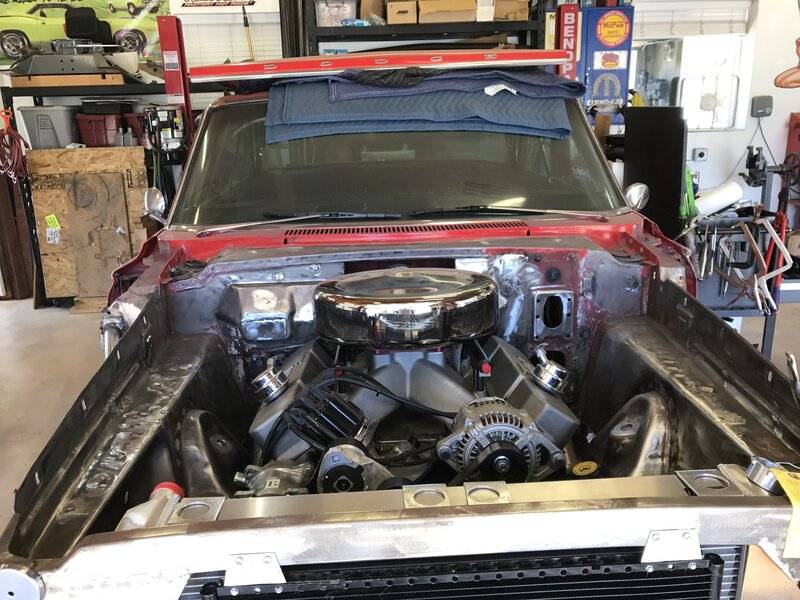

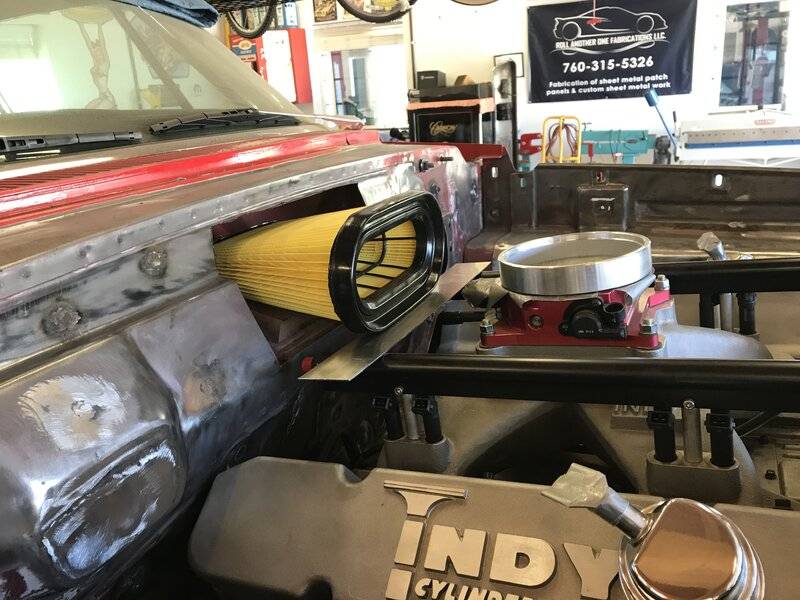

      Here is mine during one of the fitment sessions. I'm checking for header, trans, GV o/d unit clearance. Needed to verify and adjust fitments since I'm using a 70 k-frame. Indy aluminum low deck 500". Sister engine to the one used in the PHR/Mopar Muscle Violent Valiant. Mine is EFI.

      D88759C9-39F9-49F3-9141-F779C874B933.jpeg A5106D42-1F66-4AB9-B8A5-716EAA546973.jpeg 053A4331-83E4-45F4-BF57-E2B14AA9F12B.jpeg 6B393B2A-02BB-4BE5-A053-112CCE97705A.jpeg

      • Like Like x 9
      • 64fury74charger

        64fury74charger Well-Known Member

        Messages:
        242
        Likes Received:
        241
        Joined:
        Feb 7, 2021
        Location:
        Lynnwood WA
        Local Time:
        8:35 PM

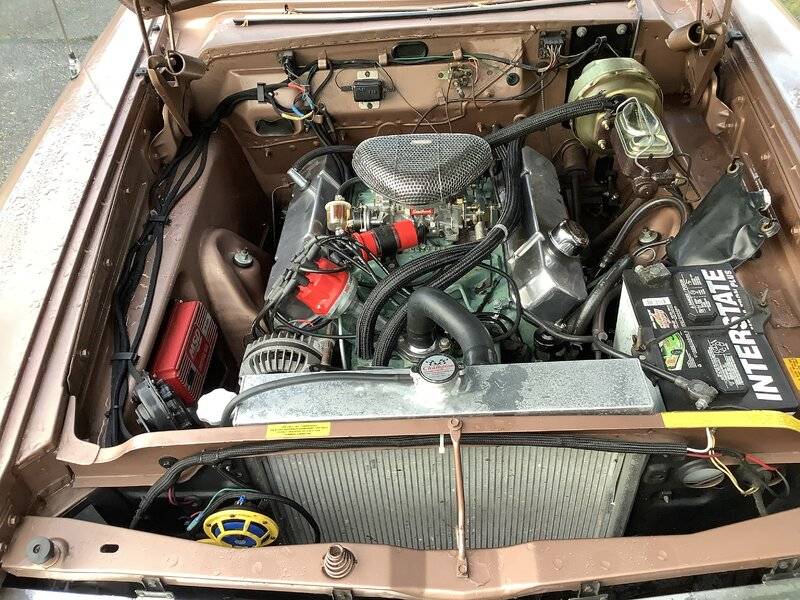

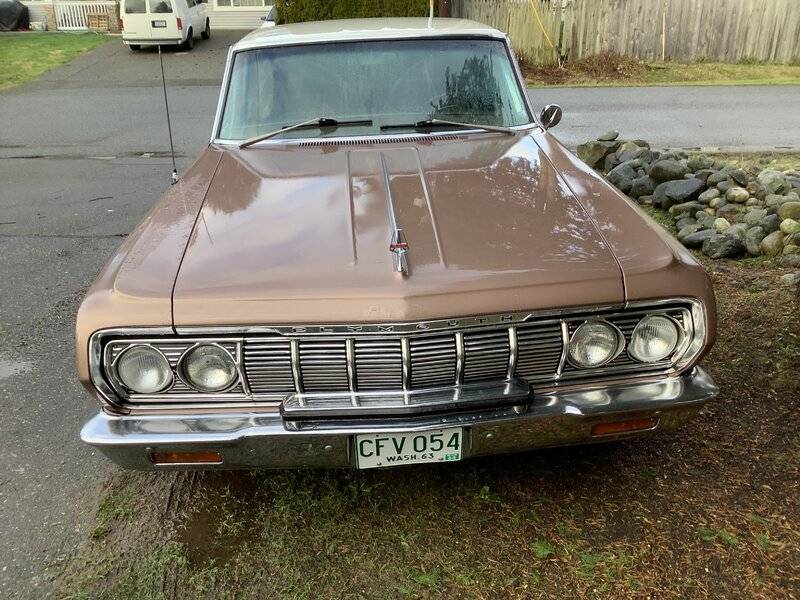

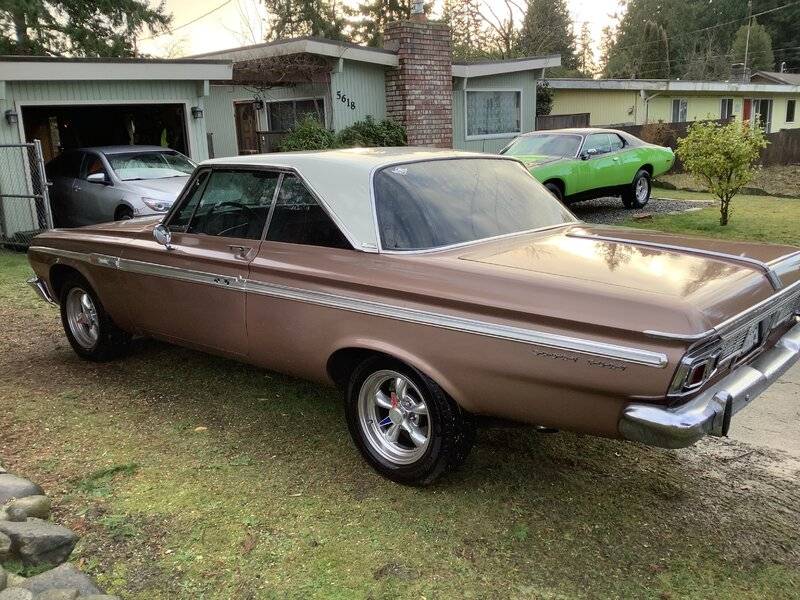

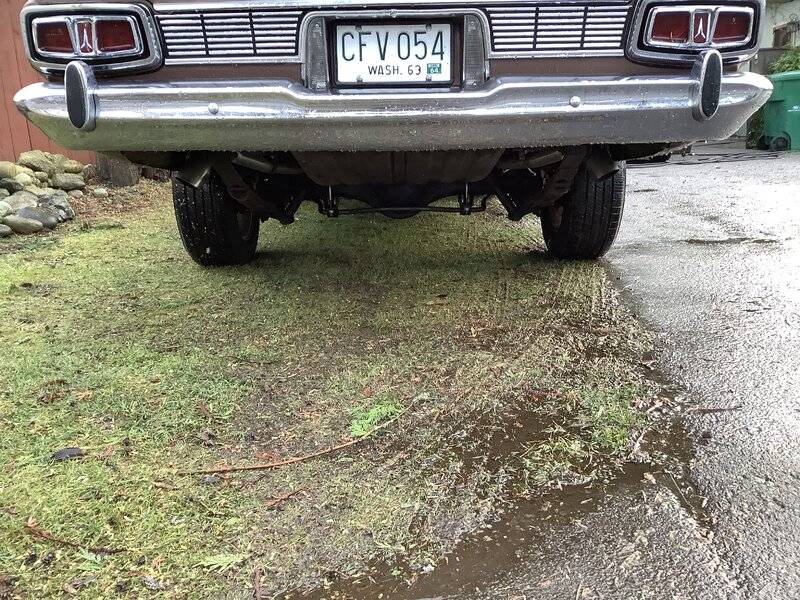

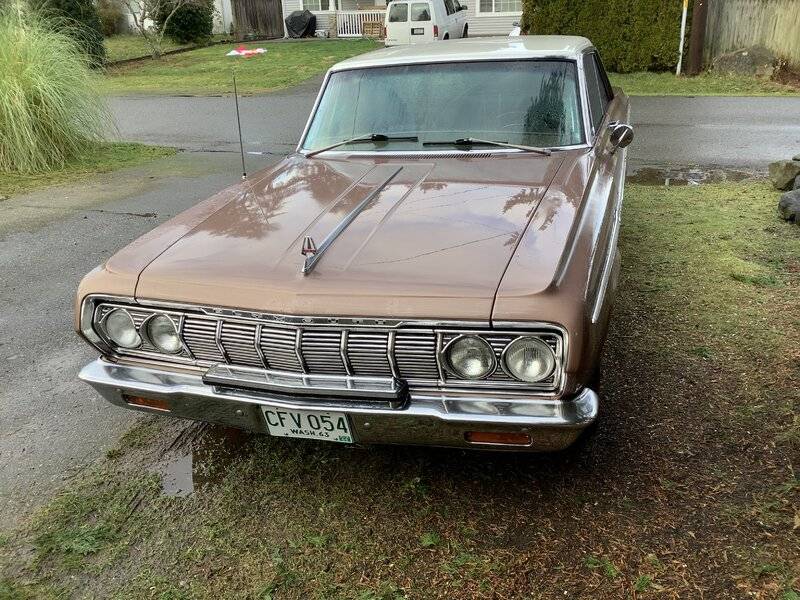

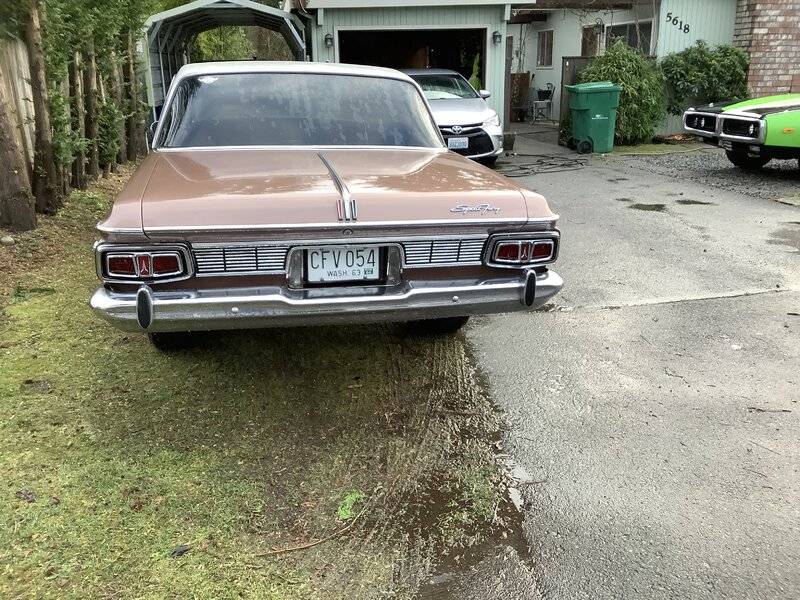

        Louise is just plain FUN. Love the early B body. After all without these cars the Charger and all the other cars may not have come along. :thumbsup: :luvplace:

        :xscuseless:

        7CE6A51A-BDA6-477F-B025-824C106D6320.jpeg B5740EA8-14E9-4AA1-B9DE-5000B81F7071.jpeg 68D45F73-F0A0-4044-9322-7B0FB087F335.jpeg A759AF8B-6291-4DDB-9408-634E8DE52778.jpeg D96C3493-0827-4911-97C2-5E70950E0A25.jpeg BEF38574-B85F-44DD-97FD-6779C805B063.jpeg 646AAEE2-8560-4202-B74C-BA3A68224267.jpeg ABB56426-A6FE-43F6-9432-90876DB9084B.jpeg 0E4B16E9-EA29-4467-B571-B5704AEFDB52.jpeg

        • Like Like x 9
        • PRND21

          PRND21 FBBO Gold Member FBBO Gold Member

          Messages:
          3,352
          Likes Received:
          5414
          Joined:
          Aug 16, 2016
          Location:
          Central Indiana
          Local Time:
          11:35 PM

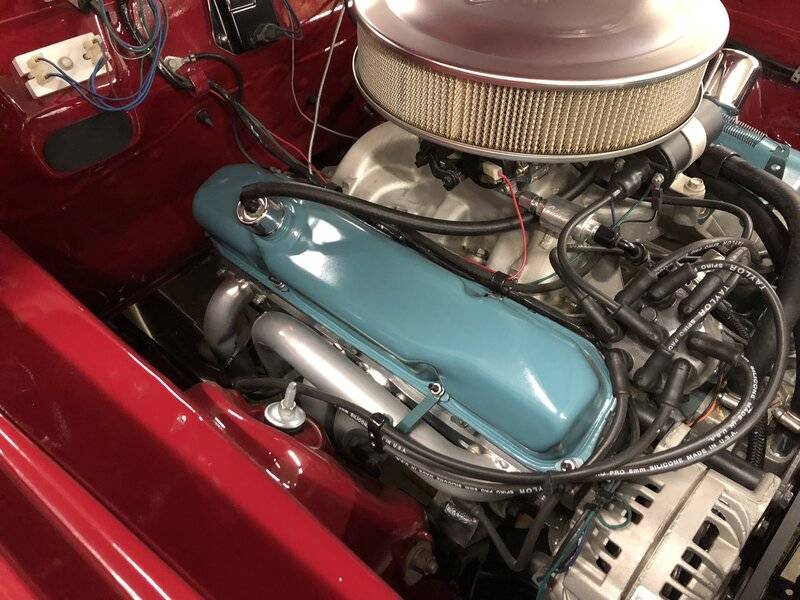

          .030 over 383, 3.9” stroke Eagle crank, J&E 10:1 pistons, Comp XE274 cam, Edelbrock heads, performer rpm, 800 cfm, TTI headers and exhaust, Tremec TKO600, 65 Belvedere 1.

          158D1332-85A4-4747-8ABA-7E8A22F96B85.jpeg 54FC55E7-5F75-40EF-9744-05B5B49BB7D5.jpeg

          • Like Like x 19
          • jamie

            jamie Well-Known Member

            Messages:
            572
            Likes Received:
            654
            Joined:
            Aug 27, 2015
            Location:
            wisc
            Local Time:
            10:35 PM

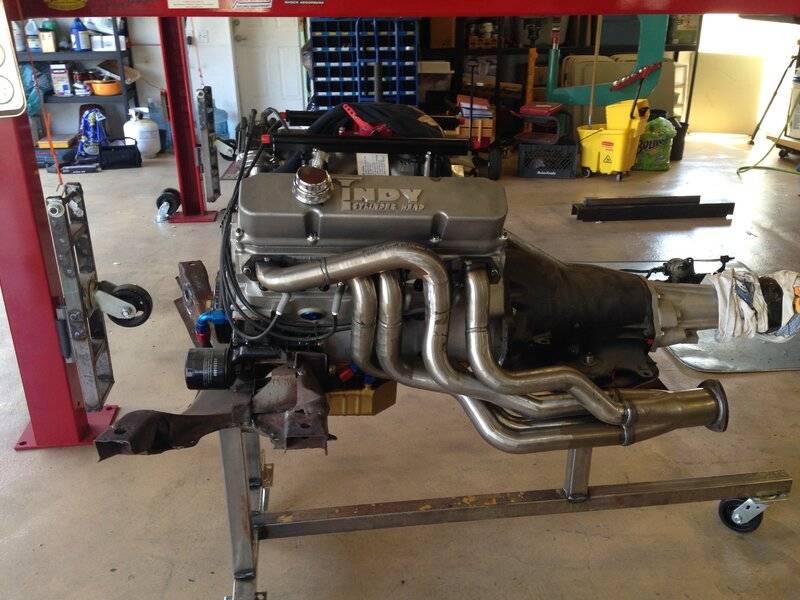

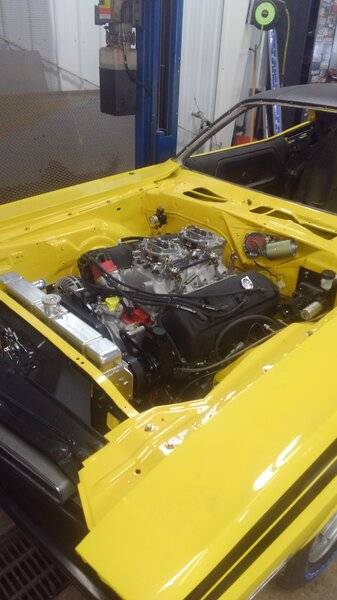

            Sorry this ones not in a b body but.... 572 makes a very tame 750hp.


            • Like Like x 8
            • FU64RY

              FU64RY Well-Known Member

              Messages:
              2,492
              Likes Received:
              2034
              Joined:
              Nov 5, 2011
              Location:
              York Pa.
              Local Time:
              11:35 PM
              Where did you source the plug wire stand offs?

              • Like Like x 1
              • Agree Agree x 1
              • Darter6

                Darter6 FBBO Gold Member FBBO Gold Member

                Messages:
                4,647
                Likes Received:
                5036
                Joined:
                Dec 29, 2009
                Location:
                Nevada
                Local Time:
                10:35 PM
                64 Fury 451,looks like a factory 383.

                • Like Like x 13
                • Darter6

                  Darter6 FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,647
                  Likes Received:
                  5036
                  Joined:
                  Dec 29, 2009
                  Location:
                  Nevada
                  Local Time:
                  10:35 PM
                  64 Savoy. Slant 6 to Hemi conversion.
                  Copy of savoy5.jpg

                  • Like Like x 20
                  • 383man

                    383man Well-Known Member

                    Messages:
                    4,629
                    Likes Received:
                    3461
                    Joined:
                    Jul 19, 2008
                    Location:
                    Md
                    Local Time:
                    10:35 PM
                    I lost my pic host so I cant post pics right now. But you can click the link in my sig at the 62 to 65 Mopar site as it has my first 440 build and the 493 build in my 63 now. Good luck with yours , Ron

                    • Like Like x 4
                    • PRND21

                      PRND21 FBBO Gold Member FBBO Gold Member

                      Messages:
                      3,352
                      Likes Received:
                      5414
                      Joined:
                      Aug 16, 2016
                      Location:
                      Central Indiana
                      Local Time:
                      11:35 PM
                      The separators are just cheap plastic from Summit, maybe #SUM-440313, I can’t remember. The brackets I cut out of sheet stock held together with button head machine screws.

                      • Like Like x 2
                      • Centerline

                        Centerline Well-Known Member

                        Messages:
                        498
                        Likes Received:
                        766
                        Joined:
                        Jan 17, 2009
                        Location:
                        South Central TEXAS
                        Local Time:
                        10:35 PM

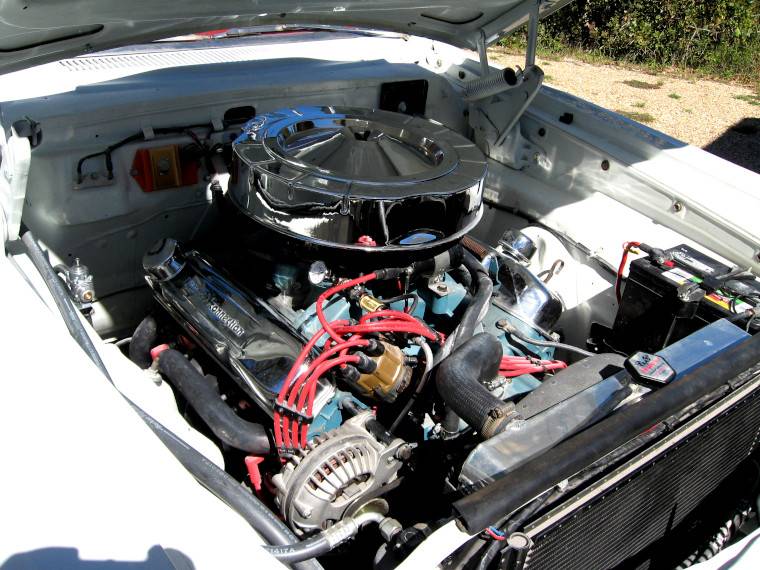

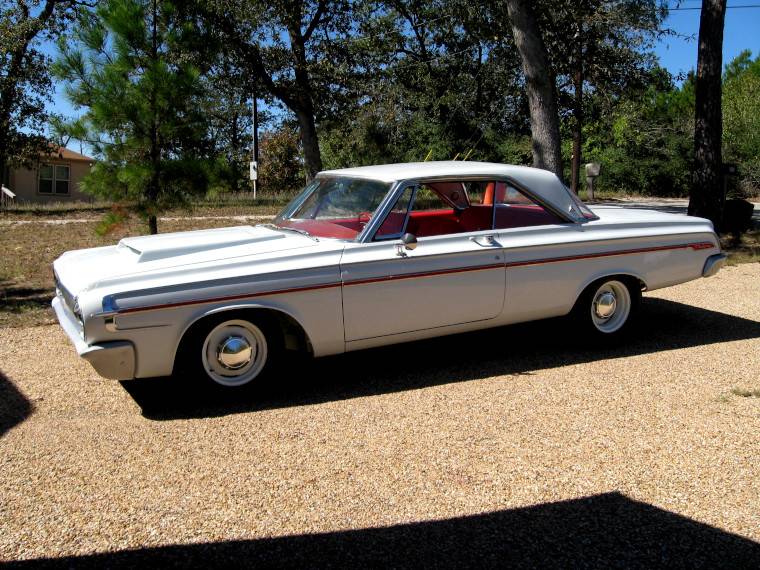

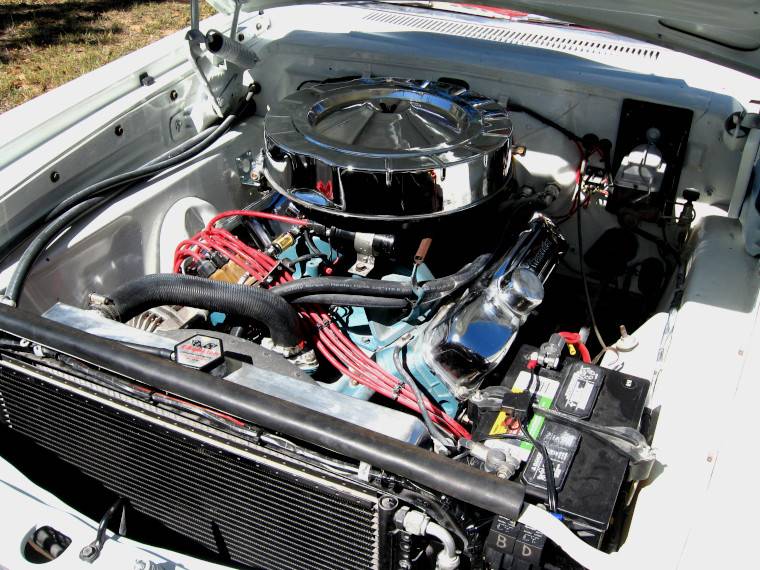

                        Here's my '64 Polara. 440cu. in. AC no pwr steering. IMG_6682a.JPG



                        IMG_6681a.JPG 40

                        • Like Like x 13
                        • Badvert65

                          Badvert65 Well-Known Member

                          Messages:
                          958
                          Likes Received:
                          667
                          Joined:
                          Oct 11, 2013
                          Location:
                          Brightwood, Virginia
                          Local Time:
                          11:35 PM
                          65 Belvedere I post car. 'Stock' engine in the race car. Still a work in progress.


                          Last edited: Feb 17, 2021
                          • Like Like x 16
                          • dartforforty

                            dartforforty Well-Known Member

                            Messages:
                            1,552
                            Likes Received:
                            575
                            Joined:
                            Sep 18, 2009
                            Location:
                            south jersey
                            Local Time:
                            11:35 PM

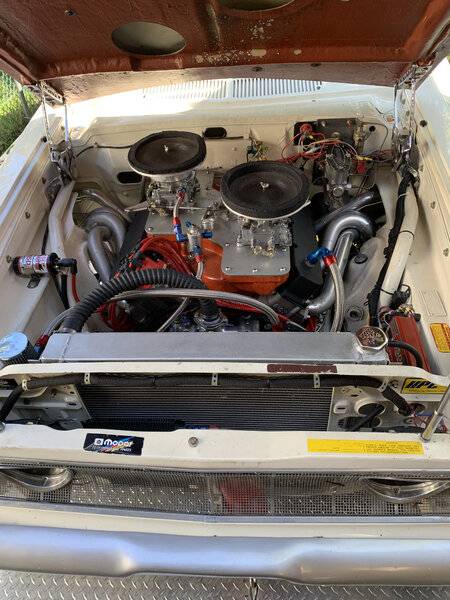

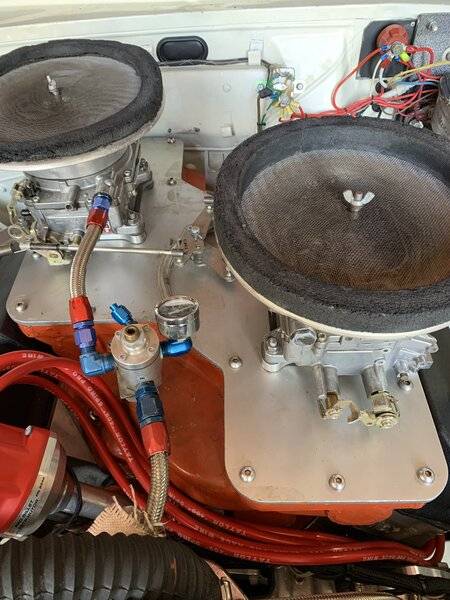

                            My 62 Savoy. Engine is shot. Still looks good from up top though.

                            9AE024B1-1995-4F02-B482-A5F66DF4B6CE.jpeg B1FCF534-82D5-4860-AC46-352D7197AEE3.jpeg

                            • Like Like x 14
                            • ksurfer2

                              ksurfer2 Well-Known Member

                              Messages:
                              576
                              Likes Received:
                              753
                              Joined:
                              Oct 5, 2017
                              Location:
                              Tampa, FL
                              Local Time:
                              11:35 PM

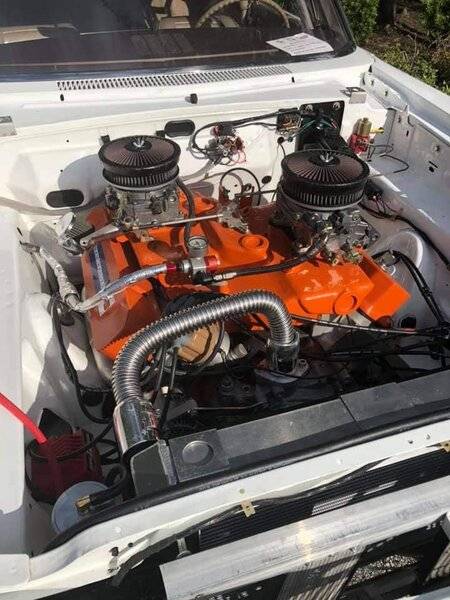

                              motor 2.jpg

                              • Like Like x 13
                              • wagonwedge330

                                wagonwedge330 Well-Known Member

                                Messages:
                                170
                                Likes Received:
                                118
                                Joined:
                                Sep 12, 2016
                                Location:
                                NW Georgia
                                Local Time:
                                11:35 PM

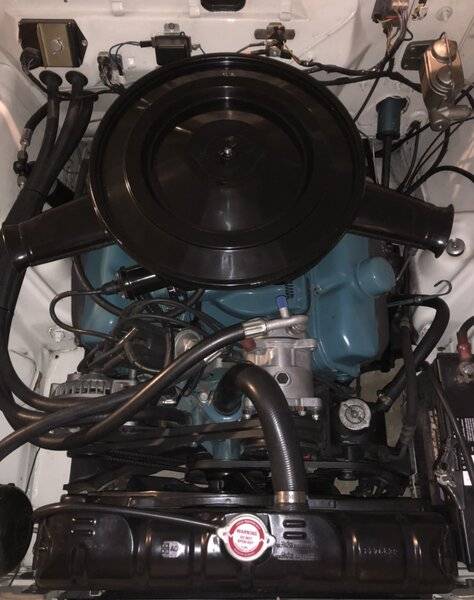

                                64DA527A-5409-408C-A2F3-A1B1B0FACF32.jpeg I really enjoy seeing photos of everyone’s rides, some of the nicest early B bodies I’ve seen are right here on FBBO. I thought I’d join the party and post a couple pics under the hood of my ‘63 Polara. A local machine shop owner and MoPar guru built this reliable 400 bb, it runs on pump gas, but no slouch. An emphasis on a factory look was in mind but turned out more combination of factory, comfort, reliability, still a working out some issues, it’s a work in progress!

                                Last edited: Feb 18, 2021
                                • Like Like x 13
                                • eric383

                                  eric383 Well-Known Member

                                  Messages:
                                  3,669
                                  Likes Received:
                                  1244
                                  Joined:
                                  Feb 28, 2011
                                  Location:
                                  S.E. Wisconsin
                                  Local Time:
                                  10:35 PM
                                  Here’s my 63 Dodge. 440 with 516 heads and purple shaft cam around 484 lift. Budget build. C6FE410C-34E3-4755-834A-F9875DA998D2.png

                                  • Like Like x 12
                                  • Darter6

                                    Darter6 FBBO Gold Member FBBO Gold Member

                                    Messages:
                                    4,647
                                    Likes Received:
                                    5036
                                    Joined:
                                    Dec 29, 2009
                                    Location:
                                    Nevada
                                    Local Time:
                                    10:35 PM
                                    wagonwedge330, Do you know what Mopar that air cleaner came from ?
                                    I have one without the hot air tube, with a single snorkel but never saw one with dual snorkels.I know about dual snorkels on the ones from the 60's but that looks 70's.

                                  • 6PKRTSE

                                    6PKRTSE Well-Known Member

                                    Messages:
                                    1,918
                                    Likes Received:
                                    2732
                                    Joined:
                                    Nov 15, 2010
                                    Location:
                                    Motor City
                                    Local Time:
                                    10:35 PM

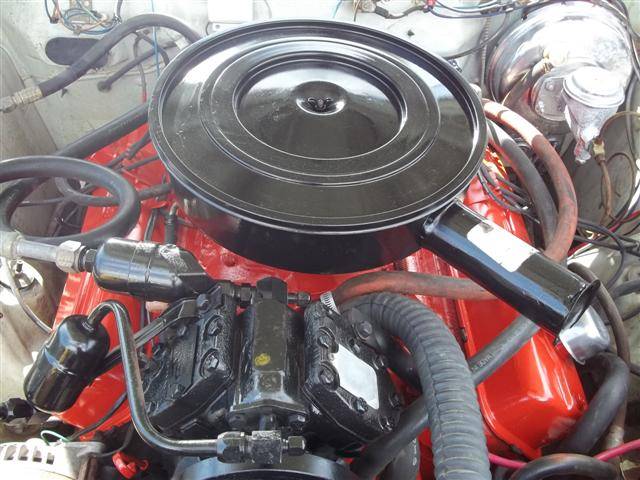

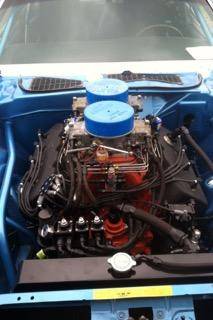

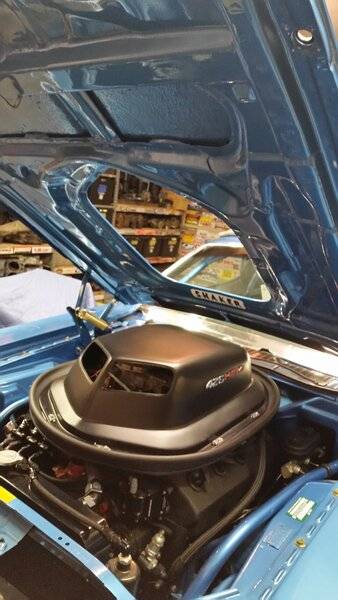

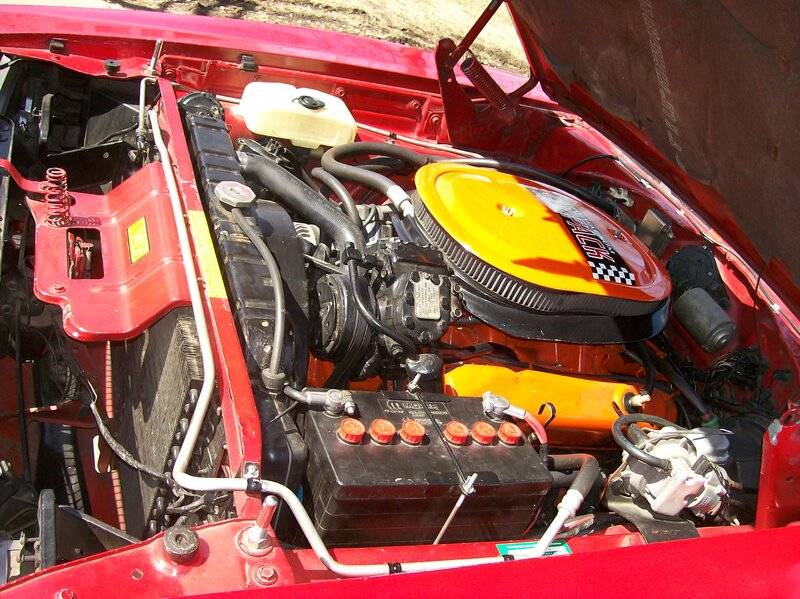

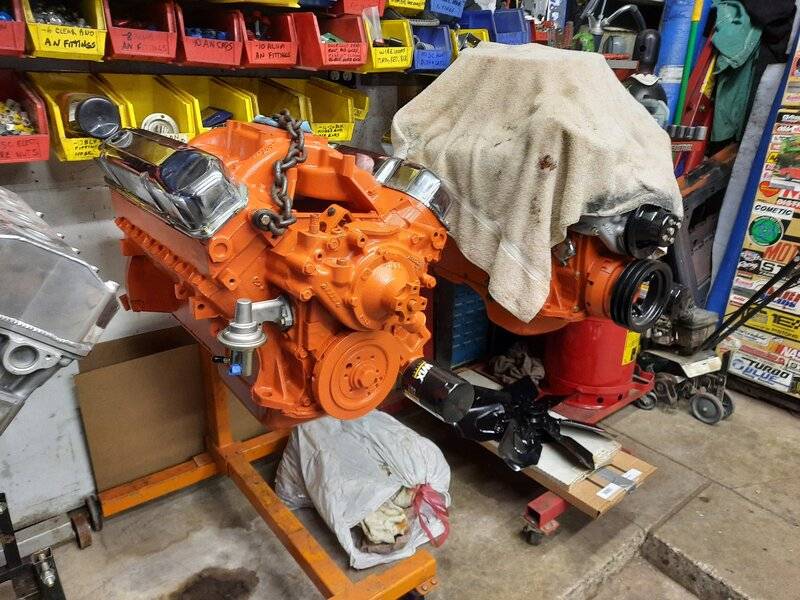

                                    I have never liked the raw aluminum look or chrome everywhere. So, all of mine get the stock look. But yet race at the same time on some engines.

                                    IMG9539321.jpg 20200426_224158.jpg 100_1698.jpg 20201011_185148.jpg

                                    Last edited: Feb 18, 2021
                                    • Like Like x 9
                                    • OrthmannJ

                                      OrthmannJ Well-Known Member

                                      Messages:
                                      133
                                      Likes Received:
                                      118
                                      Joined:
                                      Mar 24, 2020
                                      Location:
                                      Yakima, Washington
                                      Local Time:
                                      8:35 PM
                                      This was from a few years ago. Bone stock 318 poly. In order to qualify for collector car insurance I had to do a little "aerosol overhaul" on the engine compartment. I pulled the valve covers and sand blasted them then repainted them, the intake and the air cleaner housing. Then I cleaned everything up. Turned out pretty nice.


                                      This was also before the disc brake upgrade and the new dual reservoir master cylinder.
