Updating my master cylinder

1962 - 1965 Mopars

  1. Red63440

    Red63440 FBBO Gold Member FBBO Gold Member

    Messages:
    2,949
    Likes Received:
    1665
    Joined:
    Feb 5, 2011
    Location:
    NY
    Local Time:
    5:06 PM
    64 Fury with power drum front and rear with a single master cylinder. What are you guys using when you update your master to a dual master cylinder?

  2. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    10,446
    Likes Received:
    10223
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    5:06 PM
  3. Red63440

    Red63440 FBBO Gold Member FBBO Gold Member

    Messages:
    2,949
    Likes Received:
    1665
    Joined:
    Feb 5, 2011
    Location:
    NY
    Local Time:
    5:06 PM
  4. khryslerkid

    khryslerkid FBBO Gold Member FBBO Gold Member

    Messages:
    24,388
    Likes Received:
    38206
    Joined:
    Mar 10, 2010
    Location:
    Hanover, Pennslyvania
    Local Time:
    5:06 PM
    • Like Like x 2
    • Red63440

      Red63440 FBBO Gold Member FBBO Gold Member

      Messages:
      2,949
      Likes Received:
      1665
      Joined:
      Feb 5, 2011
      Location:
      NY
      Local Time:
      5:06 PM
      Kid, can that mc be used with a power brake booster? I was just going to buy the pre-bent lines with the new block.

      Last edited: Jul 26, 2021
    • khryslerkid

      khryslerkid FBBO Gold Member FBBO Gold Member

      Messages:
      24,388
      Likes Received:
      38206
      Joined:
      Mar 10, 2010
      Location:
      Hanover, Pennslyvania
      Local Time:
      5:06 PM

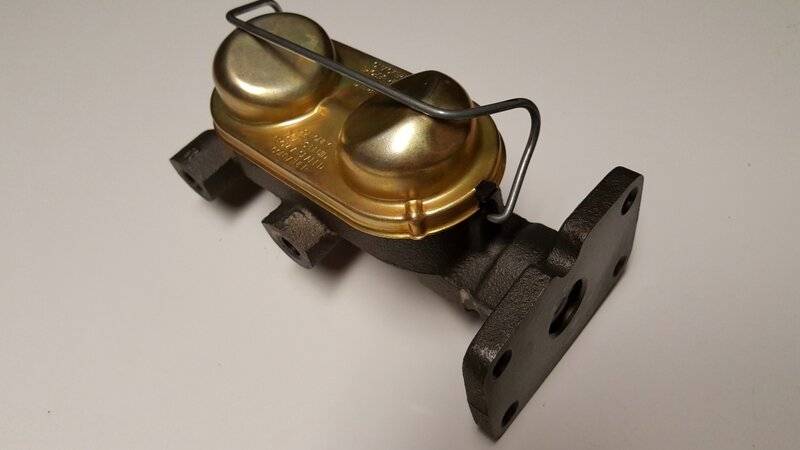

      I don't know. Probably not. I believe it was for a 70's E body non power/ four drum. I bought it because it was a 15/16" bore. Supposedly more pressure than a 1" bore. It will have a little more pedal travel than a 1" but It works fine. I find that a lot of the '70s B and E body brake parts work.

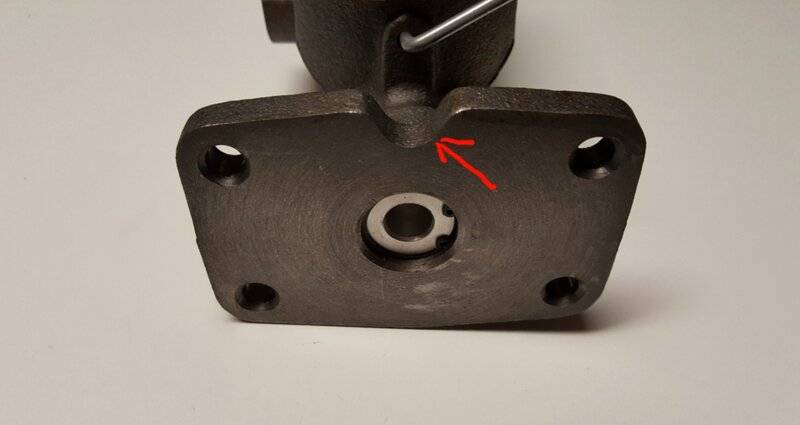

      That little divit needs a dab of gasket maker to fill the hole it leaves in the mounting plate.

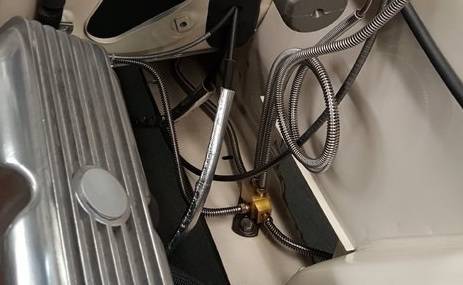

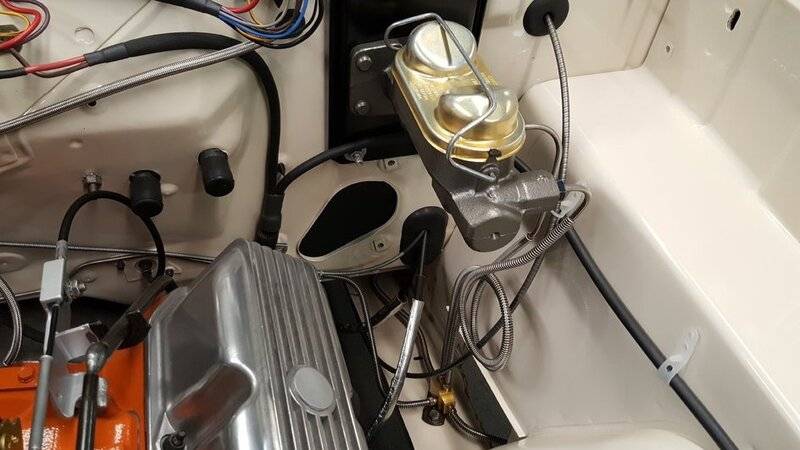

      In my last post you can see in my build thread that I reused the studs and spring holder from the original single master.

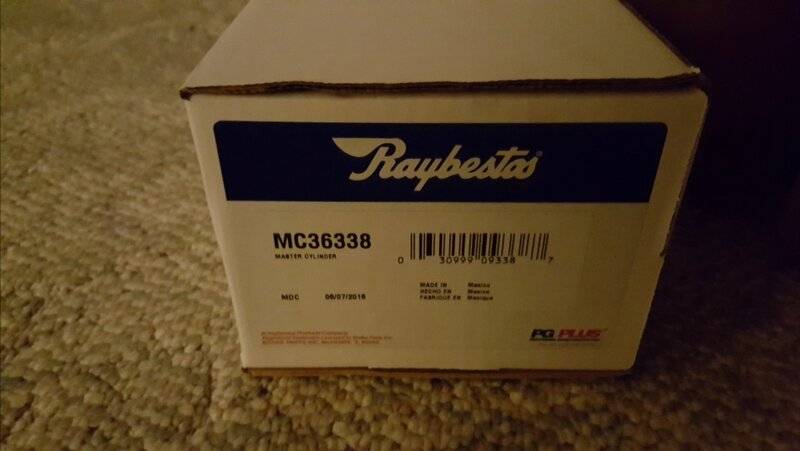

      Look up this part number and see if it's compatible with a booster. If not look up a '70s E or B body with booster. I've seen a lot using the MC with the bolt in the middle of the lid also.

    • Don Frelier

      Don Frelier FBBO Gold Member FBBO Gold Member

      Messages:
      4,520
      Likes Received:
      5442
      Joined:
      Oct 11, 2016
      Location:
      Ionia, NY
      Local Time:
      5:06 PM

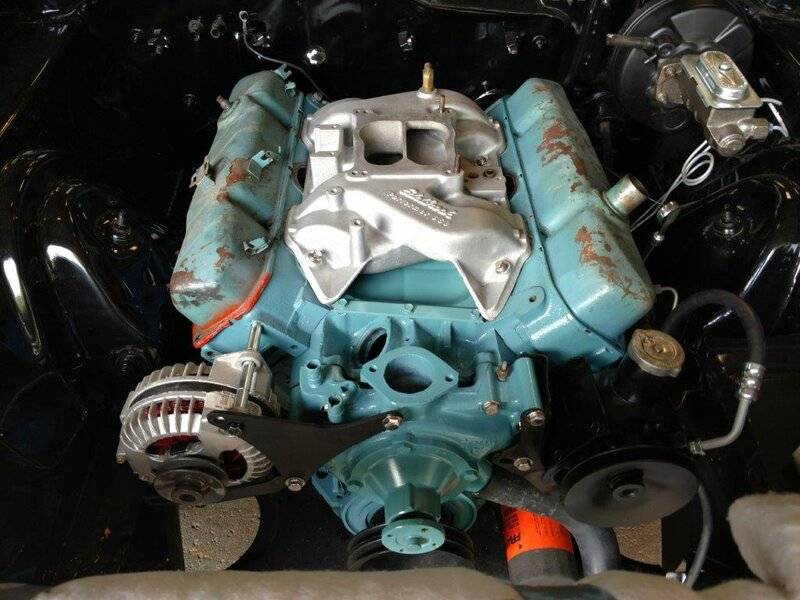

      I have one in a box that i used for a couple years on my Plymouth.
      You can have it see picture below

      . IMG_20170917_170947380.jpg

    • Red63440

      Red63440 FBBO Gold Member FBBO Gold Member

      Messages:
      2,949
      Likes Received:
      1665
      Joined:
      Feb 5, 2011
      Location:
      NY
      Local Time:
      5:06 PM
      Why did you remove it?

    • Don Frelier

      Don Frelier FBBO Gold Member FBBO Gold Member

      Messages:
      4,520
      Likes Received:
      5442
      Joined:
      Oct 11, 2016
      Location:
      Ionia, NY
      Local Time:
      5:06 PM
      I did a front disc conversion last spring
