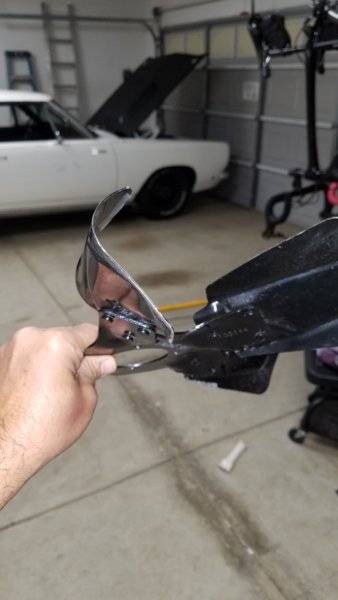

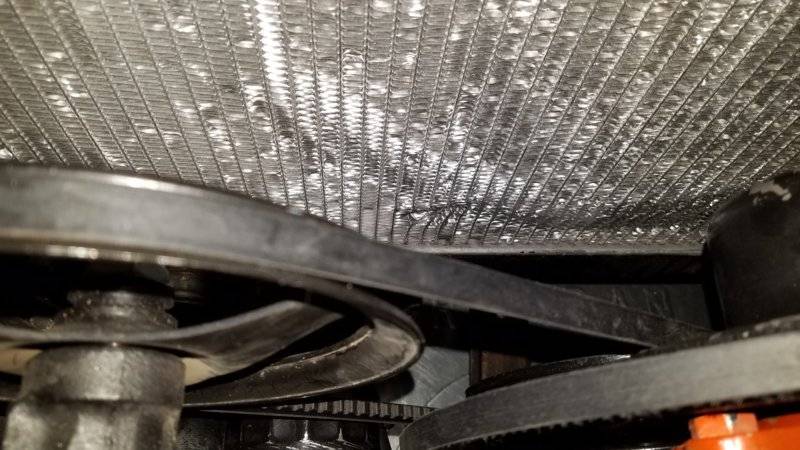

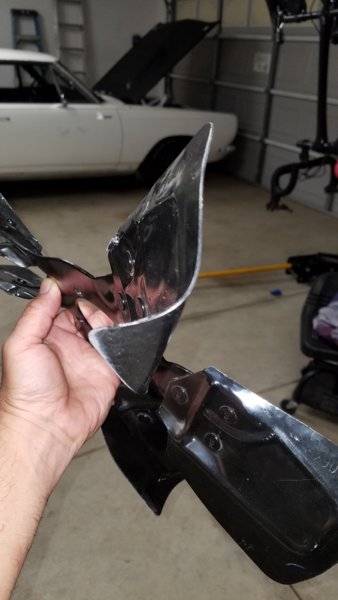

    Well hell. Recently switched back to the Mopar Performance viscous 5-blade fan (#4140063). It was cooling wonderfully. Then I couldn't slow down enough in time going over a nasty country RR crossing. The road I wanted to take was closed so I wasn't familiar with this crossing and just wasn't ready for the gnarly crown in between the rails, with a massive rut on one side...jammed the brakes at the last second but not in time, so I let up just before I hit the bu-bump at 30mph. Fan blades were apparently a little too close. Car must have flexed like a sumbitch. Pulled over immediately after hearing the sound of metal hitting and saw all my nice green coolant flowing to the earth...2947 clutch and everything had (I thought) good clearance but there was only about 3/4" between the blades and core at the bottom(can't really see the two big holes the fan made in the lower part of the core in the pic). Water pump and fan clutch ok. So. A new radiator is next on the to-do list...thank goodness for Triple-A!
    giphy (13).gif

    • Thanks! Thanks! x 4
    • Agree Agree x 1
    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      7,510
      Likes Received:
      11902
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      5:46 PM
      Son of a bitch.
      My Griffin that I had sat closer to the fan at the bottom than at the top. Someone here wrote that this is the case with almost ALL aftermarket radiators because their mounting flanges are not the same as a stock radiator. OEMs stand off of the core support more at the top to sit squarely away from the fan. Stock engine positions have the engine and trans sitting a few degrees lower at the rear.
      I replaced the Griffin with an SpeedCooling 26" unit.
      Sorry to read of your troubles. Good luck.

      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • beanhead

        beanhead FBBO Gold Member FBBO Gold Member

        Messages:
        2,525
        Likes Received:
        3366
        Joined:
        May 18, 2014
        Location:
        Wackyfornia
        Local Time:
        5:46 PM
        Yeah, the engine tilt combined with the 'ol unibody twist got me I guess...oh well. Funny because that fan and the one I had on before were about the same distance away but never even so much as grazed the radiator, over the course of 1500 or so miles. Now I know how the General Lee felt lol

      • Kern Dog

        Kern Dog FBBO Gold Member FBBO Gold Member

        Messages:
        7,510
        Likes Received:
        11902
        Joined:
        Apr 13, 2012
        Location:
        Granite Bay CA
        Local Time:
        5:46 PM
        Maybe there was not so much of twist from the frame as it was flex from the motor mounts/trans mounts shifting forward?

        • Agree Agree x 1
        • beanhead

          beanhead FBBO Gold Member FBBO Gold Member

          Messages:
          2,525
          Likes Received:
          3366
          Joined:
          May 18, 2014
          Location:
          Wackyfornia
          Local Time:
          5:46 PM
          That's more likely, my 'mightymount' engine mounts prevent rise but probably don't stop them from compressing. Trans mount is oem-style rubber too, so that was probably it. Tomorrow I am going to more closely inspect the oil pan, suspension, etc but it seemed to be okay

          • Like Like x 1
          • R/T Boy 67

            R/T Boy 67 Well-Known Member

            Messages:
            131
            Likes Received:
            118
            Joined:
            Apr 23, 2018
            Location:
            Nanaimo B.C. Canada
            Local Time:
            5:46 PM
            I have that same fan and I love it. It moves a lot of air. It was a little cozy with my rad, so I made a spacer and moved the fan back a bit from the viscous unit. No problems so far.

            • Thanks! Thanks! x 1
            • Ironbuilt

              Ironbuilt FBBO Gold Member FBBO Gold Member

              Messages:
              6,254
              Likes Received:
              9762
              Joined:
              Jul 1, 2017
              Location:
              North Carolina
              Local Time:
              8:46 PM
              When I installed the aluminum radiator in my 63, I noticed the fan was way too close for comfort. After weighing my options, I went with electric. Sorry about your misfortunes @beanhead.

              • Thanks! Thanks! x 1
              • beanhead

                beanhead FBBO Gold Member FBBO Gold Member

                Messages:
                2,525
                Likes Received:
                3366
                Joined:
                May 18, 2014
                Location:
                Wackyfornia
                Local Time:
                5:46 PM
                Yeah....it was fine but hitting that bumpy crossing too fast was too much. Your spacer is a good idea to keep in the memory banks however I don't have much room there anyway. It was only about 3/8-1/2" in front of the power steering pulley. I think the two blades that hit were slightly bent, pitch-wise, to where the leading edge was a little closer to the radiator. Probably from storage. It's a good fan with it's light weight, but that also makes it somewhat flimsy and easy to bend, at least compared to the old-timey fans. I'm going to 'custom fit' a factory 7-blade on the next one as it's blade pitch doesn't put it so close, yet it moves lots of air. Just needs an equal small amount of metal taken off the ends to clear the shroud. I have a Derale 6-blade that fits but I think it's way too heavy.

              • Cranky

                Cranky Moderator Staff Member FBBO Gold Member

                Messages:
                16,034
                Likes Received:
                10532
                Joined:
                Dec 4, 2009
                Location:
                Pasa-getdown-dena Texas
                Local Time:
                7:46 PM
                Oh crap....been there before and it sucks! Unibody cars are fairly stiff but not stiff enough to not flex some when going over really rough stuff but there was more going on there than body flex. If you've ever driven a car rough without a hood on it, you'll get a first hand show of how much an engine will move around. First time it took me by surprise with stock mounts. It moved around a lot! And I sure like that car! Had a 68 road runner coupe race car in the early 80's and don't know why I ever sold it....

                • Like Like x 1
                • R/T Boy 67

                  R/T Boy 67 Well-Known Member

                  Messages:
                  131
                  Likes Received:
                  118
                  Joined:
                  Apr 23, 2018
                  Location:
                  Nanaimo B.C. Canada
                  Local Time:
                  5:46 PM
                  My car has manual steering, so backward clearance was not a problem. I can see that p.s. would be a problem.

                  • Like Like x 1
                  • moparedtn

                    moparedtn FBBO Gold Member FBBO Gold Member

                    My Photo Garage
                    Messages:
                    3,185
                    Likes Received:
                    3184
                    Joined:
                    May 14, 2011
                    Location:
                    Northeast TN Foothills
                    Local Time:
                    8:46 PM
                    Back last year when I went through setting up mine (utilizing the massive Griffin radiator), I wound up not running a viscous fan at all for the very reason you mention - there's not enough clearance from the radiator (mine also measured 3/4" at the bottom of the viscous coupling when using the "shorty" Jaguar coupling).

                    Yep, there is a decided tilt to the engine and the fan/coupling winds up real close at the bottom - too close for my taste.

                    I wound up running a factory shroud and a fixed fan on a 1" spacer, giving me half in/half out on the fan blade to shroud spacing;
                    I used a 19" 7-blade fan from Summit recommended by coloradodave. That got my fan far enough away from that $$$ radiator to sooth my fears.

                    Little did I know that these engines would move THAT much, though. HOLY CRAP! :eek:
                    Think you might have hit that bump harder than you estimated?
                    Do our cars flex that damn much?

                    • Thanks! Thanks! x 1
                    • beanhead

                      beanhead FBBO Gold Member FBBO Gold Member

                      Messages:
                      2,525
                      Likes Received:
                      3366
                      Joined:
                      May 18, 2014
                      Location:
                      Wackyfornia
                      Local Time:
                      5:46 PM
                      Just a jacked-up country railroad crossing, in dire need of repair but I imagine they're just going to tear it out soon for the high-speed rail project, which is under construction within a half mile from there (don't get us CA boys started on that subject or this thread will get dumped into the political section lickity-split! :screwy:)

                      • Like Like x 1
                      • moparedtn

                        moparedtn FBBO Gold Member FBBO Gold Member

                        My Photo Garage
                        Messages:
                        3,185
                        Likes Received:
                        3184
                        Joined:
                        May 14, 2011
                        Location:
                        Northeast TN Foothills
                        Local Time:
                        8:46 PM
                        Still mind-boggling to me what happens politically on the left coast....
                        hell, mind-boggling the dude was even still alive to come back from the political grave. :)

                        • Like Like x 1
                        • 5.7 hemi

                          5.7 hemi FBBO Gold Member FBBO Gold Member

                          Messages:
                          9,904
                          Likes Received:
                          5282
                          Joined:
                          Dec 21, 2008
                          Location:
                          ca
                          Local Time:
                          7:46 PM
                          Bean, sent ya a pm.

                          • Thanks! Thanks! x 1
                          • MoparLeo

                            MoparLeo NRA PATRON LEVEL LIFE MEMBER FBBO Gold Member

                            Messages:
                            250
                            Likes Received:
                            157
                            Joined:
                            Nov 24, 2015
                            Location:
                            Moreno Valley, So California
                            Local Time:
                            5:46 PM
                            Whatever you do, go with new HP motor and trans mounts. 1" should be plenty of clearance. Radiator/fan crashes are caused by a bad motor mount most of the time.

                            • Thanks! Thanks! x 1
                            • beanhead

                              beanhead FBBO Gold Member FBBO Gold Member

                              Messages:
                              2,525
                              Likes Received:
                              3366
                              Joined:
                              May 18, 2014
                              Location:
                              Wackyfornia
                              Local Time:
                              5:46 PM
                              Fairly new 'mitymount' engine mounts. Chalking it up to possibly getting airborne...:D

                            • MoparLeo

                              MoparLeo NRA PATRON LEVEL LIFE MEMBER FBBO Gold Member

                              Messages:
                              250
                              Likes Received:
                              157
                              Joined:
                              Nov 24, 2015
                              Location:
                              Moreno Valley, So California
                              Local Time:
                              5:46 PM
                              Possible. Just in case and to be sure. Try jacking up the engine/trans with a board under the oil pan and look for how much and where you get excessive movement from.

                              • Like Like x 1
                              • beanhead

                                beanhead FBBO Gold Member FBBO Gold Member

                                Messages:
                                2,525
                                Likes Received:
                                3366
                                Joined:
                                May 18, 2014
                                Location:
                                Wackyfornia
                                Local Time:
                                5:46 PM
                                Excellent idea sir. My OEM-style trans mount's been in awhile and we all know how long 'new' stuff lasts anymore...
