Vintage Air uses UC Arm access panel hole to route hoses. I'm looking for alternatives and opinions

Heating, Cooling & AC

  1. biomedtechguy

    biomedtechguy Accelerati Rapidus Maximus

    Messages:
    25,952
    Likes Received:
    38014
    Joined:
    Mar 28, 2014
    Location:
    South Louisiana
    Local Time:
    1:57 PM
    I'm certain that I have used that same hole to put tools and my hand or arm through to do "common" work on my 440, and I think I've used it to get to a bellhousing to block bolt or nut too.
    So I'd rather not run the hoses through there and lose access.
    I'm using aftermarket UC arms with multiple adjustments, so I don't need common access because I don't have cams to adjust.
    The vendor is working with me on my Vintage Air exact fit AC system, and he will replace the supplied hoses with ones that can be cut and terminated. Also there is a firewall bulkhead available.
    Questions:
    What other routes have been used for heater and AC hoses? (pictures if you have them)
    I don't mind the hoses running in similar fashion to the factory heater hoses (no factory AC, 440+6bbl manual transmission car) but I do have headers, so I'm aware of heat rising on the passenger side. They are going to have to run on that side, my AC compressor on the Wraptor serpentine system is on the passenger side, above the tensioner
    (see pic).
    Here's the Vintage Air diagrams:
    Screenshot_20191023-122955_Drive.jpg Screenshot_20191023-122858_Drive.jpg
    I'm inclined to use a firewall bulkhead.
    Do the factory heater hose connections (nipples) in the firewall "go away" somehow or are they part of the firewall?
    Thanks in advance. I'm having the system installed by someone so I can attend to my one man business, and I have a hard time working under a dashboard.

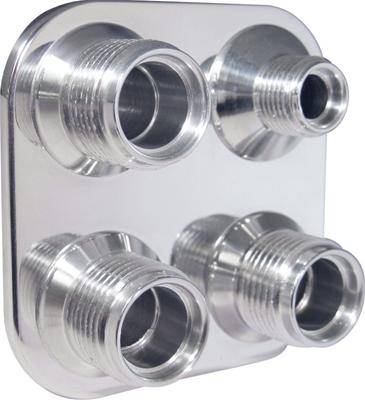

    I'm liking one of these!

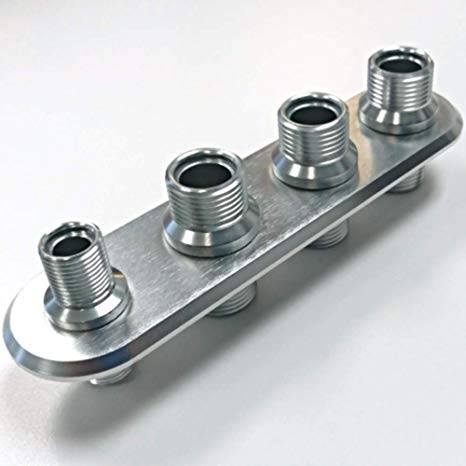

    VTA-384600-MBA_QQ.jpg 6578.png 51Yv3ipVK0L._SX466_.jpg

    Last edited: Oct 23, 2019
  2. themechanic

    themechanic Oklahoma is OK FBBO Gold Member

    Messages:
    11,826
    Likes Received:
    13369
    Joined:
    Nov 11, 2012
    Location:
    Moore, Oklahoma
    Local Time:
    1:57 PM

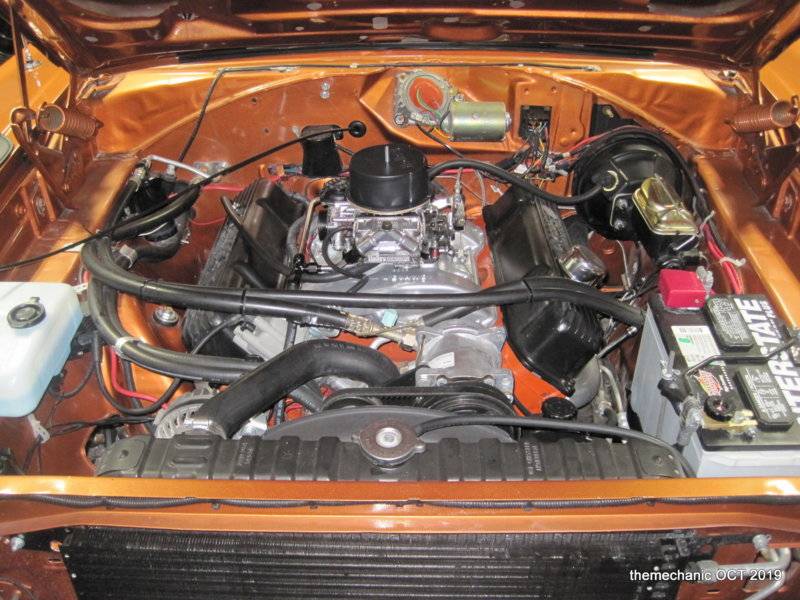

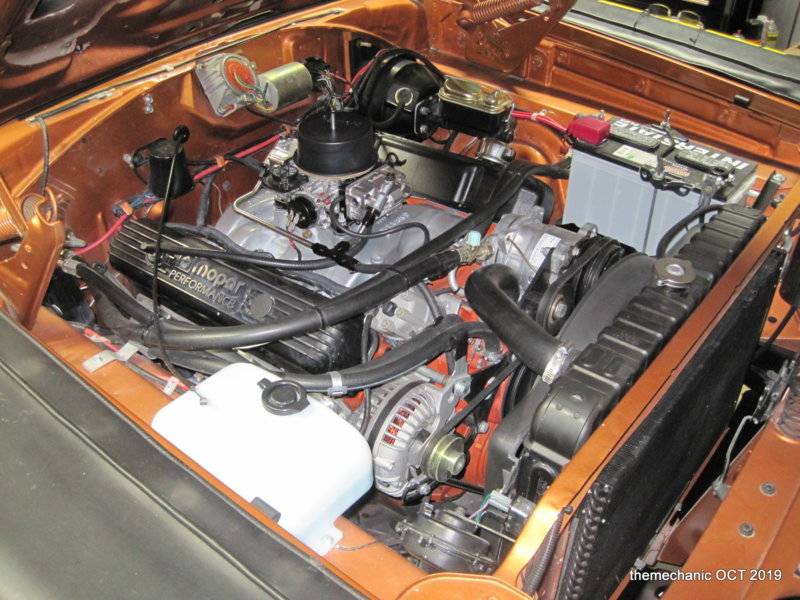

    I had my Classic Auto Air system installed before I bought my car. They did not use the perfect fit system but here is how they did it using a bulkhead on an otherwise clean firewall.

    IMG_0007.JPG IMG_0010.JPG

    • Like Like x 1
    • Thanks! Thanks! x 1
    • biomedtechguy

      biomedtechguy Accelerati Rapidus Maximus

      Messages:
      25,952
      Likes Received:
      38014
      Joined:
      Mar 28, 2014
      Location:
      South Louisiana
      Local Time:
      1:57 PM

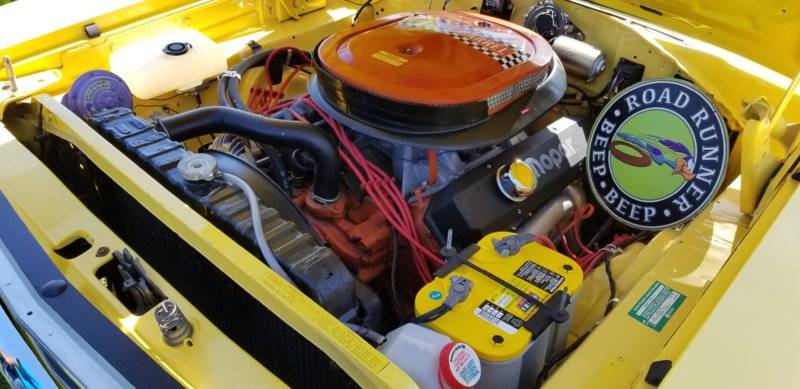

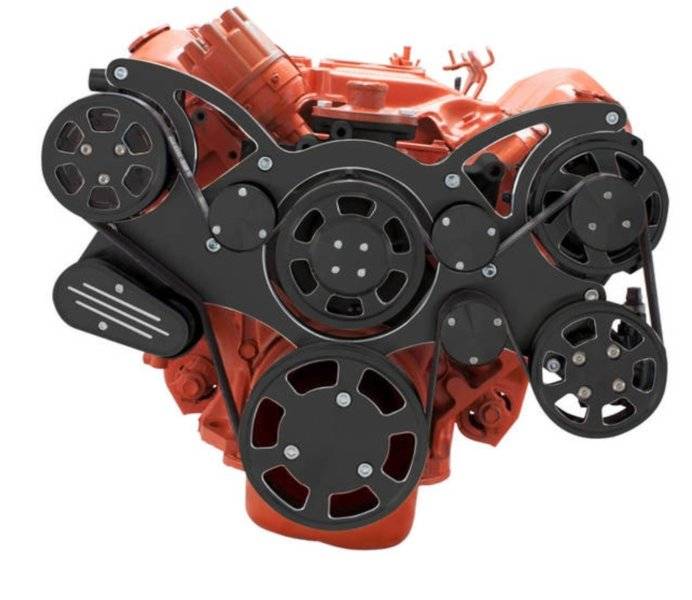

      Maybe the black anodized? My valve covers are and always will be crinkle black, and the Wraptor is Diamond Black to match, and the hoses are black...
      Screenshot_20191011-174704_Chrome.jpg 20180428_101904.jpg

      • Agree Agree x 1
      • themechanic

        themechanic Oklahoma is OK FBBO Gold Member

        Messages:
        11,826
        Likes Received:
        13369
        Joined:
        Nov 11, 2012
        Location:
        Moore, Oklahoma
        Local Time:
        1:57 PM

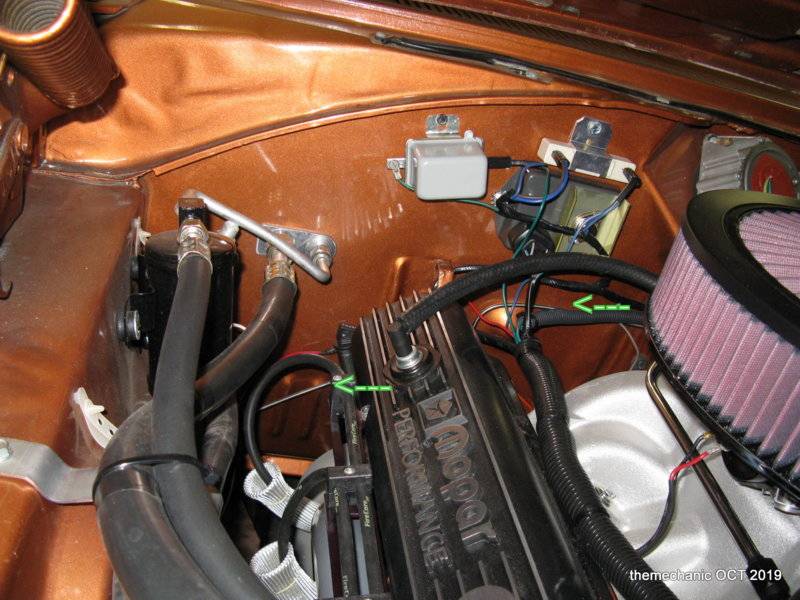

        You also have lines under the dash going from the bulkhead to the evaporator and heater core. Mine had really short crimped rubber lines on the evaporator that leaked. I went to a local hose company who made me a hard line to replace it. A close-up of the firewall. Disregard green arrow. It was showing the brake line routing for another thread.


        Brake Lines Front-002.JPG

        • Like Like x 1
        • 68 Sport Satellite

          68 Sport Satellite Well-Known Member

          Messages:
          1,436
          Likes Received:
          491
          Joined:
          Feb 10, 2010
          Location:
          San Jose, CA
          Local Time:
          11:57 AM
          Subscribed. I am prepping for my vintage air install as well. I bought the firewall 4 port bulkhead you show above.

          • Thanks! Thanks! x 1
          • 69 GTX

            69 GTX FBBO Gold Member FBBO Gold Member

            Messages:
            6,909
            Likes Received:
            6672
            Joined:
            Apr 6, 2013
            Location:
            Milo, Iowa
            Local Time:
            1:57 PM

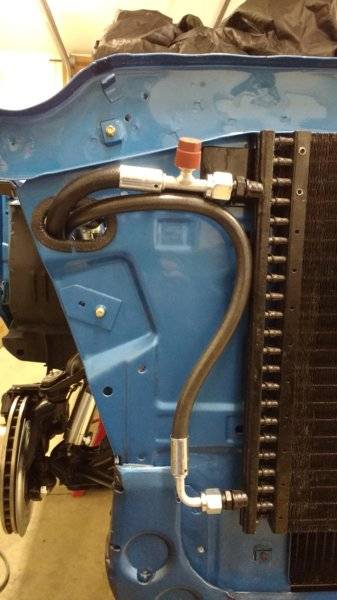

            IMG_20170220_163336318_HDR.jpg IMG_20170421_184408151.jpg IMG_20170430_121603018.jpg
            I didn't like the lines going all the way across the engine bay so I kept all my lines on the passenger side. Still not 100% done. I haven't crimped the lines incase I run into a whoops. Still need to neaten them up a little but you get the jest of the routing.

            • Like Like x 2
            • Thanks! Thanks! x 1
            • biomedtechguy

              biomedtechguy Accelerati Rapidus Maximus

              Messages:
              25,952
              Likes Received:
              38014
              Joined:
              Mar 28, 2014
              Location:
              South Louisiana
              Local Time:
              1:57 PM
              Which one?
              I am really inclined to go black anodized, for the reasons previously mentioned.
              The bulkhead requires FOUR pass throughs connections ??

            • biomedtechguy

              biomedtechguy Accelerati Rapidus Maximus

              Messages:
              25,952
              Likes Received:
              38014
              Joined:
              Mar 28, 2014
              Location:
              South Louisiana
              Local Time:
              1:57 PM

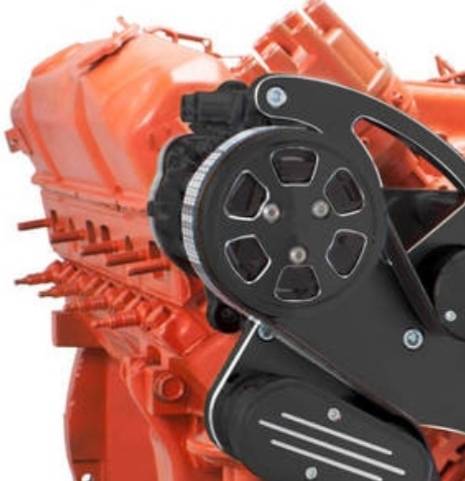

              With my AC compressor being here:
              that should allow for a neat install and clean look. I definitely want to get them to the outside edge of that inner fenderwell, so the heat rising off the header doesn't cook the hoses.

              • Agree Agree x 1
              • biomedtechguy

                biomedtechguy Accelerati Rapidus Maximus

                Messages:
                25,952
                Likes Received:
                38014
                Joined:
                Mar 28, 2014
                Location:
                South Louisiana
                Local Time:
                1:57 PM
                My wife's 65 GTO lines will be routed really cleanly, as recommended by Vintage Air, and seen here on a 65 in one of the car clubs we're in.
                Passenger side too:

              • themechanic

                themechanic Oklahoma is OK FBBO Gold Member

                Messages:
                11,826
                Likes Received:
                13369
                Joined:
                Nov 11, 2012
                Location:
                Moore, Oklahoma
                Local Time:
                1:57 PM
                If you are worried about the heat, just put Design Engineering, Inc (DEI) sleeves on them. Dennis and I have cold air and plain rubber hoses.

                • Thanks! Thanks! x 1
                • biomedtechguy

                  biomedtechguy Accelerati Rapidus Maximus

                  Messages:
                  25,952
                  Likes Received:
                  38014
                  Joined:
                  Mar 28, 2014
                  Location:
                  South Louisiana
                  Local Time:
                  1:57 PM
                  • Agree Agree x 1
                  • Darter6

                    Darter6 FBBO Gold Member FBBO Gold Member

                    Messages:
                    5,147
                    Likes Received:
                    5715
                    Joined:
                    Dec 29, 2009
                    Location:
                    Nevada
                    Local Time:
                    1:57 PM
                    I wish I would have taken photos. We did a 64 Barracuda. Went thru the passenger side of the cowl,under the front fender against the inner front fender, to a bulk head connector. Brought the lines to the compressor and condenser/receiver drier forward of the rad support. Under the fender a gravel guard/shield protected the hard lines and bulk head connector.

                    • Thanks! Thanks! x 1
                    • 493 Mike

                      493 Mike FBBO Gold Member FBBO Gold Member

                      Messages:
                      3,619
                      Likes Received:
                      4051
                      Joined:
                      Dec 25, 2011
                      Location:
                      White Cloud, MI
                      Local Time:
                      2:57 PM
                      On my 65 Belvedere I'm planning on routing through the right side inner fender at the front of the motor. I was going to utilize grommets but I may use individual bulk head fittings and hard lines inside the fender well. My compressor mounts below the alternator and I planned to place the hoses all in a horizontal plane. The heater hoses would loop below the alternator.
                      Mike

                      • Thanks! Thanks! x 1
                      • 68 Sport Satellite

                        68 Sport Satellite Well-Known Member

                        Messages:
                        1,436
                        Likes Received:
                        491
                        Joined:
                        Feb 10, 2010
                        Location:
                        San Jose, CA
                        Local Time:
                        11:57 AM

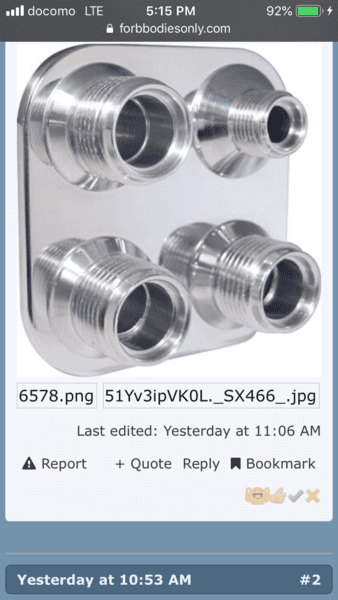

                        The one you show in post #1


                        • Thanks! Thanks! x 1
                        • 69 GTX

                          69 GTX FBBO Gold Member FBBO Gold Member

                          Messages:
                          6,909
                          Likes Received:
                          6672
                          Joined:
                          Apr 6, 2013
                          Location:
                          Milo, Iowa
                          Local Time:
                          1:57 PM
                          If you haven't ordered exhaust yet, make sure to get it ceramic coated inside and out. That'll help.

                          • Thanks! Thanks! x 1
                          • themechanic

                            themechanic Oklahoma is OK FBBO Gold Member

                            Messages:
                            11,826
                            Likes Received:
                            13369
                            Joined:
                            Nov 11, 2012
                            Location:
                            Moore, Oklahoma
                            Local Time:
                            1:57 PM
                          • biomedtechguy

                            biomedtechguy Accelerati Rapidus Maximus

                            Messages:
                            25,952
                            Likes Received:
                            38014
                            Joined:
                            Mar 28, 2014
                            Location:
                            South Louisiana
                            Local Time:
                            1:57 PM
                            TTi 1 7/8" polished ceramic coated headers. That coating keeps them looking decent.
                            Thanks! Going to read this now.
                            Pricey, but nice stuff.
                            Thanks 68!

                          • SSmoothie

                            SSmoothie Well-Known Member

                            Messages:
                            790
                            Likes Received:
                            2629
                            Joined:
                            Feb 3, 2017
                            Location:
                            Washington
                            Local Time:
                            11:57 AM

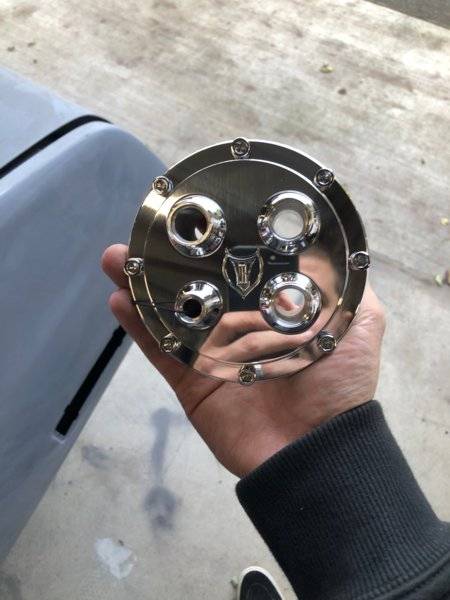

                            I’m using the Restomod Air unit, with this bulkhead.


                            • Thanks! Thanks! x 1
                            • biomedtechguy

                              biomedtechguy Accelerati Rapidus Maximus

                              Messages:
                              25,952
                              Likes Received:
                              38014
                              Joined:
                              Mar 28, 2014
                              Location:
                              South Louisiana
                              Local Time:
                              1:57 PM
                              This one is $71.99
                              They want $315 for the one you have. EEK!

                            • SSmoothie

                              SSmoothie Well-Known Member

                              Messages:
                              790
                              Likes Received:
                              2629
                              Joined:
                              Feb 3, 2017
                              Location:
                              Washington
                              Local Time:
                              11:57 AM

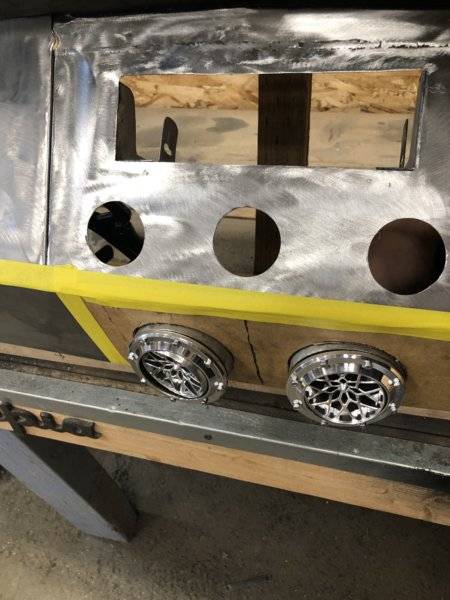

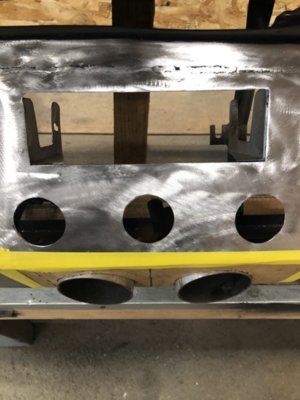

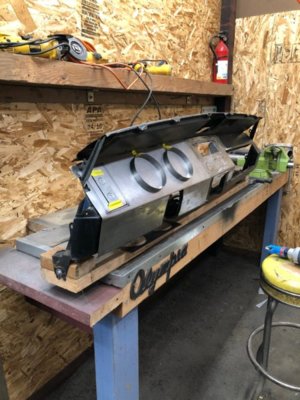

                              I’m also doing a custom dash with Resto-Mods billet vents and controls.

                              3B9A9A73-85B5-44EE-AD30-F49BD6A40E98.jpeg 779F907E-6090-40DD-98AD-5CAEE277BF26.jpeg 5716FE2E-6A5E-45BE-B70F-1A023114952E.jpeg

                              • Like Like x 1
