Voltage regulator install

Electrical & Ignition

  1. Packfan

    Packfan Active Member

    Messages:
    25
    Likes Received:
    8
    Joined:
    Apr 12, 2020
    Location:
    Stevens Point, WI
    Local Time:
    2:57 PM

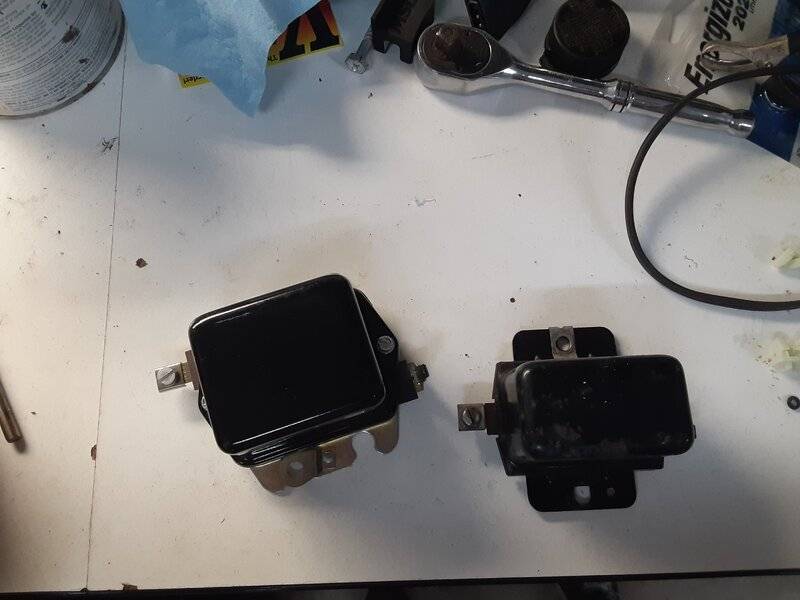

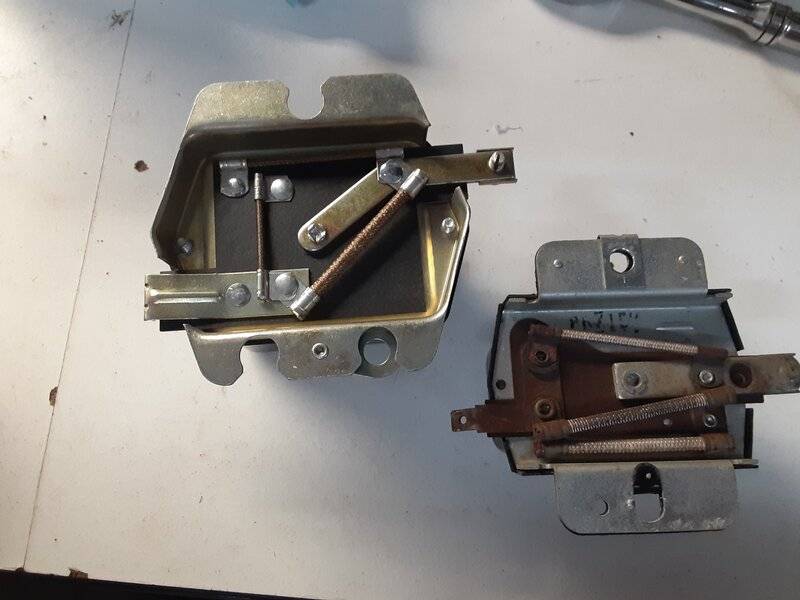

    I am looking to install a new voltage regulator on a '67 GTX. When the car was running there was a small "wift" of smoke every once in a while from behind the old one mounted to the firewall. When mounting the new one, does one of the mount bolts act as a ground for it or should I mount it using the three rubber bushings that came with it? The old one was loosely attached and if it needs to be grounded, that could have been my issue. Thanks, Eric

    20201004_194458[1].jpg 20201004_194527[1].jpg

  2. dadsbee

    dadsbee FBBO Gold Member FBBO Gold Member

    Messages:
    9,434
    Likes Received:
    22593
    Joined:
    Jan 29, 2018
    Location:
    Midland Ontario, Canada
    Local Time:
    3:57 PM
    Should be grounded to work properly..

    • Agree Agree x 3
    • R413

      R413 Well-Known Member

      Messages:
      1,738
      Likes Received:
      3565
      Joined:
      Feb 4, 2019
      Location:
      NW USA
      Local Time:
      12:57 PM
      You have the wrong regulator. Should look like the one on the right. They ground from the attaching bolts.

      DO NOT sand off the paint on the firewall! This grounds through bolt heads and threads, not on the flat metal that mounts it.

      How many factory cars have you seen with the paint sanded off the sheet metal? You won’t see it, it is not necessary and could cause you problems on a car parked in the weather, when that metal rusts then all you have is an ugly mess. Or just parked in a garage without a dehumidifier in the NE USA.

      All the bolts And flanges are plated or painted. The bolt heads rubs the paint off and it grounds right there.

      If you want to ensure a good ground run a ground wire to the attaching bolt.

      I’ve been to auto mechanics college, been certified, worked at dealers for many years and attended factory training classes. They teach you to stop rust and corrosion at electrical connections. Not contribute to it.

      Last edited: Oct 5, 2020
      • Agree Agree x 4
      • khryslerkid

        khryslerkid FBBO Gold Member FBBO Gold Member

        Messages:
        23,948
        Likes Received:
        37170
        Joined:
        Mar 10, 2010
        Location:
        Hanover, Pennslyvania
        Local Time:
        3:57 PM
        And they make them in solid-state now. Clean the paint off the firewall behind at least one of the bolt holes in the regulator for a good ground.

        • Agree Agree x 5
        • Disagree Disagree x 1
        • 1 Wild R/T

          1 Wild R/T FBBO Gold Member FBBO Gold Member

          Messages:
          4,053
          Likes Received:
          8047
          Joined:
          Jul 9, 2019
          Location:
          California
          Local Time:
          12:57 PM
          Your new regulator looks like one for a GM, three mounting screws & rubber insulators = GM....

          Get a electronic regulator that looks original but works better...

          I was afraid you were doing a regulator on an older car with a generator.... Those you don't just bolt on & hook it up, they need to be polarized...

        • 66Satellite47

          66Satellite47 FBBO Gold Member FBBO Gold Member

          Messages:
          4,805
          Likes Received:
          3821
          Joined:
          Jan 15, 2015
          Location:
          St Paul MN
          Local Time:
          1:57 PM
          If the voltage regulator does not have a GOOD ground, you can chase intermittent charging problems forever. Been there, done that.

        • moparedtn

          moparedtn Ed on the Ridge FBBO Gold Member

          Messages:
          10,206
          Likes Received:
          16628
          Joined:
          May 14, 2011
          Location:
          On the Ridge, TN
          Local Time:
          3:57 PM
          Another vote for the electronic ones available now. That constant voltage is a wonderful thing,
          especially if you're running electronic ignition.

          • Agree Agree x 3
          • Like Like x 1
          • Darter6

            Darter6 FBBO Gold Member FBBO Gold Member

            Messages:
            4,770
            Likes Received:
            5188
            Joined:
            Dec 29, 2009
            Location:
            Nevada
            Local Time:
            2:57 PM
            Wells VR706 is a replacement for the old point type pre-1970 Mopars.
            Auto Zone has them under their Duralast name same part number.Electronic.

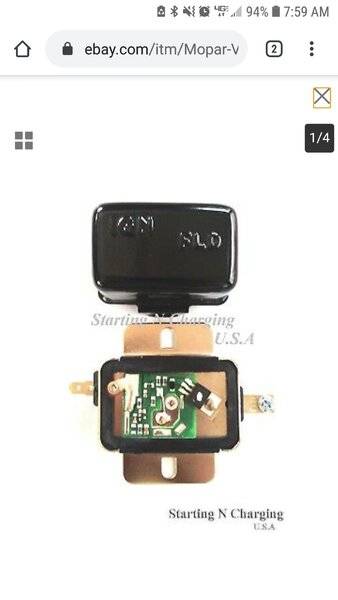

            Cool thing you can take the cover off your old regulator and snap it over the cover of the new VR706 to have the look of original.

            • Agree Agree x 1
            • Packfan

              Packfan Active Member

              Messages:
              25
              Likes Received:
              8
              Joined:
              Apr 12, 2020
              Location:
              Stevens Point, WI
              Local Time:
              2:57 PM
              Thanks for the replies fellas. I was having an issue finding an original looking one and the the new one was listed under my car on Rock Auto. I am running a MSD distributor, 6AL, and MSD coil. There is also a new engine bay wiring harness since someone had it all butchered up. Connections at the bulk head connector looked solid. My issue was when I started the car there was the faint smoke from behind the voltage regulator and the car was overcharging (15.5 volts). Like I said before though, the regulator was loosely hanging there. I will remount it with a good ground and see if that takes care of my issue. I would be interested in swapping over to the electronic version that looks original. Any part #'s for the new one?

              • Like Like x 1
              • Packfan

                Packfan Active Member

                Messages:
                25
                Likes Received:
                8
                Joined:
                Apr 12, 2020
                Location:
                Stevens Point, WI
                Local Time:
                2:57 PM
                Thanks Darter6. I was typing a reply when you posted. I will check it out!

              • Ranger16

                Ranger16 Well-Known Member

                Messages:
                4,050
                Likes Received:
                5035
                Joined:
                Jun 27, 2016
                Location:
                Woodstock Ill.
                Local Time:
                2:57 PM
                DAMN! Wish I new that a couple of years ago.

              • Darter6

                Darter6 FBBO Gold Member FBBO Gold Member

                Messages:
                4,770
                Likes Received:
                5188
                Joined:
                Dec 29, 2009
                Location:
                Nevada
                Local Time:
                2:57 PM
                I have found many mistakes with RockAuto wrongly identifying parts.
                Someone on Moparts sells a electronic regulator that is the look of the early point type too.

              • threewood

                threewood FBBO Gold Member FBBO Gold Member

                Messages:
                4,972
                Likes Received:
                6456
                Joined:
                May 30, 2014
                Location:
                Yuma, AZ
                Local Time:
                12:57 PM
                I have the solid state ones in both my cars and a spare for each of them. Money well spent.

                • Agree Agree x 1
                • Darter6

                  Darter6 FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,770
                  Likes Received:
                  5188
                  Joined:
                  Dec 29, 2009
                  Location:
                  Nevada
                  Local Time:
                  2:57 PM
                  Yep, ^^^^^same seller on Moparts.

                • Fran Blacker

                  Fran Blacker FBBO Gold Member FBBO Gold Member

                  Messages:
                  9,689
                  Likes Received:
                  9306
                  Joined:
                  Sep 23, 2016
                  Location:
                  Connecticut
                  Local Time:
                  3:57 PM

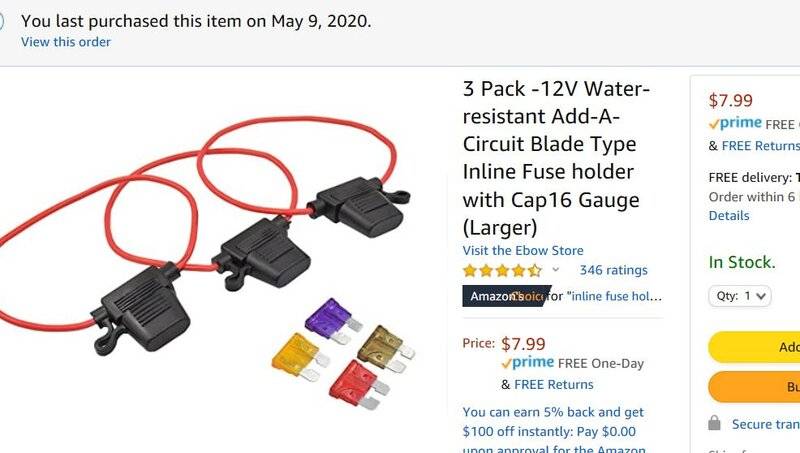

                  Put electronic VR on my car. A member recommended fusing it to protect wiring in case of failure, put 7.5 amp fuse in on male spade side. Picture is what I used.

                • Packfan

                  Packfan Active Member

                  Messages:
                  25
                  Likes Received:
                  8
                  Joined:
                  Apr 12, 2020
                  Location:
                  Stevens Point, WI
                  Local Time:
                  2:57 PM
                  Some great advice here, thanks. Can I assume even the electronic ones get grounded to the firewall?

                  • Agree Agree x 1
                  • Fran Blacker

                    Fran Blacker FBBO Gold Member FBBO Gold Member

                    Messages:
                    9,689
                    Likes Received:
                    9306
                    Joined:
                    Sep 23, 2016
                    Location:
                    Connecticut
                    Local Time:
                    3:57 PM
                    Whether it needed it or not I did grounded it. The electronic one I bought was larger than stock.

                  • threewood

                    threewood FBBO Gold Member FBBO Gold Member

                    Messages:
                    4,972
                    Likes Received:
                    6456
                    Joined:
                    May 30, 2014
                    Location:
                    Yuma, AZ
                    Local Time:
                    12:57 PM
                    Yes, ground it. Star washer to dig in or scrape a bit of paint off under the hole.

                  • 66Satellite47

                    66Satellite47 FBBO Gold Member FBBO Gold Member

                    Messages:
                    4,805
                    Likes Received:
                    3821
                    Joined:
                    Jan 15, 2015
                    Location:
                    St Paul MN
                    Local Time:
                    1:57 PM
                    Scrape paint off both firewall and the regulator. GOOD ground.

                  • Nacho-RT74

                    Nacho-RT74 FBBO Gold Member FBBO Gold Member

                    Messages:
                    4,634
                    Likes Received:
                    1578
                    Joined:
                    Oct 8, 2012
                    Location:
                    Valencia, España
                    Local Time:
                    9:57 PM
                    they offer the old engine mount ( rubber block ) for 73s which are already spool for that year LOL

                    • Thanks! Thanks! x 1
