    Hey all,

    Not long ago i ordered some new wheel studs to use on the rear axle and get rid of the L/H ones.
    Now received and looking at them they are different then what came out, i am assuming these new ones can only be used on the front (with disc brakes) of my car.

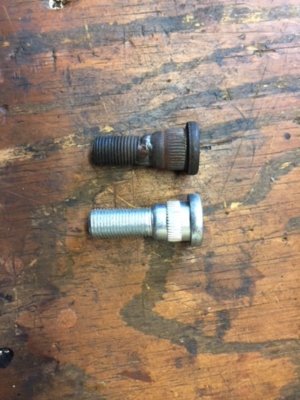

    See the picture, can i use these instead on my 8-3/4" rear axle?
    I am quite sure they never will fully engage against the drive shaft flange as the knurl does not run until the end.


  2. 493 Mike

    493 Mike FBBO Gold Member FBBO Gold Member

    Messages:
    1,020
    Likes Received:
    902
    Joined:
    Dec 25, 2011
    Location:
    White Cloud, MI
    Local Time:
    6:28 PM
    Sure they will. The knurl cuts as it goes, should be no problem.
    Mike

    • Agree Agree x 1
    • moes

      moes Well-Known Member

      Messages:
      620
      Likes Received:
      766
      Joined:
      Dec 18, 2015
      Location:
      ONTARIO
      Local Time:
      6:28 PM
      • Agree Agree x 1
      • khryslerkid

        khryslerkid FBBO Gold Member FBBO Gold Member

        My Photo Garage
        Messages:
        14,678
        Likes Received:
        18790
        Joined:
        Mar 10, 2010
        Location:
        Hanover, Pennslyvania
        Local Time:
        6:28 PM
        If you can, when installing the replacements, as you have them in the hole, turn them to feel the old knurled marks and then pull them through.

        If you don't like what you have, Dorman handles hundreds of studs. You'll need a set of calipers to do your measurements. Napa has a lot of Dorman studs. I've gone on NAPA's website, entered the vehicle, and looked up the studs. The measurements will be under the description of the stud. Or you can go to Dorman and search your measurements. The stud does have a number or letters stamped on the back also but don't always cross reference.

        What you have there should be ok. As long as after they're installed they are tight and not loose. A loose stud might fall out when putting your wheel back on or spin when tightening or removing. One cure if that happens is to weld them from the back. I even found some studs that the knurled area measured undersized. It's what you get now days.

        The shoulder on the stud also protrudes through the brake drum, just even with the surface. I like to see that fitment also.

        Last edited: Apr 16, 2018
        • Agree Agree x 1
        • Wietse

          Wietse Well-Known Member

          Messages:
          707
          Likes Received:
          305
          Joined:
          Apr 16, 2017
          Location:
          Netherlands
          Local Time:
          12:28 AM
          Ok thx guys, good info.
          Last thing i would need is to damage anything that causes the studs not to be tight, or loose a wheel while driving :(
          Once i've swapped the front wheels with the new ones i can start on the rears :)

          Hope they fit though....

        • Dragon Slayer

          Dragon Slayer Well-Known Member

          Messages:
          278
          Likes Received:
          117
          Joined:
          Jun 18, 2014
          Location:
          Virginia
          Local Time:
          6:28 PM
          Rear Studs are Dorman 610-103 RH and 104LH. As Long at the Knurl dia is .637" and the Shoulder Length 9/16" they will work. Length from inside of stud head to end of thread is 1 19/32" give or take.

          • Thanks! Thanks! x 1
          • Wietse

            Wietse Well-Known Member

            Messages:
            707
            Likes Received:
            305
            Joined:
            Apr 16, 2017
            Location:
            Netherlands
            Local Time:
            12:28 AM
            I checked several times but my knurl diameter is .665".
            Then again, what came out can go back in...:eek:
            Maybe..there are certain non-car related things in life where this does not apply on :rofl:

          • Dragon Slayer

            Dragon Slayer Well-Known Member

            Messages:
            278
            Likes Received:
            117
            Joined:
            Jun 18, 2014
            Location:
            Virginia
            Local Time:
            6:28 PM
            My fatfinger. .673"

            • Like Like x 1
            • Wietse

              Wietse Well-Known Member

              Messages:
              707
              Likes Received:
              305
              Joined:
              Apr 16, 2017
              Location:
              Netherlands
              Local Time:
              12:28 AM
              Are the front different from the rear studs?
              I want to run a 1/4" spacer behind my new wheels to compensate the offset difference with the old wheels.
              I need some longer studs for this but i have a feeling the fronts are different?
              Driver side has the 2 piece OEM rotor, passenger side has a 1 piece aftermarket rotor, i got the idea the knurl area is longer.

            • Dragon Slayer

              Dragon Slayer Well-Known Member

              Messages:
              278
              Likes Received:
              117
              Joined:
              Jun 18, 2014
              Location:
              Virginia
              Local Time:
              6:28 PM
              Yes, I have been doing some work on this for some disc brakes and recently comparing some NOS studs against the Dorman catalog.

              Rear are different. Pretty much all rear drums for the 1/2" Stud were 610-103/4. Like 1958 and up. 4 dimensions matter:
              A= thread dia in this case 1/2"
              B=Stud length from the inside of the head to the end of the thread. Not overall stud length
              C= Knurl Dia
              D=Shoulder Length which is inside of head to the end of the shoulder, sometimes this is the start of the thread, but others may have a taper to the thread.

              Rear Drum is B= 1 19/32"; C=.673" and D= 9/16" This shoulder goes through axle and into the drum, then thread starts.

              Front Drum Motor Wheel 10" is a 610-039/40
              B is same 1 19/32" but C is only .625" and D= 23/32" Longer shoulder with full length of Knurl, vice a non knurl area on the shoulder.

              MW 11" are 610-132/33
              B is 1 5/8"; C=.650" and D is 11/16"

              Budd Drum is 610-122
              B= 1 9/16"; C=.650" and D=5/8"

              By the way there was a separate Rear stud for Chrysler and Dodge Truck. 610-036/7 This was 67-69 Chrysler
              C Knurl was .645" with D=1/2"

              Disc Brakes are a whole different stud and much longer. Bendix 67-69 was a 610-136/7
              B= 1 3/4; C =.637" and D 13/16" with knurl at end of shoulder where it would engage the hub. Rotor is under hub on 2 piece

              70-72 Kelsey Hayes is a 610-151
              B 1 15/16", C= .622" and D 15/16"

              Last edited: May 11, 2018
              • Like Like x 1
              • Thanks! Thanks! x 1
              • NJRR

                NJRR FBBO Gold Member FBBO Gold Member

                Messages:
                3,382
                Likes Received:
                3343
                Joined:
                Apr 17, 2011
                Location:
                NJ
                Local Time:
                6:28 PM
                I used Dorman 610-103 on my 70 Satellite to convert the rear to right hand thread, fit perfectly.
                https://www.summitracing.com/parts/RNB-610-103

                • Thanks! Thanks! x 1
                • Wietse

                  Wietse Well-Known Member

                  Messages:
                  707
                  Likes Received:
                  305
                  Joined:
                  Apr 16, 2017
                  Location:
                  Netherlands
                  Local Time:
                  12:28 AM
                  so, i will need a stud with following specs:

                  B=2", C=.637", D=13/16 (A 610-136 but 1/4" longer)
                  My new wheels, incl. 1/4" spacer only leave around 3 threads for the nut to go on.
                  So an extra 1/4" length should do the job, but i did not manage to find anything longer than 1-3/4".

                • Dragon Slayer

                  Dragon Slayer Well-Known Member

                  Messages:
                  278
                  Likes Received:
                  117
                  Joined:
                  Jun 18, 2014
                  Location:
                  Virginia
                  Local Time:
                  6:28 PM
                  1/4" Might not matter. You can go to Dorman site and search on 1/2 Wheel stud. Then select a year like 69 or 70. You will get about 4 pages of results that you can look through. They do have some modern type numbers that may work.

                • Wietse

                  Wietse Well-Known Member

                  Messages:
                  707
                  Likes Received:
                  305
                  Joined:
                  Apr 16, 2017
                  Location:
                  Netherlands
                  Local Time:
                  12:28 AM
                  I think i need to check mine first, i have a doubt they are 1-3/4" long.
                  I wonder where the knurl sits, in the hub or the rotor?
                  Rotor sits behind the hub (looking from outside of the car) so guess the knurl holds on the rotor and keeps it secured against the hub.
                  As the 1-piece rotor is different again, i better remove 1 on each side and measure everything before ordering anything.

                • Dragon Slayer

                  Dragon Slayer Well-Known Member

                  Messages:
                  278
                  Likes Received:
                  117
                  Joined:
                  Jun 18, 2014
                  Location:
                  Virginia
                  Local Time:
                  6:28 PM
                  For rear the knurl is at the head of the stud to bit into hub. For a front disc, since the hub is out, the knurl is at the end of the shoulder near the thread. In fact for the stud, the shoulder has two diameters. A larger one at the Stud head which fits into the rotor, and the smaller at the hub with a knurl. Once you press the stud out, the knurl drops through the rotor hole easily.

                  A one piece probably is like a Rear stud, since your biting into the hub and rotor as one.

                  • Like Like x 1
                  • Wietse

                    Wietse Well-Known Member

                    Messages:
                    707
                    Likes Received:
                    305
                    Joined:
                    Apr 16, 2017
                    Location:
                    Netherlands
                    Local Time:
                    12:28 AM
                    I better check first they did not put anything else in there, for all i know they drilled out the holes and put another size in there :)
