Which dash light sockets do I need?

Electrical & Ignition

  1. BAFRAID

    BAFRAID She’s looking like a Super Bee again!! FBBO Gold Member

    Messages:
    803
    Likes Received:
    1078
    Joined:
    Jul 18, 2016
    Location:
    Temecula, CA
    Local Time:
    12:32 AM

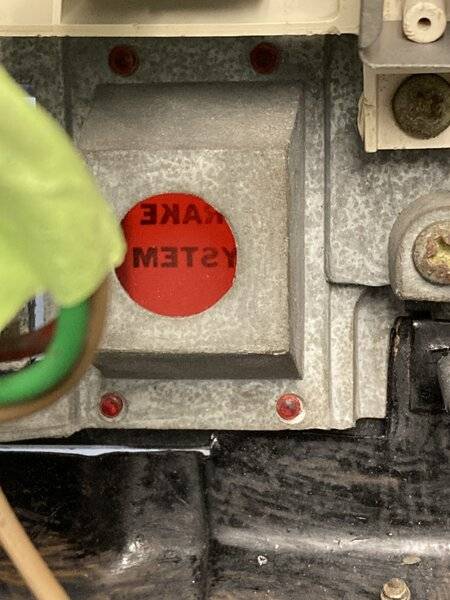

    FC4AE1D3-1DE1-42C8-80CA-8046BFC66F9A.jpeg image.jpg Rewiring my dash. Missing a couple of the twist in bulb sockets which I can get but I’m wondering which type of sockets go into the turn signal indicators the speedo the clock in the basic – wiring as well as the brake system light?

  2. BeepBeepRR

    BeepBeepRR FBBO Gold Member FBBO Gold Member

    Messages:
    5,898
    Likes Received:
    8011
    Joined:
    Oct 16, 2016
    Location:
    Atlanta,Ga
    Local Time:
    3:32 AM

  3. Nacho-RT74

    Nacho-RT74 FBBO Gold Member FBBO Gold Member

    Messages:
    4,569
    Likes Received:
    1547
    Joined:
    Oct 8, 2012
    Location:
    Valencia, España
    Local Time:
    9:32 AM
    I never have seen the EXACT replacement for Mopar dash bulbs ( #57 bulb ) as a pigtail repair piece but pretty much like this

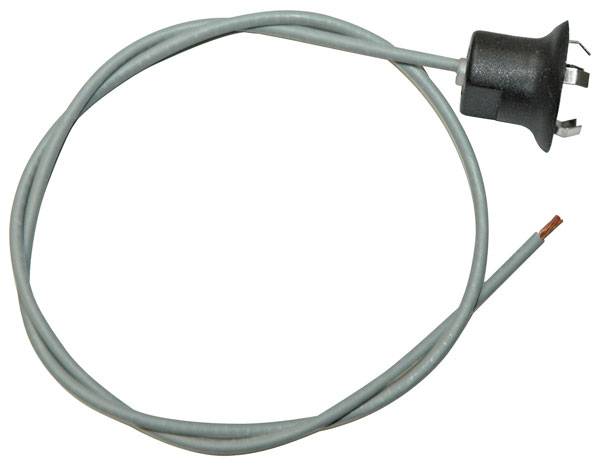

    socket-instrument-panel-lamp-1964-69-chevelle66-69-corvair-1-wire-plastic-ch31845.jpg

    And the Mopar piece should be available somewhere because repro harness get those

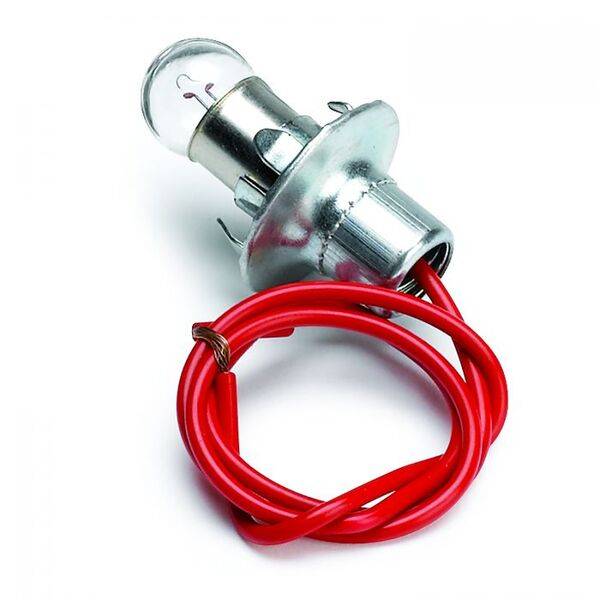

    HOWEVER the brake warning socket is diff, since is isolated from housing being a constant positive feed and switched on by ground

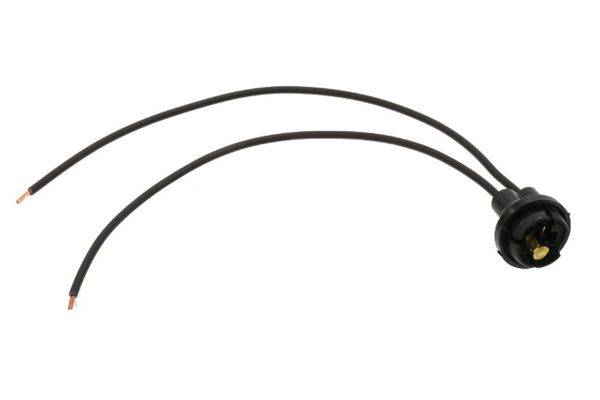

    So, it's something like this

    a2dyb3VuZCI6eyJyIjoyNTUsImciOjI1NSwiYiI6MjU1LCJhbHBoYSI6MX0sIndpZHRoIjo2MDAsImhlaWdodCI6NDAwfX19.jpg

    Last edited: Apr 3, 2021
    • Agree Agree x 2
    • dadsbee

      dadsbee FBBO Gold Member FBBO Gold Member

      Messages:
      9,168
      Likes Received:
      21644
      Joined:
      Jan 29, 2018
      Location:
      Midland Ontario, Canada
      Local Time:
      3:32 AM
      Best I can do...

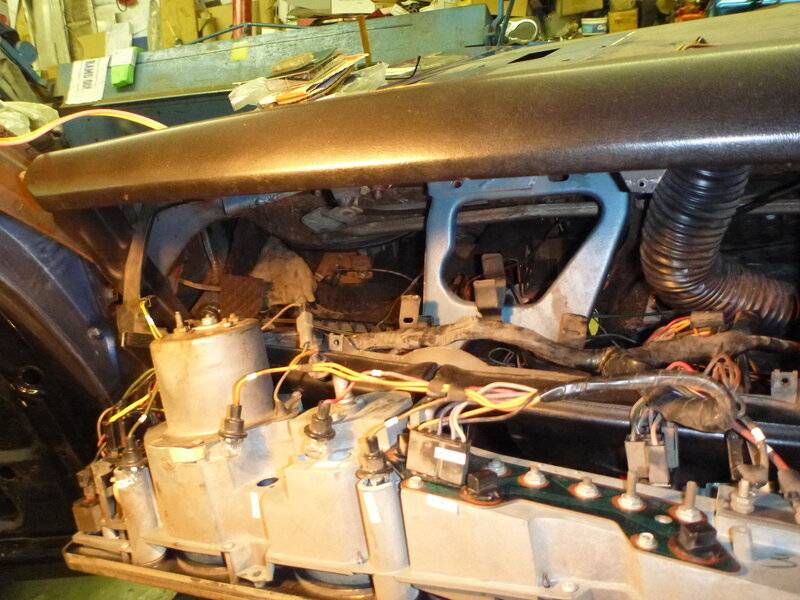

      beerestoration2015 809.JPG beerestoration2015 810.JPG beerestoration2015 811.JPG beerestoration2015 813.JPG

    • eldubb440

      eldubb440 more miracles than Jesus FBBO Gold Member

      Messages:
      6,913
      Likes Received:
      15830
      Joined:
      Jul 17, 2008
      Location:
      South Jersey USA
      Local Time:
      3:32 AM
      and the FBBO award for best photo documenting goes to.......... @dadsbee :drinks:

      • Like Like x 1
      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • Nacho-RT74

        Nacho-RT74 FBBO Gold Member FBBO Gold Member

        Messages:
        4,569
        Likes Received:
        1547
        Joined:
        Oct 8, 2012
        Location:
        Valencia, España
        Local Time:
        9:32 AM


        I bet can be found cheaper on bulk... or at your local parts dealer at the help section.

        Just checked some new repro dash harnesses and they didn't get either the exact original Mopar socket, but similar to the universal plastic ones

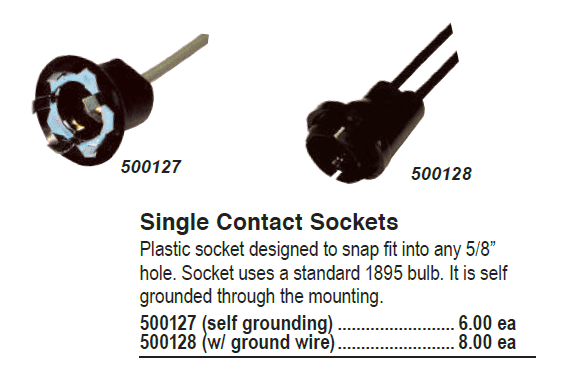

        5/8" hole snap in socket for BA9S bulb base

      • BAFRAID

        BAFRAID She’s looking like a Super Bee again!! FBBO Gold Member

        Messages:
        803
        Likes Received:
        1078
        Joined:
        Jul 18, 2016
        Location:
        Temecula, CA
        Local Time:
        12:32 AM
      • dadsbee

        dadsbee FBBO Gold Member FBBO Gold Member

        Messages:
        9,168
        Likes Received:
        21644
        Joined:
        Jan 29, 2018
        Location:
        Midland Ontario, Canada
        Local Time:
        3:32 AM

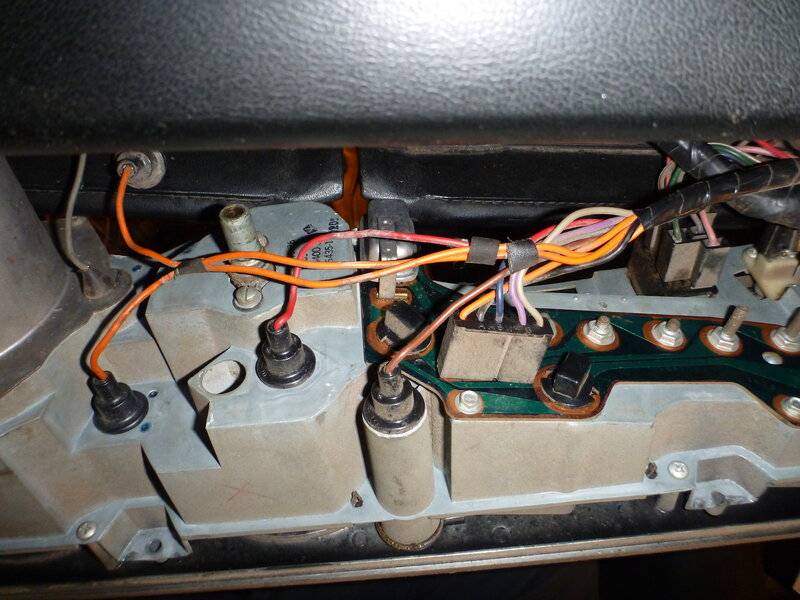

        It's pretty straight forward. Orange are instrument lights, red is the high beam light, green left signal and brown right signal.

        • Agree Agree x 2
        • Thanks! Thanks! x 1
        • BAFRAID

          BAFRAID She’s looking like a Super Bee again!! FBBO Gold Member

          Messages:
          803
          Likes Received:
          1078
          Joined:
          Jul 18, 2016
          Location:
          Temecula, CA
          Local Time:
          12:32 AM

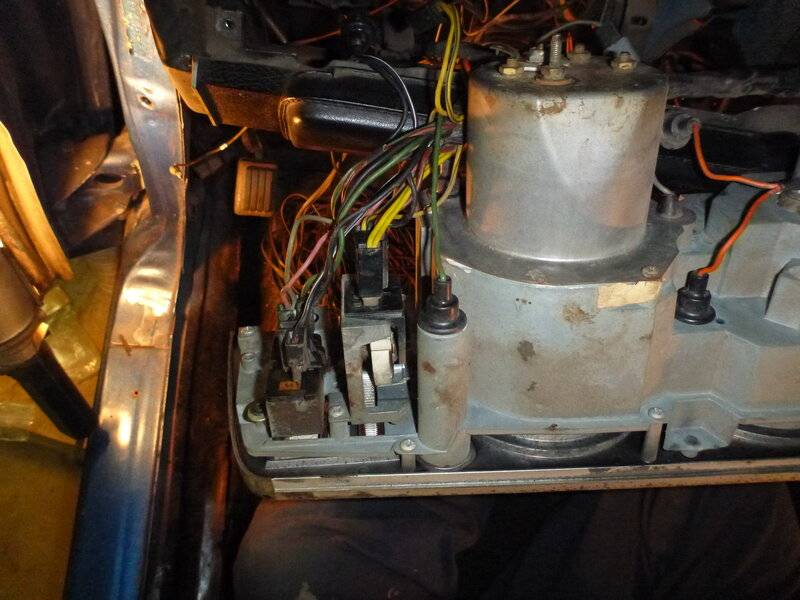

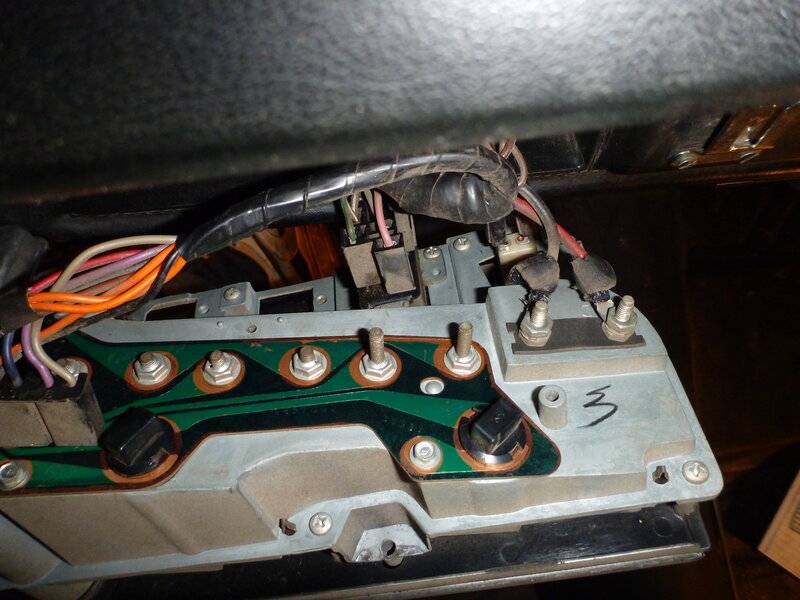

          image.jpg image.jpg image.jpg Still have a couple wires that I am not sure where they go.

          A single plug with two yellow wires with a black tracer which I think said goes to a buzzer lamp

          A single either black or dark brown with a white tracer and a single plug

          off of the flasher switch I have a light green and a tan that I believe go to the turn signal switch?

        • BAFRAID

          BAFRAID She’s looking like a Super Bee again!! FBBO Gold Member

          Messages:
          803
          Likes Received:
          1078
          Joined:
          Jul 18, 2016
          Location:
          Temecula, CA
          Local Time:
          12:32 AM

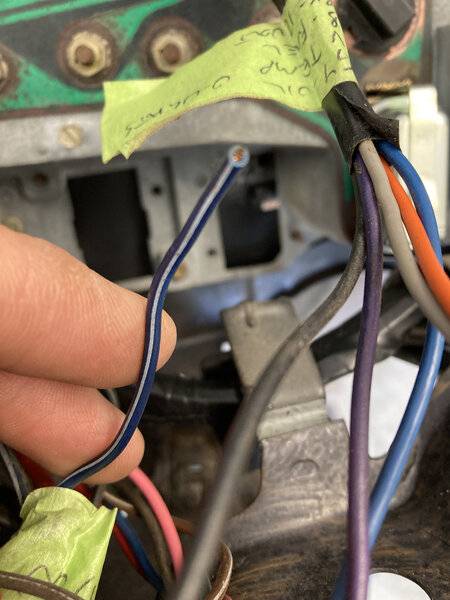

          image.jpg Also this dark blue with a white tracer coming off of the ignition switch
