wiper motor confusion and switches

General Mopar Tech Discussions

  1. snakeoil24

    snakeoil24 FBBO Gold Member FBBO Gold Member

    Messages:
    4,350
    Likes Received:
    3305
    Joined:
    Jan 23, 2009
    Location:
    New Jersey The State of Tax Theives
    Local Time:
    6:01 PM
    can anyone shed lighton wiper motors and switches i am not sure whati have in my possesion. I need to find a source for new wiper switch, black connector with new pig tails and what do i have for wiper motor. Is it a variable, 2 speed or 3 speed for my 67 coronet. Pictuire would help.Im modifying a ez wire harness and im told i may need aresi8stance "wire"" any hep appreciated

  2. Mike67

    Mike67 Well-Known Member

    Messages:
    5,018
    Likes Received:
    7772
    Joined:
    Nov 23, 2014
    Location:
    Woodlands Tx
    Local Time:
    5:01 PM
    I just did mine , I think I have an extra connector, female side. You would just need to re-pin it. I did away with my bulkhead to smooth my firewall so I ended up using a terminal block . Mine is a 3 SPD and I was able to use the existing switch.
    If you're interested PM me your address and I'll send it to you.

  3. snakeoil24

    snakeoil24 FBBO Gold Member FBBO Gold Member

    Messages:
    4,350
    Likes Received:
    3305
    Joined:
    Jan 23, 2009
    Location:
    New Jersey The State of Tax Theives
    Local Time:
    6:01 PM
    any pics of wiring that you did??

  4. Mike67

    Mike67 Well-Known Member

    Messages:
    5,018
    Likes Received:
    7772
    Joined:
    Nov 23, 2014
    Location:
    Woodlands Tx
    Local Time:
    5:01 PM

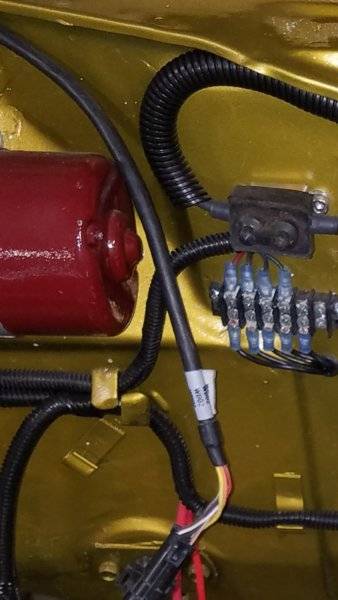

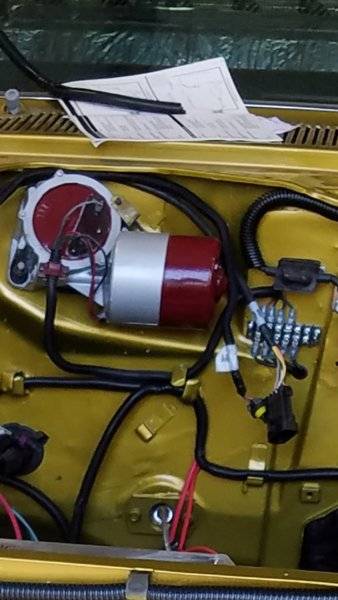

    Nothing of a close up or switch but here is the t block I used after eliminating the bulkhead connector.

    Screenshot_20200210-130244_Gallery.jpg Screenshot_20200210-130344_Gallery.jpg

  5. snakeoil24

    snakeoil24 FBBO Gold Member FBBO Gold Member

    Messages:
    4,350
    Likes Received:
    3305
    Joined:
    Jan 23, 2009
    Location:
    New Jersey The State of Tax Theives
    Local Time:
    6:01 PM
    My wiper is the longer barrel or motor housing

  6. 451Mopar

    451Mopar Well-Known Member

    Messages:
    1,746
    Likes Received:
    1154
    Joined:
    Oct 25, 2011
    Location:
    Aurora, CO
    Local Time:
    4:01 PM
    If it has the resistor on it that looks like a ballast resistor, it is a 2-speed wiper motor.
    Looking for stock design/fit switches or some aftermarket switch?

  7. snakeoil24

    snakeoil24 FBBO Gold Member FBBO Gold Member

    Messages:
    4,350
    Likes Received:
    3305
    Joined:
    Jan 23, 2009
    Location:
    New Jersey The State of Tax Theives
    Local Time:
    6:01 PM
    I'm looking to figure what I have I'll take picture of wiper motor and send later

  8. Mike67

    Mike67 Well-Known Member

    Messages:
    5,018
    Likes Received:
    7772
    Joined:
    Nov 23, 2014
    Location:
    Woodlands Tx
    Local Time:
    5:01 PM

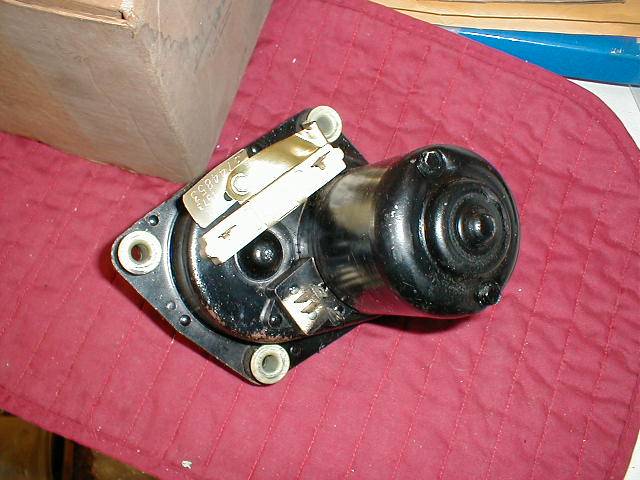

    Mine is a 3spd this is a two spd.


  9. snakeoil24

    snakeoil24 FBBO Gold Member FBBO Gold Member

    Messages:
    4,350
    Likes Received:
    3305
    Joined:
    Jan 23, 2009
    Location:
    New Jersey The State of Tax Theives
    Local Time:
    6:01 PM
    Mine does not look like that one

  10. snakeoil24

    snakeoil24 FBBO Gold Member FBBO Gold Member

    Messages:
    4,350
    Likes Received:
    3305
    Joined:
    Jan 23, 2009
    Location:
    New Jersey The State of Tax Theives
    Local Time:
    6:01 PM
    Mine looks more like yours but longer body of armature

  11. 451Mopar

    451Mopar Well-Known Member

    Messages:
    1,746
    Likes Received:
    1154
    Joined:
    Oct 25, 2011
    Location:
    Aurora, CO
    Local Time:
    4:01 PM
    Most likely a 3 speed / variable speed wiper motor.
    Easiest hookup is to use the original style switch.
    A generic 2-speed wiper motor switch can be made to work by signaling two SPDT relays (or 4 SPST relays), but also requires a power resistor and diode.

  12. snakeoil24

    snakeoil24 FBBO Gold Member FBBO Gold Member

    Messages:
    4,350
    Likes Received:
    3305
    Joined:
    Jan 23, 2009
    Location:
    New Jersey The State of Tax Theives
    Local Time:
    6:01 PM
    451Mopar thank you would you mind providing a drawing i will use the 7 pole switch with the varible speed motor and what ever you say i need for the diode and specific relays.
