Wire harness (light forward)?

Electrical & Ignition

  1. '68 Charger

    '68 Charger Well-Known Member

    Messages:
    1,188
    Likes Received:
    248
    Joined:
    Jun 18, 2012
    Location:
    Akron, Ohio
    Local Time:
    10:51 AM

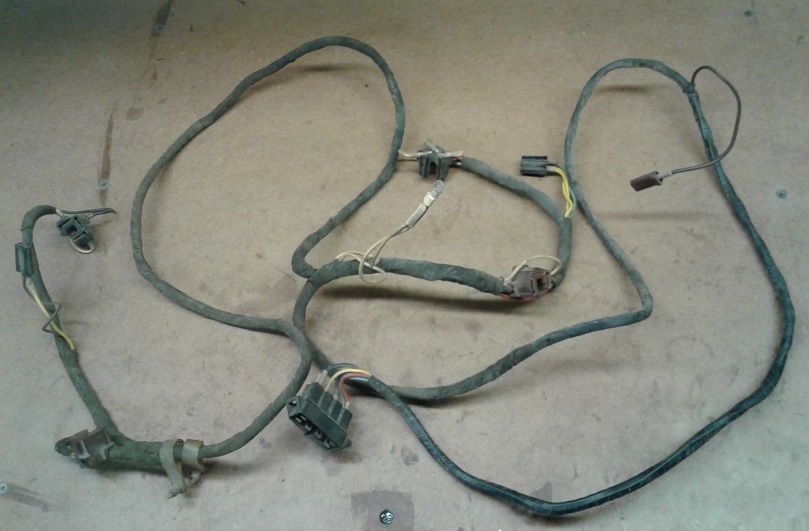

    20170319_174335.jpg I bought a big box of wire harnesses recently from a Mopar guy that was cleaning out his garage. He had a 1965 Coronet and I was wondering if this harness (pics below) came from a 1965 B Body, mainly a Coronet. And it appears to be the light forward harness. Seems to be in real good condition.

    Any help would be greatly appreciated.

    Thanks :thumbsup:

    20170319_174335.jpg 20170319_174345.jpg 20170319_174351.jpg 20170319_174429.jpg 20170319_174452.jpg 20170319_174503.jpg 20170319_174509.jpg

  2. miller

    miller Well-Known Member

    Messages:
    4,083
    Likes Received:
    2002
    Joined:
    Jan 5, 2014
    Location:
    Tom Bean,Texas
    Local Time:
    9:51 AM
    Appears to be. If you have your old one, compare the two, for wires and length.

  3. '68 Charger

    '68 Charger Well-Known Member

    Messages:
    1,188
    Likes Received:
    248
    Joined:
    Jun 18, 2012
    Location:
    Akron, Ohio
    Local Time:
    10:51 AM
    I don't have one to compare it with, that's why I posted the question. Never had a 1965 B Body. I inherited this harness from buying a whole mess of harnesses mainly to gain the 68-69 B Body ones that I knew were in the box. I'm trying to decipher which ones that I have that I don't recognize.

    Thanks

  4. miller

    miller Well-Known Member

    Messages:
    4,083
    Likes Received:
    2002
    Joined:
    Jan 5, 2014
    Location:
    Tom Bean,Texas
    Local Time:
    9:51 AM
    Understand. Only ways I know of, is if the harness has the part no. tag on it. Maybe, if you have wiring diagrams for the car, you can compare wire 'colors', for each wire, but that would be a shot in the dark. From year to year, they seem to vary some. Then again, see if the harness will actually fit the car. Still need to check each wire, to see if they match with the correct ones on the firewall block.

  5. '68 Charger

    '68 Charger Well-Known Member

    Messages:
    1,188
    Likes Received:
    248
    Joined:
    Jun 18, 2012
    Location:
    Akron, Ohio
    Local Time:
    10:51 AM
    Yea that makes since. Hopefully a 1965 expert will weigh in. If you're around certain harnesses a majority of the time they stick out to you.

    :thumbsup: :thumbsup:

  6. '68 Charger

    '68 Charger Well-Known Member

    Messages:
    1,188
    Likes Received:
    248
    Joined:
    Jun 18, 2012
    Location:
    Akron, Ohio
    Local Time:
    10:51 AM
    Okay thanks mmissile.

    :thumbsup:

  7. Shorthorse

    Shorthorse Well-Known Member

    Messages:
    927
    Likes Received:
    785
    Joined:
    Oct 6, 2012
    Location:
    Ohio
    Local Time:
    10:51 AM

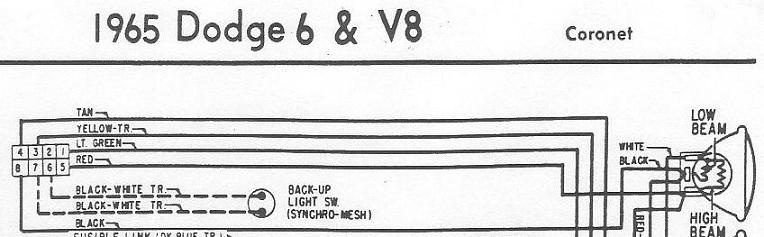

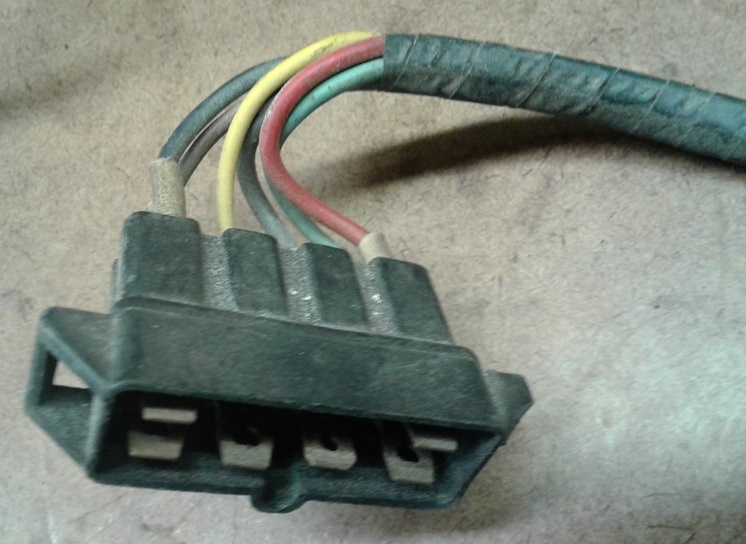

    After looking at several different wiring diagrams on MyMopar ( http://www.mymopar.com/index.php?pid=24 ), it would appear that the harness is for a 64 & 65 Plymouth & Dodge, (Belvedere, Fury, Coronet, Polara) like you thought. Those drawings show the same numbers of used pins in the same order and what appears to be close to the same colors. They also show the other plugs such as the turn signal plugs and the wiper motor plug. The harness looks to be in great shape.

    65 Harness.JPG

  8. miller

    miller Well-Known Member

    Messages:
    4,083
    Likes Received:
    2002
    Joined:
    Jan 5, 2014
    Location:
    Tom Bean,Texas
    Local Time:
    9:51 AM
    It's going to depend on which model car, since after looking again, that harness is for a four headlight car. Year looks about right, though. Also add, in case you don't know, the two white wire lead with a ring connection...is the headlight ground. There will be a spot on the backside of the radiator support, it gets fastened to.

  9. '68 Charger

    '68 Charger Well-Known Member

    Messages:
    1,188
    Likes Received:
    248
    Joined:
    Jun 18, 2012
    Location:
    Akron, Ohio
    Local Time:
    10:51 AM

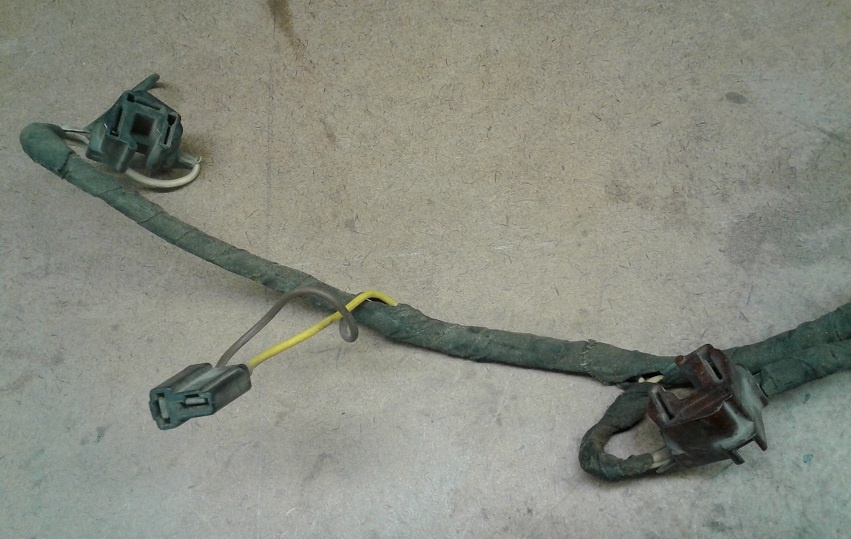

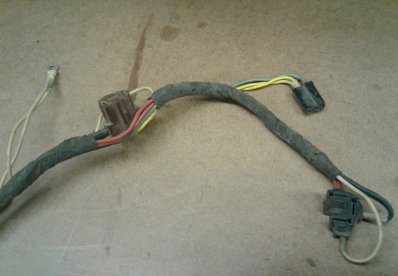

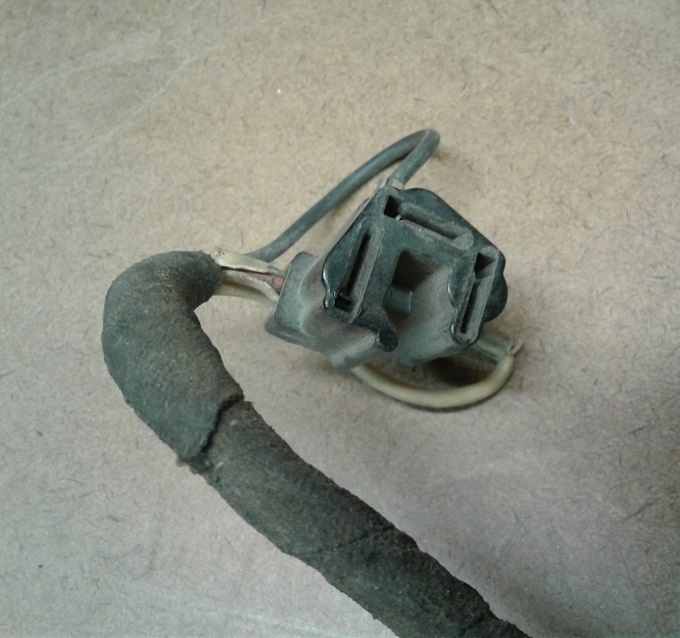

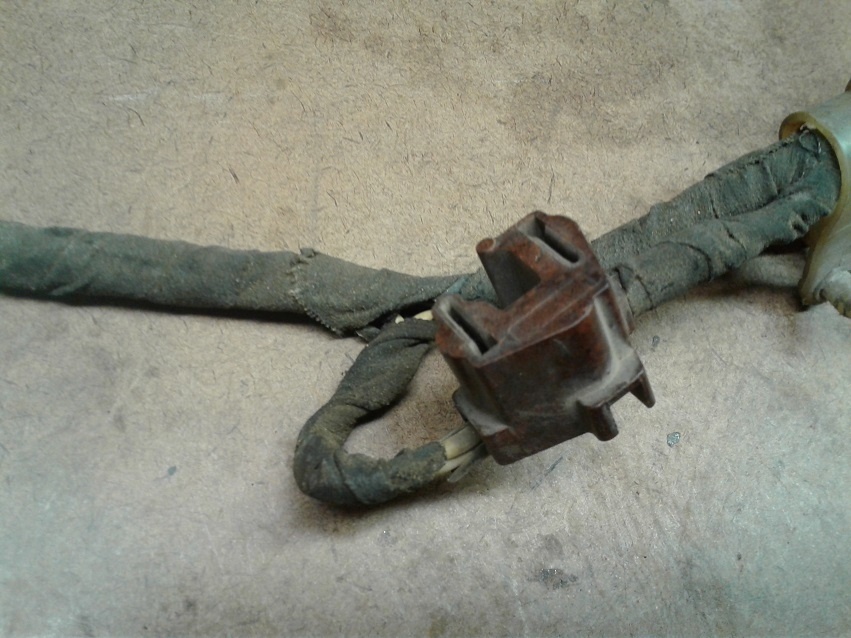

    Thanks. Yea I figured it was a 4 headlight car. Two connectors with 3 prong receptacles and 2 connectors with 2 prong receptacles. 3 prong low beams? 2 prong high beams? The 2 "T" connectors I assume are for the parking lights? And as you pointed out the double white wires w/ring terminal is the ground. Now how about the single brown wire? Accessory?

    Thanks

  10. miller

    miller Well-Known Member

    Messages:
    4,083
    Likes Received:
    2002
    Joined:
    Jan 5, 2014
    Location:
    Tom Bean,Texas
    Local Time:
    9:51 AM

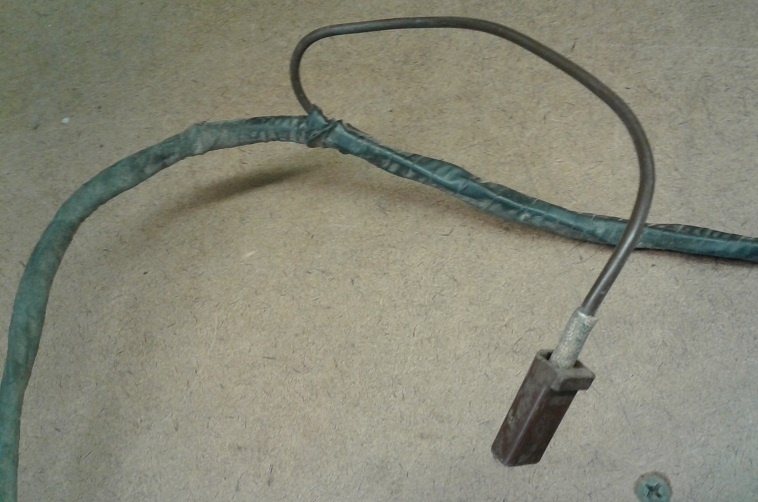

    Single brown wire...runs about halfway down the driver's side wheel well. It's the power supply for the washer pump, that mounts there.

  11. '68 Charger

    '68 Charger Well-Known Member

    Messages:
    1,188
    Likes Received:
    248
    Joined:
    Jun 18, 2012
    Location:
    Akron, Ohio
    Local Time:
    10:51 AM

    Thanks

    :thumbsup: :thumbsup:

  12. '68 Charger

    '68 Charger Well-Known Member

    Messages:
    1,188
    Likes Received:
    248
    Joined:
    Jun 18, 2012
    Location:
    Akron, Ohio
    Local Time:
    10:51 AM
