Would you save this quarter panel or replace - 69 GTX - Opinions please1

1968rt

Well-Known Member
Local time
3:51 AM
Joined
Jul 28, 2010
Messages
752
Reaction score
923
Location
New York

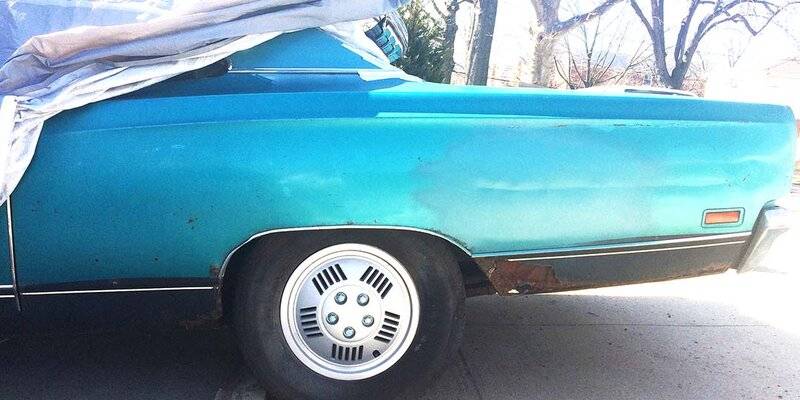

Highly optioned 69 GTX. Im concerned with hurting the value. Trying to decide to replace the whole quarter panel or do the lowers and a few small patches. Window corners and trunk channel would also need work.


69a100

Well-Known Member
Local time
2:51 AM
Joined
Aug 22, 2012
Messages
10,330
Reaction score
14,446
Location
The Real World
Turn the car around and get the sun on it so we can see better, I can't even see what's bad in the front it's so dark? Some closer pics would help to. Good Luck


1968rt

Well-Known Member
Local time
3:51 AM
Joined
Jul 28, 2010
Messages
752
Reaction score
923
Location
New York

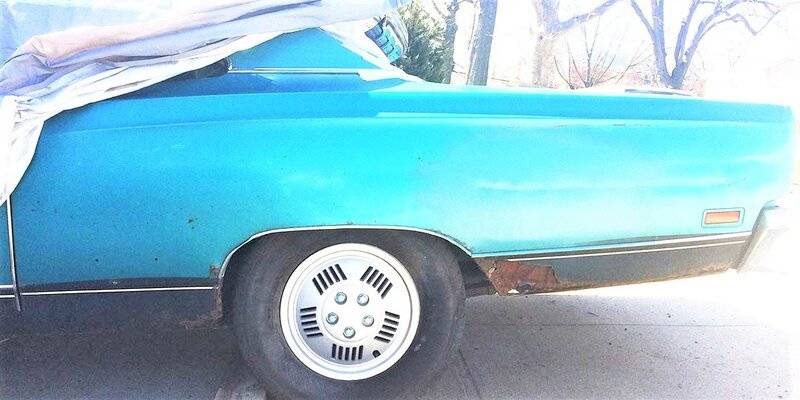

Cant spin it, not running. Front of quarter has about 6 inches of rust. I tried to lighten the picture.


Sahara

FBBO Gold Member
FBBO Gold Member
Local time
1:51 AM
Joined
Jan 18, 2017
Messages
2,480
Reaction score
5,019
Location
Way North Canada. Polar Bear shaped license plates
Just my two cents but: rust is like an iceberg, there’s always more that you can’t see. If you gotta do window corners and trunk channel there has to be more. I’d do the whole quarter rather then fix small areas then have more pop through later. My car was in even better shape then that, once we got into it we ended up doing quarters, back window and trunk floor. But mine isn’t a collector car, just a driver.


Demonic

Well-Known Member
Local time
3:51 AM
Joined
Jun 5, 2017
Messages
1,626
Reaction score
1,424
Location
Maryland
Original metal fits best. The amount of work can end up the same. The trick is either doing the work yourself, or finding a shop competent enough that you can afford. The repo quarters can take a lot of work to get right.


davek

FBBO Gold Member
FBBO Gold Member
Local time
3:51 AM
Joined
Oct 14, 2017
Messages
6,427
Reaction score
6,222
Location
columbia SC
how is the wheel well and trunk floor? back window area good? That is going to be your answer. To me it looks like I would patch it.


1968rt

Well-Known Member
Local time
3:51 AM
Joined
Jul 28, 2010
Messages
752
Reaction score
923
Location
New York
Trunk floor is shot, wheels wheels are solid


Runcharger

Well-Known Member
Local time
12:51 AM
Joined
Apr 22, 2020
Messages
788
Reaction score
1,307
Location
Vernon
It looks like it is rusting on the top of the wheel well? Less work and a better result hanging a new quarter I bet.


Moparman1967

New Member
Local time
12:51 AM
Joined
Oct 5, 2019
Messages
1
Reaction score
0
Location
Elk Grove, CA
I had similar rust issues on my 69. And my upper area was nice just like in your picture. I bought both quarter skins thinking I would just replace them. But after inspection, I realized that I just needed to replace the lower front and back area and a couple of inches above the wheel well. I Decided to keep the marker light as the stamping on the replacement quarter was not as defined as the original. I replaced the trunk and trunk extensions as well.


Ghostrider 67

Power corrupts.....lol.....
FBBO Gold Member
Local time
3:51 AM
Joined
Oct 16, 2014
Messages
26,248
Reaction score
53,593
Location
Salisbury, Vermont
Patch unless the wheel tub is chewed up. The floor can be done by itself as long as the drop offs are good i'd patch it. Depends on yer skill level or ability to pay for the work to be done.


Nate S

Well-Known Member
Local time
3:51 AM
Joined
Apr 24, 2020
Messages
1,341
Reaction score
1,388
Location
Connecticut
Either job can be done well with appropriate effort. The full quarter effort will be in alignment, the patch effort will be in getting a weld that doesn’t show on the inside.


WileERobby

Well-Known Member
Local time
3:51 AM
Joined
Sep 15, 2009
Messages
11,407
Reaction score
17,896
Location
State of insanity
My saying is: "Where there's rust, there's more. " Rule of thumb is, retain as much original metal as possible. If those areas can be sectioned, with the remainder of the part solid, that would be the preference. Before proceeding either way, know EXACTLY how much is good, and how much is not. That will give you your answer.


Ghostrider 67

Power corrupts.....lol.....
FBBO Gold Member
Local time
3:51 AM
Joined
Oct 16, 2014
Messages
26,248
Reaction score
53,593
Location
Salisbury, Vermont
Either job can be done well with appropriate effort. The full quarter effort will be in alignment, the patch effort will be in getting a weld that doesn’t show on the inside.
How are your welding skills?


Runcharger

Well-Known Member
Local time
12:51 AM
Joined
Apr 22, 2020
Messages
788
Reaction score
1,307
Location
Vernon
If the repair isn't tigged it isn't worth doing. Also you will have to open things up if you repair it so you can get in and clean/coat the inner structure surfaces. You have to tig all those lower repairs plus the upper ones, working around what's left to clean it all up.


Nate S

Well-Known Member
Local time
3:51 AM
Joined
Apr 24, 2020
Messages
1,341
Reaction score
1,388
Location
Connecticut
How are your welding skills?
Pretty good. Butt welding is fun but getting gas coverage on the inside is a nuisance. Magnets holding a block up against it on the inside work pretty well if an extra gas bottle and regulator aren’t handy. Worst part is doing TIG (or any welding) on your back at the bottom of the quarter.


Charles Cook

FBBO Gold Member
FBBO Gold Member
Local time
3:51 AM
Joined
May 27, 2015
Messages
1,873
Reaction score
5,848
Location
gaston south carolina
Replace, then you have the opportunity to address what you can’t see. Save your #s that are stamped on the trunk gutter on the drivers side. Enjoy and take your time, it’s not that much trouble, new trunk Pans and 1/4 extensions. Piece of cake. Deck filler panel and corners at the bottom corners and you’re there, rust is gone.


1968rt

Well-Known Member
Local time
3:51 AM
Joined
Jul 28, 2010
Messages
752
Reaction score
923
Location
New York
Makes sense to do it all, this way I can address the hidden rust. Thanks
