Wrong brake parts, now losing pedal.Coincidence?

Milesdodge

Well-Known Member
Local time
9:50 PM
Joined
Aug 26, 2021
Messages
88
Reaction score
15
Location
UK

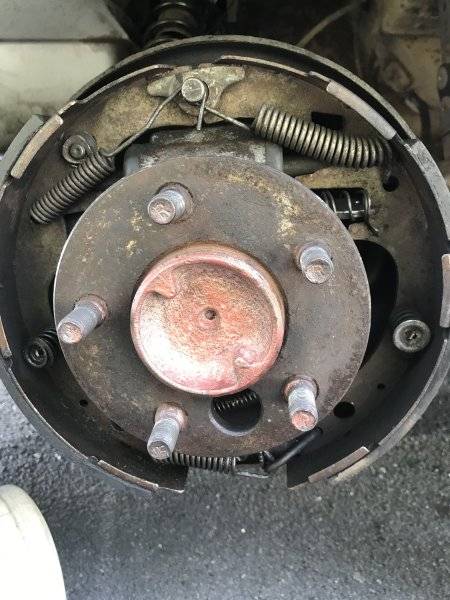

Hi all, earlier this week I had to pull an axle to replace a leaking seal. The brake bar for the parking brake was preventing me getting the axle out so I loosened the brake shoe return springs and did the axle job and put the brakes back together.
I now have the symptoms of a failing master cylinder (it may be failing), but I’d just like an opinion on the pics I’ve got of the brakes. I’m very much aware that the bottom spring is wrong (seems to be unobtainabl) and the car came with that bodge.

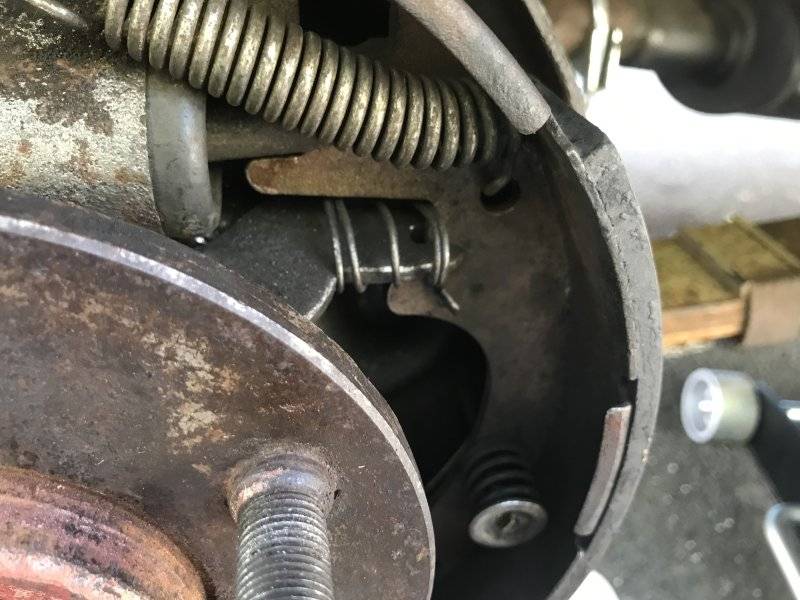

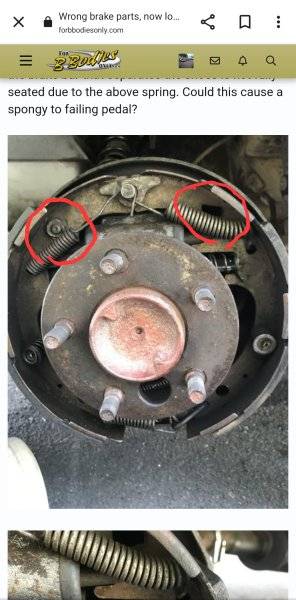

However, please comment on the upper right return spring. It’s got a strange bend on it which is causing it to push the shoe up and away from the wheel cylinder somewhat. One of the pics shows the brake bar that separates the shoes is not fully seated due to the above spring. Could this cause a spongy to failing pedal?







ruffcut

FBBO Gold Member
FBBO Gold Member
Local time
4:50 PM
Joined
Dec 26, 2016
Messages
1,079
Reaction score
1,601
Location
northwestern pa
I agree with you about that right hand spring. It needs to be flipped over. Might solve that problem. ruffcut


Milesdodge

Well-Known Member
Local time
9:50 PM
Joined
Aug 26, 2021
Messages
88
Reaction score
15
Location
UK
I agree with you about that right hand spring. It needs to be flipped over. Might solve that problem. ruffcut
I tried the flip, but the hook for the brake shoe then faces away from the shoe. I’m also not sure that spring should be up against the wheel cylinder so much.


Sam69sat

Well-Known Member
Local time
1:50 PM
Joined
Dec 24, 2020
Messages
1,328
Reaction score
2,772
Location
Oregon
Spring is too long and isn't going to work even if you flip it. It's pushing the shoe out instead of pulling it in. I don't see how you can adjust the brake properly. That shoe is going to be rubbing on the drum since it's pushing out instead of pulling in. At the very least, i would order a drum hardware kit and a drum brake self adjuster kit from rockauto or another shop.


Fran Blacker

FBBO Gold Member
FBBO Gold Member
Local time
4:50 PM
Joined
Sep 23, 2016
Messages
12,629
Reaction score
12,630
Location
Connecticut

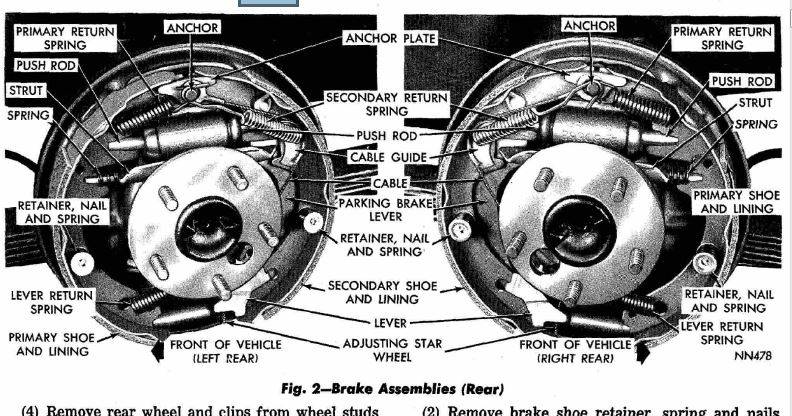

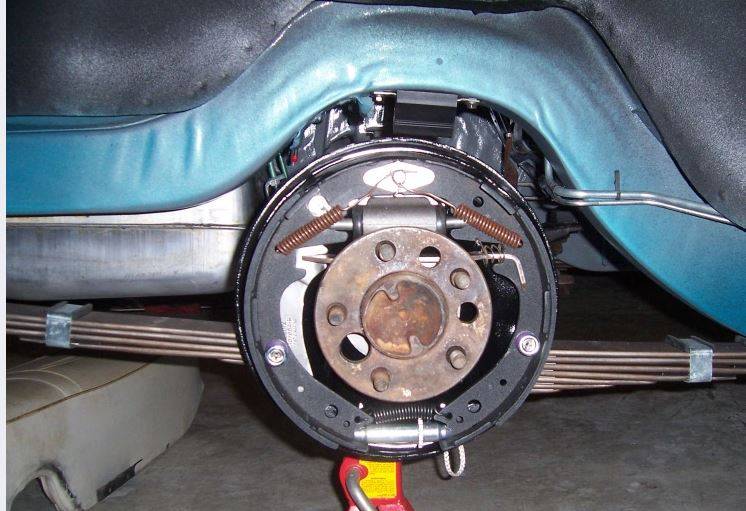

Will switching the left spring with the right help?
rear brakes.JPG




R413

Well-Known Member
Local time
1:50 PM
Joined
Feb 4, 2019
Messages
3,322
Reaction score
6,591
Location
NW USA
First priority on drum brakes is proper adjustment. dont condem the master cylinder yet.

You have problems with those brakes, they are assembled with wrong parts.

****Please show a detailed photo of the star wheel so we can se what you have there.****


Milesdodge

Well-Known Member
Local time
9:50 PM
Joined
Aug 26, 2021
Messages
88
Reaction score
15
Location
UK
Thanks all, for quick and helpful responses. The car was a barn find and a previous owner has lashed this brake set up with whatever is at hand. The correct spring on Rockauto is indeed a shorter version. I understand now why it’s pushing and not pulling.
the bottom spring for the manually adjusted star wheel is another lash up, but does actually work for what it is. I have tried to find the correct spring and not seen it listed. As I’m in the UK I really rely on Rockauto to ship and they don’t appear to have the bottom spring.
photo is before I cleaned up after installing axle seal.



hunt2elk

FBBO Gold Member
FBBO Gold Member
Local time
3:50 PM
Joined
Jul 15, 2009
Messages
9,104
Reaction score
8,867
Location
WI
I think that upper right spring may be ok? The end hooked in the shoe should not be hooked that way. Flip it over and it then should fit in the hole the same as the left side already is.


pnora

FBBO Gold Member
FBBO Gold Member
Local time
4:50 PM
Joined
Apr 21, 2020
Messages
2,567
Reaction score
2,742
Location
Ishpeming, Mi.
What year car?
1-Mismatched upper springs one is wrong,
2-Parking brake is fully applied. Needs to be fully backed off and then adjust service brake.
3-That spring and link at the adjuster screw is totally wrong.


wagonman

FBBO Gold Member
FBBO Gold Member
Local time
3:50 PM
Joined
Aug 1, 2015
Messages
1,941
Reaction score
1,564
Location
Deming New Mexico
Check with Ricksmopars on Ebay. He has the kits with the self adjuster hardware for 10&11 inch brakes.


R413

Well-Known Member
Local time
1:50 PM
Joined
Feb 4, 2019
Messages
3,322
Reaction score
6,591
Location
NW USA

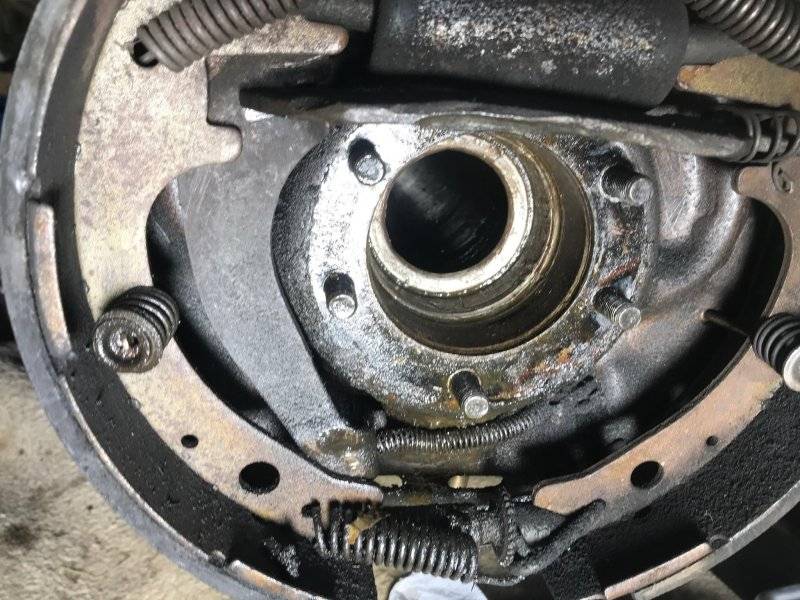

Please take a new picture of the star wheel. We have seen that one before.

Is the part of it on the left side (in the photo) even present? Or is it missing?

Where I’m going with this, if your brakes are not adjust Ed properly you won’t have a firm brake pedal.

you have a self adjust star wheel, and no other self adjust pieces there. you need new springs and self adjust kit and it might work.

You still have the issue with the parking brake cable is applied on the photo. That’s not going to work either.

Last edited:

wagonman

FBBO Gold Member
FBBO Gold Member
Local time
3:50 PM
Joined
Aug 1, 2015
Messages
1,941
Reaction score
1,564
Location
Deming New Mexico
Please take a new picture of the star wheel. We have seen that one before.

Is the part of it on the left side (in the photo) even present? Or is it missing?

Where I’m going with this, if your brakes are not adjust properly you won’t have a firm brake pedal.
In one pic you can see the park brake strut is not bottomed on the shoe. Spongy pedal YUP.


RemCharger

Well-Known Member
Local time
3:50 PM
Joined
Apr 5, 2014
Messages
3,061
Reaction score
2,676
Location
Sask
Also appears to be the wrong shoes...
Note the holes where the park brake lever goes in.


bobsgtx

Well-Known Member
Local time
3:50 PM
Joined
Jan 12, 2021
Messages
48
Reaction score
58
Location
wi
I know you are in the UK and don't want to hear this but I think it is time to start over with correct parts. The front shoe looks odd with the slot cut in the upper part by the anchor pin. Spring for adjuster is wrong for manual adjust brakes. With all the wrong parts the PO put on it might be time to straighten it out with correct parts. Bad brakes or steering = who cares how much power!


Milesdodge

Well-Known Member
Local time
9:50 PM
Joined
Aug 26, 2021
Messages
88
Reaction score
15
Location
UK
Thanks again guys, totally appreciate the advice and expertise. I don’t mind shipping over new brake parts, it’s safety that matters. I did wonder about the brake shoes. Car is a 1967 Coronet base 440 model with 10” drums all round.
From memory the other rear brake set up is correct but I’ll double check. Im going to check on Rockauto and RicksMopars to see what I should have.


Milesdodge

Well-Known Member
Local time
9:50 PM
Joined
Aug 26, 2021
Messages
88
Reaction score
15
Location
UK
Please take a new picture of the star wheel. We have seen that one before.

Is the part of it on the left side (in the photo) even present? Or is it missing?

Where I’m going with this, if your brakes are not adjust properly you won’t have a firm brake pedal.
The adjuster does sit correctly between the two shoes I believe, but the double spring thing is clearly not correct.
