    need advice I have a 500 ci wedge with eddy victor max heads going to a single four I acquired a mopar M1 manifold with raised ports on the intakes was told it would fit a max wedge port head , did some research and found this manifold only is for the stage 6 heads true or false and is there adaptors made for it thanks

  2. PRHeads

    PRHeads Well-Known Member

    Messages:
    1,062
    Likes Received:
    1343
    Joined:
    Aug 31, 2018
    Location:
    So. Burlington Vt
    Local Time:
    12:47 AM
    Not enough info......

    You have a low or high deck block?

    Victor heads with MW sized ports?

    Part number for MP intake you bought?

    • Thanks! Thanks! x 1
    • moparsquid

      moparsquid FBBO Gold Member FBBO Gold Member

      Messages:
      341
      Likes Received:
      138
      Joined:
      Sep 9, 2010
      Location:
      spring valley ,ca.
      Local Time:
      9:47 PM
      440 block victor max heads with max wedge size ports sorry don't have m1 part number with me was told I need a stage 6 head to fit ill post the intake number when I get off work latter

    • 33 IMP

      33 IMP Well-Known Member

      Messages:
      4,954
      Likes Received:
      6606
      Joined:
      Dec 21, 2017
      Location:
      taxifornia,soon 2b Arizona.
      Local Time:
      9:47 PM
      Nope, youre screwed. It fits nothing. The trouble is it looks just like the 337 that everybody wants.
      Edit: thats not strictly true. It fits raised port stage 6 heads on a tall deck block ONLY. That is if its the intake i think it is. Does it have an integral valley cover? If it does, it is too wide for anything else.
      2nd edit: i was looking for a 337 at the mopars at the strip swap area, a couple years ago, and almost bought that turkey myself, till i noticed the part number wasnt right.
      3rd edit: no adapters will work, its already too wide. You would have to space the HEADS up!

      Last edited: Nov 8, 2020
      • Like Like x 1
      • Agree Agree x 1
      • oldkimmer

        oldkimmer FBBO Gold Member FBBO Gold Member

        Messages:
        1,409
        Likes Received:
        620
        Joined:
        Oct 18, 2008
        Location:
        Kindersley,Saskatchewan, Canada
        Local Time:
        11:47 PM
        That’s right. It fits only stage 6 heads on a RB block. Kim

      • moparsquid

        moparsquid FBBO Gold Member FBBO Gold Member

        Messages:
        341
        Likes Received:
        138
        Joined:
        Sep 9, 2010
        Location:
        spring valley ,ca.
        Local Time:
        9:47 PM
        Looks like I got hooked by the price and didn't do my homework

      • 33 IMP

        33 IMP Well-Known Member

        Messages:
        4,954
        Likes Received:
        6606
        Joined:
        Dec 21, 2017
        Location:
        taxifornia,soon 2b Arizona.
        Local Time:
        9:47 PM
        No, you got lied to. It happens.

      • oldkimmer

        oldkimmer FBBO Gold Member FBBO Gold Member

        Messages:
        1,409
        Likes Received:
        620
        Joined:
        Oct 18, 2008
        Location:
        Kindersley,Saskatchewan, Canada
        Local Time:
        11:47 PM
        U bought it on this forum didn’t u? Kim

      • oldkimmer

        oldkimmer FBBO Gold Member FBBO Gold Member

        Messages:
        1,409
        Likes Received:
        620
        Joined:
        Oct 18, 2008
        Location:
        Kindersley,Saskatchewan, Canada
        Local Time:
        11:47 PM
        How so? Kim

      • moparsquid

        moparsquid FBBO Gold Member FBBO Gold Member

        Messages:
        341
        Likes Received:
        138
        Joined:
        Sep 9, 2010
        Location:
        spring valley ,ca.
        Local Time:
        9:47 PM
        yes i believe i did here's the part number p4532758

      • PRHeads

        PRHeads Well-Known Member

        Messages:
        1,062
        Likes Received:
        1343
        Joined:
        Aug 31, 2018
        Location:
        So. Burlington Vt
        Local Time:
        12:47 AM
        If that’s the number cast on the manifold, that’s not the “part number”(won’t be in any catalog).

        The variations are, std or MW ports, and 4150 or 4500 carb.

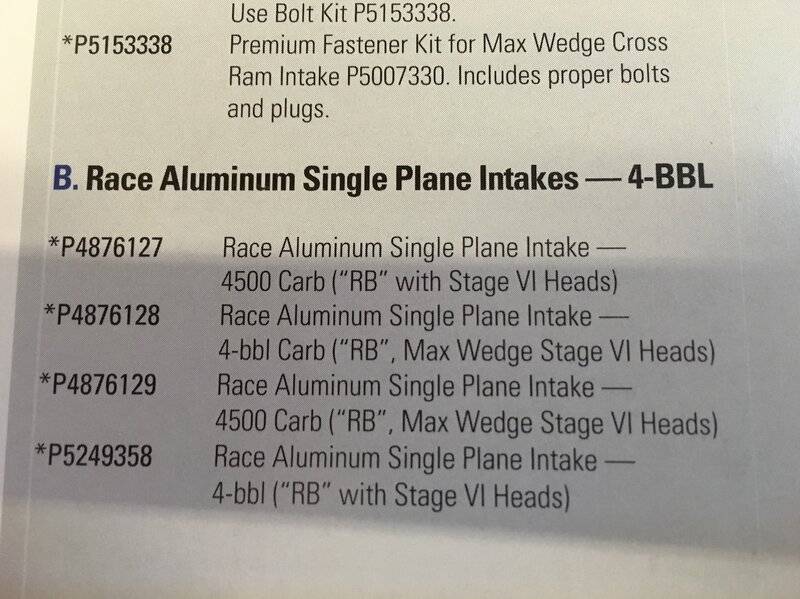

        Here are the 4 part numbers for the different stage 6 manifolds:


        All of those only fit raised port stage 6 heads(not the “street stage 6”), on RB blocks.

        Last edited: Nov 9, 2020
      • oldkimmer

        oldkimmer FBBO Gold Member FBBO Gold Member

        Messages:
        1,409
        Likes Received:
        620
        Joined:
        Oct 18, 2008
        Location:
        Kindersley,Saskatchewan, Canada
        Local Time:
        11:47 PM
        Is it 1 of these? If so which 1? Kim

      • PRHeads

        PRHeads Well-Known Member

        Messages:
        1,062
        Likes Received:
        1343
        Joined:
        Aug 31, 2018
        Location:
        So. Burlington Vt
        Local Time:
        12:47 AM
        • Thanks! Thanks! x 1
        • moparsquid

          moparsquid FBBO Gold Member FBBO Gold Member

          Messages:
          341
          Likes Received:
          138
          Joined:
          Sep 9, 2010
          Location:
          spring valley ,ca.
          Local Time:
          9:47 PM
          I thought the number on the flange was it id have to look later today

        • 33 IMP

          33 IMP Well-Known Member

          Messages:
          4,954
          Likes Received:
          6606
          Joined:
          Dec 21, 2017
          Location:
          taxifornia,soon 2b Arizona.
          Local Time:
          9:47 PM
          Yep, bought a 2893 super victor for my victor max heads. $481 at summit now. I sure dont remember paying that much for mine.

          • Agree Agree x 1
          • PRHeads

            PRHeads Well-Known Member

            Messages:
            1,062
            Likes Received:
            1343
            Joined:
            Aug 31, 2018
            Location:
            So. Burlington Vt
            Local Time:
            12:47 AM
            The number that is on a MP intake manifold is not the “part number”.

            In other words....... it’s not the number that’s on the box the intake comes in.

            The number in the catalog is the number on the box.

            The same goes for stage 6 heads.
            The number on the head is not the number that’s on the box the head comes in, and it’s not the number in the catalog.

            • Thanks! Thanks! x 1
            • moparsquid

              moparsquid FBBO Gold Member FBBO Gold Member

              Messages:
              341
              Likes Received:
              138
              Joined:
              Sep 9, 2010
              Location:
              spring valley ,ca.
              Local Time:
              9:47 PM
              more than likely ill sell this as I don't need a trophy taking up space

            • malex

              malex FBBO Gold Member FBBO Gold Member

              Messages:
              2,003
              Likes Received:
              2639
              Joined:
              Aug 10, 2013
              Location:
              Canada
              Local Time:
              11:47 PM
              —-
              I bought a 2893 2 years ago and it was 410.00. Got it from either Summit or Jegs.

              • Thanks! Thanks! x 1
              • 33 IMP

                33 IMP Well-Known Member

                Messages:
                4,954
                Likes Received:
                6606
                Joined:
                Dec 21, 2017
                Location:
                taxifornia,soon 2b Arizona.
                Local Time:
                9:47 PM
                That sounds more like what i paid.
                Im still looking for a 337 for a set of iron max heads sitting on my shelf.
