1969 horn connections

[Robertop]

Can anybody post a photo showing the electrical connections to the horn/ relay in a 69 roadrunner? Thank you.



[BeepBeepRR]

http://www.forabodiesonly.com/mopar/threads/troubleshooting-a-horn-circuit.152220/

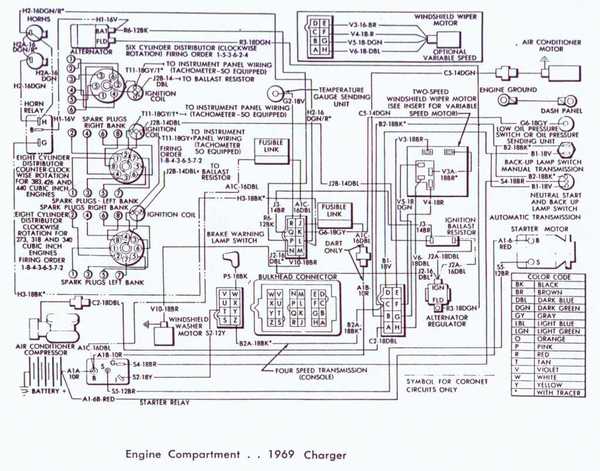

This is a charger but should be the same.. Top left corner.



[hashmaker]

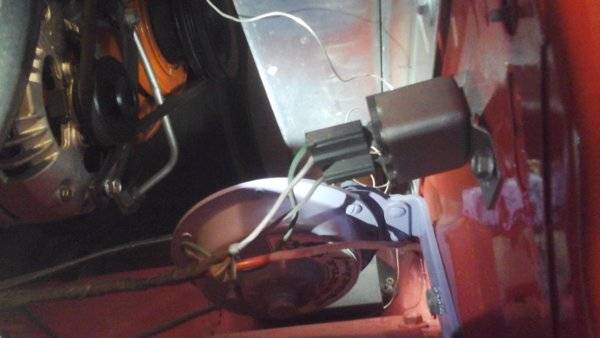

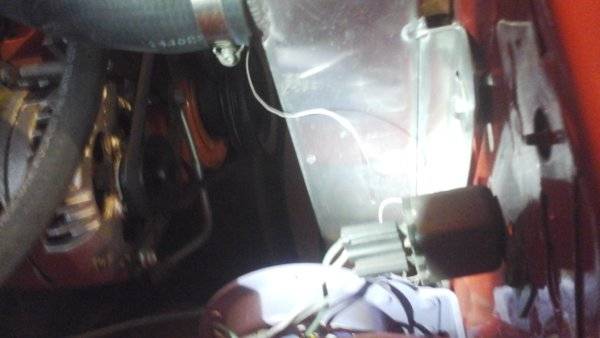

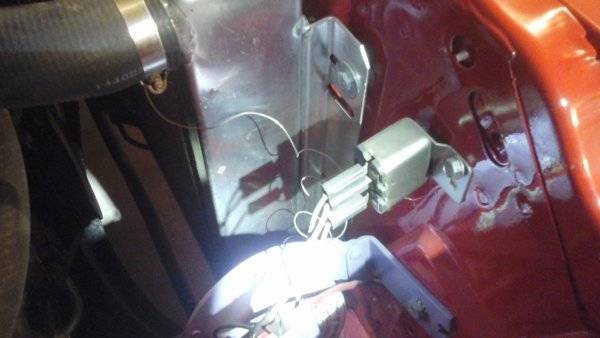

Here is what my 69 RR looks like.



[Robertop]

Here is what my 69 RR looks like.

View attachment 539966 View attachment 539967 View attachment 539968

Hey hashmaker: I think you put the horn backwards....



[Robertop]

Here is what my 69 RR looks like.

View attachment 539966 View attachment 539967 View attachment 539968

Hey hashmaker: I think you put the horn backwards....



[BeepBeepRR]

Hey hashmaker: I think you put the horn backwards....

Wont it suck instead of blow?



[Nacho-RT74]

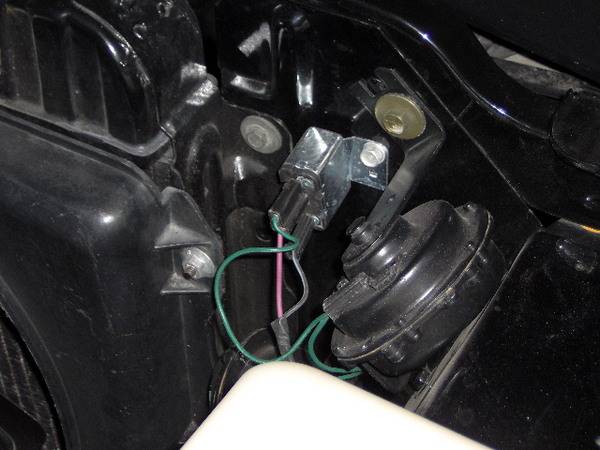

violet, positive splice from alt post
black, ground trigger coming from steering column switch
green traced, positive to feed horns
