1964 426 max wedge carb #3705

[SPAULDO]

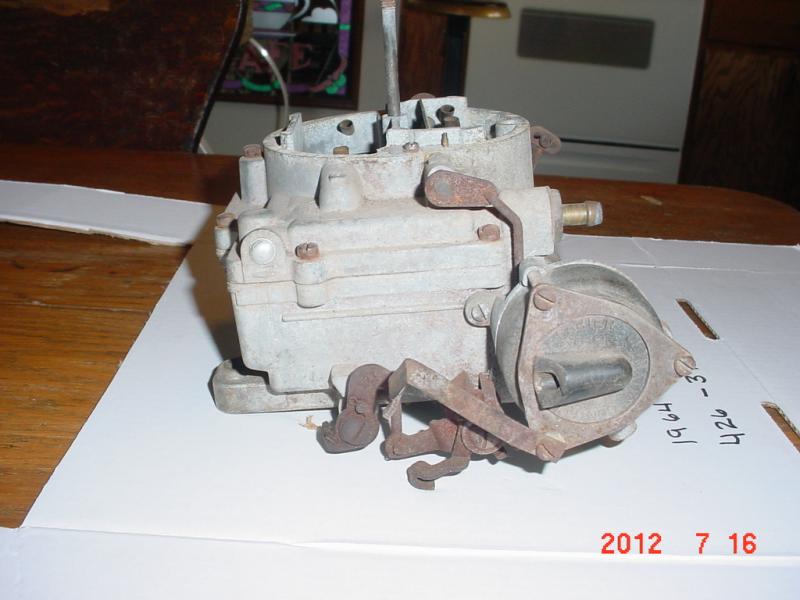

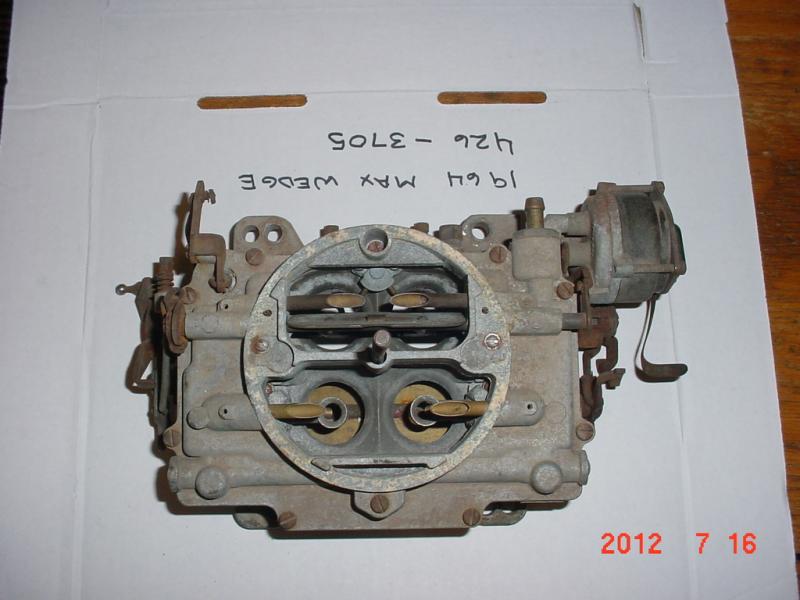

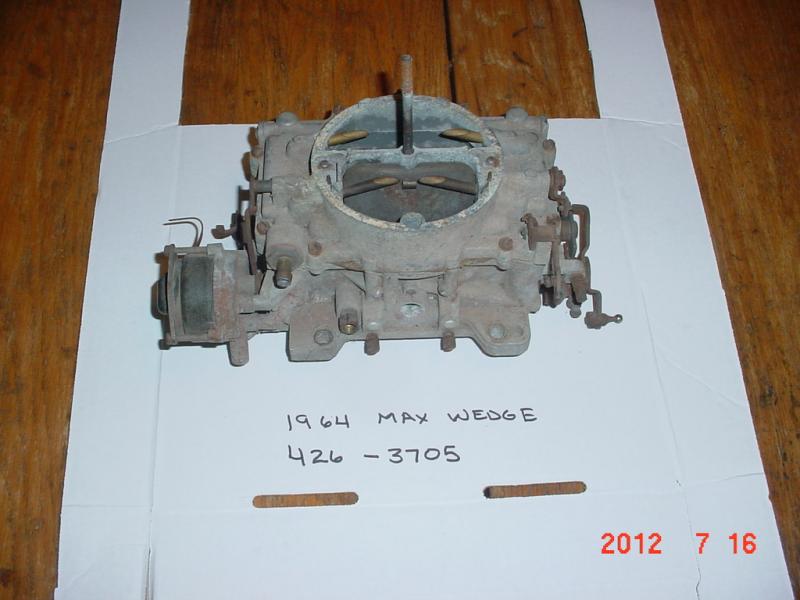

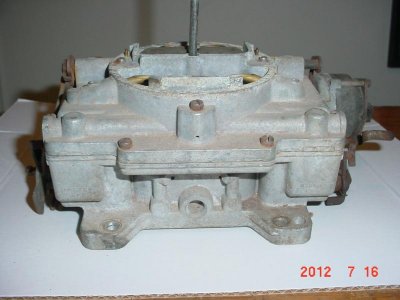

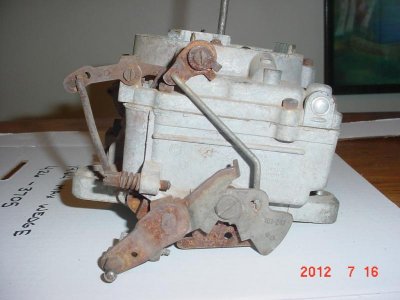

I'm sure someone is looking for this carb.I didn't put any work into cleaning it and I'm sure it could use a rebuild but these are very hard to find! Linkage is in working order not all froze up,$500 shipped to your door.



[6t4polara]

Does that carb. have an automatic choke on it?



[detmatt1]

Spauldo you did well on that storage unit didn't you?



[Meep-Meep]

That carb doesn't look right for a MW as I don't think those had auto chokes. Also the throttle lever doesn't look right and I don't see any velocity valves in the secondaries. The 3705 should have 1-11/16" throttle bores as far as I know. Are there any other numbers? A couple of spaces away from the list number there should be a letter and a number. That's the date code. For example, A6 would be Jan 66.



[SPAULDO]

Carb numbers

I'll take a good look at this carb when I get to the house and check for any and all numbers I can find



[MCODECUDA]

The fuel inlet is all wrong for a 3705



[moparsteve636]

That is NOT a 3705!Looks like an industrial carb.



[SPAULDO]

I will be pulling this off the market until I figure out what it is?



[62MAX]

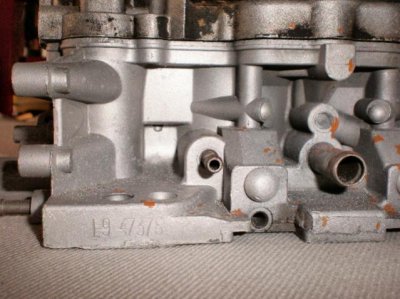

You'll find the number here.



[BCBOUND]

3705

I can post pics of a NOS 3705 in the box if anyone is interested....

I'll have to pull it out of storage tomorrow.

I guarantee it will look nothing like the previous one posted.
