1971 Hemi Roadrunner battery harness question

Rusty

Well-Known Member
Local time
4:15 PM
Joined
Mar 9, 2009
Messages
541
Reaction score
548
Location
Texas

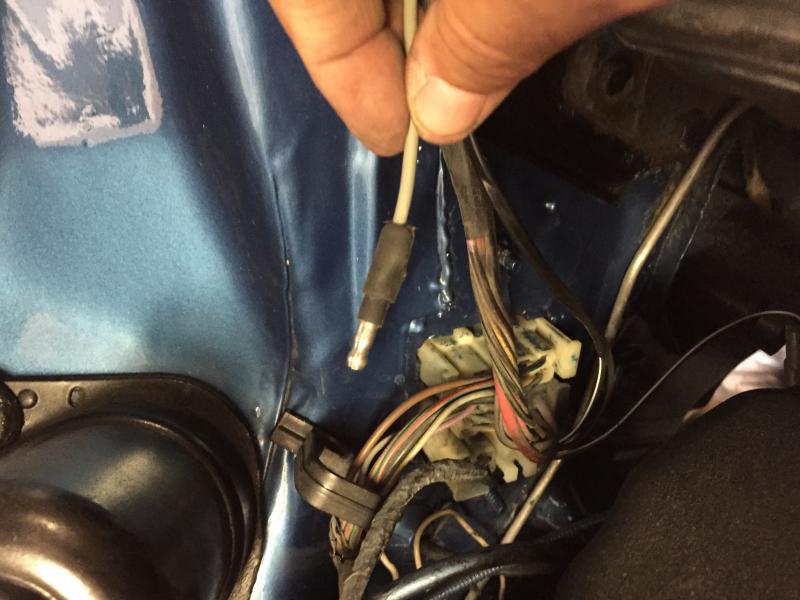

On the battery harness there is a tan wire as seen in the photo that stops a few inches from the bulkhead connectors. The other end stops at a un-insulated blade connector between the starter and the transmission (4 speed) reverse light switch. What is this tan wire for?
Thanks


Attachments

  • image.jpg
    59.4 KB · Views: 195
If this were a 72 I would say hood directional indicator light and there would be a similar connection by the wiper motor but I do not remember seeing them on the hood in 71.

71 they are fender mounted but that doesn't explain the other side of the wire?

I'm beginning to think its something specific for the automatic transmission that isn't on a 4 speed

I figured it out, it's the tach wire that goes in connector spot #20 and the other side goes into the engine harness to the coil
